Components

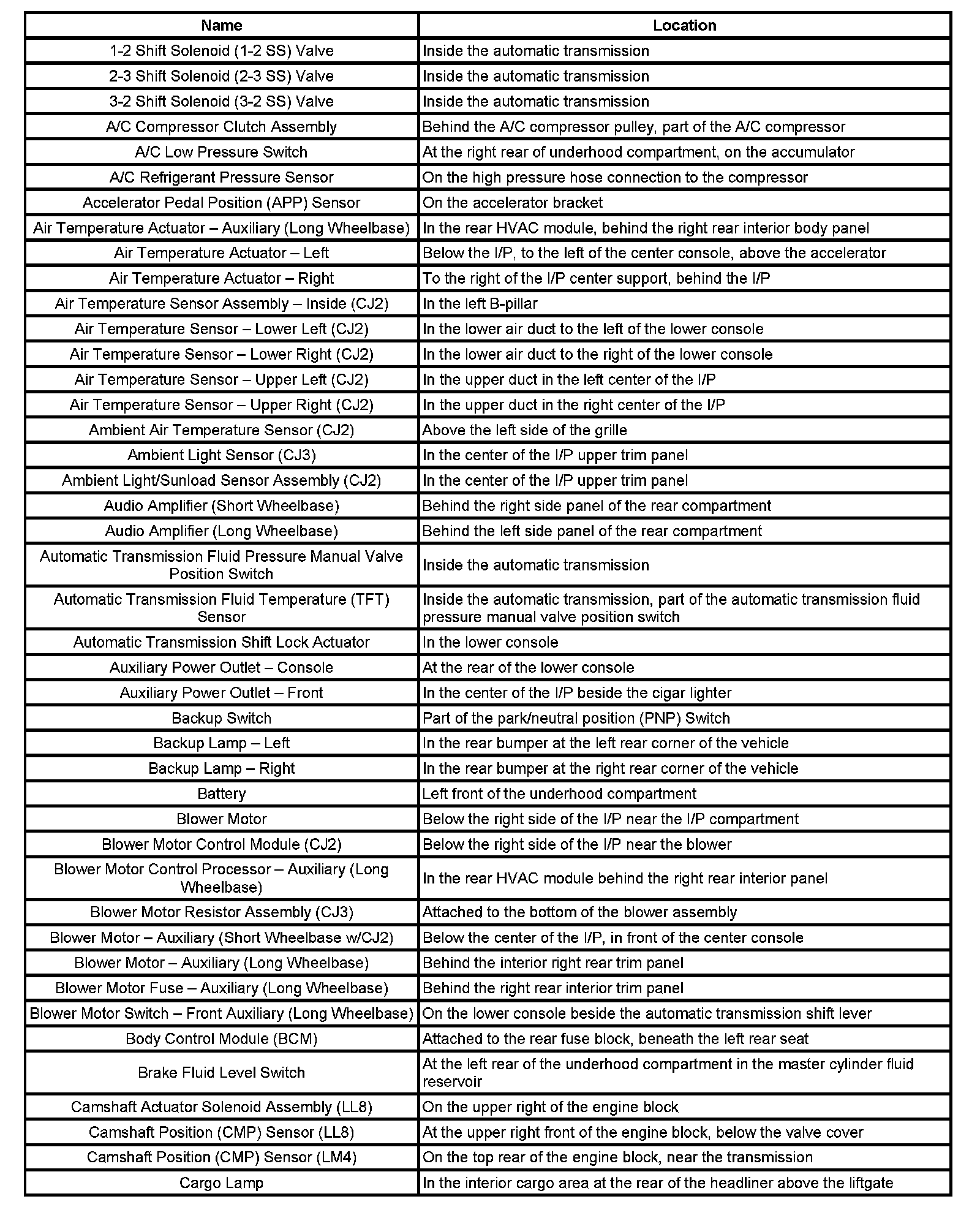

1-2 Shift - Cargo:

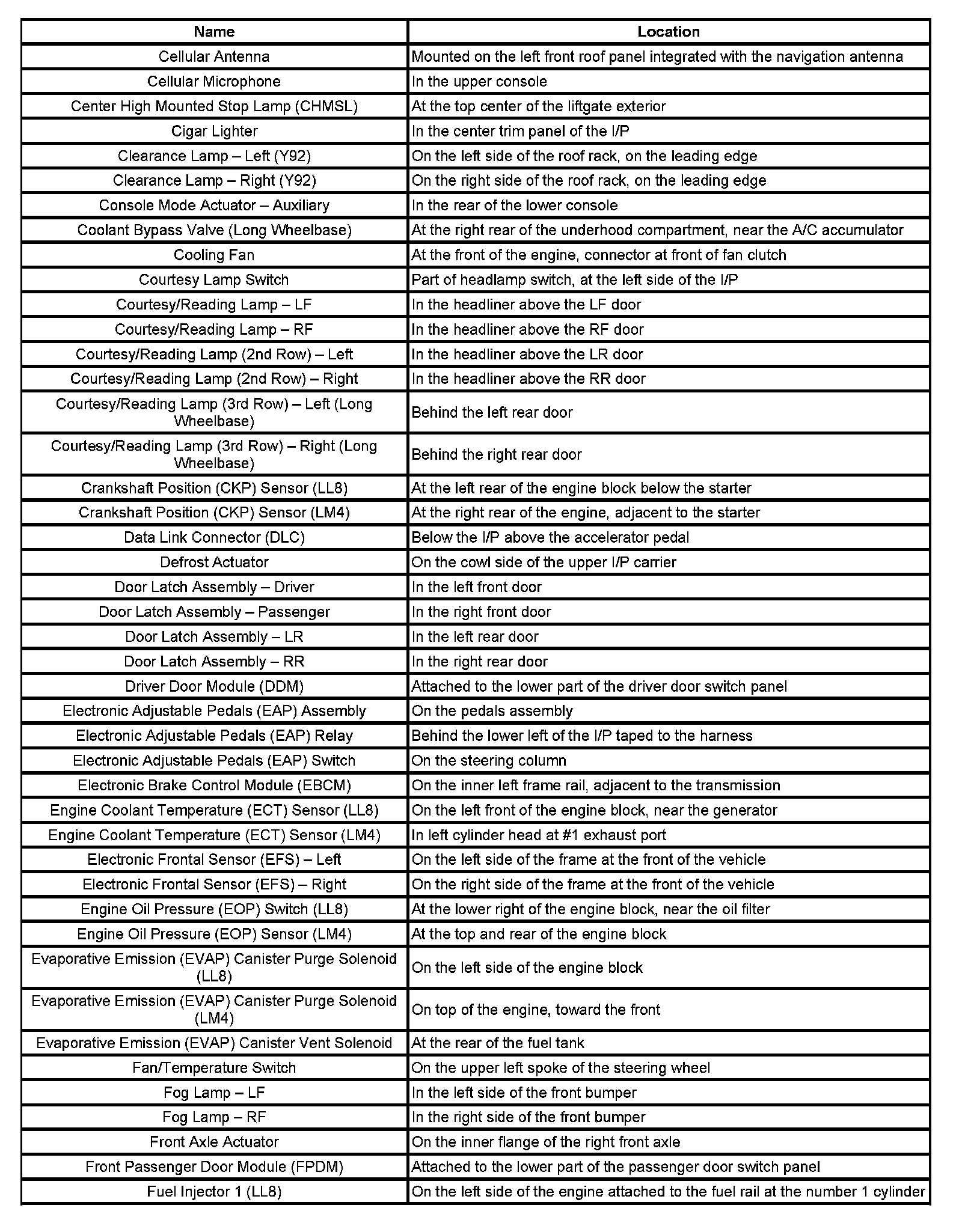

Cell - Fuel:

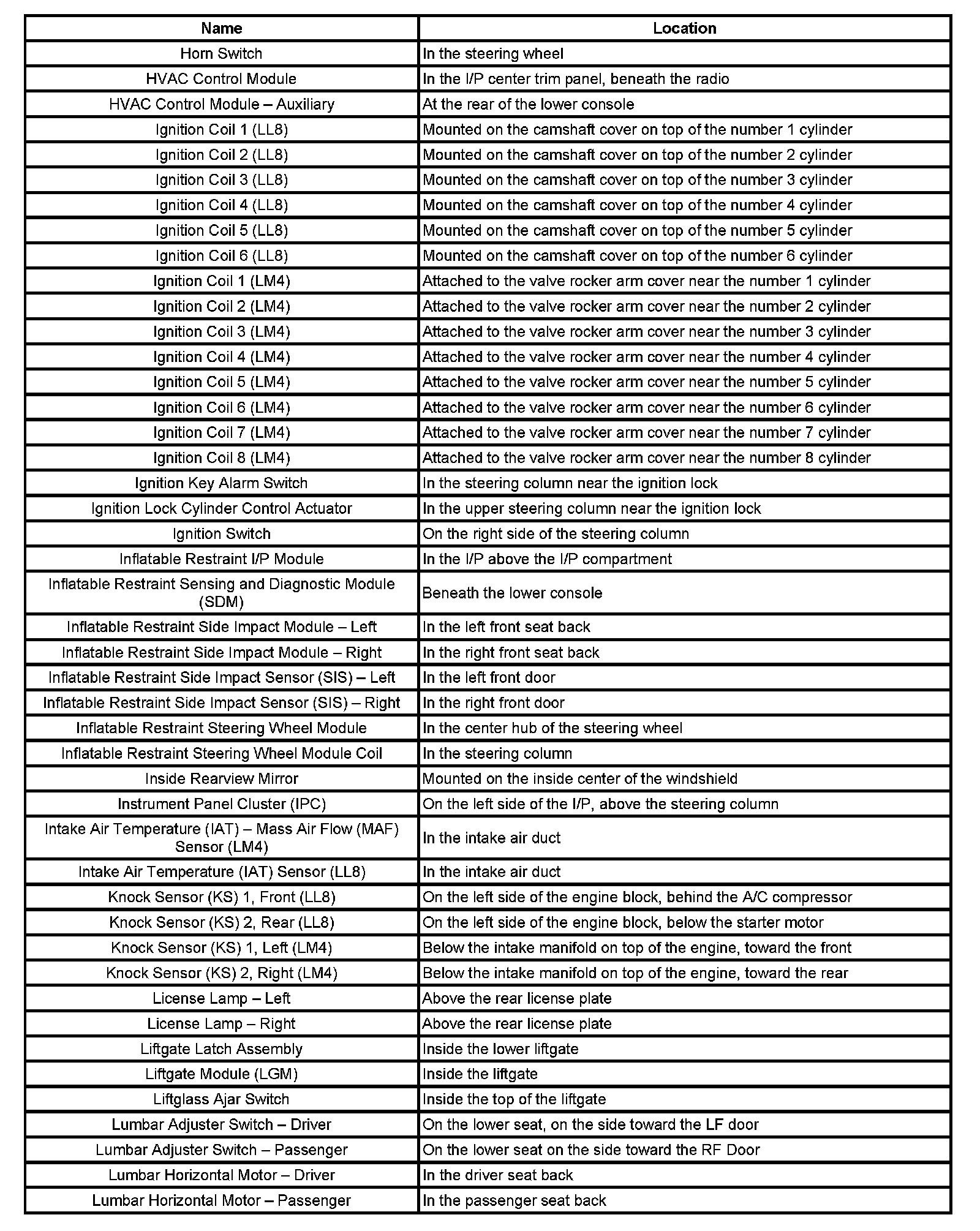

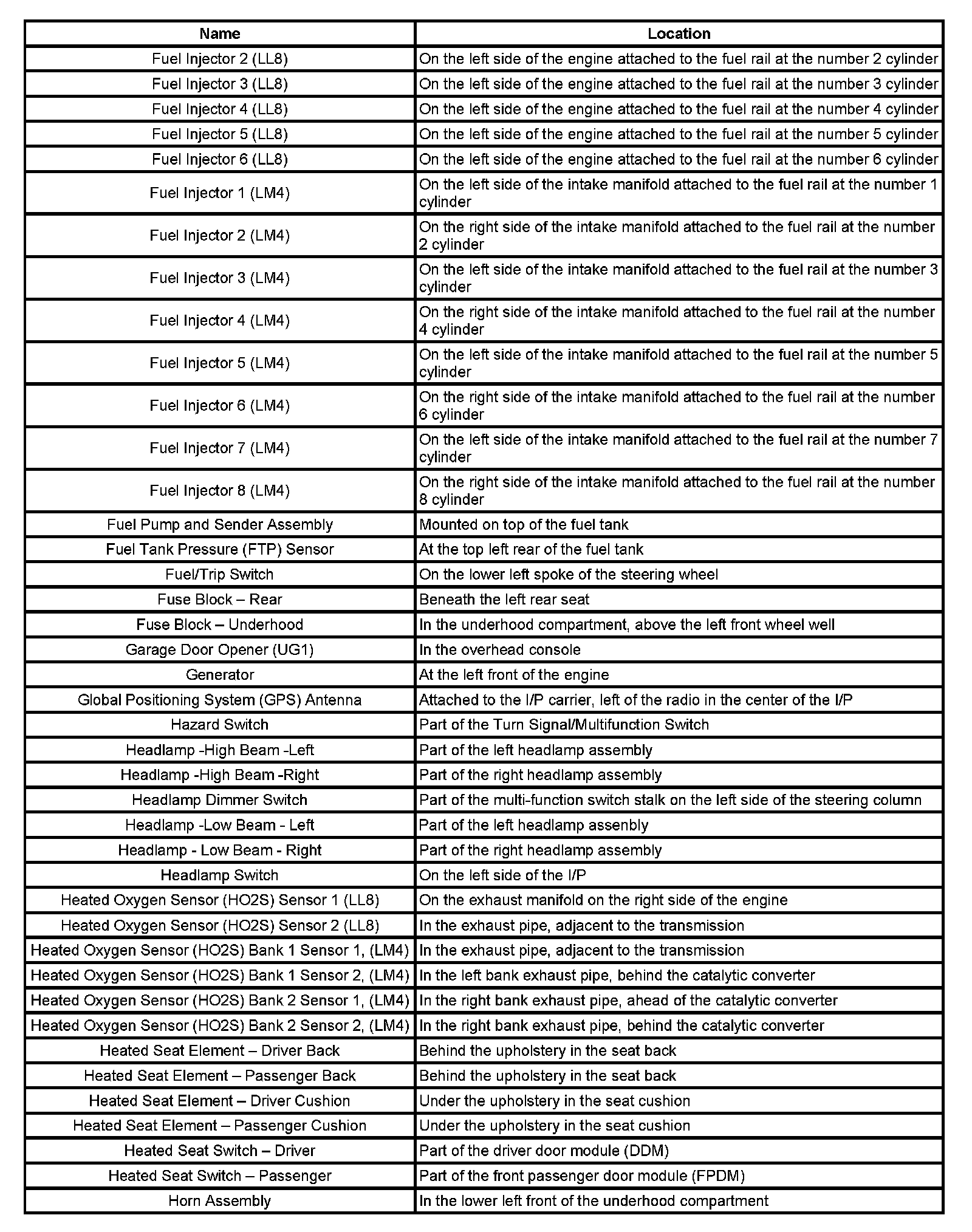

Fuel - Horn:
Horn - Lumbar:

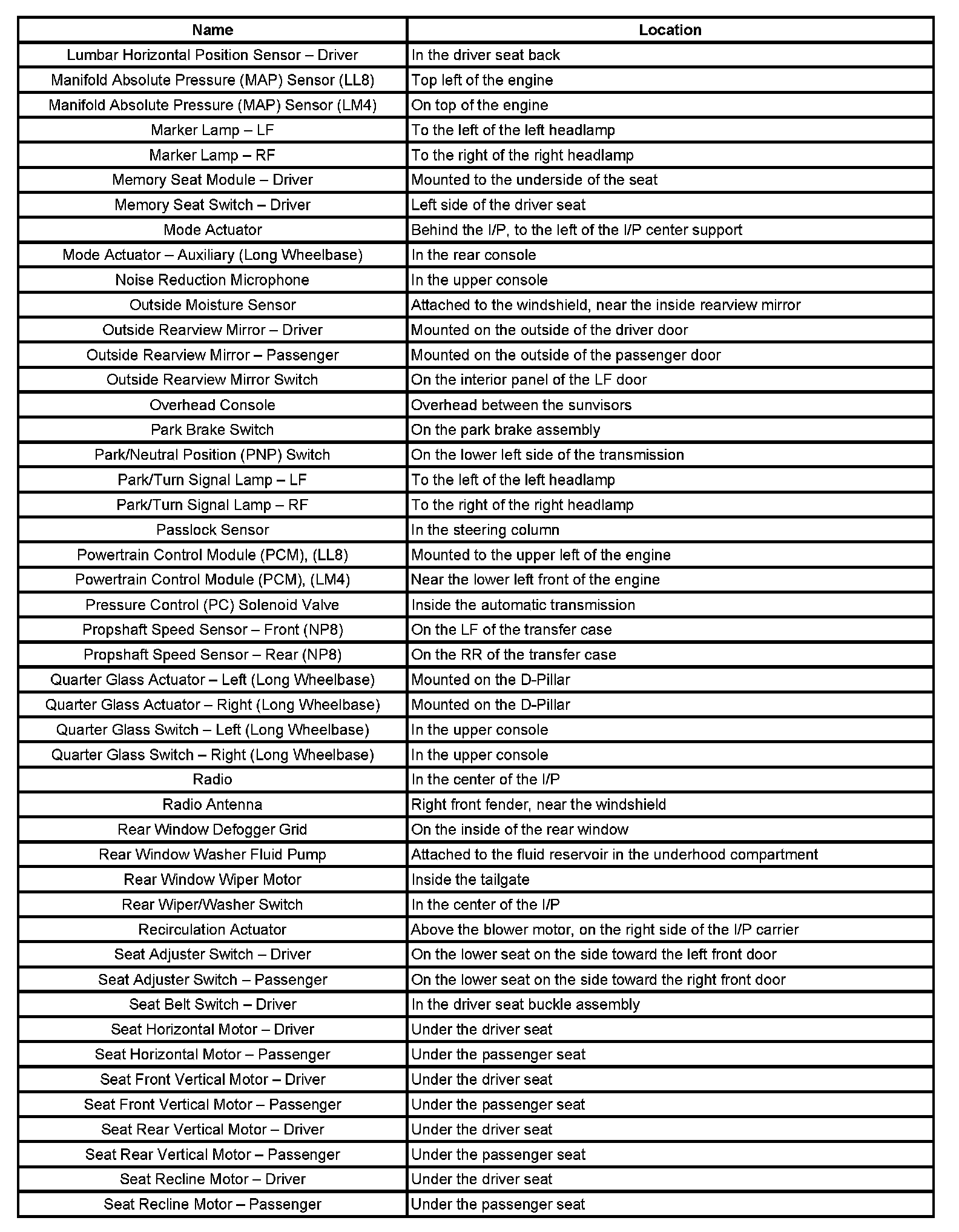

Lumbar - Seat:

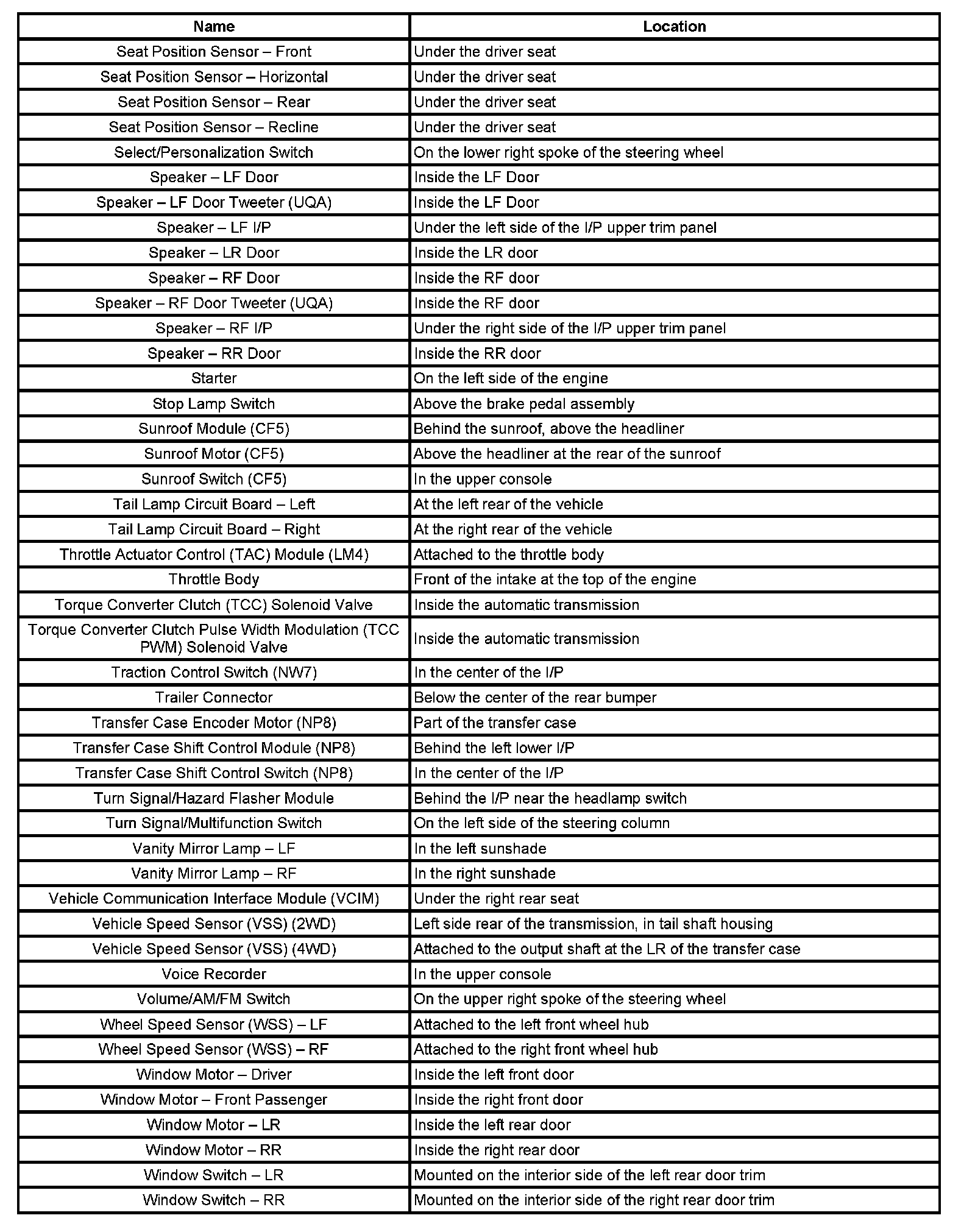

Seat - Window:
Win - Win:
