Body Control System Component Views

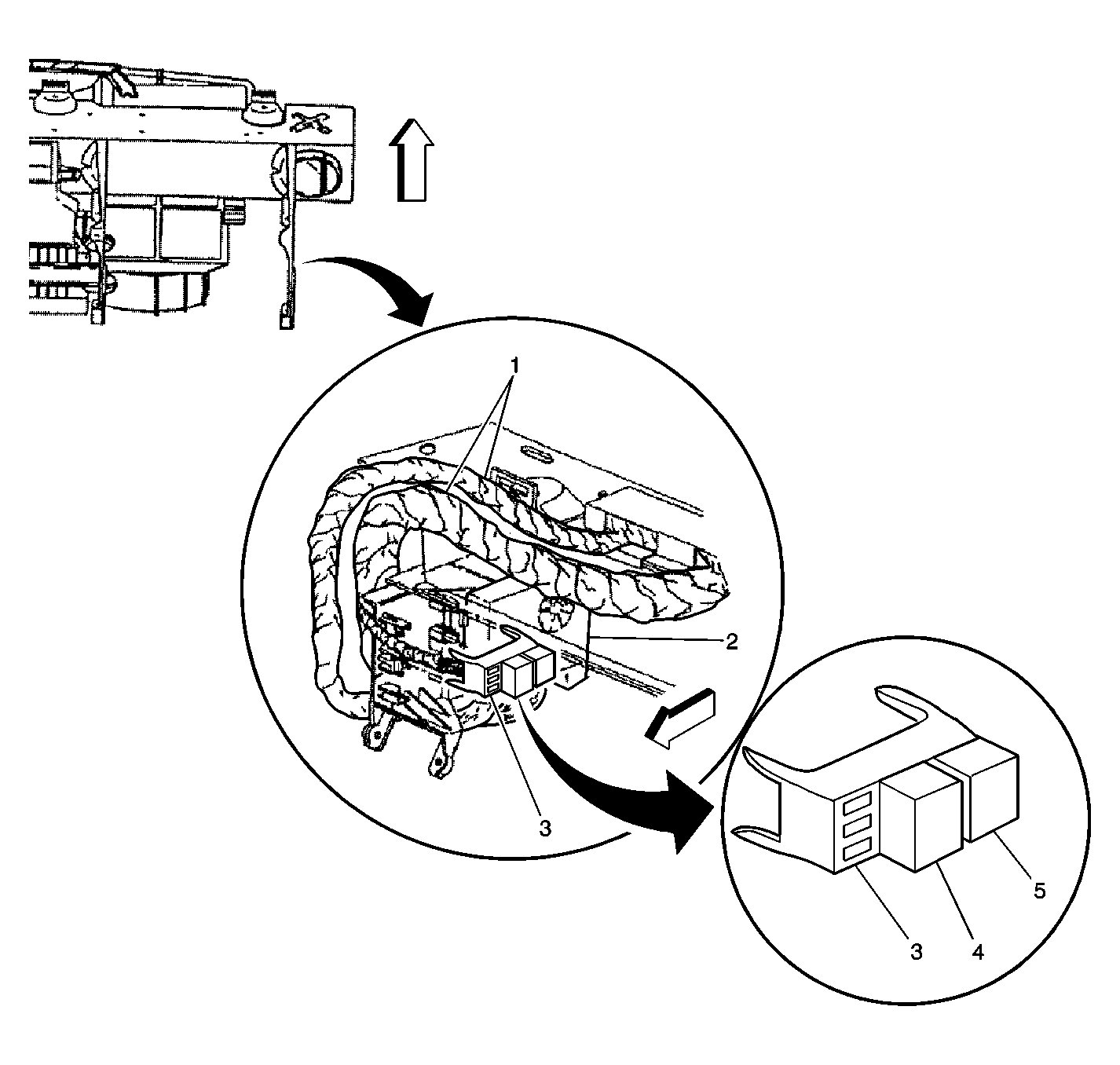

Fig 1: RH Side of I/P
GM447354Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 Body Control Module (BCM)
3 Relay Block
4 Rear Window Defogger Relay
5 Theft Deterrent Relay

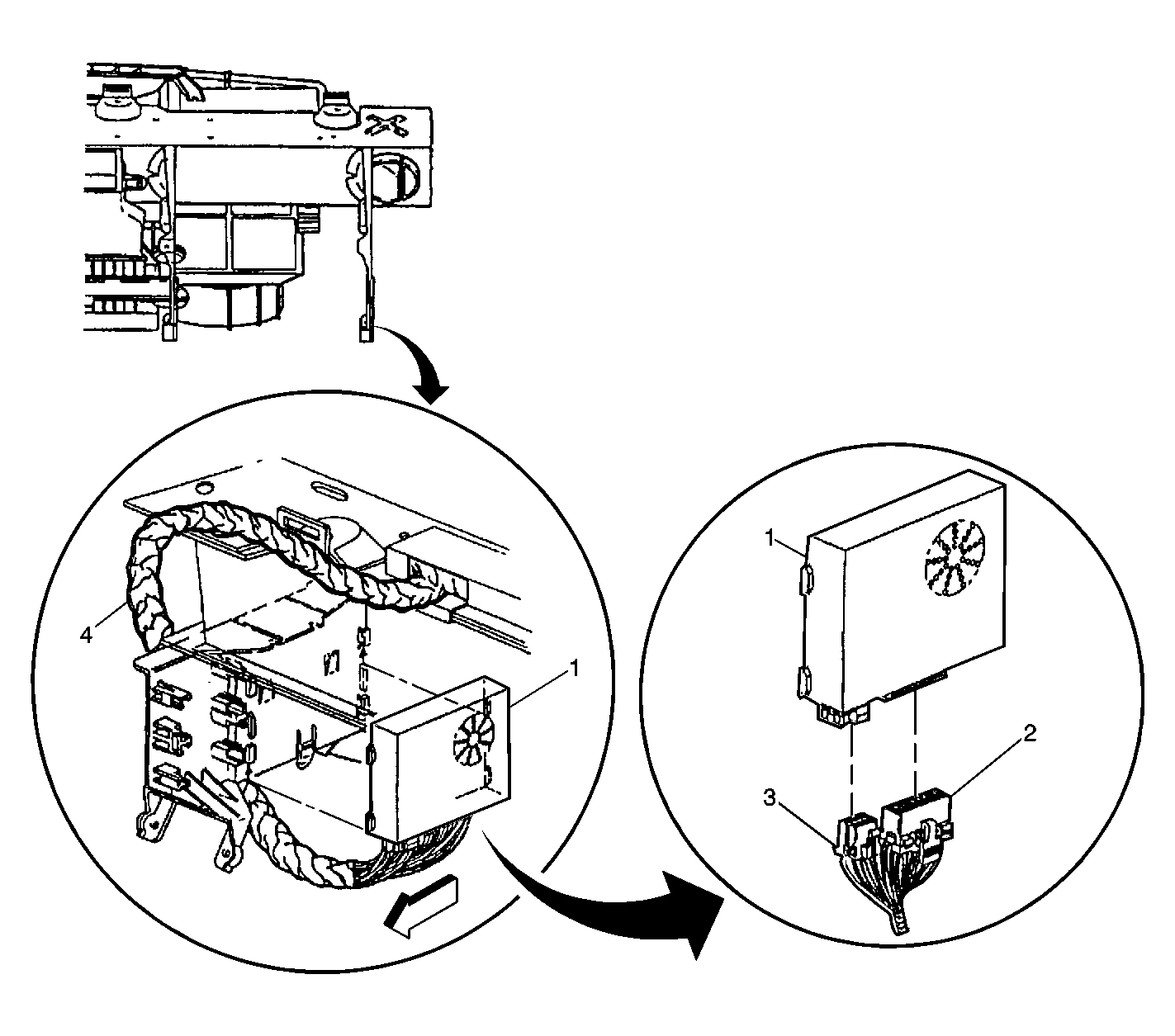

Fig 2: Below RH Side of I/P
GM447155Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Body Control Module (BCM) Connector C2
3 Body Control Module (BCM) Connector C1
4 I/P Harness
