Cellular Communication Component Views

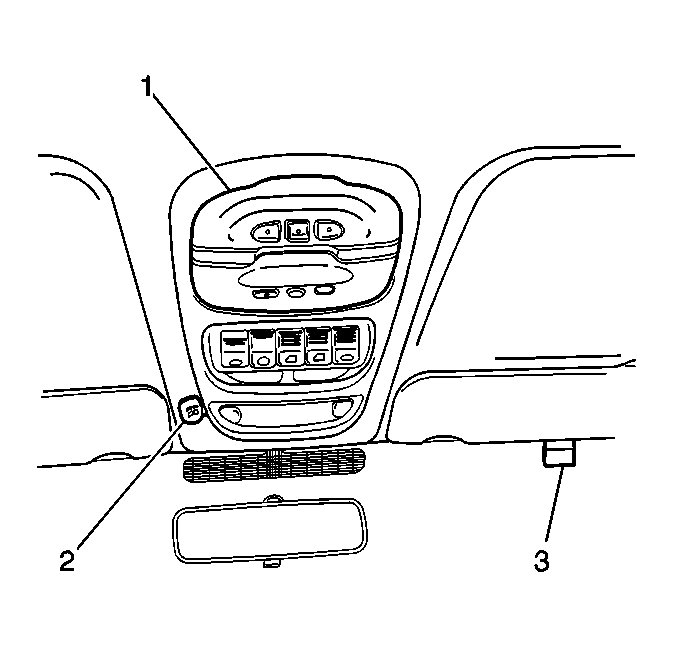

Fig 1: Front Center of Roof in Overhead Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	OnStar® Button Assembly
2	Cellular Telephone Microphone
3	GPS Antenna

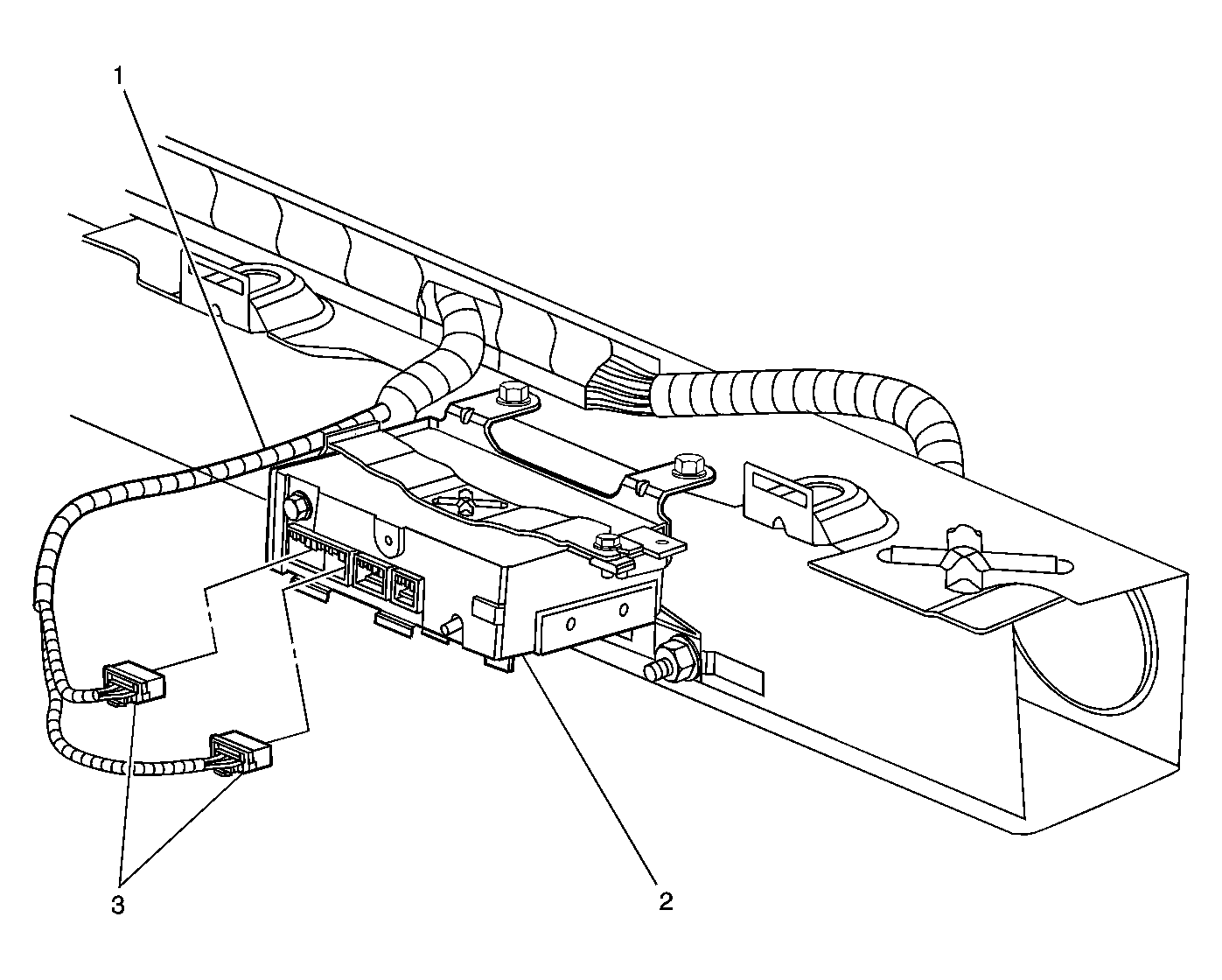

Fig 2: Behind the Center of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Vehicle Communication Interface Module (VCIM)
3	Vehicle Communication Interface Module (VCIM) Connectors C1 and C2
