Cruise Control Component Views

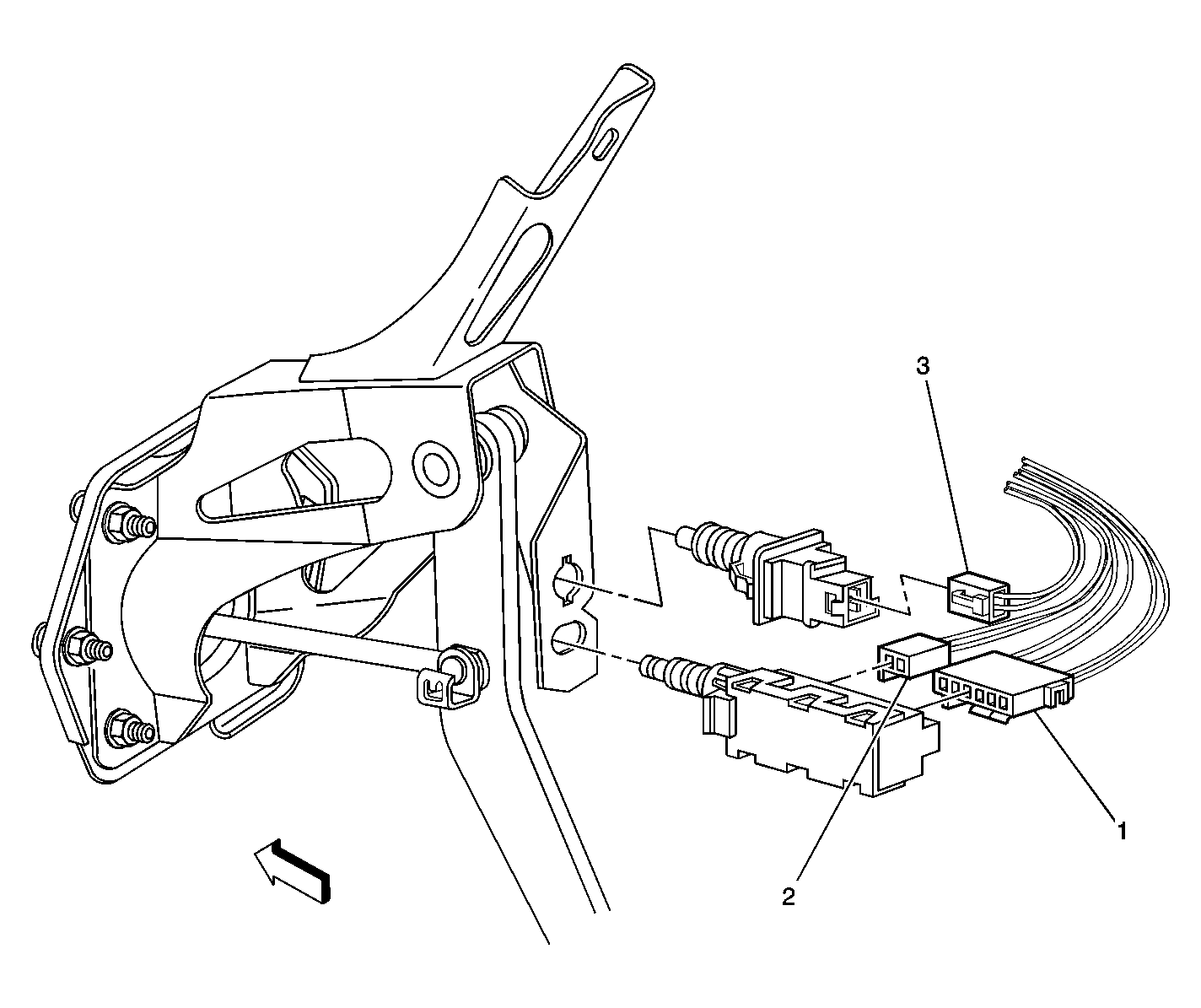

Fig 1: Lower, Left Side of I/P on Brake Pedal Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch/TCC Switch C2
2	Stop Lamp Switch C1
3	Cruise Control Release Switch

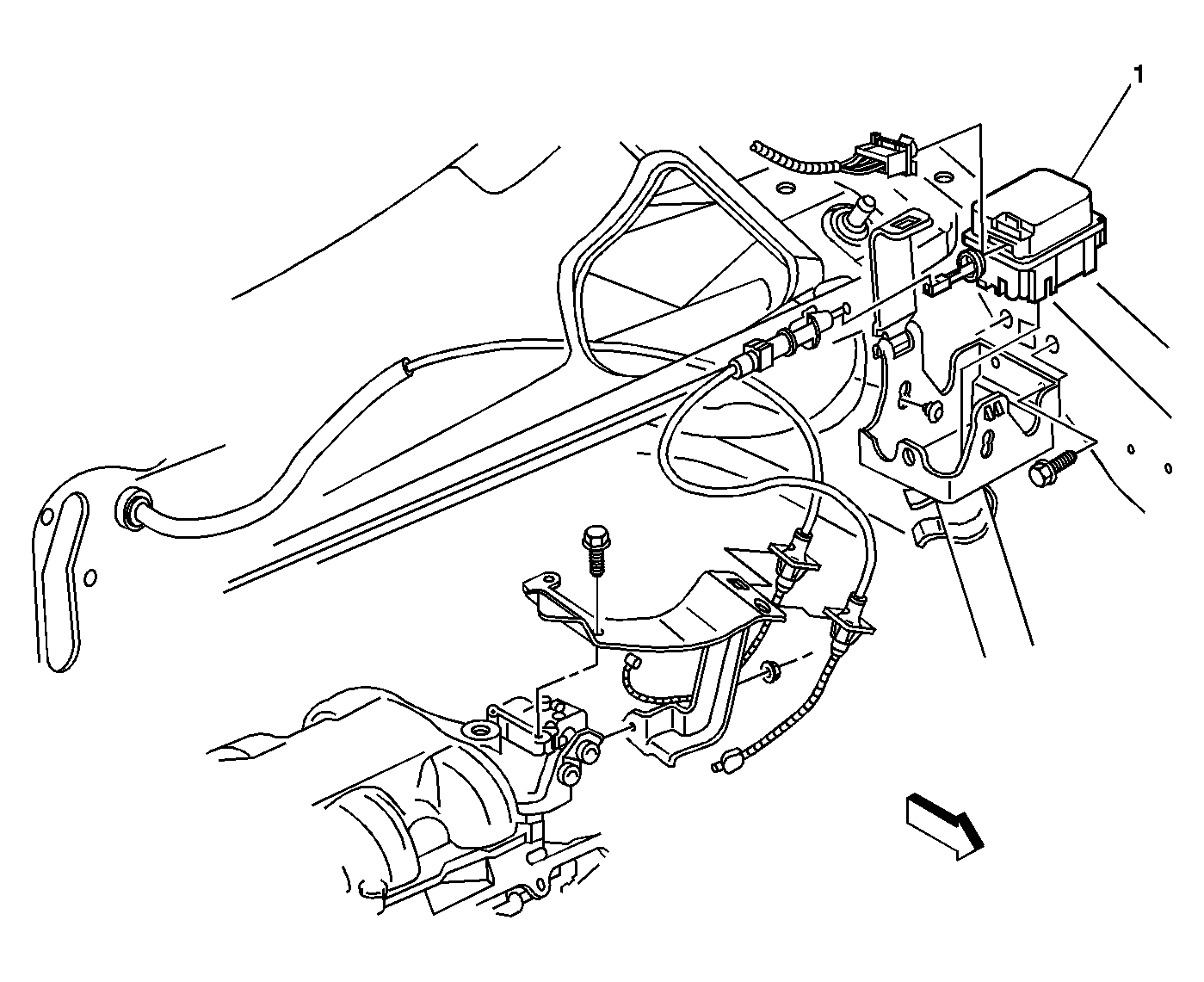

Fig 2: Upper, Left side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Module (CCM)
