Removal Procedure

    CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 7 in SIR.
  2. Remove the seat.

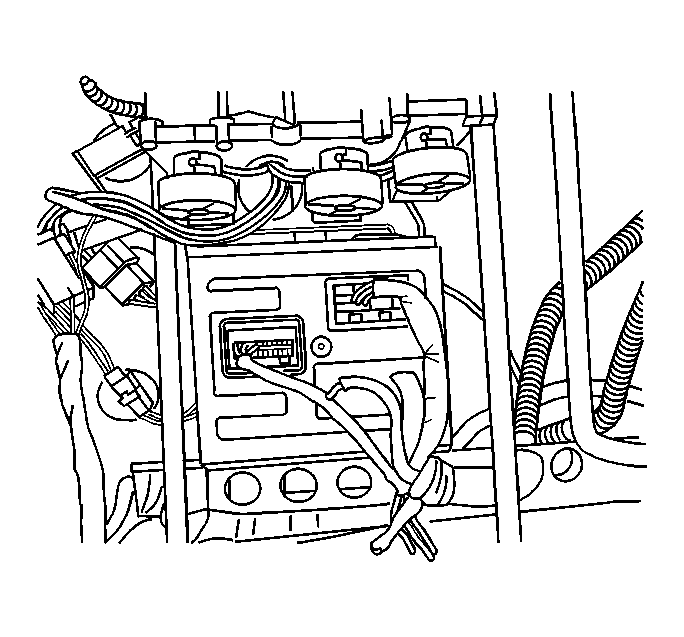

    3. Fig 1: Locating Electrical Connectors
    GM740755Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors.
  4. Using a flat-bladed tool, gently pry the memory seat control module from the bracket slots.

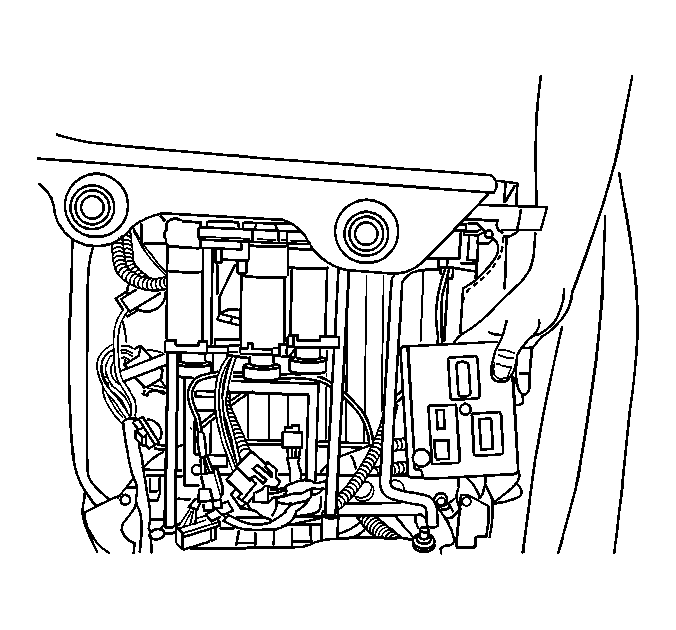

    5. Fig 2: View Of Memory Seat Control Module
    GM740757Courtesy of GENERAL MOTORS CORP.
  5. Slide the module toward the rear of the seat.
