Power Door Systems Component Views

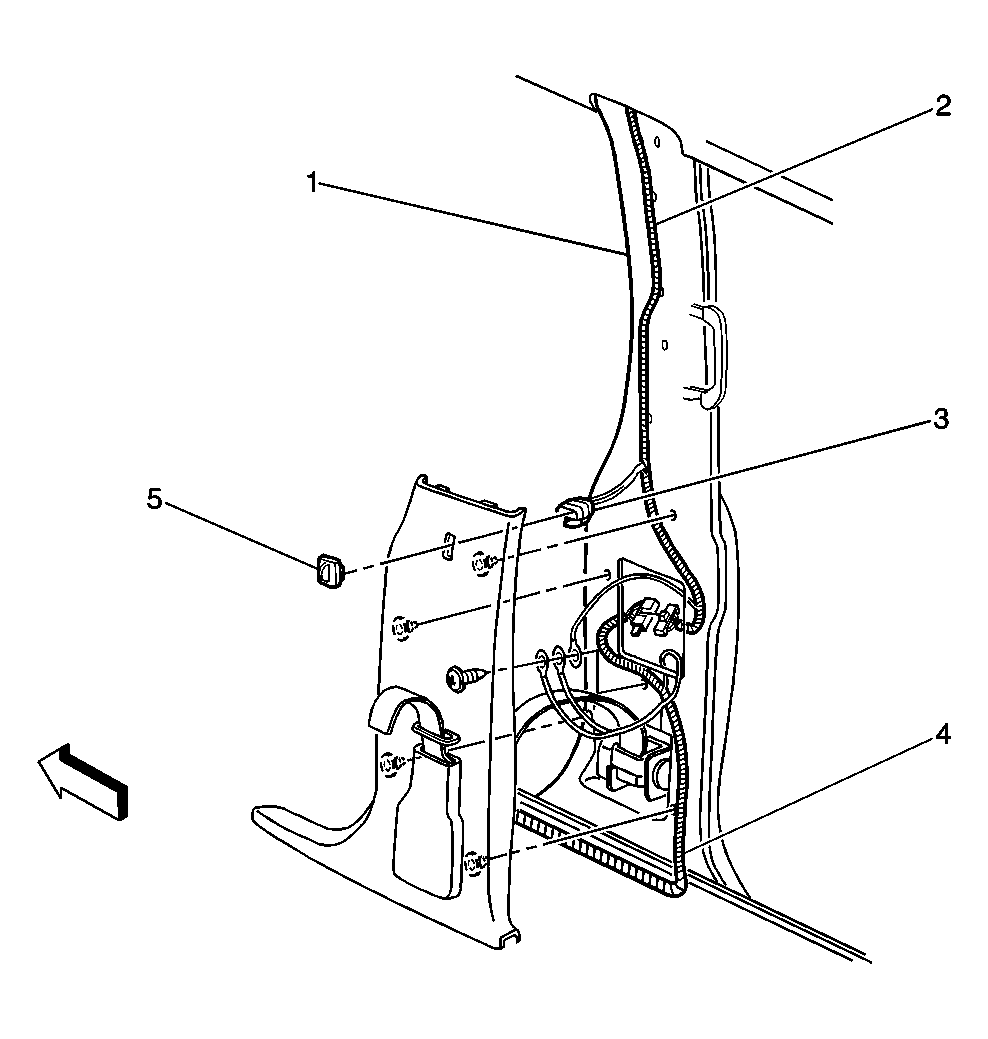

Fig 1: RH B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RH B-Pillar
2	Dome Lamp Harness
3	Power Sliding Door Open/Close Switch Connector
4	Body Harness
5	Power Sliding Door Open/Close Switch

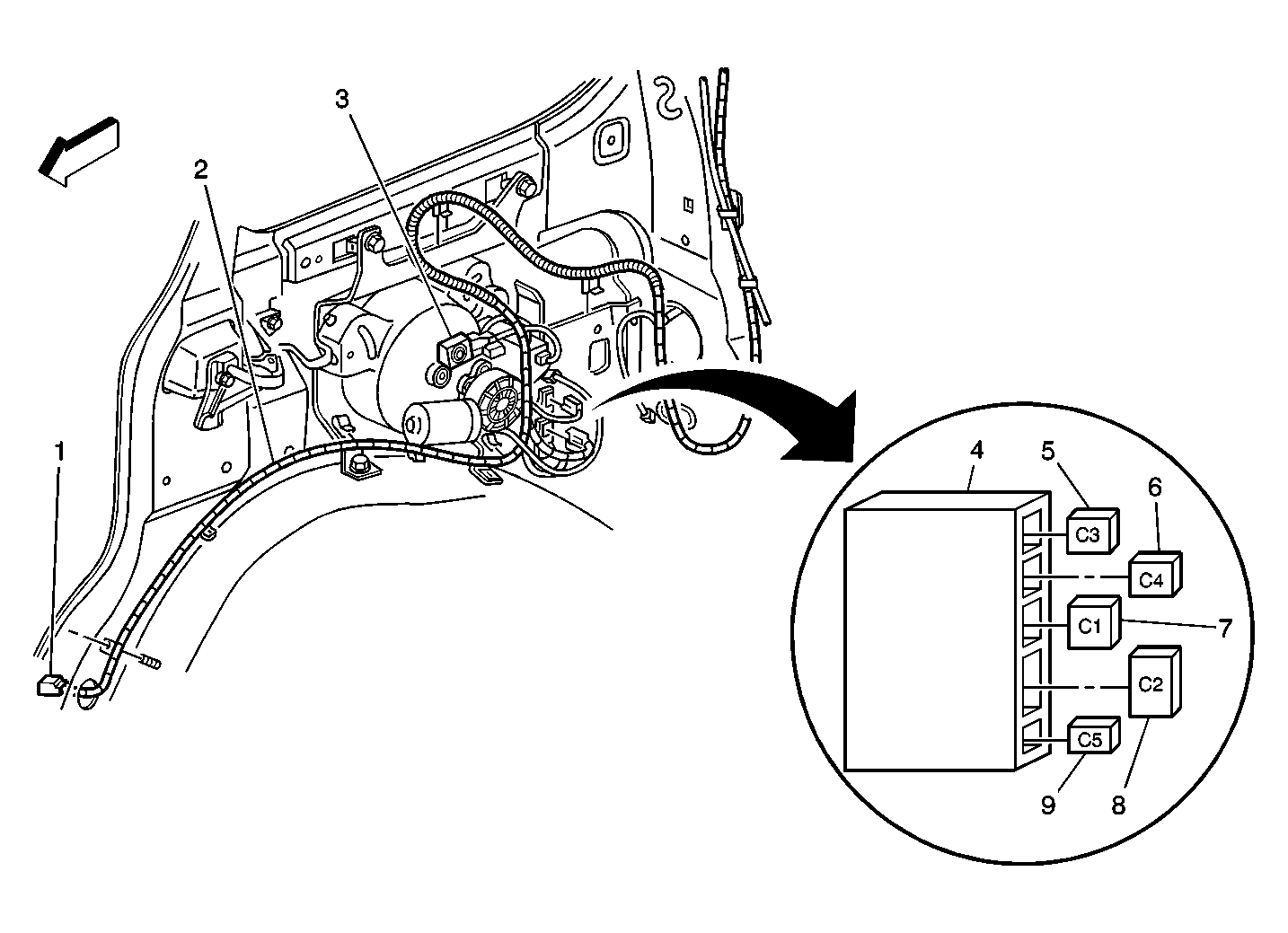

Fig 2: Right Quarter Panel (LH Side Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sliding Door Jamb Switch-Right
2	Body Harness
3	Right Rear Side Door Actuator Control Module Alarm
4	Right Rear Side Door Actuator Control Module
5	Right Rear Side Door Actuator Control Module Connector C3 to Clutch in Rear Side Door Actuator Motor
6	Right Rear Side Door Actuator Control Module Connector C4 to Cable Motor in Rear Side Door Actuator Motor
7	Right Rear Side Door Actuator Control Module Connector C1
8	Right Rear Side Door Actuator Control Module Connector C2
9	Right Rear Side Door Actuator Control Module Connector C5 to Optical Sensor in Door Actuator-Rear

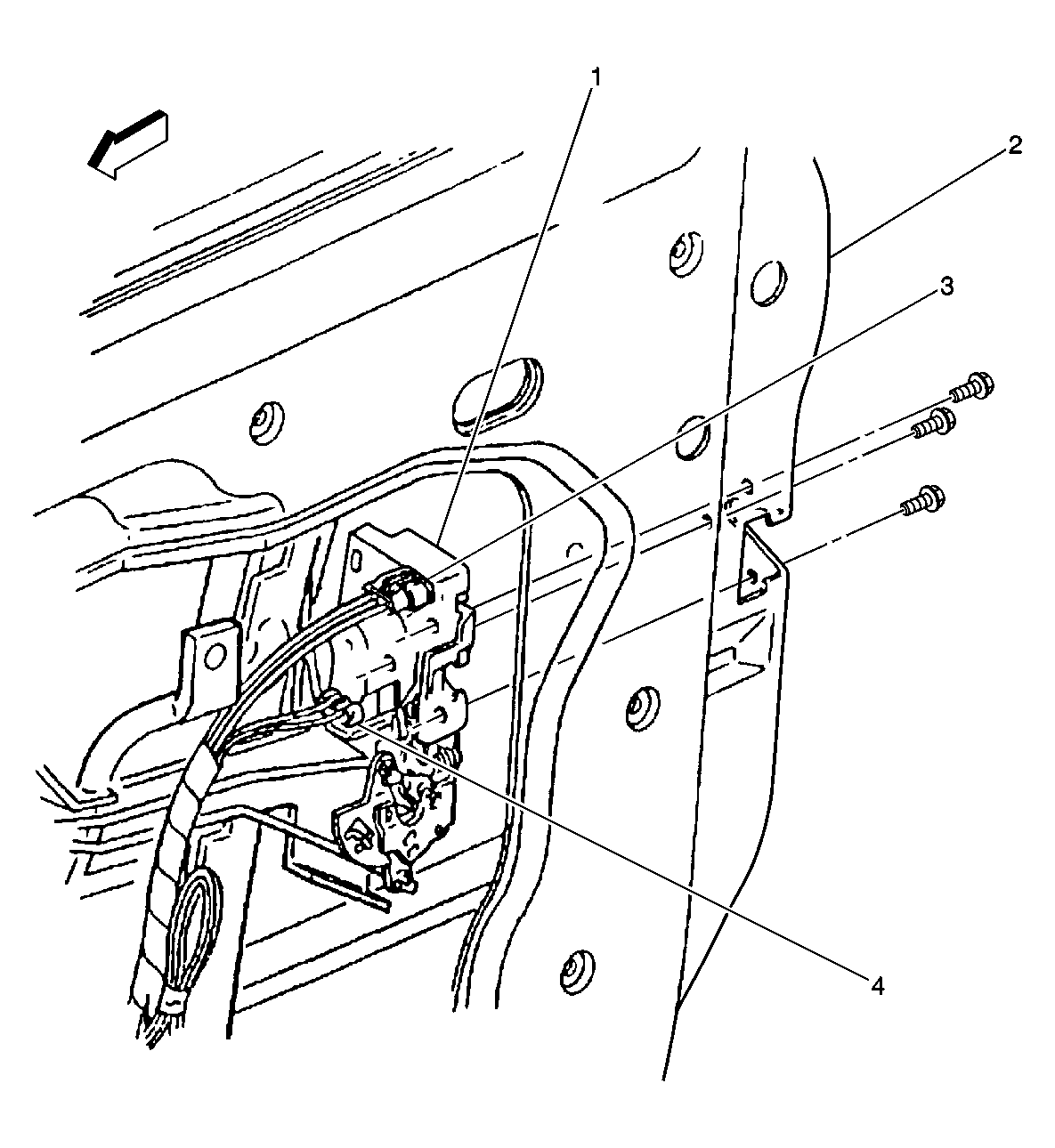

Fig 3: RF Door - LH Side Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator C1 - Front Passenger - LH Side Similar
2	Front Passenger Door - LH Side Similar
3	Door Lock - Front Passenger - Ajar Indicator Switch - LH Side Similar
4	Door Lock Actuator C2 - Front Passenger - LH Side Similar

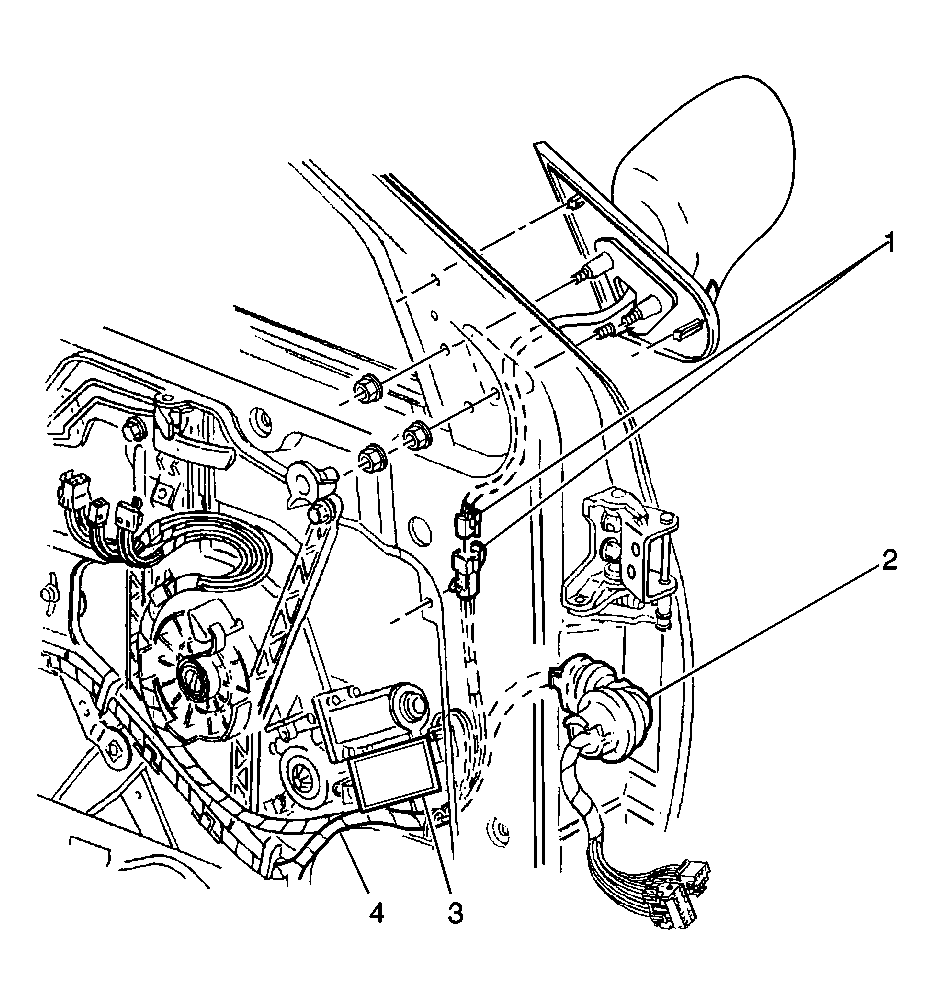

Fig 4: LF Door - RH Side Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Pigtail Connector to Outside Rearview Mirror-Driver - Mirror Motor Pack and Heated Defogger - RH Side Similar
2	Pass Through P500 - P600 Similar
3	Window Motor-Driver - RH Similar
4	LF Door Harness - RH Similar

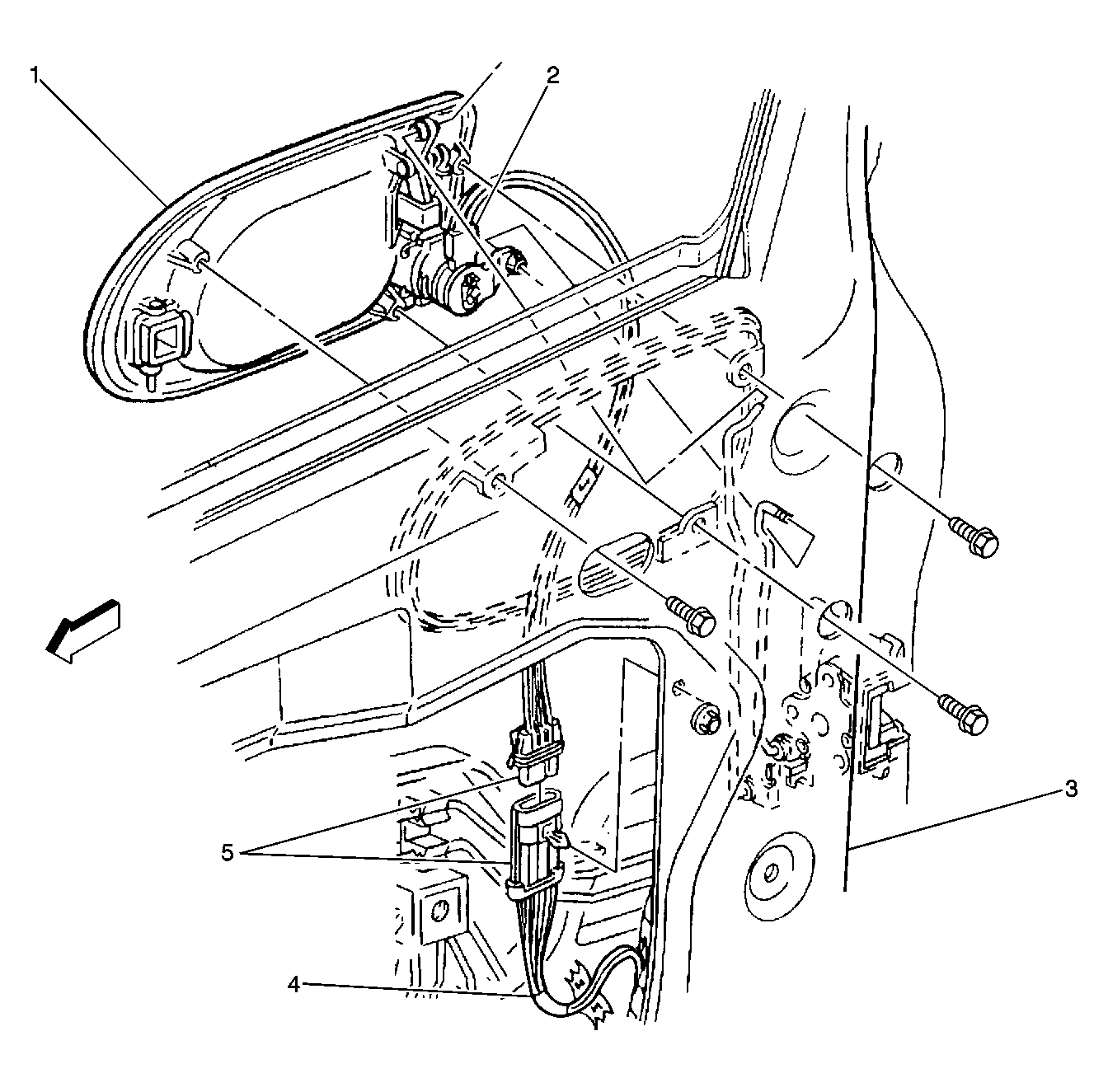

Fig 5: RF Door - LF Door Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Passenger Door Handle - LH Side Similar
2	Door Lock Cylinder Switch - Front Passenger - LH Side Similar
3	Front Passenger Door - LH Side Similar
4	Front Passenger Door Harness - LH Side Similar
5	Pigtail Connector to Door Lock Cylinder Switch - LH Side Similar

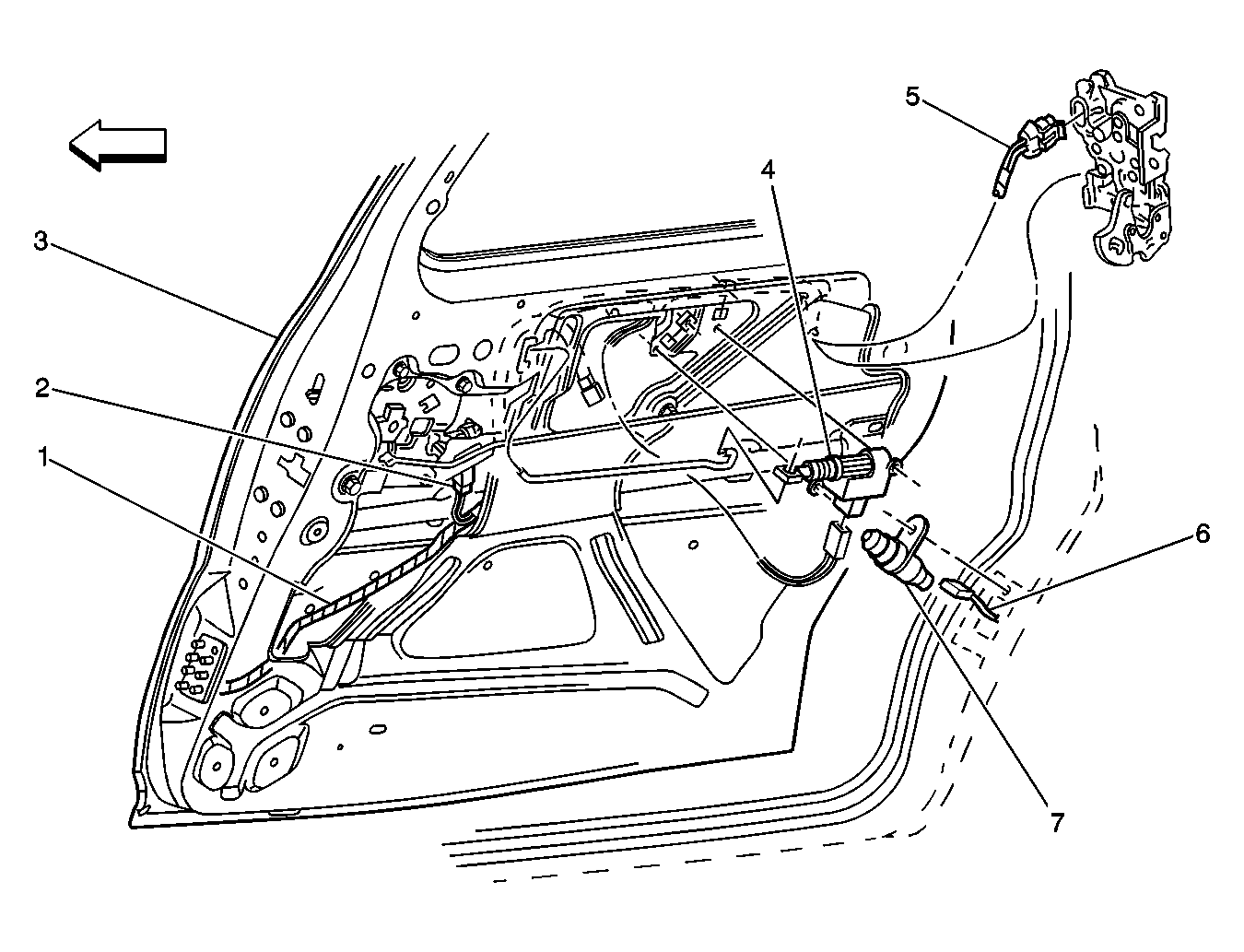

Fig 6: RH Sliding Door (LH Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Sliding Door Harness
2	Door Lock Actuator-RR
3	Side Door-RR
4	Power Sliding Door Unlatch Actuator-Right
5	Power Sliding Door Detent Switch-Right
6	Body Harness
7	Sliding Door Jamb Switch-Right

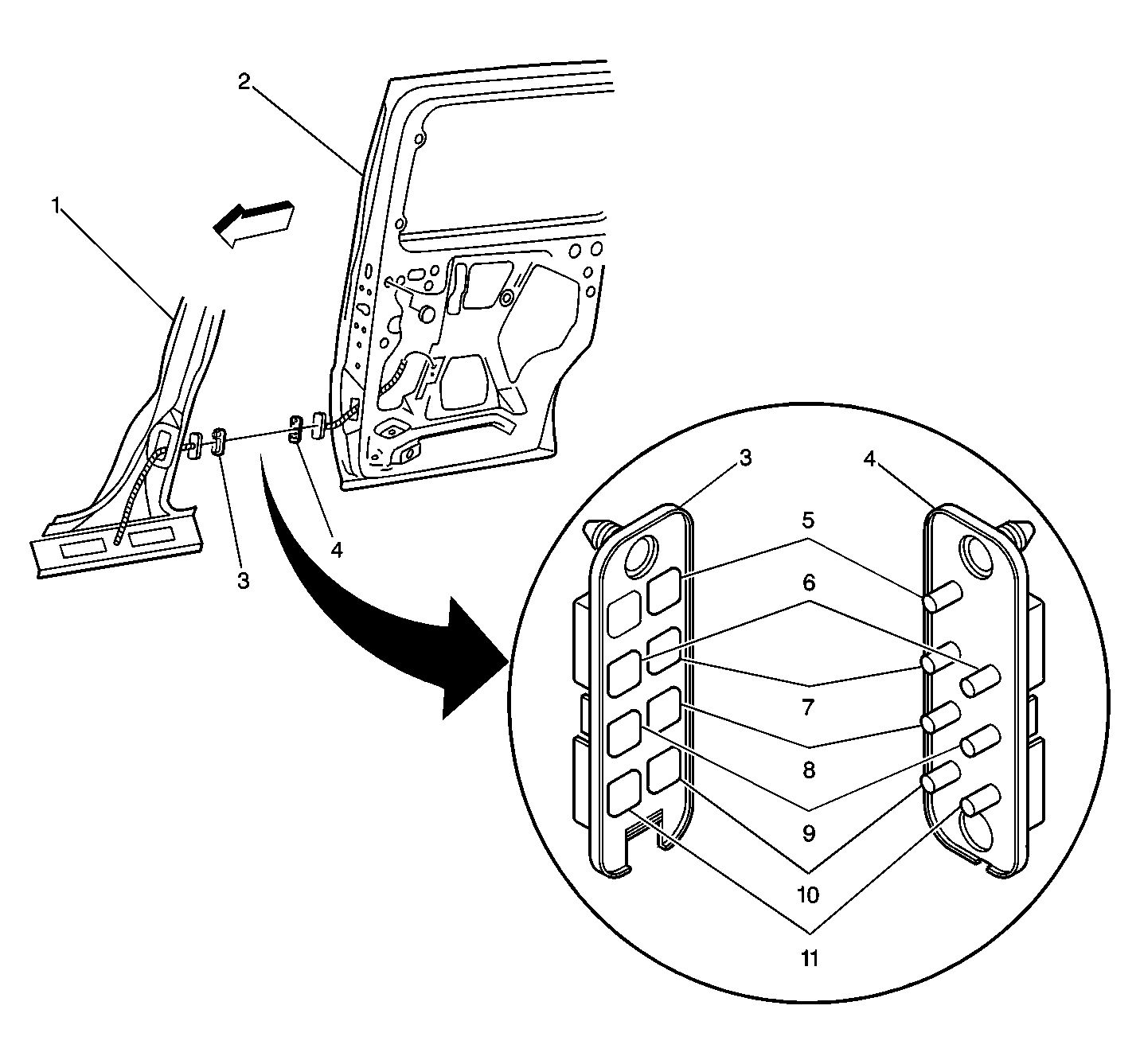

Fig 7: RH Sliding Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RH B-Pillar
2	RH Sliding Door
3	Door Lock Switch Plate-Right (Pillar Mounted, Striker)
4	Door Lock Switch Plate-Right (Door Mounted, Plunger)
5	Striker Pin (G), Plunger Pin (G) (PSD Unlatch Actuator)
6	Striker Pin (F), Plunger Pin (F) (PSD Detent Switch)
7	Striker Pin (E), Plunger Pin (E) (PSD Detent Switch)
8	Striker Pin (C), Plunger Pin (C) (Ground)
9	Striker Pin (D), Plunger Pin (D) (Ground)
10	Striker Pin (A), Plunger Pin (A) (Door Lock Actuator Feed)
11	Striker Pin (B), Plunger Pin (B) (Door Unlock Actuator Feed)

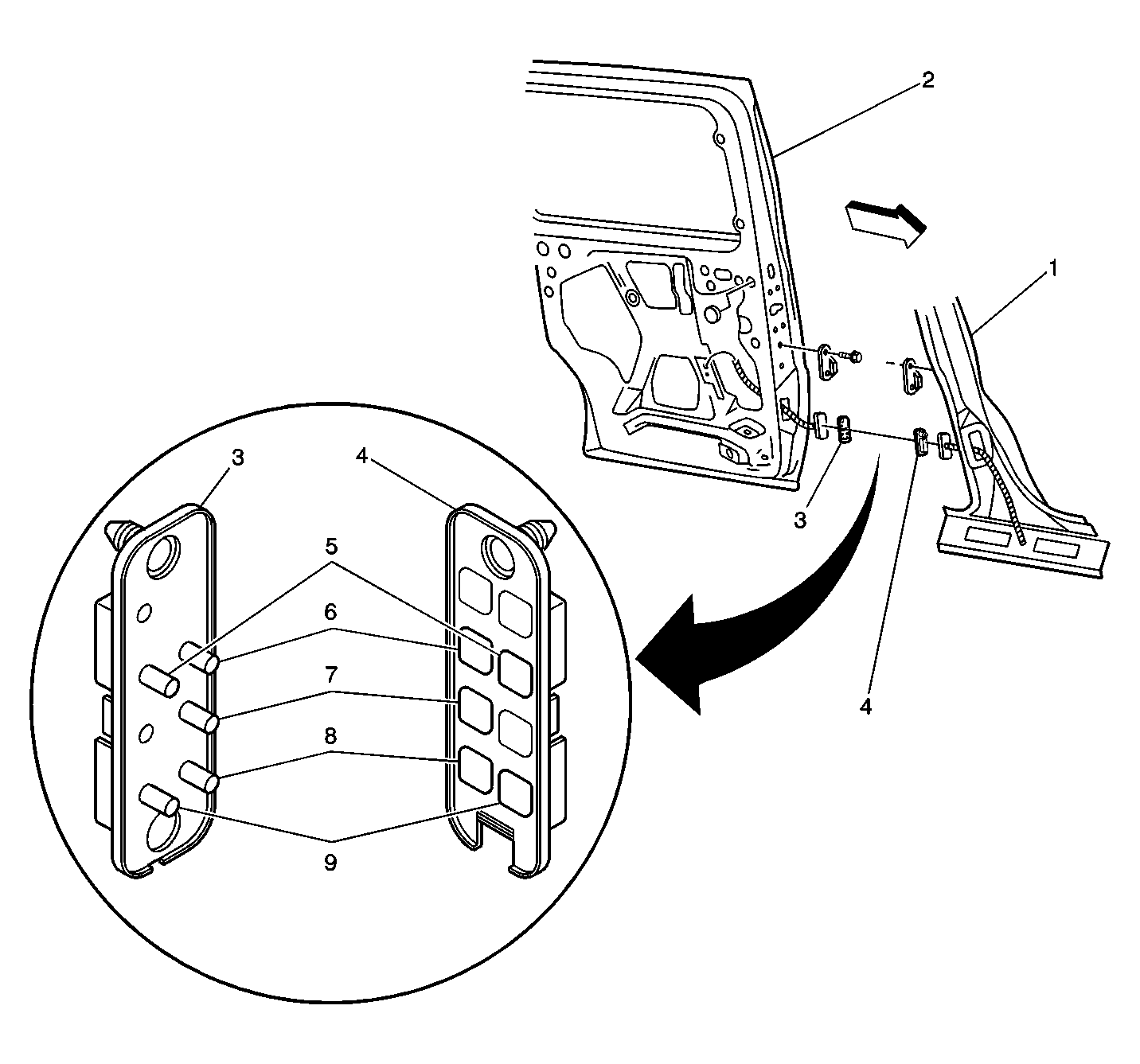

Fig 8: LH Sliding Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LH B-Pillar
2	LH Sliding Door
3	Door Lock Switch Plate-Left (Door Mounted, Plunger)
4	Door Lock Switch Plate-Left (Pillar Mounted, Striker)
5	Striker Pin (E), Plunger Pin (E) (Not Used)
6	Striker Pin (F), Plunger Pin (F) (Not Used)
7	Striker Pin (D), Plunger Pin (D) (Not Used)
8	Striker Pin (B), Plunger Pin (B) (Door Unlock Actuator Motor)
9	Striker Pin (A), Plunger Pin (A) (Door Lock Actuator Motor)

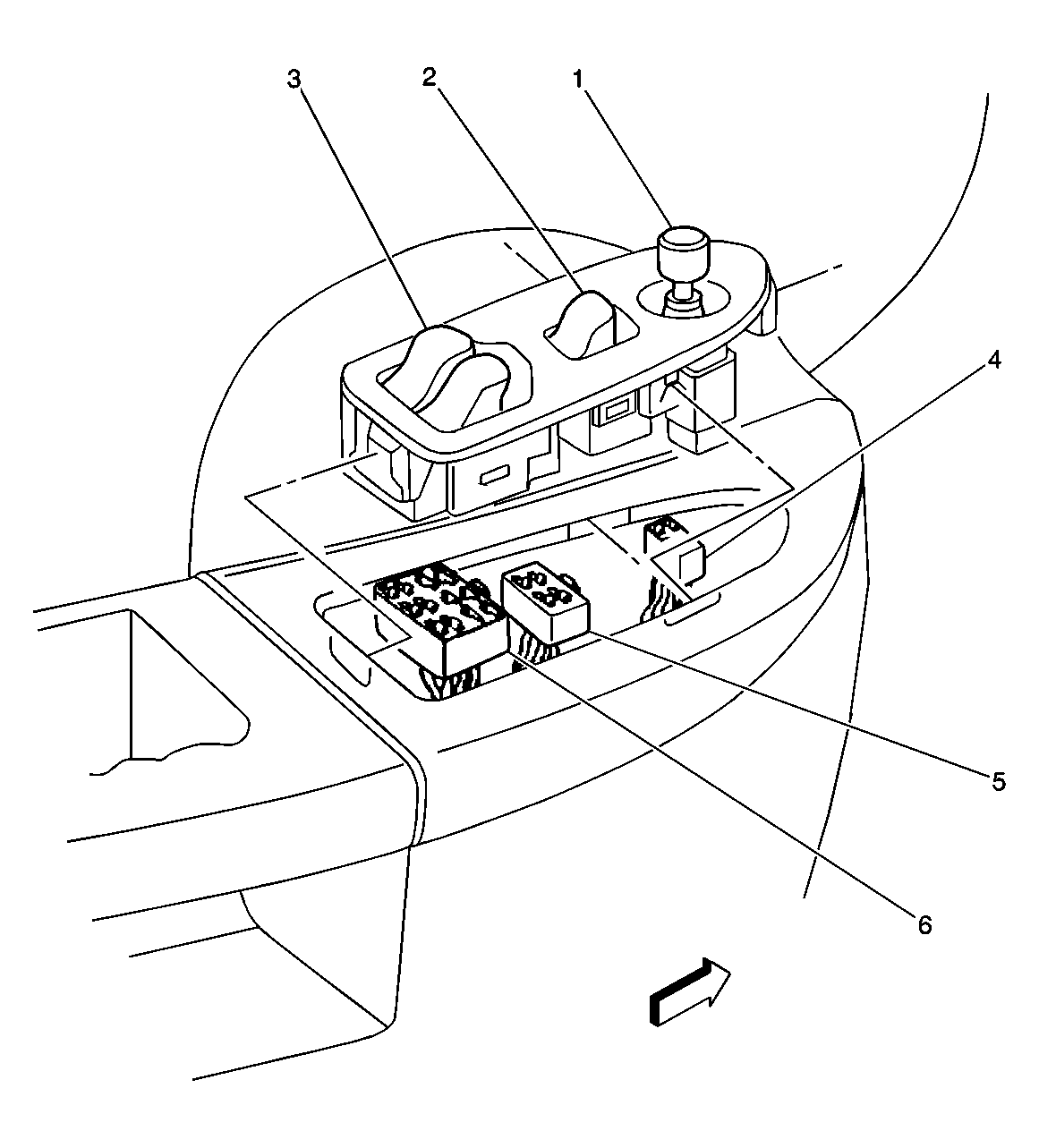

Fig 9: LF Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Door Lock Switch-Driver - Front Passenger Similar
3	Window Switch-Driver - Front Passenger Similar
4	Outside Rearview Mirror Switch Connector
5	Door Lock Switch-Driver Connector
6	Window Switch-Driver Connector

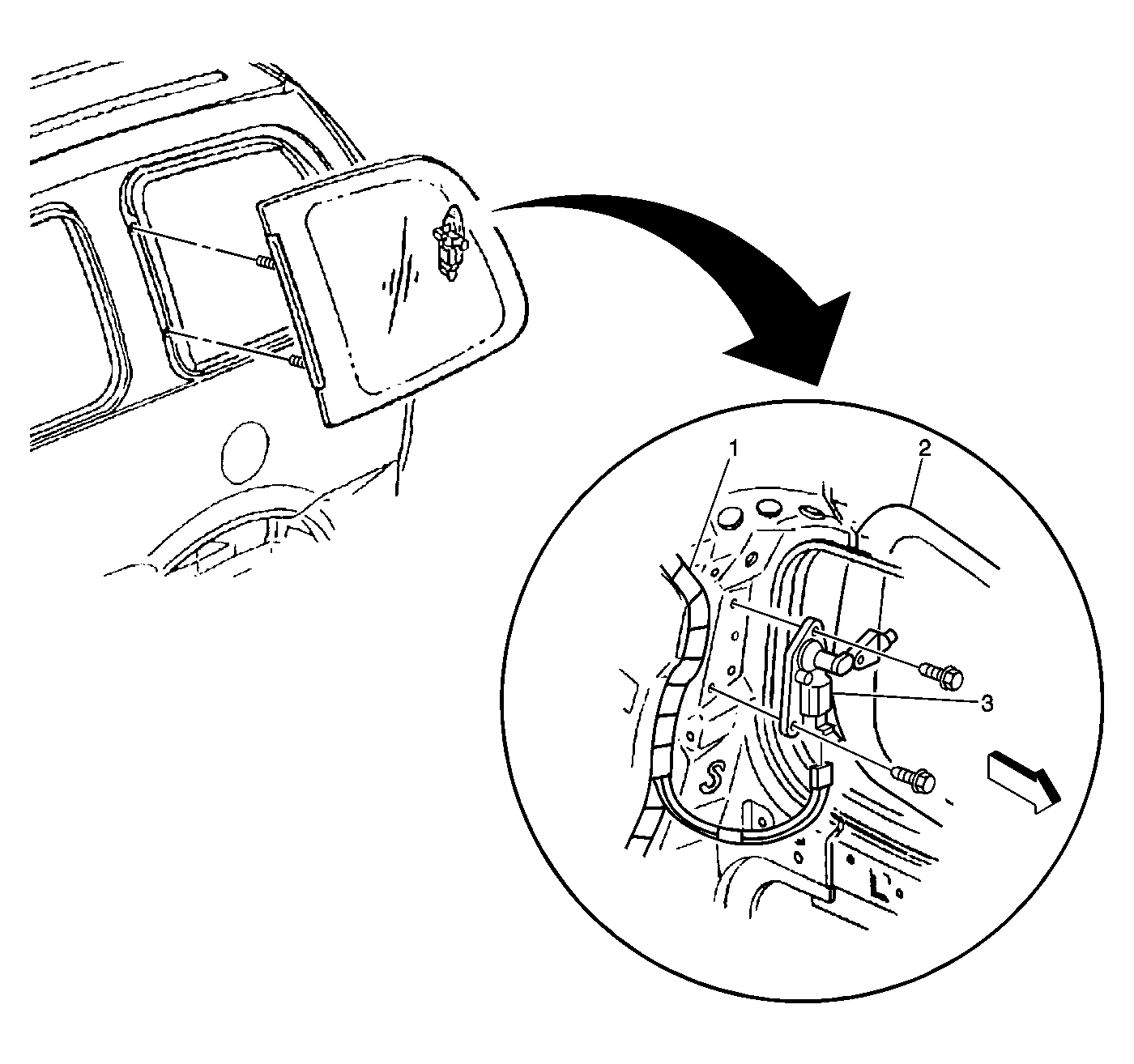

Fig 10: LH Body Side Rear Window - RH Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	LH Body Side Rear Window
3	Rear Quarter Window Actuator-Left
