Power Door Systems Connector End Views

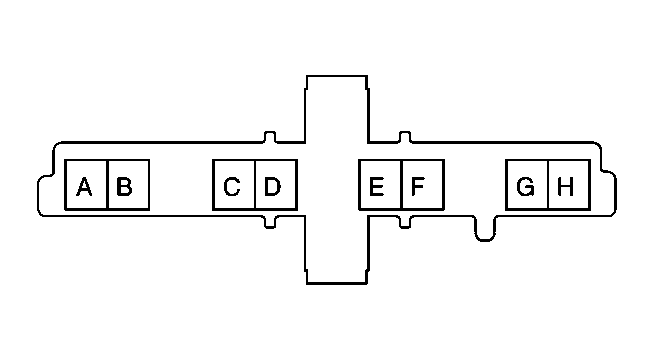

Door Lock Switch Plate - Left

GM73237Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1216-0716
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 295 Door Lock Actuator Lock Control
B TAN 294 Door Lock Actuator Unlock Control
C BLK 750 Ground
D BLK 750 Ground
E YEL 2617 Detent Switch Signal
F YEL 2617 Detent Switch Signal
YEL 2617 Detent Switch Signal
G BLK 9910 Power Sliding Door Release Actuator Control
H - - Not Used
Door Lock Switch Plate - Right

GM73237Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1216-0716
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 295 Door Lock Actuator Lock Control
B TAN 294 Door Lock Actuator Unlock Control
C BLK 750 Ground
D BLK 750 Ground
E YEL 1892 Detent Switch Signal
YEL 1892 Detent Switch Signal
F YEL 1892 Detent Switch Signal
G BLK 2910 Power Sliding Door Release Actuator Control
H - - Not Used
Door Lock - Driver

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1216-2190
  • 4-Way F Metri-Pack 150.2 Series Pull to Seat (BLK)
Pin Wire Color Circuit No. Function
A TAN 159 Drivers Door Switch Signal
B YEL 804 Door Ajar Indicator Control
C - - Not Used
D BLK 750 Ground
Door Lock -Front Passenger

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1216-2190
  • 4-Way F Metri-Pack 150.2 Series Pull to Seat (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B - - Not Used
C YEL 804 Door Ajar Indicator Control
D DK BLU 49 Passenger Door Ajar Switch Signal
Door Lock Actuator - Driver

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1530-0027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 694 Driver Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - Front Passenger

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1530-0027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - LR

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1530-0027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - RR

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1530-0027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - Liftgate

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1530-0027
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control

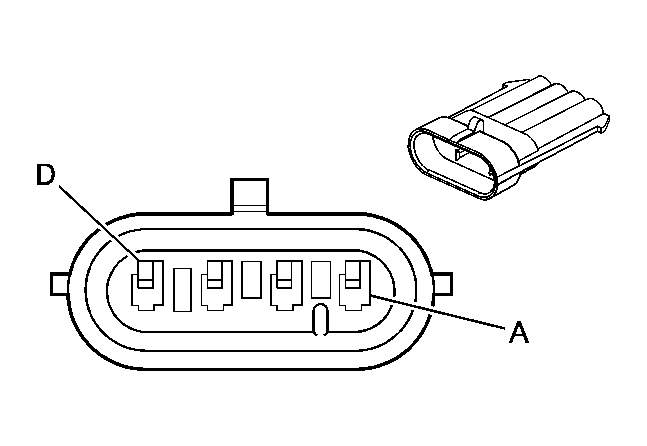

Door Lock Cylinder Switch - Driver

GM73227Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124583
  • 4 Way M Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A RED/BLK 780 Driver Door Lock Switch Lock Signal
B - - Not Used
C BLK 750 Ground
D ORN/BLK 781 Driver Door Lock Switch Unlock Signal
Door Lock Cylinder Switch - Front Passenger

GM73227Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124583
  • 4 Way M Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A RED/BLK 780 Driver Door Lock Switch Lock Signal
B - - Not Used
C BLK 750 Ground
D ORN/BLK 781 Driver Door Lock Switch Unlock Signal
Door Lock Cylinder Switch - Liftgate

GM684807Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3 Way F Metri- Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A RED/BLK 780 Driver Door Lock Switch Lock Signal
B ORN/BLK 781 Driver Door Lock Switch Unlock Signal
C BLK 450 Ground
Door Lock Switch - Driver

GM62480Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1208-9527
  • 6-Way F Metri-Pack 280 Series (GRN)
Pin Wire Color Circuit No. Function
A LT BLU 195 Door Lock Control
B BLK 750 Ground
C GRY 8 Instrument Panel Lamp Supply Voltage - 1
D WHT 194 Door Unlock Control
E BLK 750 Ground
F - - Not Used
Door Lock Switch - Front Passenger

GM62480Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1208-9527
  • 6-Way F Metri-Pack 280 Series (GRN)
Pin Wire Color Circuit No. Function
A LT BLU 195 Door Lock Control
B BLK 750 Ground
C GRY 8 Instrument Panel Lamp Supply Voltage - 1
D WHT 194 Door Unlock Control
E BLK 750 Ground
F - - Not Used
Interior Lamp and Multi-function Switch Assembly C3 - Power Sliding Door Open/Close Switch

GM73232Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041301
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage - 1
B BLK 650 Ground
C LT BLU/ BLK 2618 Sliding Door Switch Signal
D BLK/ WHT 2619 Sliding Door System Switch Signal
E - - Not Used
F BLK/ WHT 1896 Sliding Door System Switch Signal
G LT BLU 1894 Sliding Door Switch Signal
H - - Not Used
Interior Lamp and Multifunction Switch Assembly C4 - Rear Quarter Window Switch and Rear Parking Aid Override Switch

GM73235Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1204-7976
  • 8-Way F Metri-Pack 280 Series (BLU)
Pin Wire Color Circuit No. Function
A GRY 8 Interior Lamps Dimming Input Feed
B BLK 650 Ground
C BLK 1018 Rear Quarter Window Open Output Feed
D BRN 1019 Rear Quarter Window Close Output Feed
E YEL 743 Fused Input Feed
F GRY 2616 Rear Parking Aid Control
G-H - - Not Used
Left Rear Side Door Actuator Control Module Connector C1

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1204-1429
  • 5-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B ORN 1440 Battery Positive Voltage
C - - Not Used
D BLK 9910 Power Sliding Door Release Actuator Control
E BLK 850 Ground
Left Rear Side Door Actuator Control Module Connector C2

GM62467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-6130
  • 9-Way F Micro-Pack 100 Series (NAT)
Pin Wire Color Circuit No. Function
7 - - Not Used
8 DK GRN 389 Vehicle Speed Signal
9 YEL 2617 Detent Switch Input
10 LT BLU
/BLK		 2618 Power Sliding Door Open/Close Input
11 PNK 39 Ignition 1 Voltage
12 ORN 640 Battery Positive Voltage
13 BLK/WHT 2619 Power Sliding Door On/Off Input
14 LT GRN 275 Park Neutral Position Switch Park Signal
15 - - Not Used

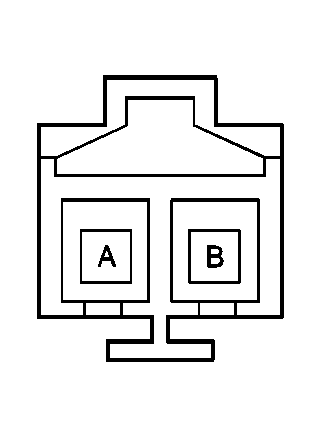

Left Rear Side Door Actuator Control Module Connector C3

GM468480Courtesy of GENERAL MOTORS CORP.
Connector Part Information 2-Way F Connector (BLK)
Pin Wire Color Circuit No. Function
A RED - Cable Motor Open Control
B DK GRN - Cable Motor Close Control

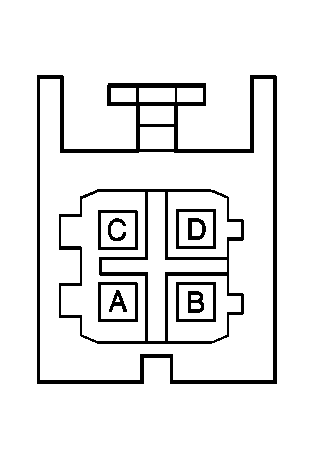

Left Rear Side Door Actuator Control Module Connector C4

GM468478Courtesy of GENERAL MOTORS CORP.
Connector Part Information 4-Way F Connector (BLK)
Pin Wire Color Circuit No. Function
A BLK - Power Sliding Door Alarm Ground
B WHT - Power Sliding Door Alarm Switch Voltage Output
C DK GRN - Clutch Control High
D BRN - Clutch Control Low
Left Rear Side Door Actuator Control Module C5

GM468483Courtesy of GENERAL MOTORS CORP.
Connector Part Information 4-Way F Connector (WHT)
Pin Wire Color Circuit No. Function
1 WHT/ BLK - Optical Sensor Low Reference
2 BLK - Optical Sensor 5V Reference
3 BLK - Optical Sensor Sense 2 Signal
4 BLK - Optical Sensor Sense 1 Signal
Outside Rearview Mirror - Driver

GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-5781
  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A WHT 81 Driver Mirror Motor Right Control
B LT GRN 1499 Driver Mirror Motor Left/Down Control
C YEL 88 Driver Mirror Motor Up Control
D - - Not Used
E ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
F BLK 750 Ground
Outside Rearview Mirror - Passenger

GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-5781
  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A RED/WHT 881 Passenger Mirror Motor Right Control
B LT BLU
/WHT		 1497 Passenger Mirror Motor Left/Down Control
C BRN/WHT 1498 Passenger Mirror Motor Up Control
D - - Not Used
E ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
F BLK 750 Ground
Outside Rearview Mirror Switch

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1204-7886
  • 8-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN/WHT 1498 Passenger Mirror Motor Up Control
B RED/WHT 881 Passenger Mirror Motor Right Control
C LT BLU
/WHT		 1497 Passenger Mirror Motor Left/Down Control
D BLK 750 Ground
E ORN 1140 Battery Positive Voltage
F WHT 81 Driver Mirror Motor Right Control
G YEL 88 Driver Mirror Motor Up Control
H LT GRN 1499 Driver Mirror Motor Left/Down Control
Power Sliding Door Unlatch Actuator - Left

GM684799Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077900
  • 2-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B BLK 1898 Power Sliding Door Release Actuator - Right
Power Sliding Door Unlatch Actuator - Right

GM684799Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077900
  • 2-Way F Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B BLK 2910 Power Sliding Door Release Actuator - Right
Power Sliding Door Detent Switch - Left

GM35437Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1205-2642
  • 2-Way F Metri-Pack 150 Series Sealed (GRN)
Pin Wire Color Circuit No. Function
A YEL 2617 Sliding Door Detent Switch Signal
B BLK 750 Ground
Power Sliding Door Detent Switch - Right

GM35437Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1205-2642
  • 2-Way F Metri-Pack 150 Series Sealed (GRN)
Pin Wire Color Circuit No. Function
A YEL 1892 Sliding Door Detent Switch Signal
B BLK 750 Ground
Power Sliding Door Open/Close Switch - Left B-Pillar

GM73231Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-4860
  • 6-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU/BLK 2618 Sliding Door Switch Signal
B GRY 8 Instrument Panel Lamp Supply Voltage - 1
C - - Not Used
D BLK 750 Ground
E BLK 750 Ground
F - - Not Used
Power Sliding Door Open/Close Switch - Right B-Pillar

GM73231Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-4860
  • 6-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 1894 Sliding Door Switch Signal
B GRY 8 Instrument Panel Lamp Supply Voltage - 1
C - - Not Used
D BLK 650 Ground
E BLK 650 Ground
F - - Not Used

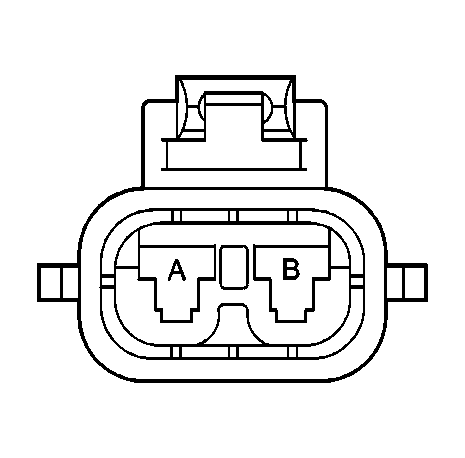

Power Sliding Door Unlatch Actuator

GM258847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1207-7900
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B BLK 2910 Power Sliding Door Release Actuator Control Input
Rear Door Lock (Actuator)

GM258847Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1207-7900
  • 2-Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A GRY 295 Door Lock Actuator Lock Control
B TAN 294 Door Lock Actuator Unlock Control
Right Rear Side Door Actuator Control Module Connector C1

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1204-1429
  • 5-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C ORN 1440 Battery Positive Voltage
D BLK 2910 Power Sliding Door Release Actuator Control
E BLK 1850 Ground
Right Rear Side Door Actuator Control Module Connector C2

GM62467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-6130
  • 9-Way F Micro-Pack 100 Series (NAT)
Pin Wire Color Circuit No. Function
7 - - Not Used
8 DK GRN 389 Vehicle Speed Signal
9 YEL 1892 Sliding Door Detent Switch Signal
10 LT BLU 1894 Sliding Door Switch Signal
11 PNK 39 Ignition 1 Voltage
12 ORN 640 Battery Positive Voltage
13 BLK/WHT 1896 Sliding Door System Switch Signal
14 LT GRN 275 Park Neutral Position Switch Park Signal
15 - - Not Used
Right Rear Side Door Actuator Control Module Connector C3

GM468480Courtesy of GENERAL MOTORS CORP.
Connector Part Information 2-Way F Connector (BLK)
Pin Wire Color Circuit No. Function
A RED - Cable Motor Open Control
B BLK - Cable Motor Close Control
Right Rear Side Door Actuator Control Module Connector C4

GM468478Courtesy of GENERAL MOTORS CORP.
Connector Part Information 4-Way F Connector (BLK)
Pin Wire Color Circuit No. Function
A BLK - Power Sliding Door Alarm Ground
B WHT - Power Sliding Door Alarm Switch Voltage Output
C DK GRN - Clutch Control High
D BRN - Clutch Control Low
Right Rear Side Door Actuator Control Module C5

GM468483Courtesy of GENERAL MOTORS CORP.
Connector Part Information 4-Way F Connector (WHT)
Pin Wire Color Circuit No. Function
1 WHT/ BLK - Optical Sensor Input/Output
2 BLK - Optical Sensor Input/Output
3 BLK - Optical Sensor Input/Output
4 BLK - Optical Sensor Input/Output
Sliding Door Jamb Switch - Left

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-5422
  • 3-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A YEL 804 Door Ajar Indicator Lamp Output
B ORN 54 Passenger Door Switch Signal
C BLK 750 Ground
Sliding Door Jamb Switch - Right

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-5422
  • 3-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A YEL 804 Door Ajar Indicator Lamp Output
B ORN 54 Passenger Door Switch Signal
C BLK 750 Ground

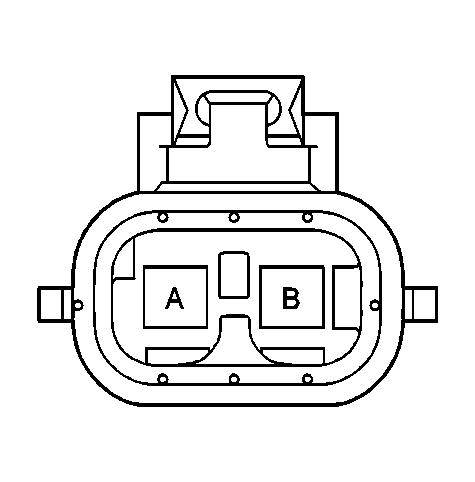

Window Motor - Driver

GM258176Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1212-9487
  • 2-Way F Metri-Pack 280 Series Flexlock (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 164 Power Window Motor Left Front Up Control
B BRN 165 Power Window Motor Left Front Down Control
Window Motor - Front Passenger

GM258176Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1212-9487
  • 2-Way F Metri-Pack 280 Series Flexlock (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 666 Power Window Motor Right Front Up Control
B BRN 667 Power Window Motor Right Front Down Control
Window Switch - Front Passenger

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-4998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 666 Power Window Motor Right Front Up Control
B GRY 8 Instrument Panel Lamp Supply Voltage - 1
C BLK 750 Ground
D TAN 167 Power Window Master Switch Right Front Down Signal
E BRN 667 Power Window Motor Right Front Down Control
F YEL 143 Accessory Voltage
G - - Not Used
H LT BLU 166 Power Window Master Switch Right Front Up Signal
Window Switch - Master

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1206-4998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 165 Power Window Motor Left Front Down Control
B LT BLU 166 Power Window Master Switch Right Front Up Signal
C - - Not Used
D GRY 8 Instrument Panel Lamp Supply Voltage - 1
E DK BLU 164 Power Window Motor Left Front Up Control
F TAN 167 Power Window Master Switch Right Front Down Signal
G BLK 750 Ground
H YEL 143 Accessory Voltage
scientia non olet · About LEMON Manuals
