Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

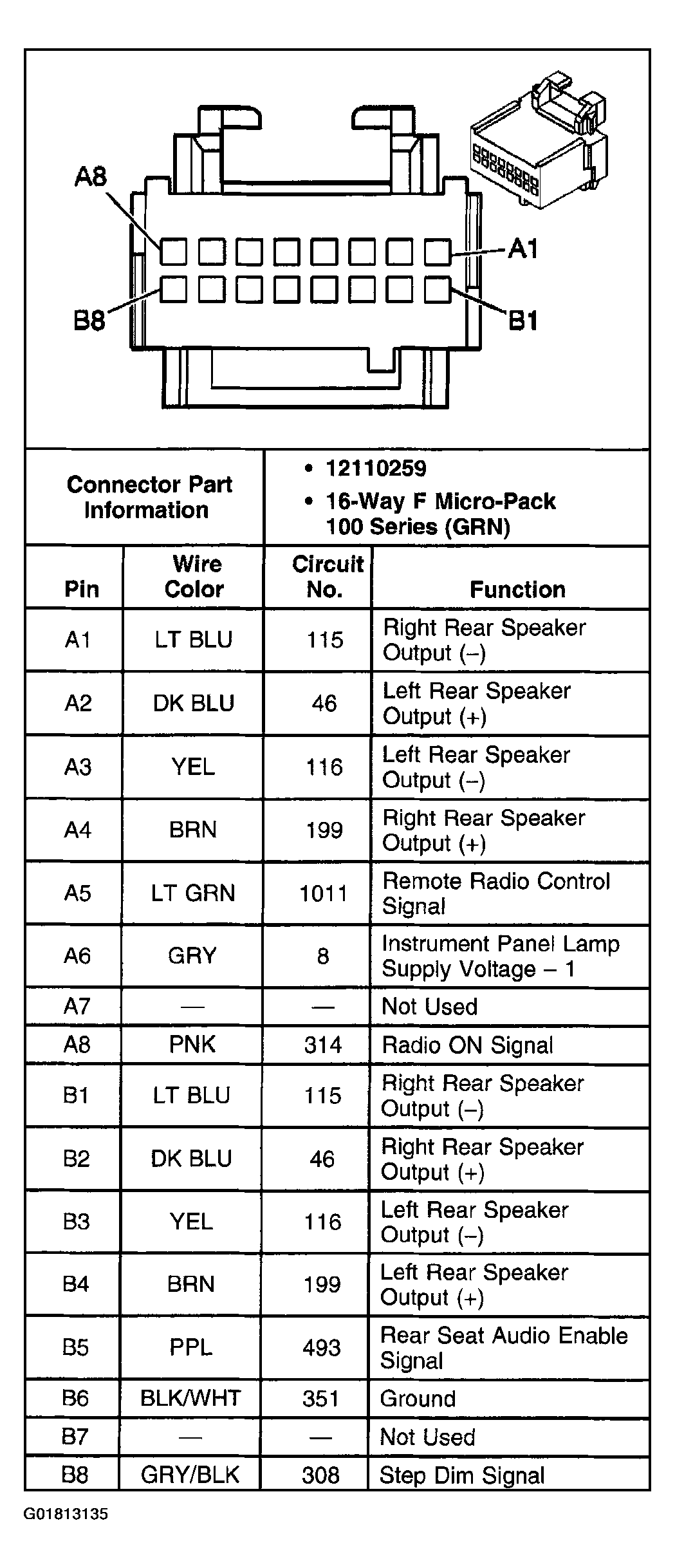

Fig 1: Radio C1

Courtesy of GENERAL MOTORS CORP.

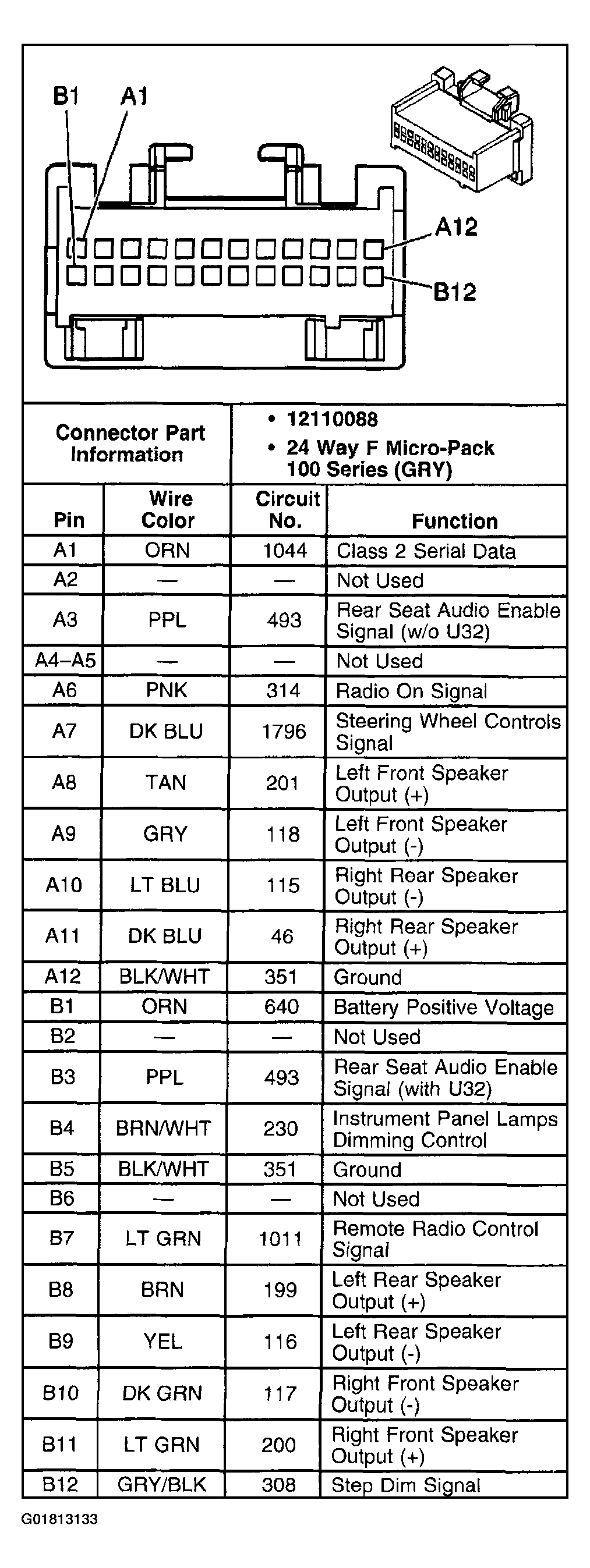

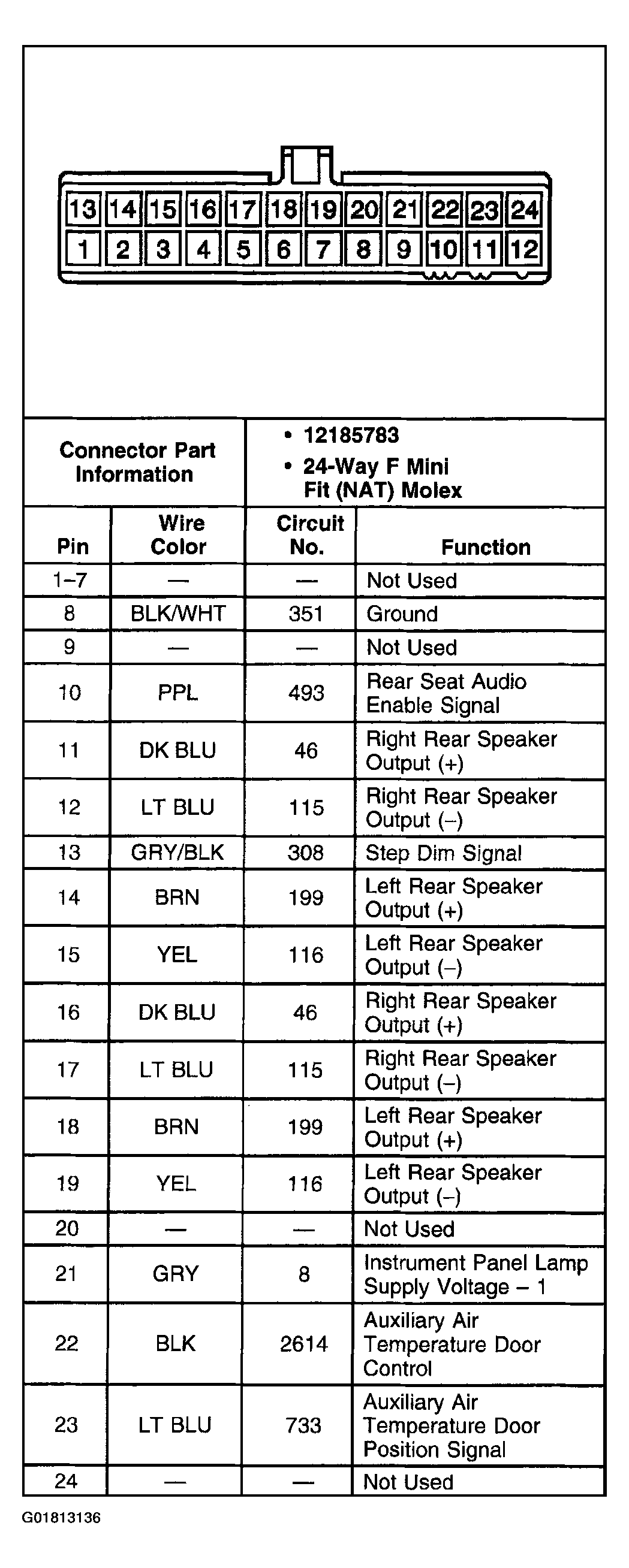

Fig 2: Radio (w/UE1) C2

Courtesy of GENERAL MOTORS CORP.

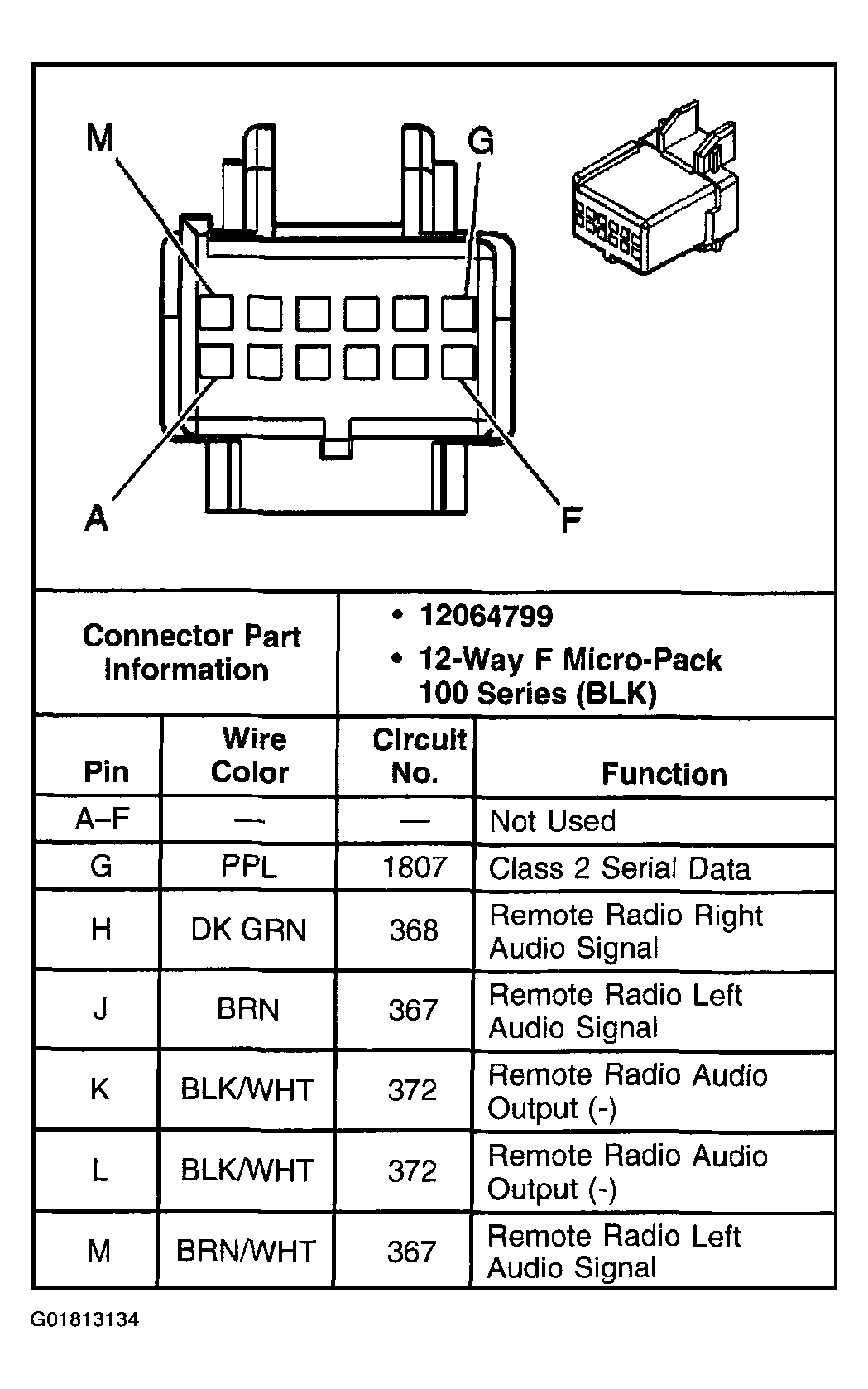

Fig 3: Rear Seat Audio (RSA) Control

Courtesy of GENERAL MOTORS CORP.

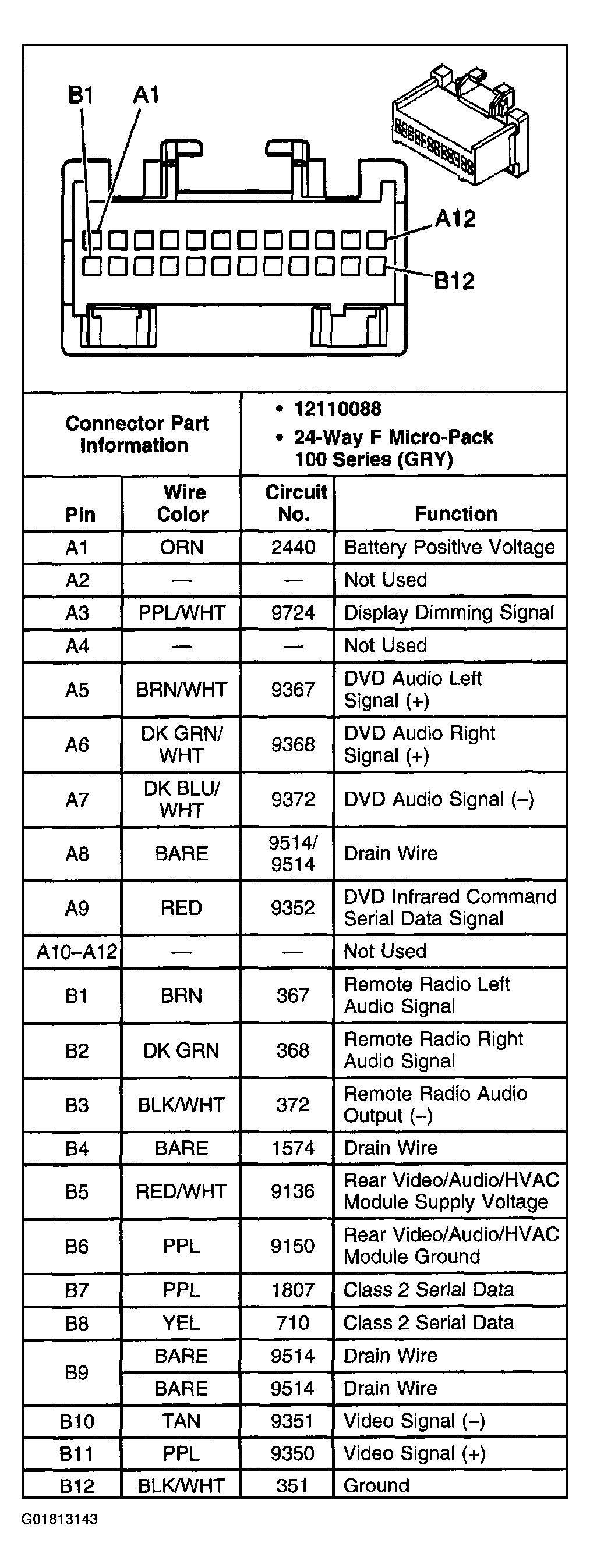

Fig 4: Rear Video/Audio/HVAC Module - C1

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Video/Audio/HVAC Module - C2

Courtesy of GENERAL MOTORS CORP.

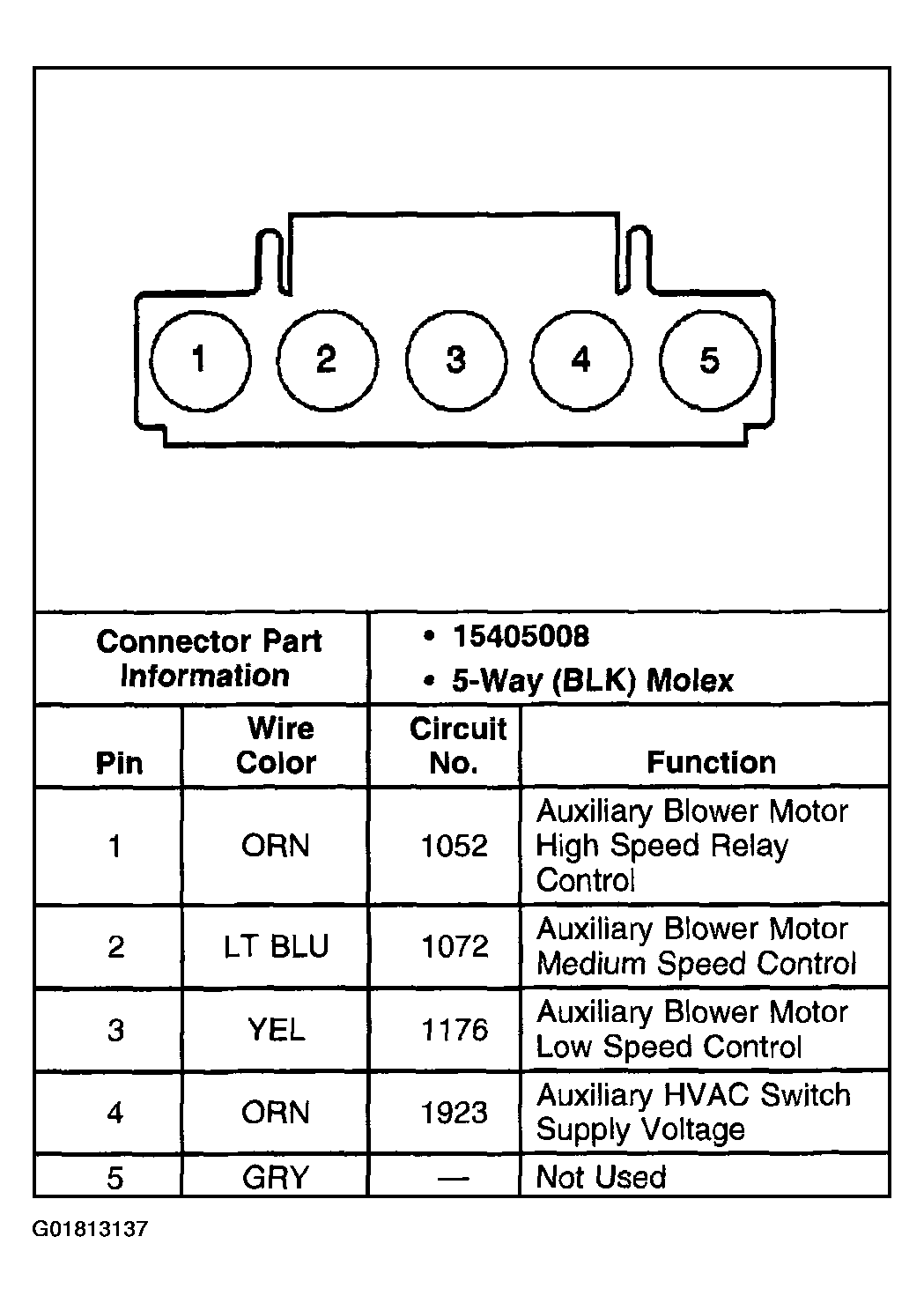

Fig 6: Rear Video/Audio/HVAC Module - C3

Courtesy of GENERAL MOTORS CORP.

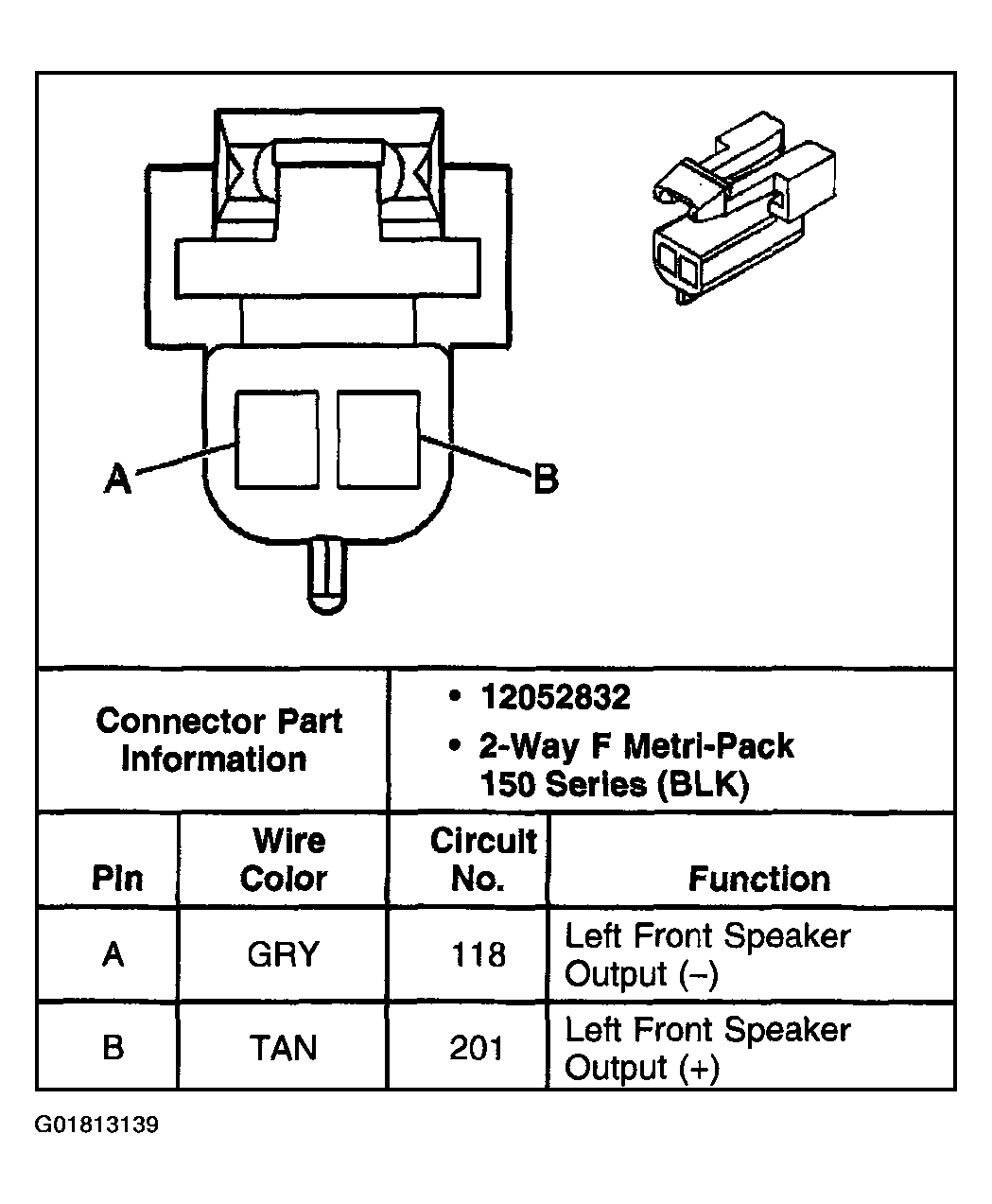

Fig 7: Speaker - LF Door

Courtesy of GENERAL MOTORS CORP.

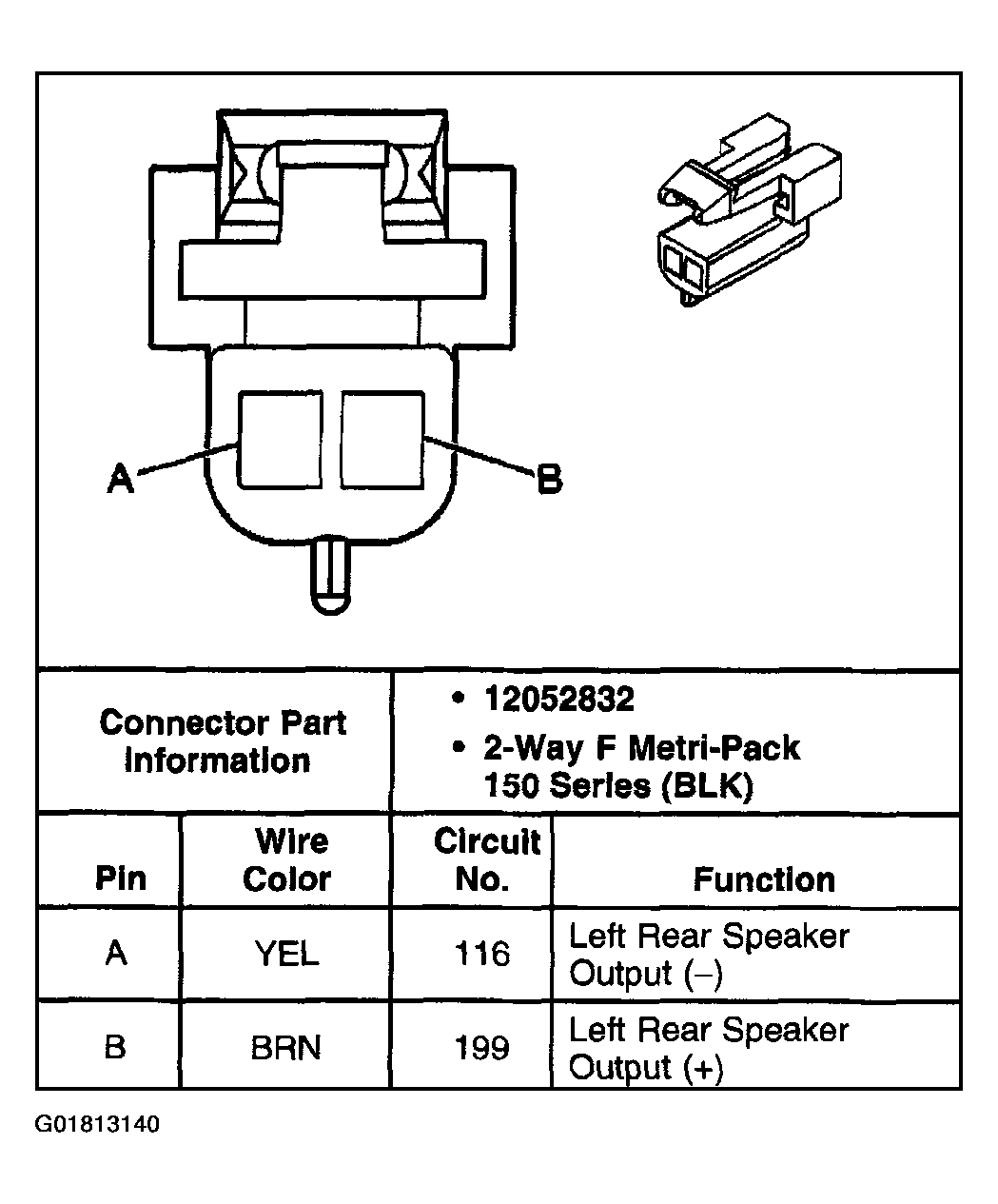

Fig 8: Speaker - LR Liftgate

Courtesy of GENERAL MOTORS CORP.

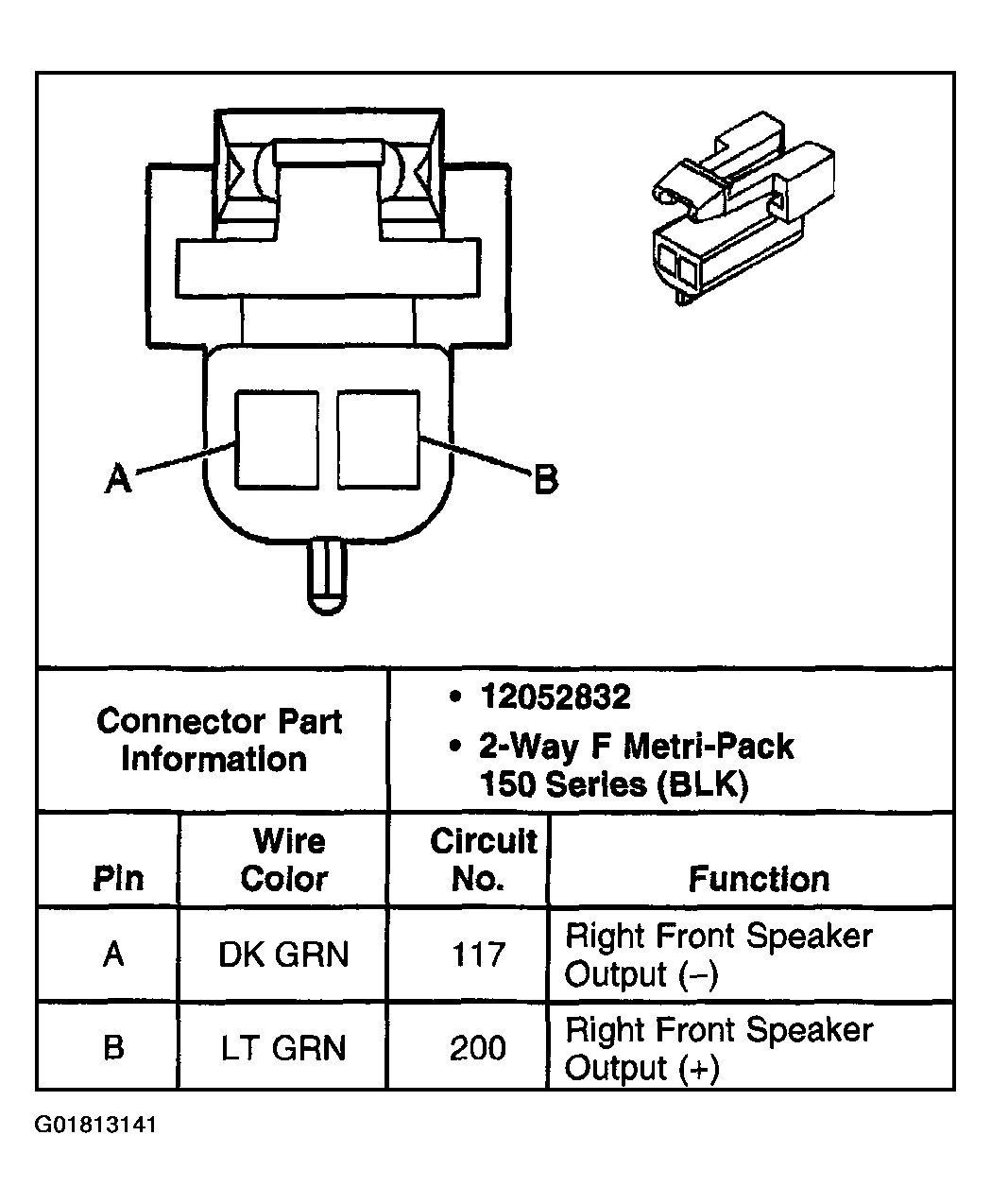

Fig 9: Speaker - RF Door

Courtesy of GENERAL MOTORS CORP.

Fig 10: Speaker - RR Liftgate

Courtesy of GENERAL MOTORS CORP.

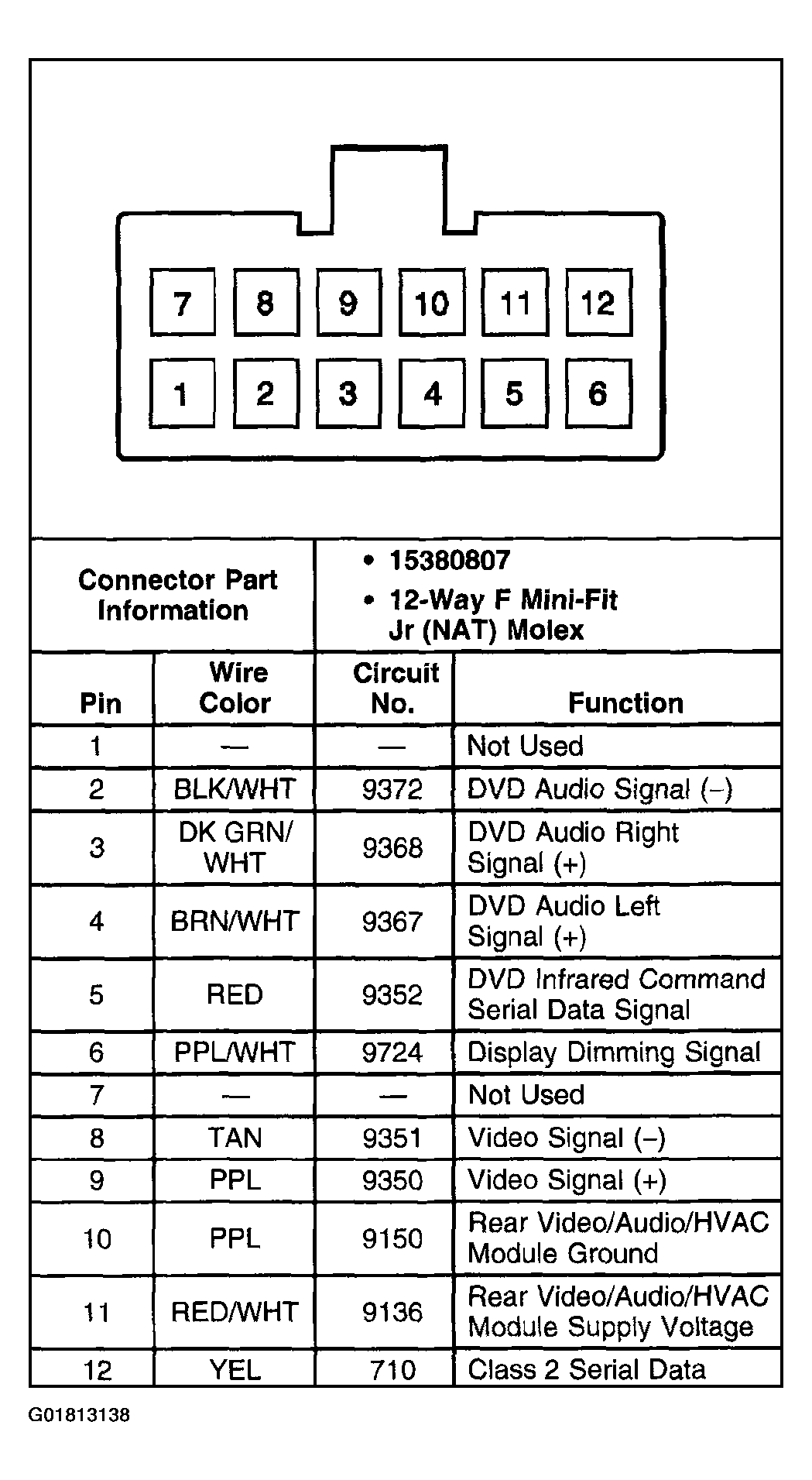

Fig 11: Video Disc Player

Courtesy of GENERAL MOTORS CORP.
