Steering Column Disassembled View

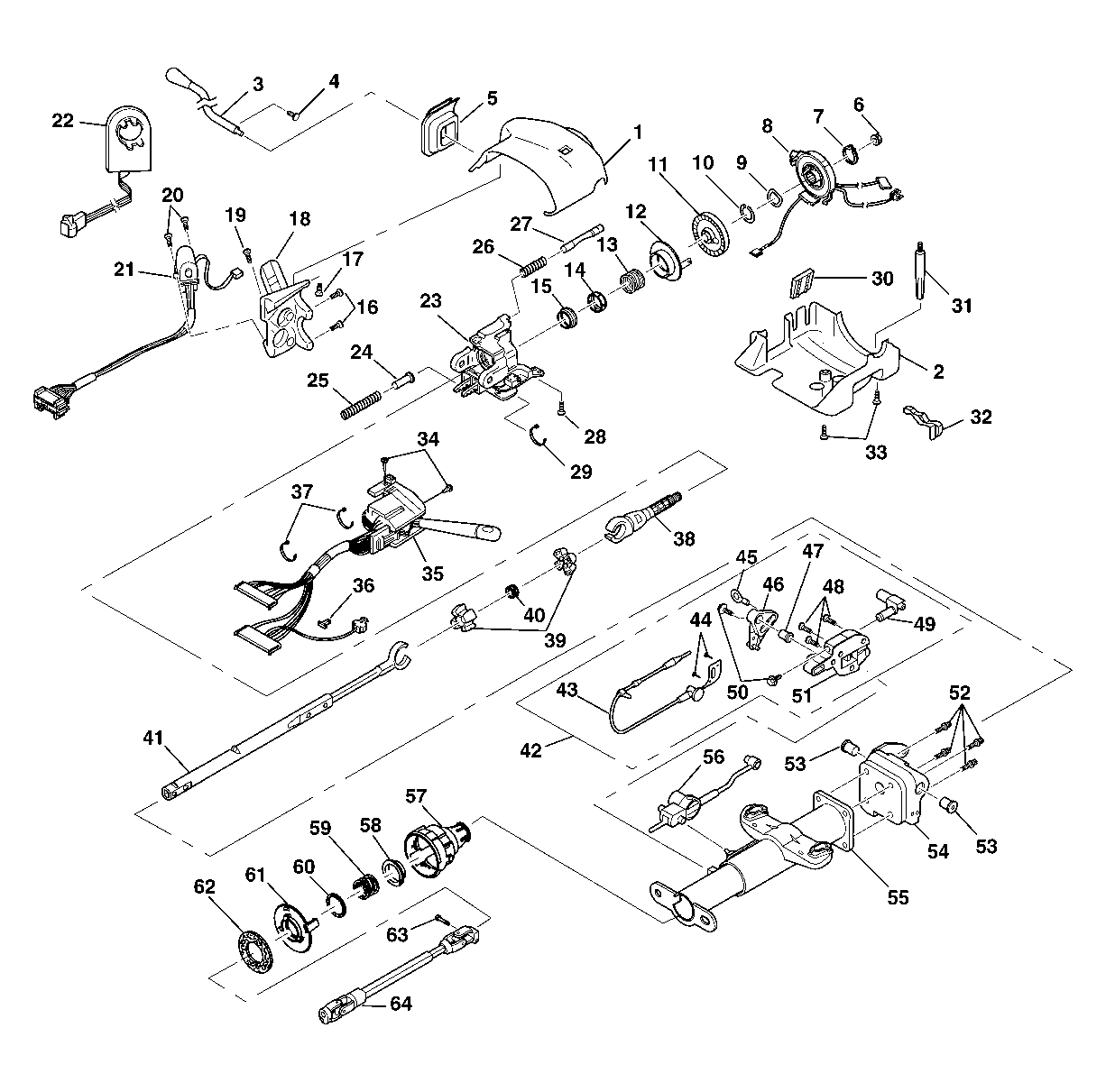

Fig 1: Disassembled View Of Tilt Column Shift

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Lower Trim Cover
3	Shift Lever Assembly
4	Shift Lever Screw
5	Shift Lever Seal
6	Flanged Prevailing Torque Nut
7	Retaining Ring
8	SIR Coil
9	Wave Washer
10	Bearing Retainer
11	Shaft Lock Shield Assembly
12	Turn Signal Cancel Cam Assembly
13	Upper Bearing Spring
14	Upper Bearing Inner Race Seat
15	Inner Race
16	Pan Head Tapping Screws
17	TORX® Head Screw
18	Ignition Lock Cylinder Case
19	Pan Head Tapping Screw
20	Tapping Screws
21	Ignition Switch Assembly
22	Theft Deterrent Control Module
23	Steering Column Tilt Head Assembly
24	Spring Guide
25	Tilt Spring
26	Lock Bolt Spring
27	Lock Bolt Assembly
28	TORX® Head Screw
29	Wire Harness Strap
30	Trim Cover Protector
31	Trim Cover Mounting Stud
32	Tilt Lever Assembly
33	Pan Head Tapping Screws
34	Pan Head Tapping Screws
35	Turn Signal and Multifunction Switch Assembly
36	Position Assurance Connector
37	Wire Harness Straps
38	Race and Upper Shaft Assembly
39	Centering Sphere
40	Joint Preload Spring
41	Lower Shaft Assembly
42	Linear Shift Assembly
43	Park Lock Cable Assembly
44	Oval Head 6-Lobed Socket Tap Screws
45	Ball and Actuator Assembly
46	Cable Shift Cam Assembly
47	Cam Bushing
48	Flat Head 6-Lobed Socket Tap Screws
49	Shift Lever Clevis
50	Hexagon Flanged Head Bolts
51	Gear Shift Lever Assembly Support Bracket
52	TORX® Head Screws
53	Pivot Pins
53	Pivot Pin
54	Steering Column Support Assembly
55	Steering Column Jacket Assembly
56	Automatic Transmission Shift Lock Control
57	Adapter and Bearing Assembly
58	Lower Bearing Retainer
59	Lower Bearing Spring
60	Lower Spring Retainer
61	Retainer
62	Steering Shaft Seal
63	Pinch Bolt
64	Intermediate Steering Shaft Assembly
