Entertainment Component Views

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver

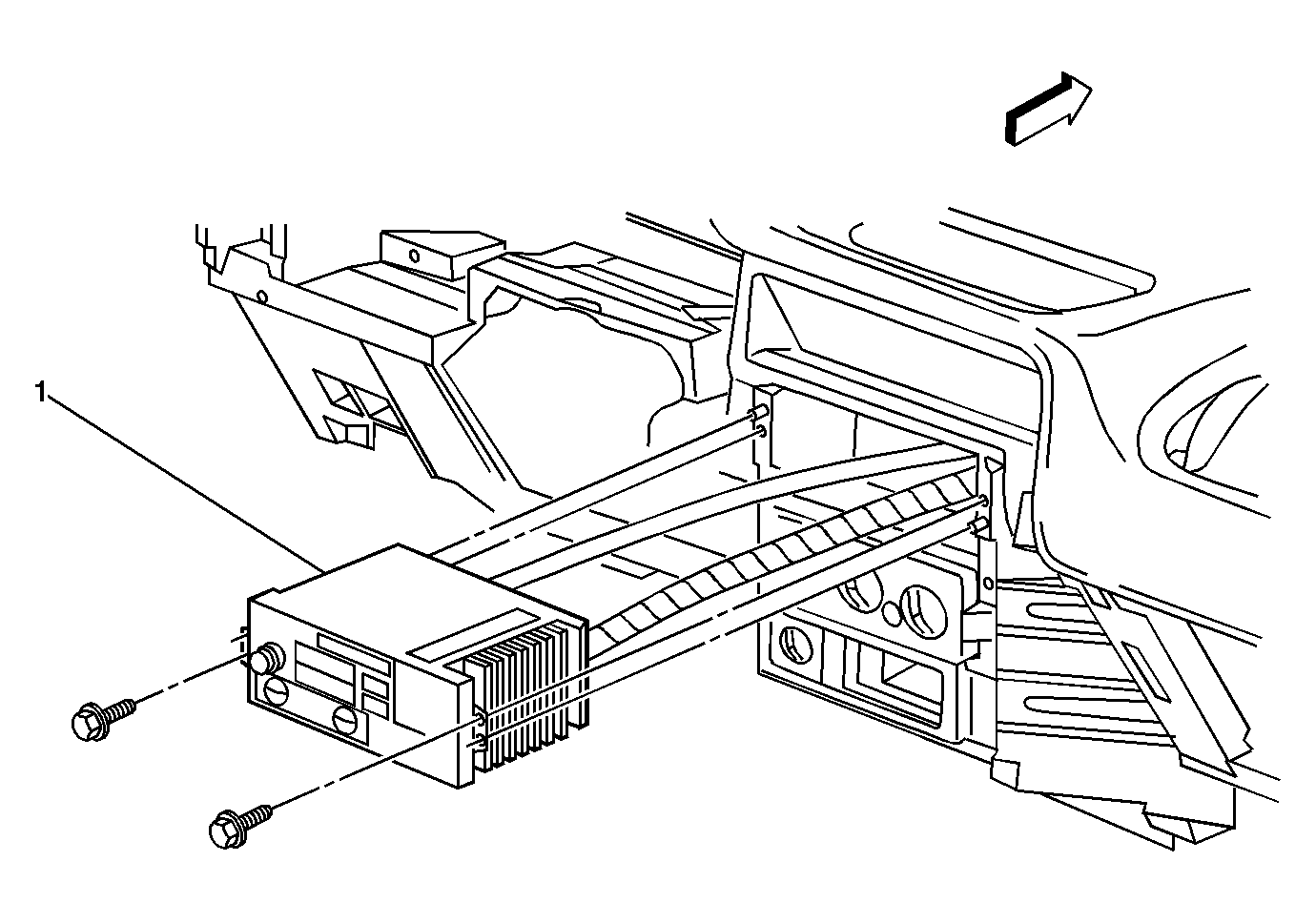

Fig 2: Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio

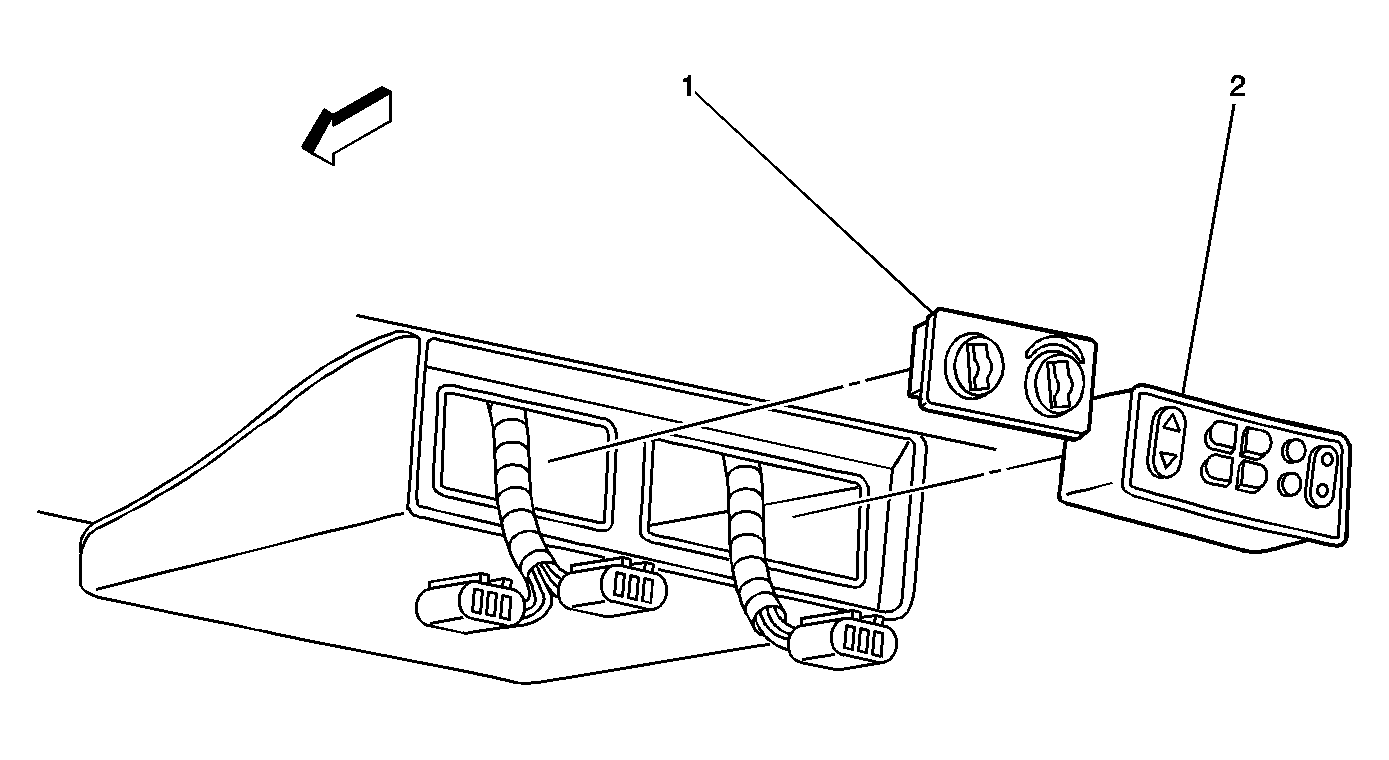

Fig 3: Rear Seat Controls

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auxiliary
2	Rear Seat Audio (RSA) Control

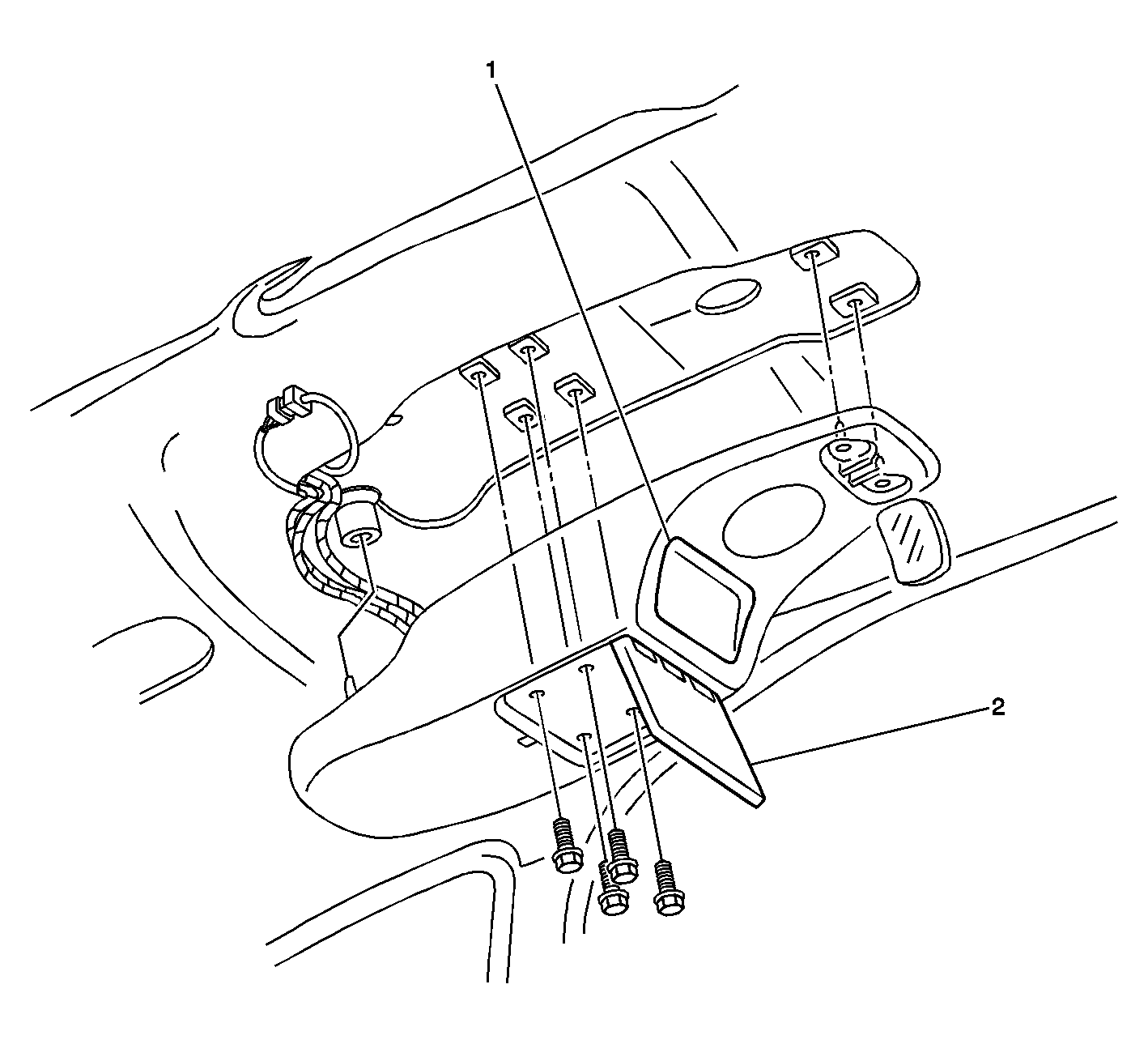

Fig 4: Video Disc Player and Rear Video/Audio HVAC Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Video/Audio HVAC Control Module
2	Video Display Screen

Fig 5: Rear Liftgate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Liftgate
