Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cruise control cable from the module. Refer to CRUISE CONTROL CABLE REPLACEMENT .

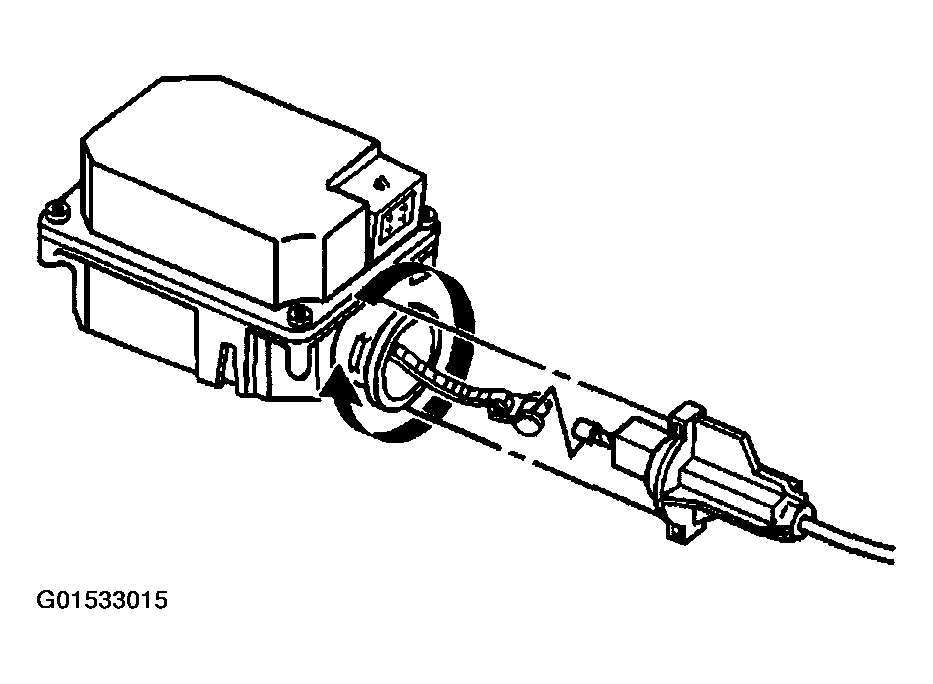

Fig 1: Removing Cruise Control Cable From Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector.

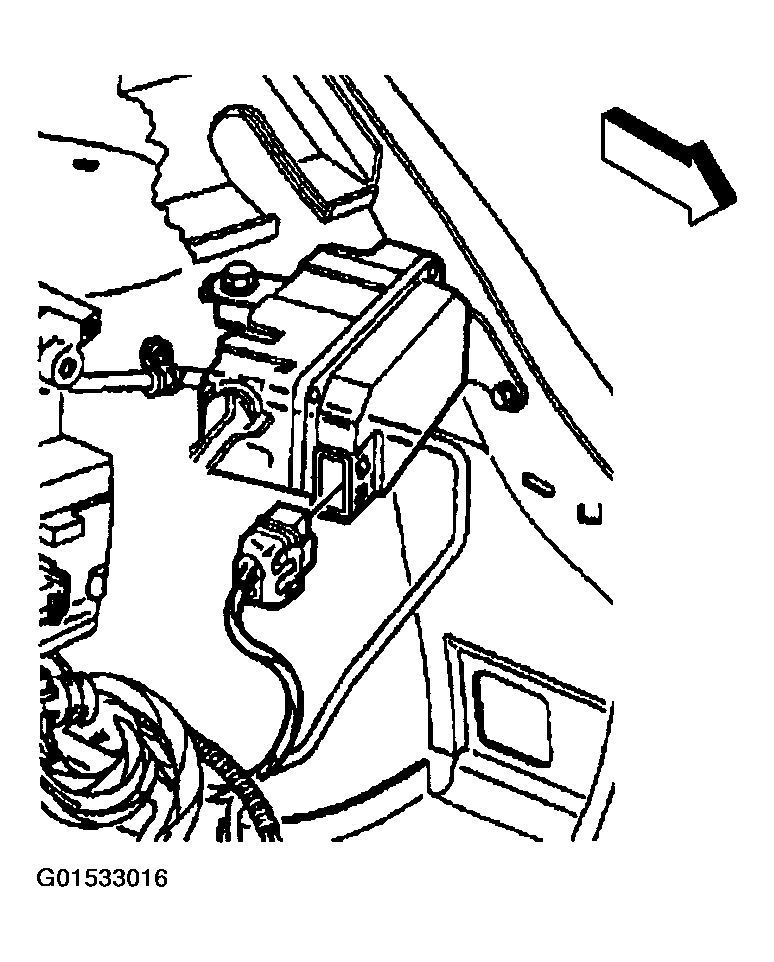

Fig 2: Disconnecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the mounting bracket bolt from the cruise control module.
Remove the cruise control module from the mounting bracket.

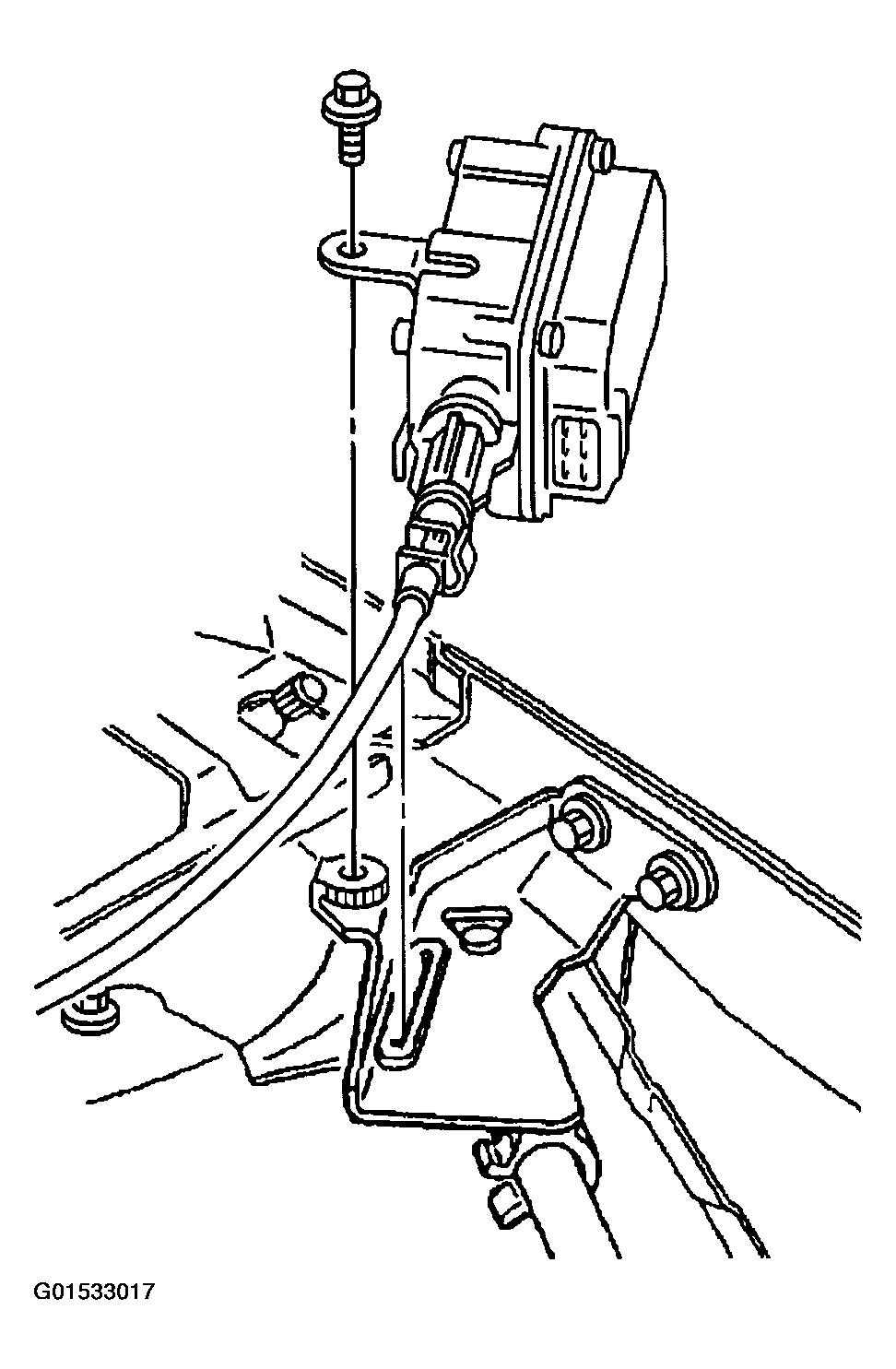

Fig 3: Removing Cruise Control Module From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
