Control Module HVAC: Locations

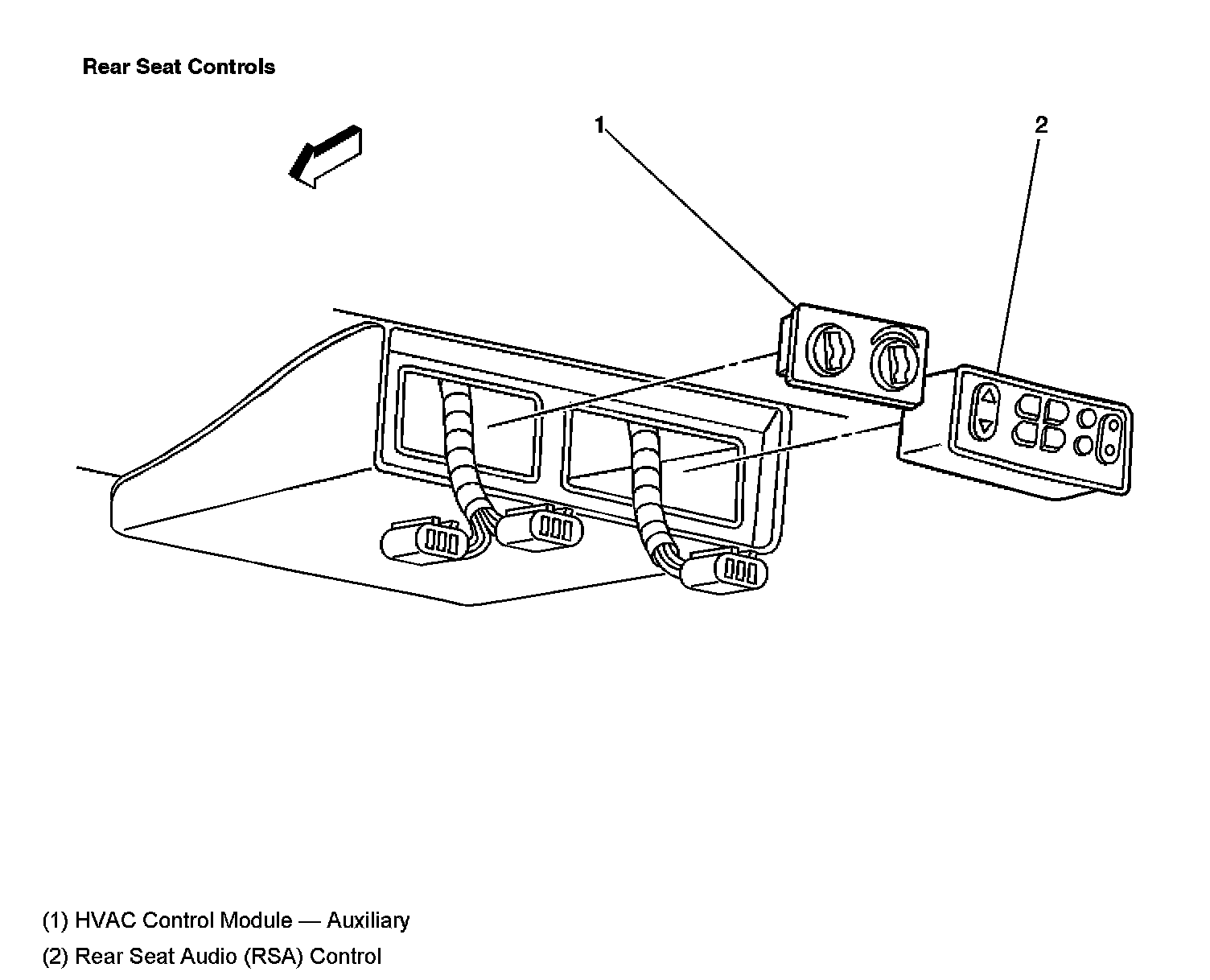

Rear Seat Controls:

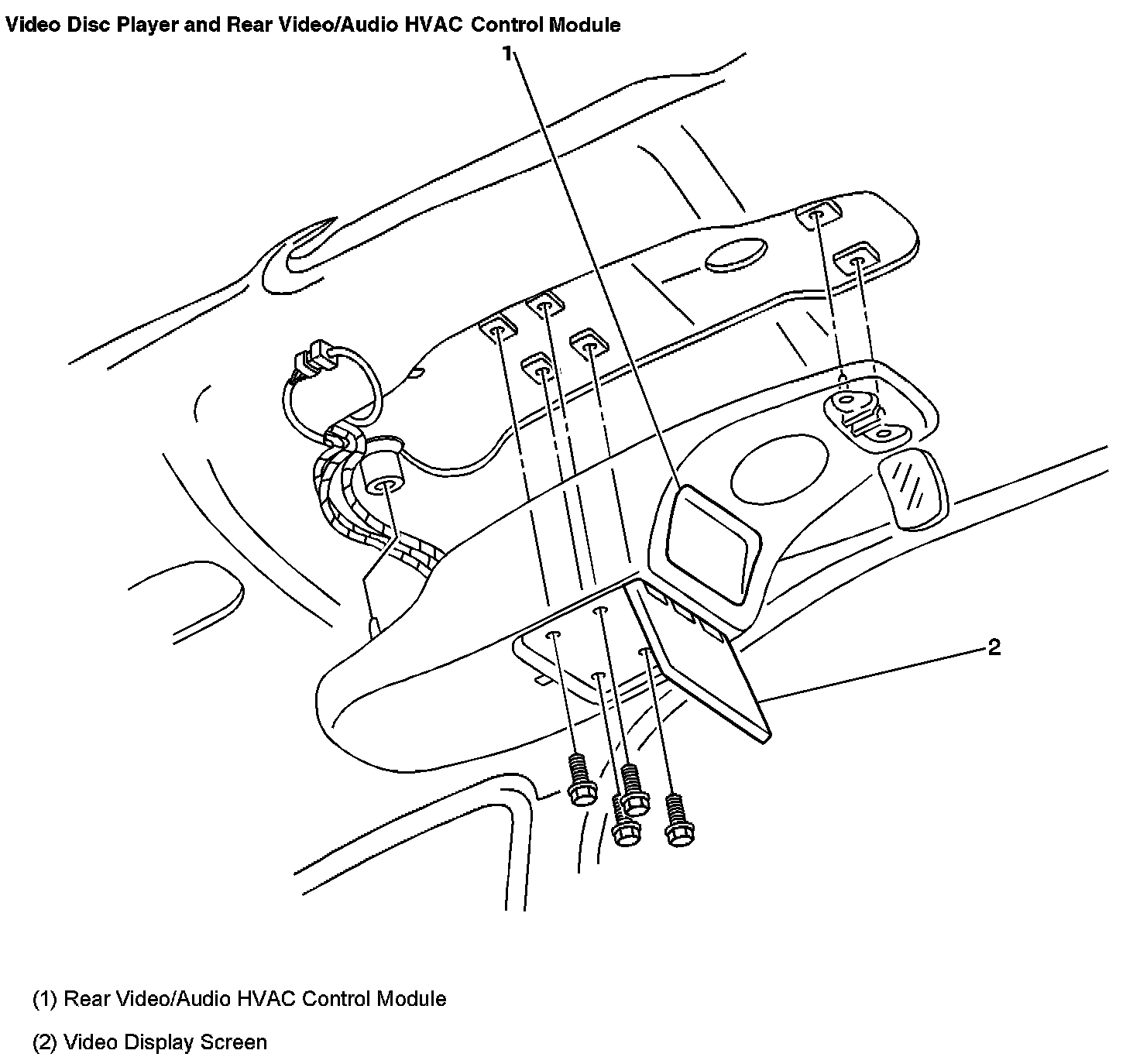

Video Disc Player And Rear Video/Audio HVAC Control Module:

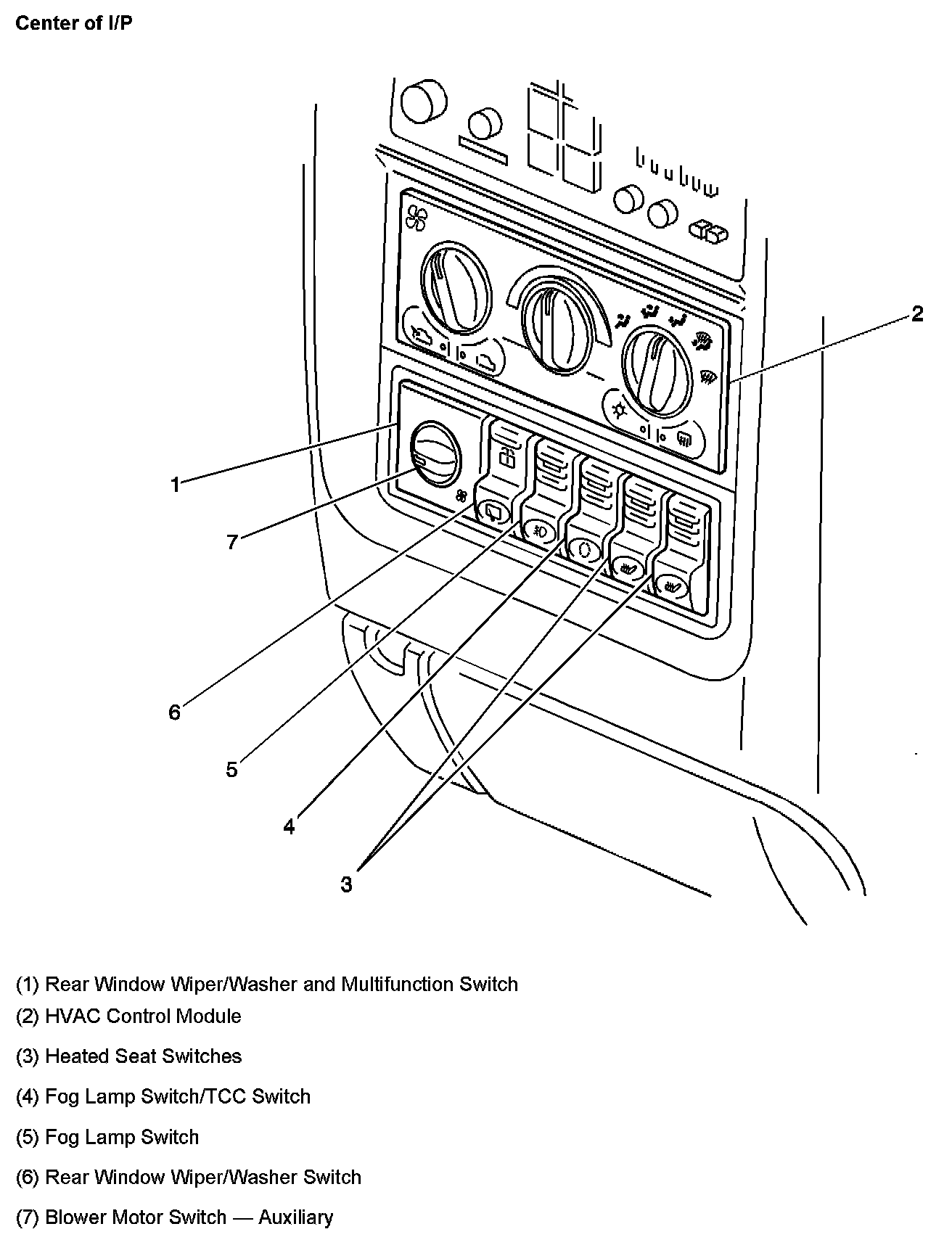

Center Of I/P:

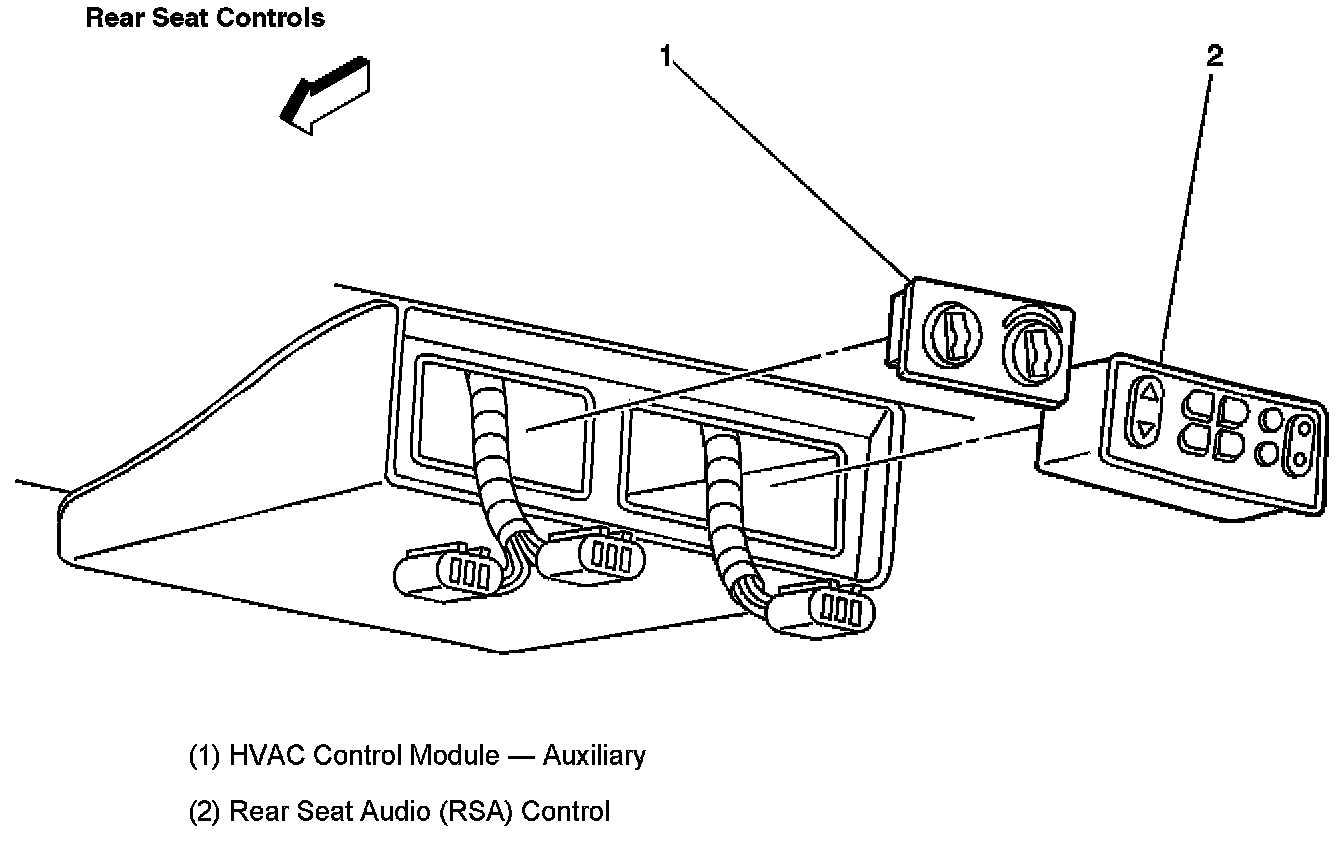

Rear Seat Controls:

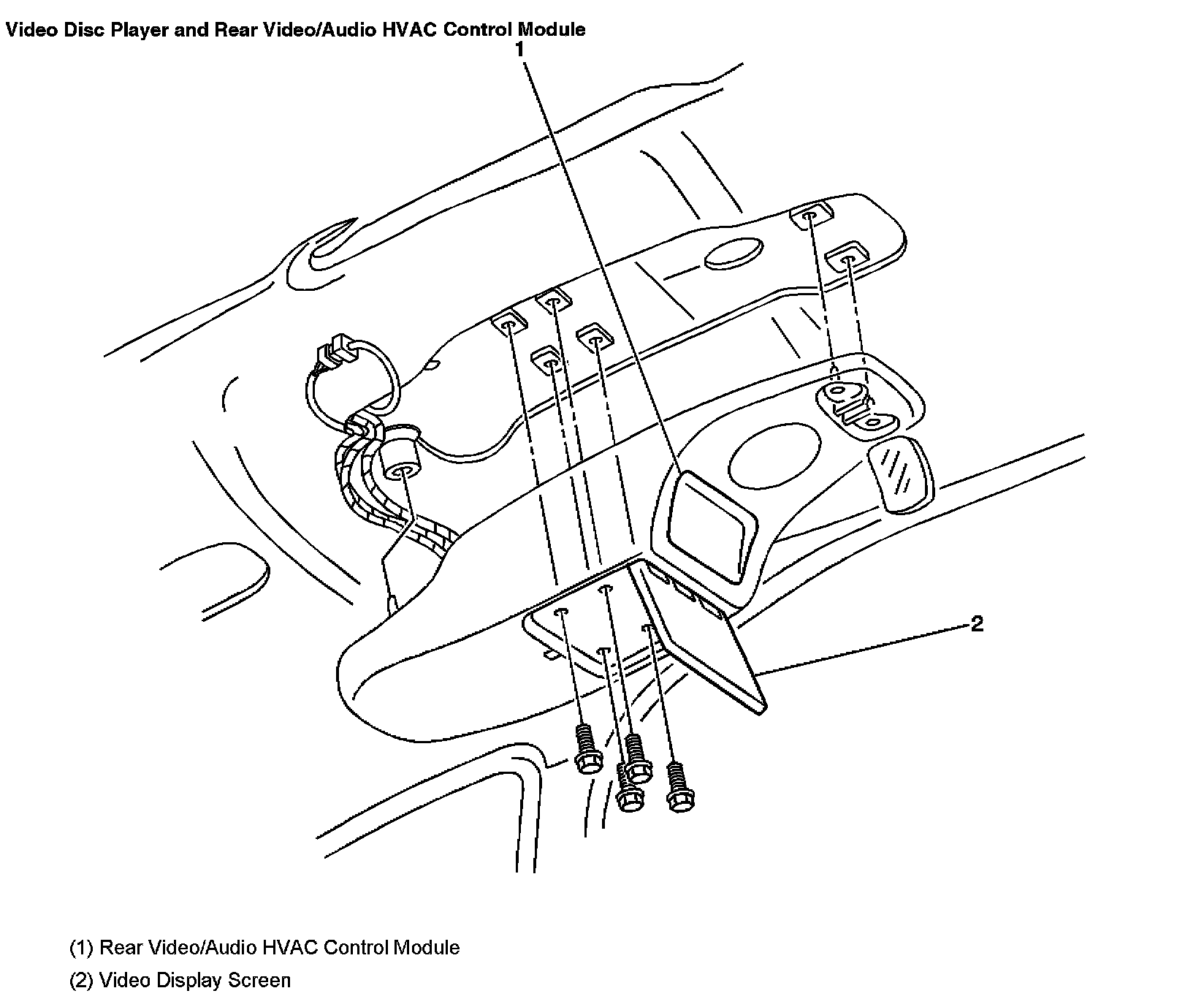

Video Disc Player and Rear Video/Audio HVAC Control Module:
