Connector Views

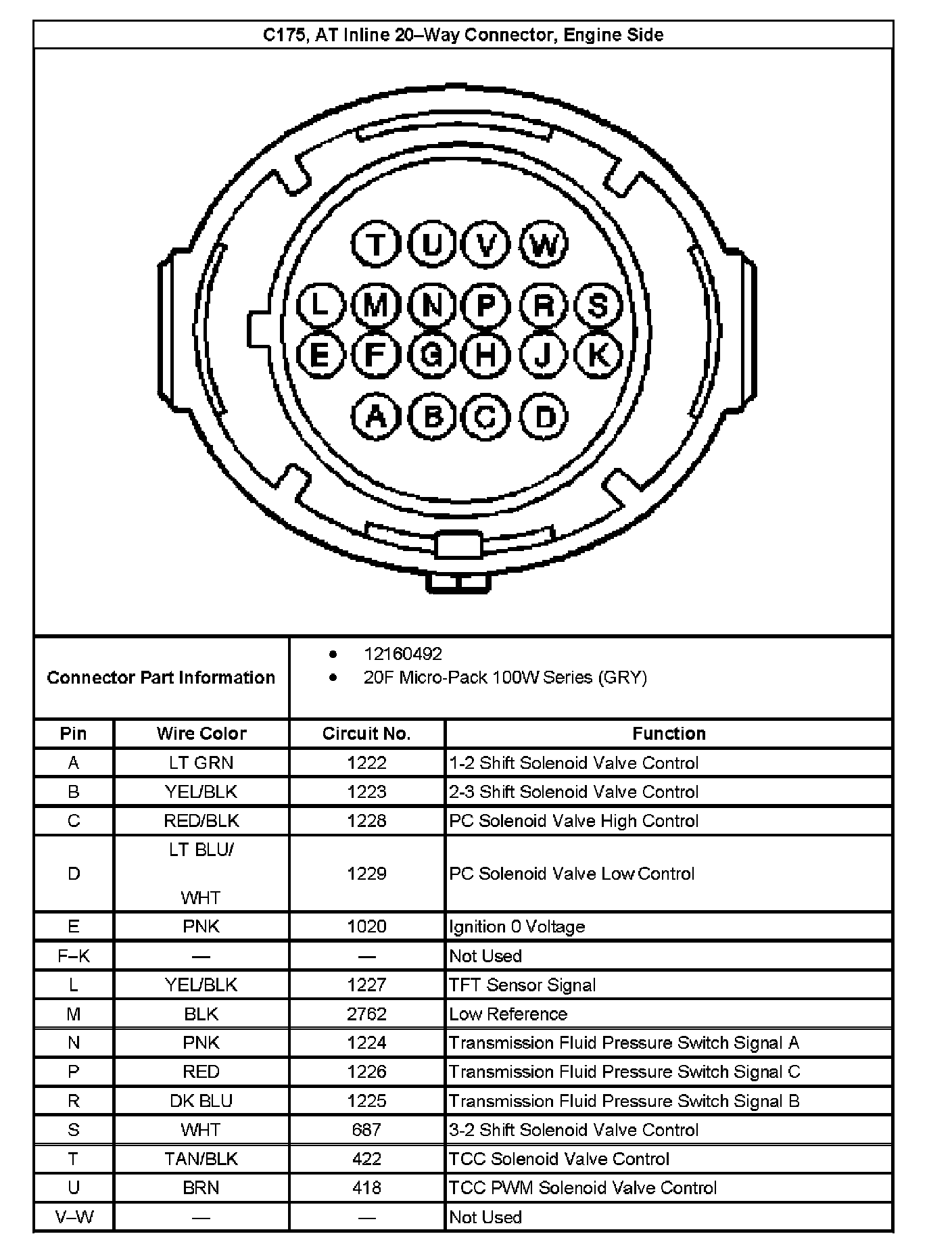

C175, AT Inline 20-Way Connector End View, Engine Side:

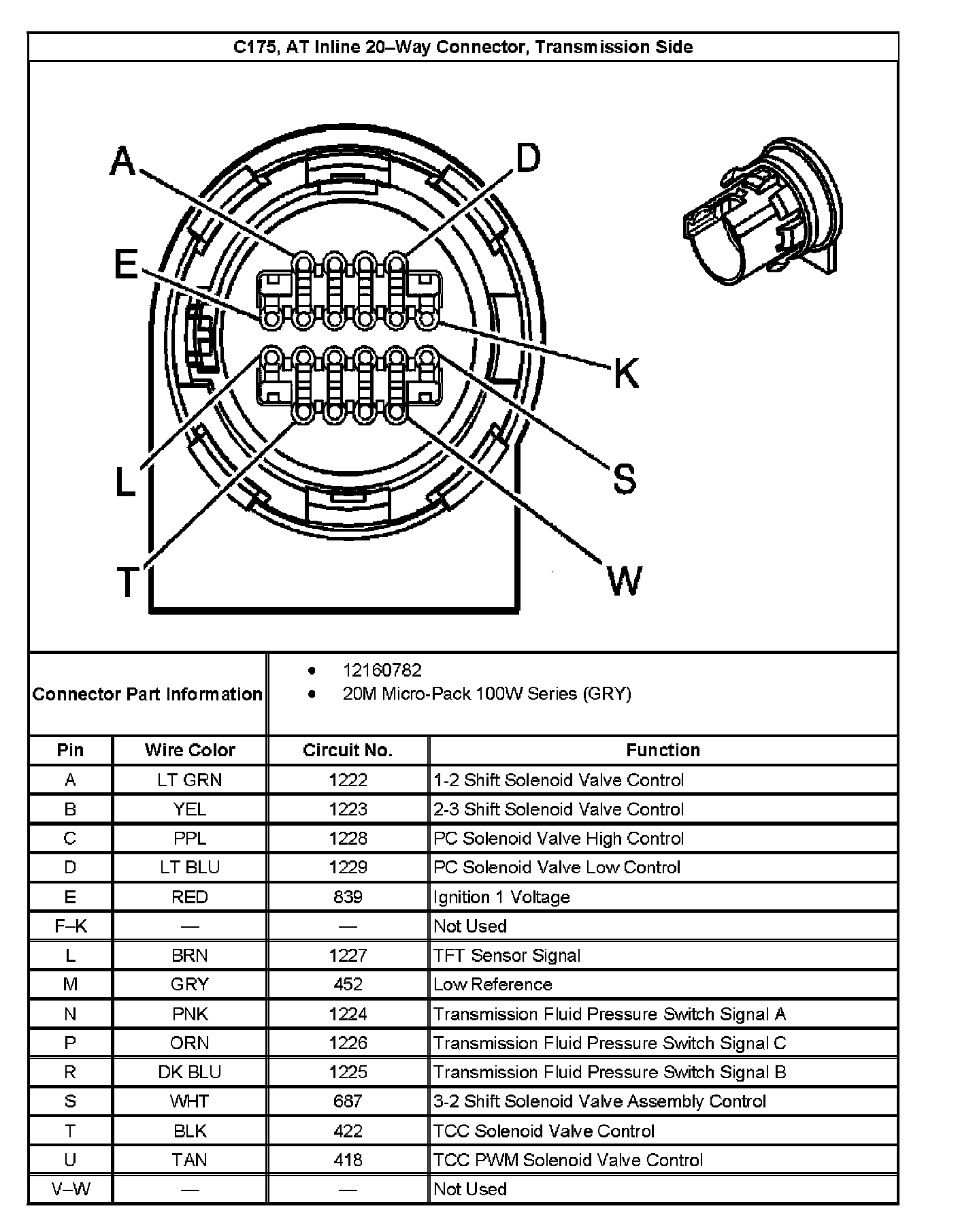

C175, AT Inline 20-Way Connector End View, Transmission Side:
