Computer/Integrating Systems Component Views

Fig 1: Body Control Module Connectors Component View
GM537288Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Body Control Module Connector C1
3 Body Control Module Connector C2
4 Body Control Module Connector C3
Fig 2: Instrument Cluster Wiring Component View
GM786770Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
1 Body Control Module (BCM)
2 Body Control Module (BCM) Connectors
3 HVAC Control Module
4 S219
5 S217
6 S211
7 S257
8 S330
9 Headlamp and Panel Dimmer Switch
10 S256
11 Headlamp and Panel Dimmer Switch Connector
12 Remote Control Door Lock Receiver (RCDLR) Connector
13 S210
14 S254
15 S250
16 S212
17 S219
18 Instrument Panel Cluster (IPC) Connector
19 S258
20 S259
21 S255
22 Radio Connectors

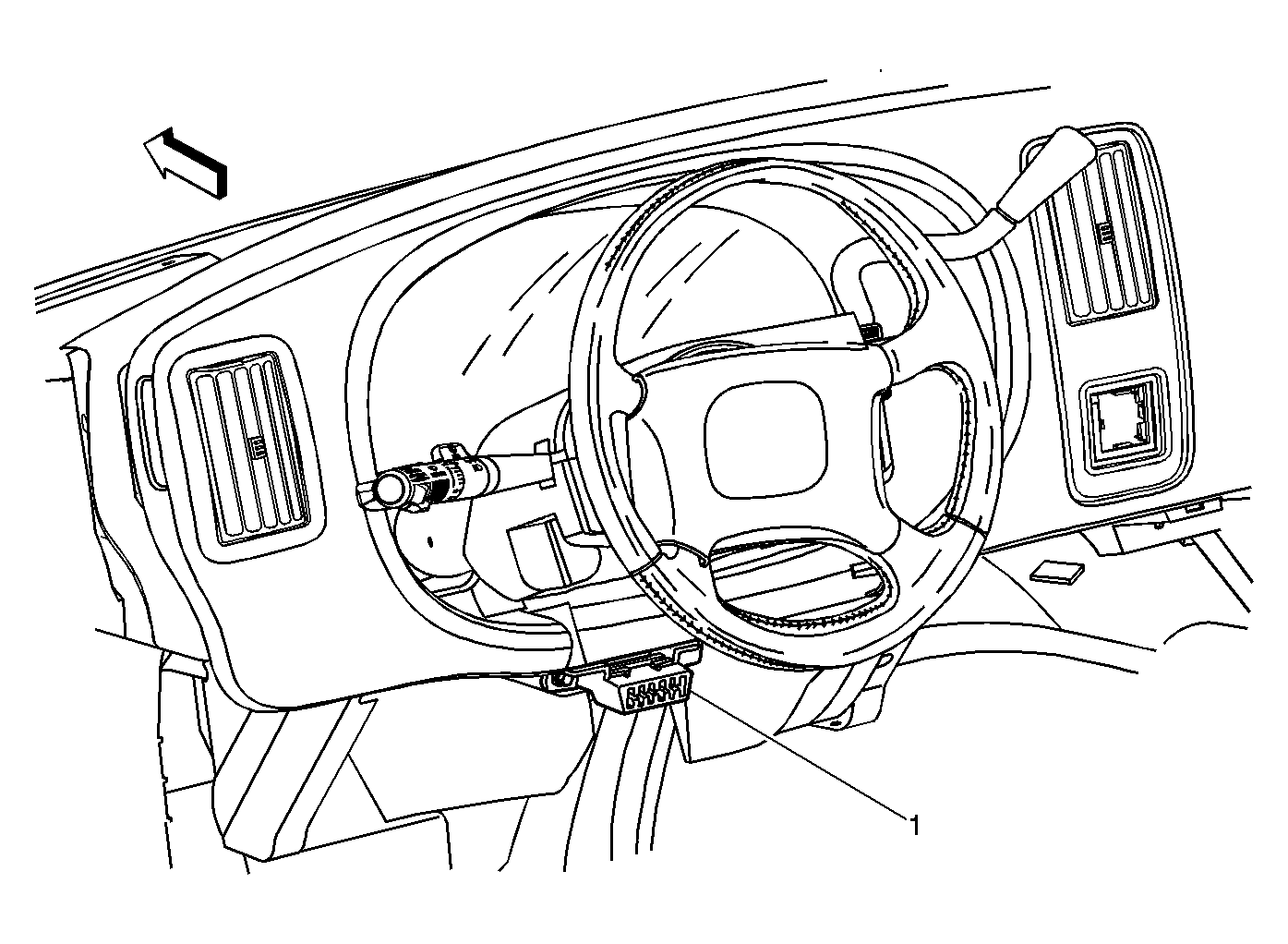

Fig 3: Data Link Connector (DLC) Communications Component View
GM535672Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Data Link Connector (DLC)
