Power Outlet Component Views

Fig 1: Battery Wiring (RWD) Component View
GM181452Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery
3 G102
4 Starter
5 Starter Solenoid
6 G103
Fig 2: Battery Wiring (AWD) Component View
GM181454Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery
3 G102
4 Starter
5 Starter Solenoid
6 G103

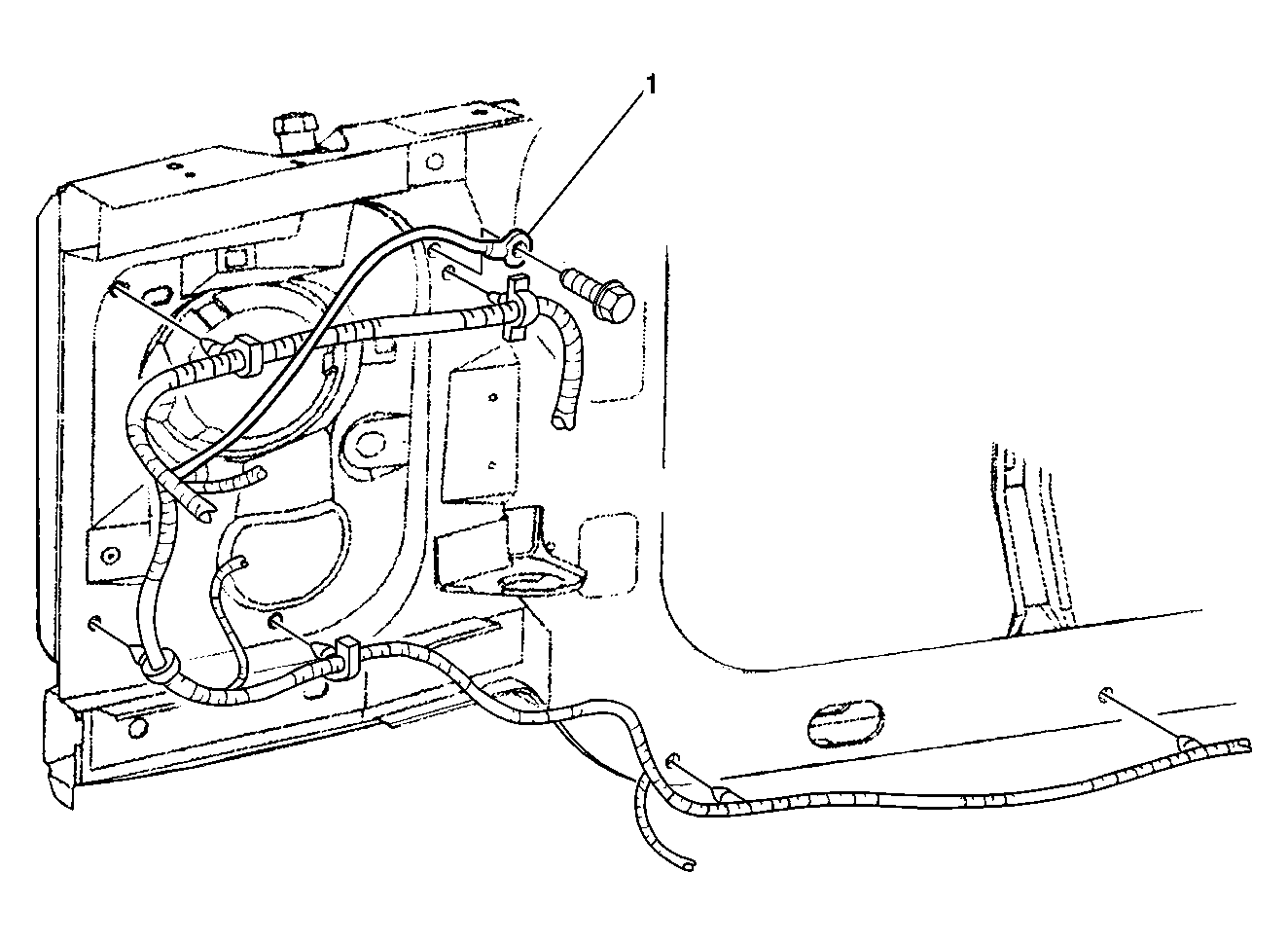

Fig 3: LH Forward Lamp Ground Component View
GM297601Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101

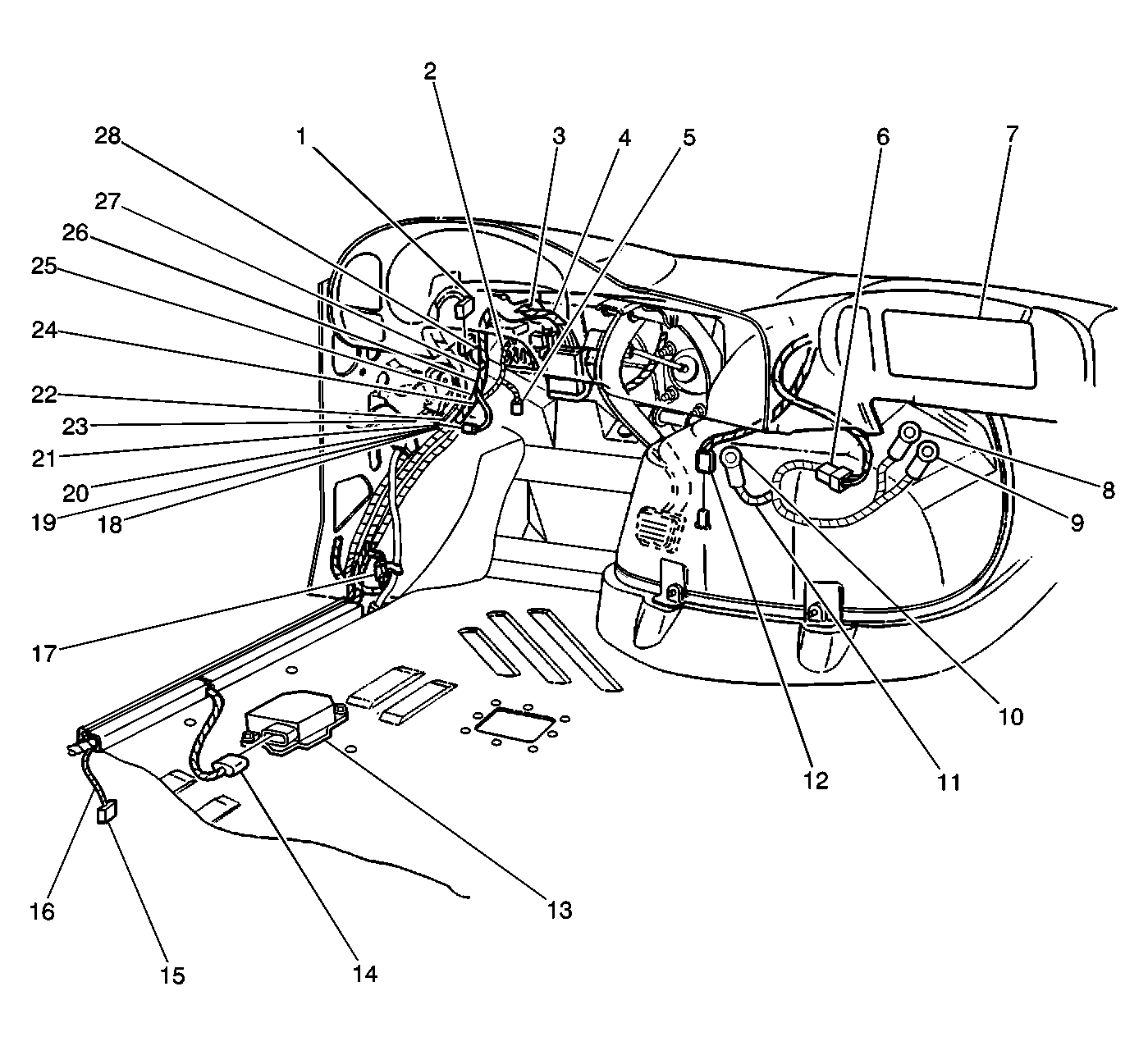

Fig 4: Left Front Interior Wiring Component View
GM582024Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 S240
3 S200
4 S201
5 C223
6 C202
7 Inflatable Restraint I/P Module
8 Auxiliary Power Outlet Front #1 Connector
9 Auxiliary Power Outlet Front #2 Connector
10 Cigar Lighter Connector
11 S234
12 Engine Cover Ground (G201)
13 Inflatable Restraint Sensing and Diagnostic Module
14 Inflatable Restraint Sensing and Diagnostic Module Connector
15 C333
16 S242
17 C300
18 S325
19 Center High Mounted Stop Lamp (CHMSL) Resistor
20 S326
21 S324
22 S327
23 Park Brake Switch
24 S303
25 S330
26 S246
27 S305
28 S246
Fig 5: Fuse Block - I/P Location View Component View
GM597158Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Convenience Center
2 Turn Signal/Hazard Flasher Module
3 Horn Relay
4 Fuse Block - I/P
5 C213
6 C212
Fig 6: RSA Controller/Auxiliary Power Outlet - Rear Wiring Component View
GM298001Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Audio (RSA) Controller
2 Auxiliary Power Outlet - Rear Connector
3 Auxiliary Power Outlet - Rear
4 Rear Seat Audio (RSA) Controller Connector
