Engine Electrical Component Views

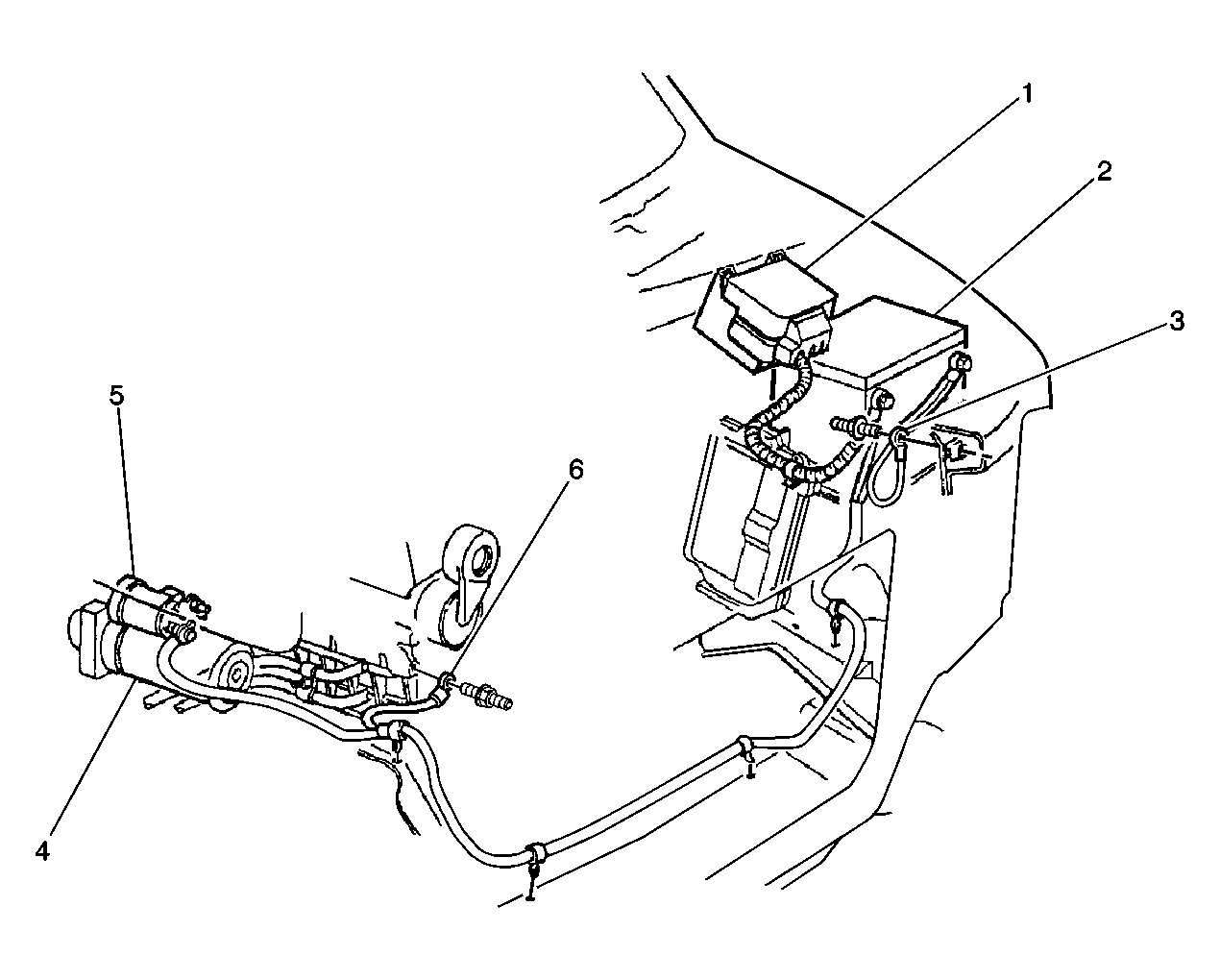

Fig 1: Battery Wiring (AWD) Component View
GM181454Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery
3 G102
4 Starter Motor
5 Starter Solenoid
6 G103

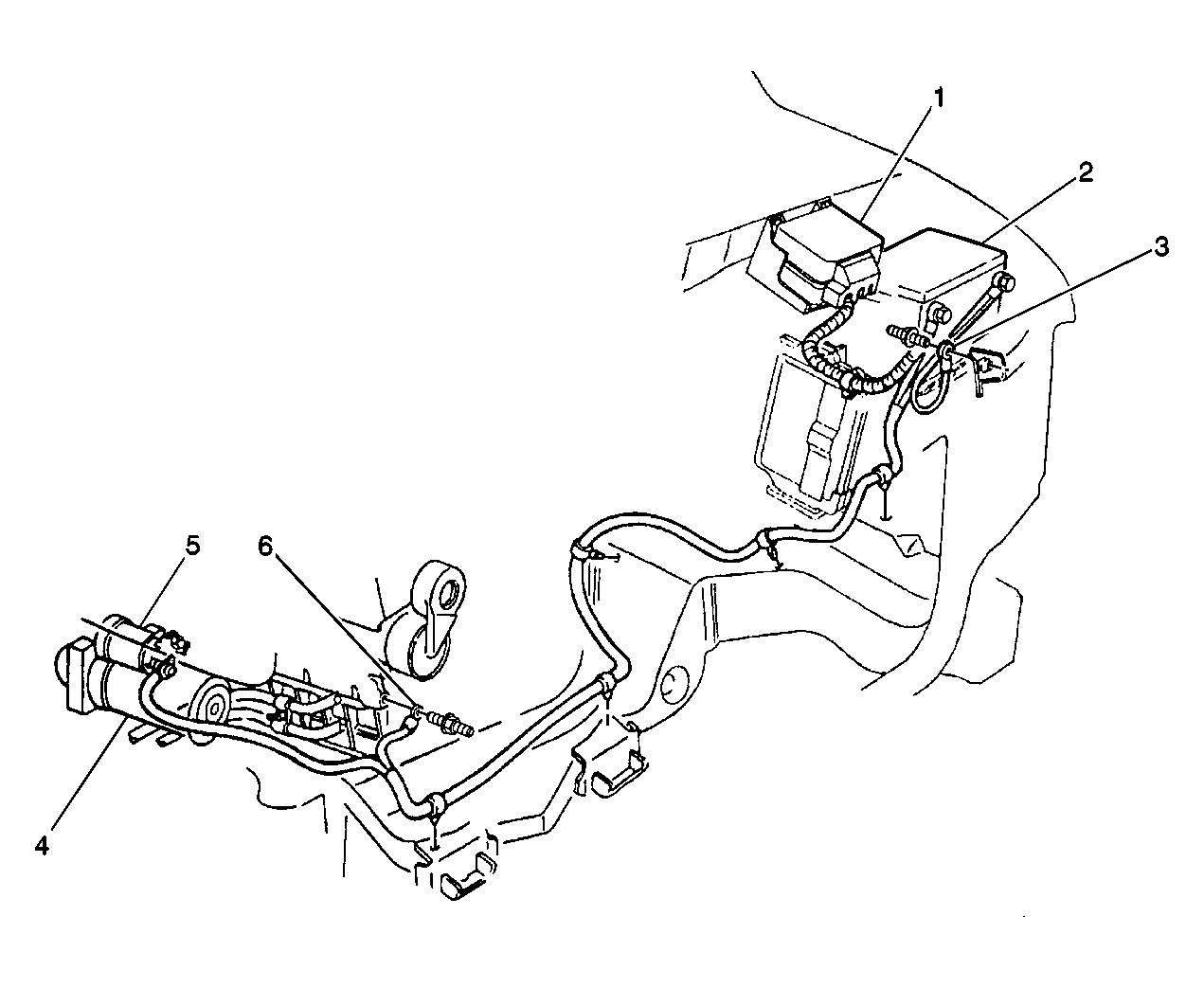

Fig 2: Battery Wiring (RWD) Component View
GM181452Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery
3 G102
4 Starter Motor
5 Starter Solenoid
6 G103
Fig 3: Engine Wiring, Right Side
GM582029Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S123
2 Evaporative Emission (EVAP) Canister Purge Solenoid Connector
3 Ignition Coil Connector
4 S122
5 Ignition Control Module (ICM)
6 S120
7 Ignition Control Module (ICM) Connector
8 Generator
9 Generator Connector
10 Ignition Coil
11 Manifold Absolute Pressure (MAP) Sensor Connector
12 MAP Sensor
13 Evaporative Emission (EVAP) Canister Purge Solenoid
