ABS Component Views

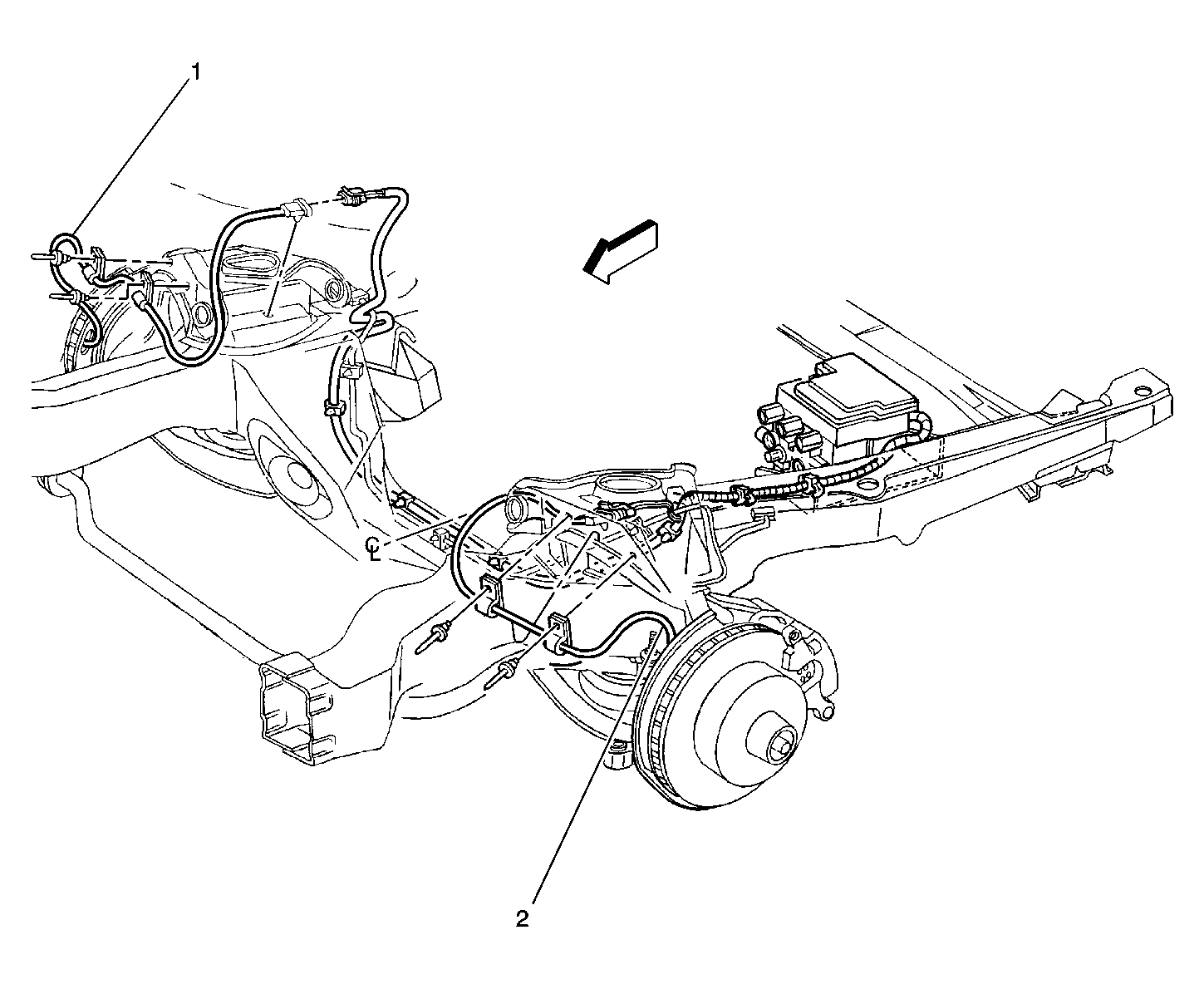

Fig 1: Antilock Brake System Wiring Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Wheel Speed Sensor (WSS) - LF

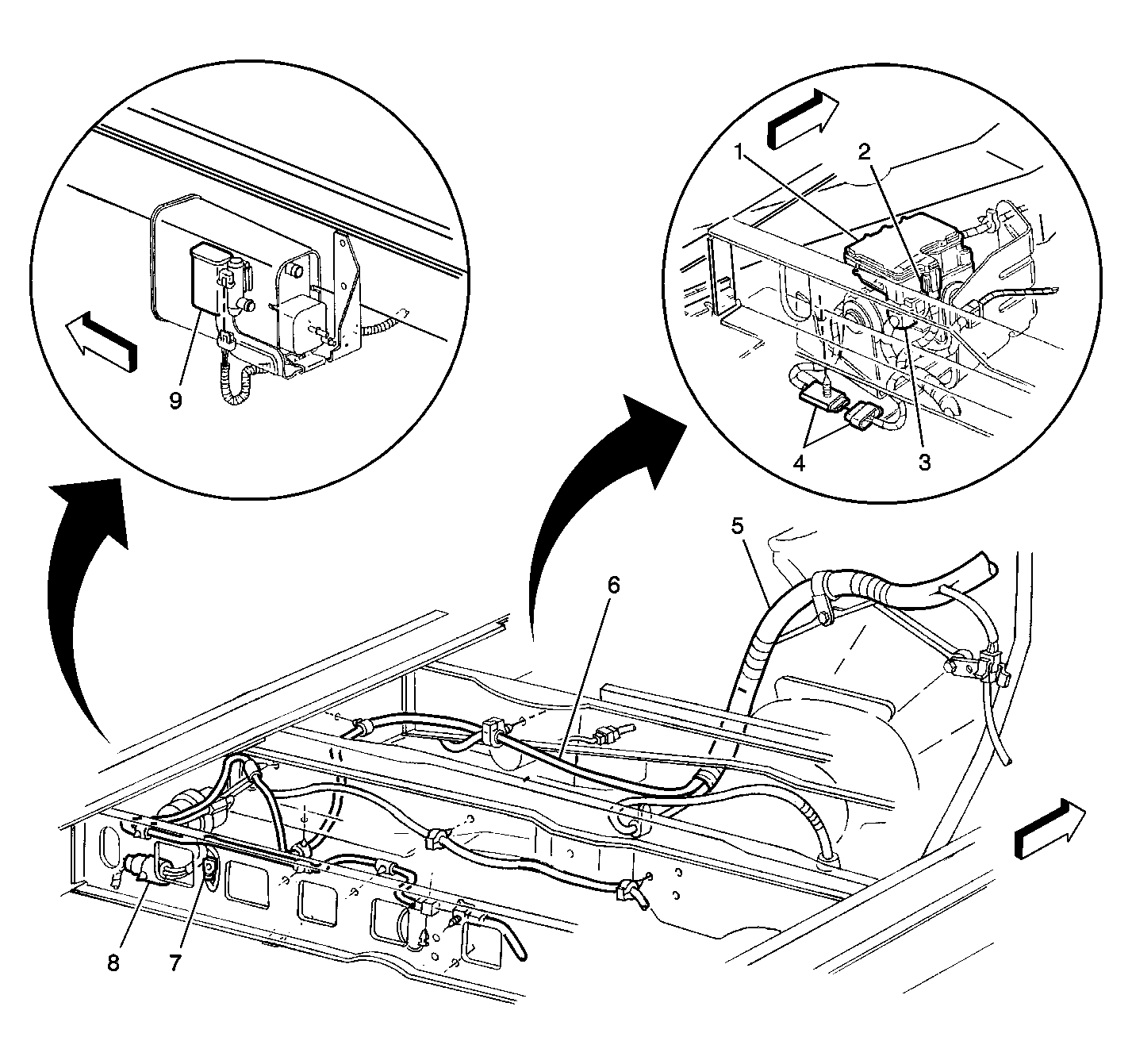

Fig 2: Undercarriage Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	Electronic Brake Control Module (EBCM) Connector C2
3	Electronic Brake Control Module (EBCM) Connector C1
4	C314
5	S126
6	S127
7	G302
8	C310
9	Evaporative Emission (EVAP) Canister Vent Solenoid
