Body Control System Schematics

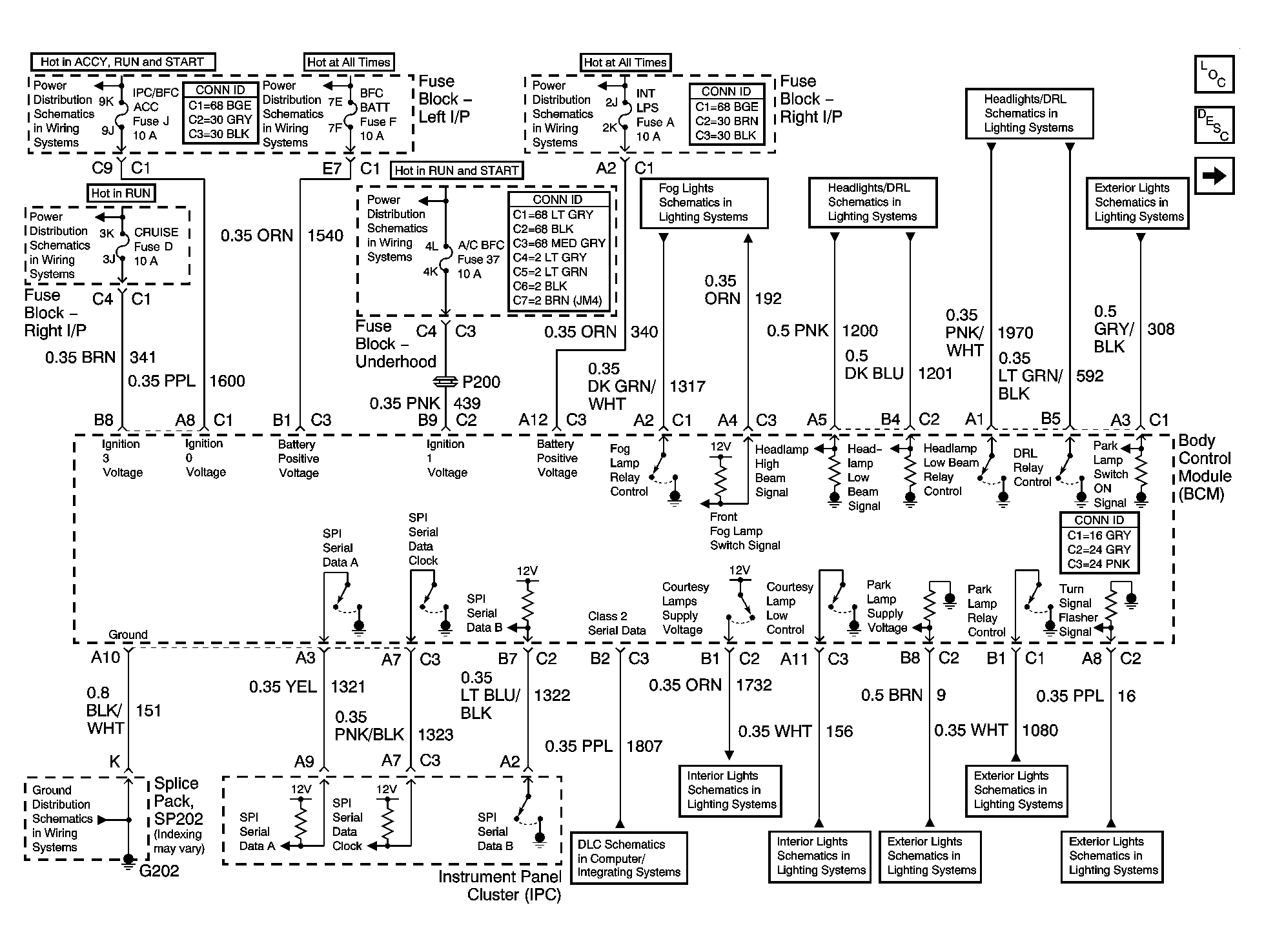

Fig 1: Power, Grounds, and Communication
GM1504253Courtesy of GENERAL MOTORS CORP.

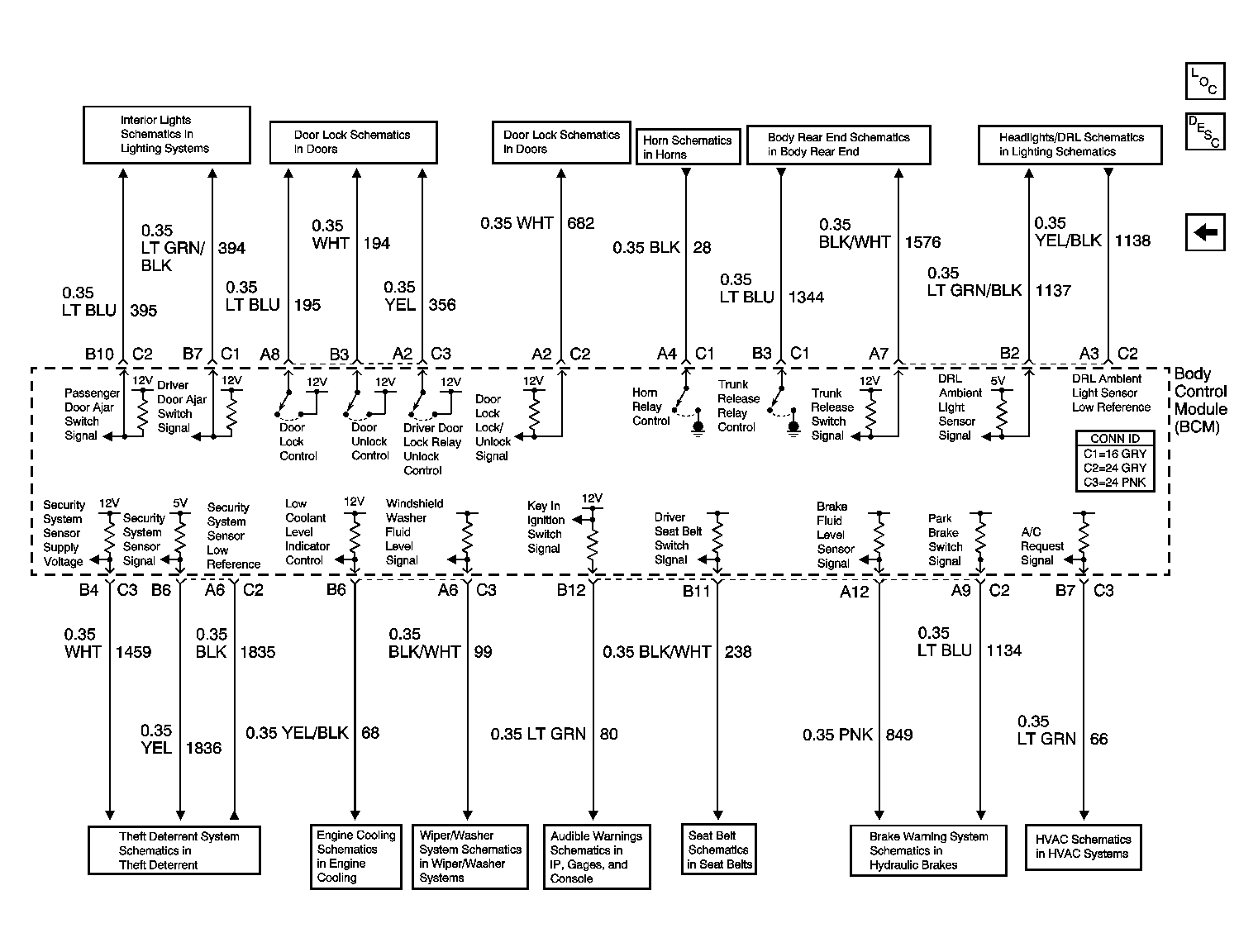

Fig 2: Controls Diagram
GM782689Courtesy of GENERAL MOTORS CORP.
