Body Control System Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

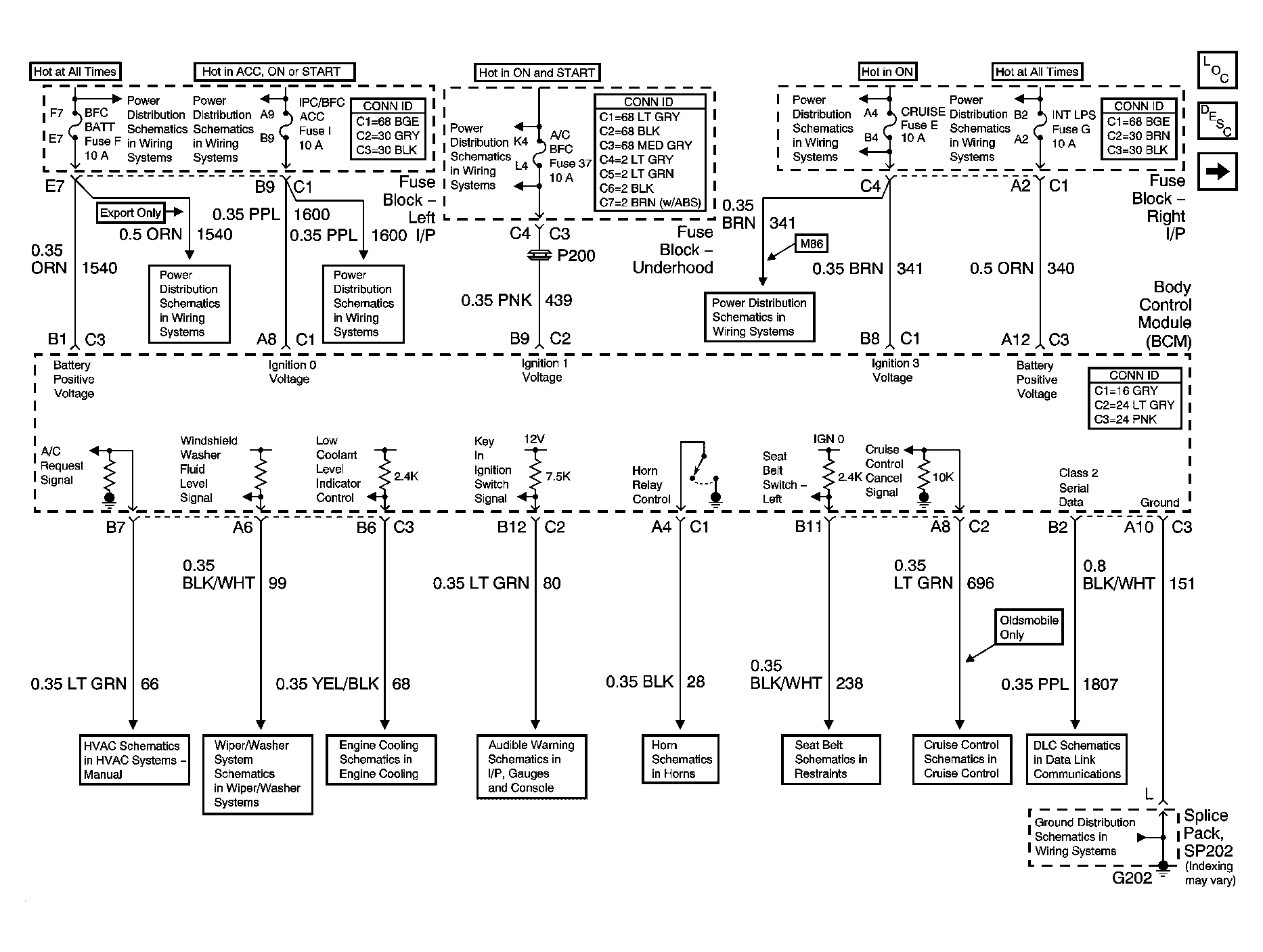

Fig 1: Power, Ground and Controlled/Monitored References Schematic

Courtesy of GENERAL MOTORS CORP.

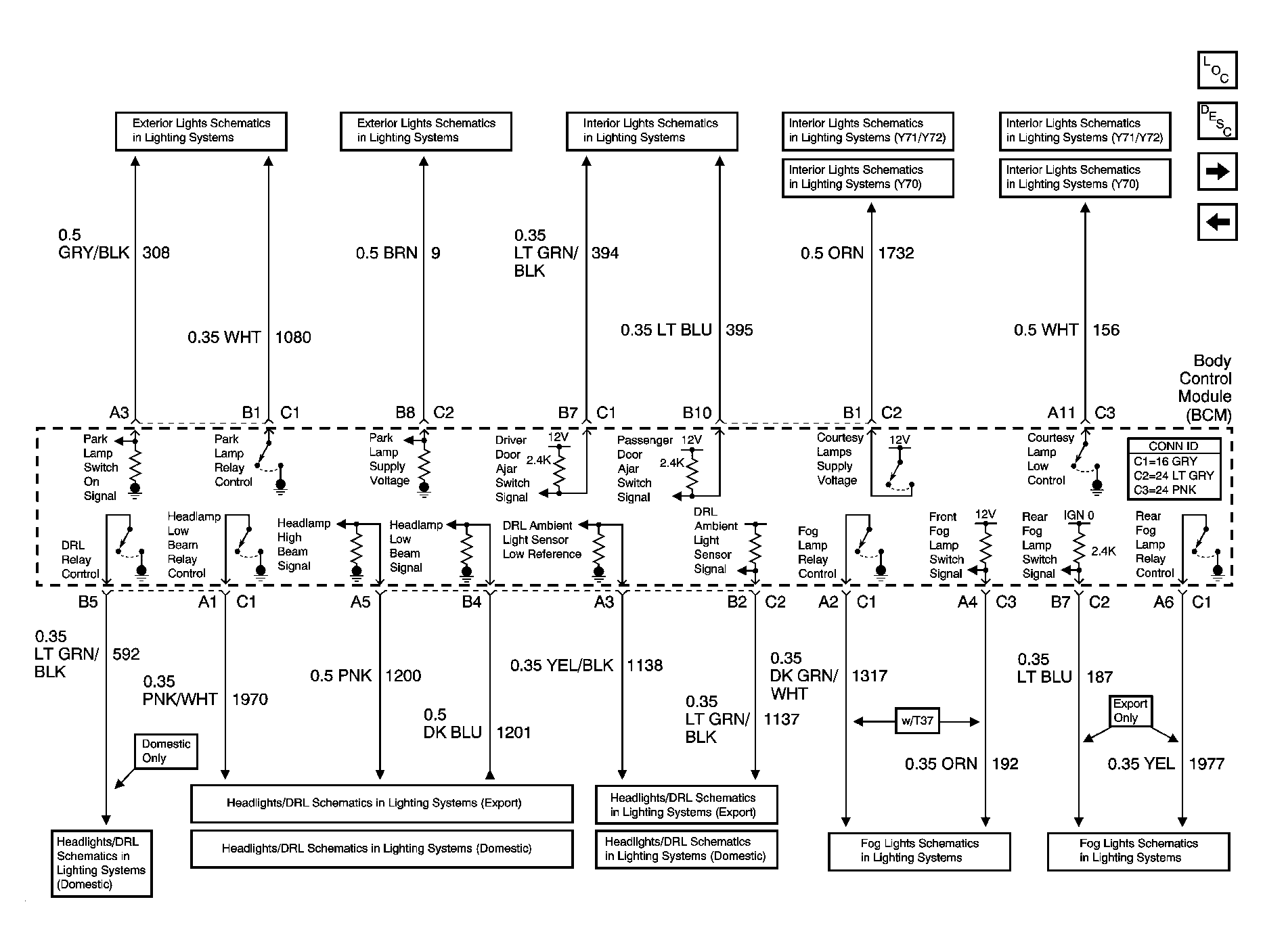

Fig 2: Controlled/Monitored Lighting References Schematic

Courtesy of GENERAL MOTORS CORP.

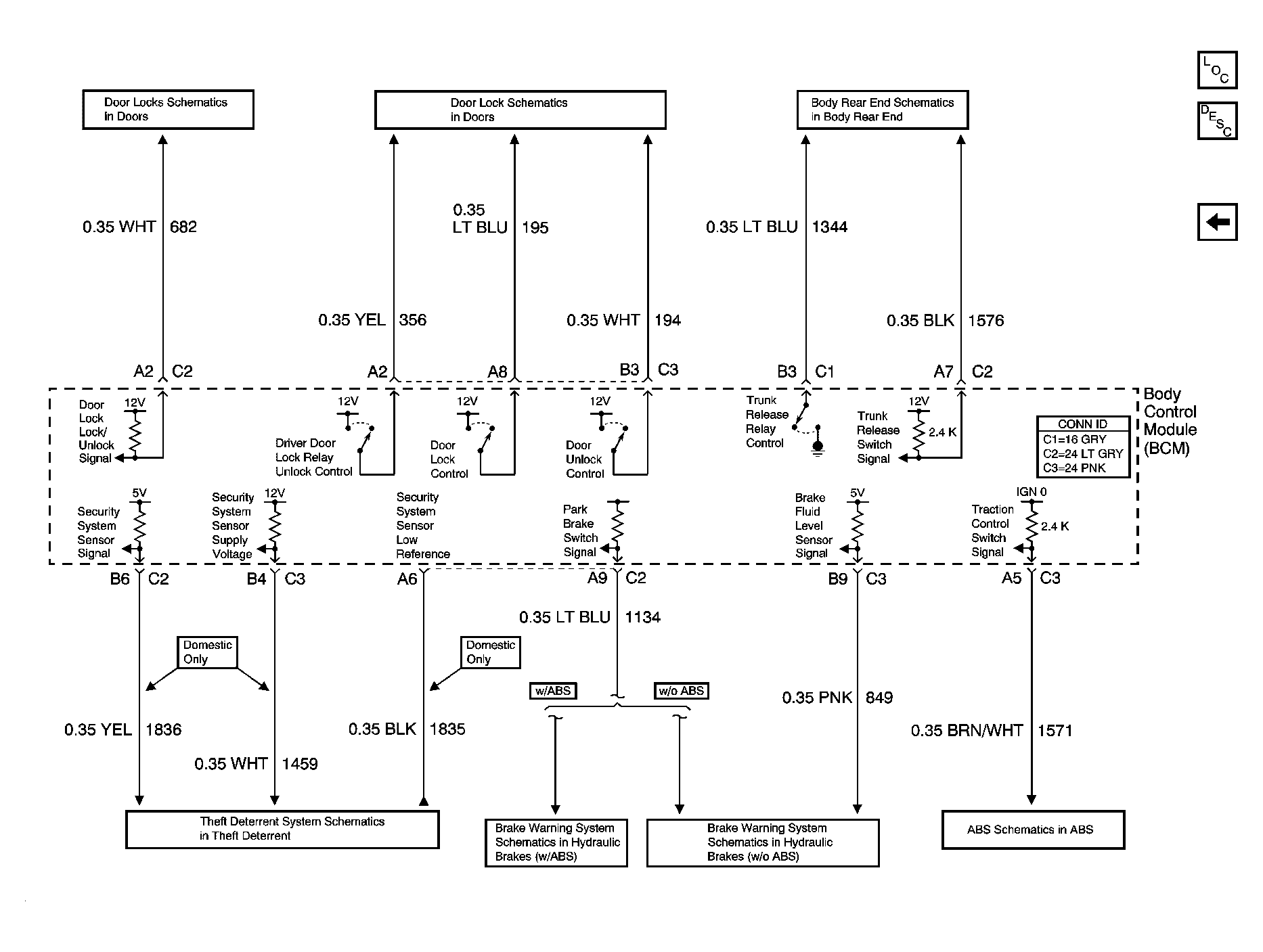

Fig 3: Controlled/Monitored Lock, Theft Deterrent, Brake References Schematic

Courtesy of GENERAL MOTORS CORP.
