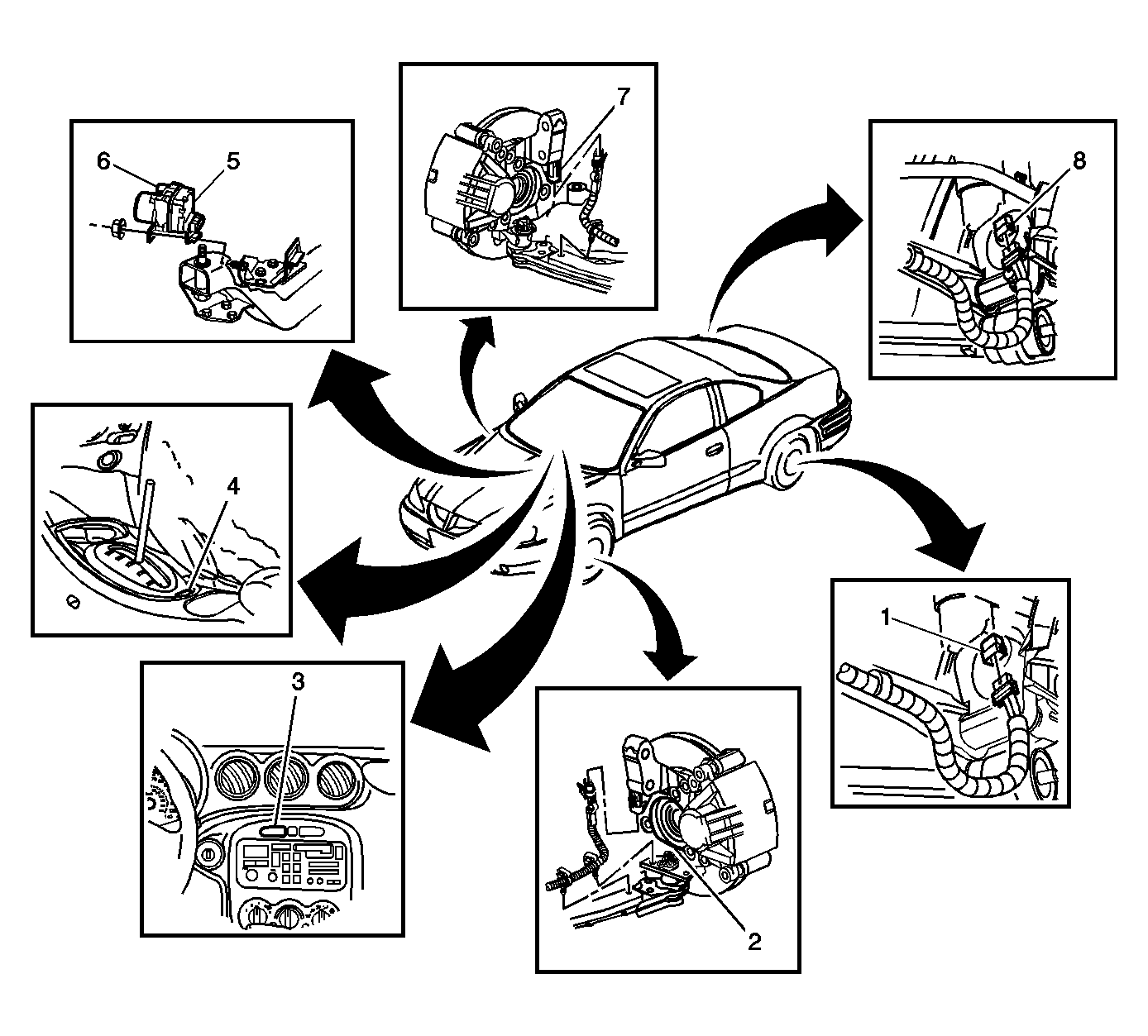

ABS Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS) - LR |
| 2 | Wheel Speed Sensor (WSS) - LF |
| 3 | Traction Control Switch (Pontiac) |
| 4 | Traction Control Switch (Oldsmobile) |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Brake Pressure Modulator Valve (BPMV) |
| 7 | Wheel Speed Sensor (WSS) -RF |
| 8 | Wheel Speed Sensor (WSS) -RR |
