Power Seat Systems Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

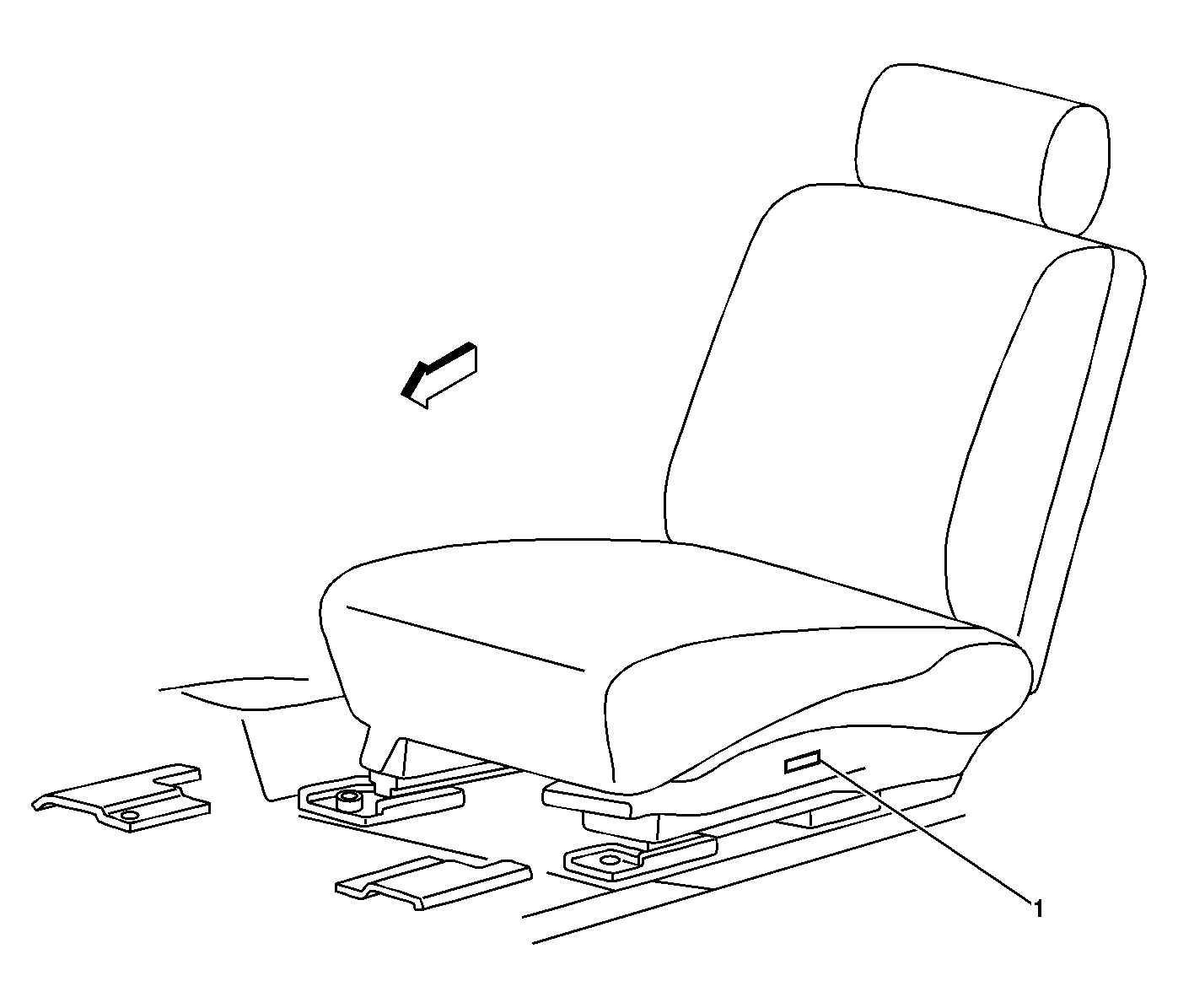

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Seat Adjuster Switch - Driver |

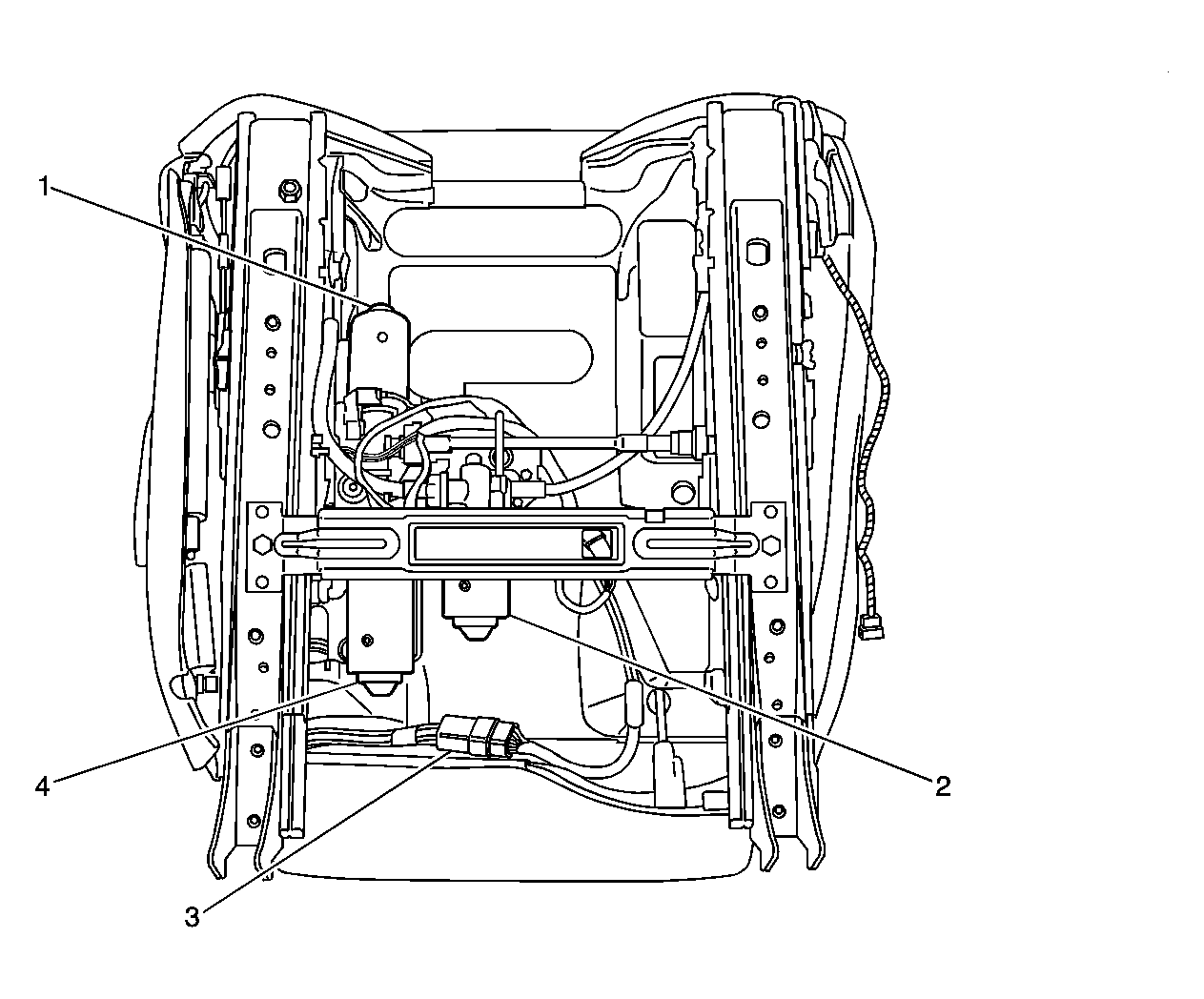

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Seat Horizontal Motor |
| 2 |
Seat Rear Vertical Motor |
| 3 |
Seat Belt Switch Connector |
| 4 |
Seat Front Vertical Motor |
