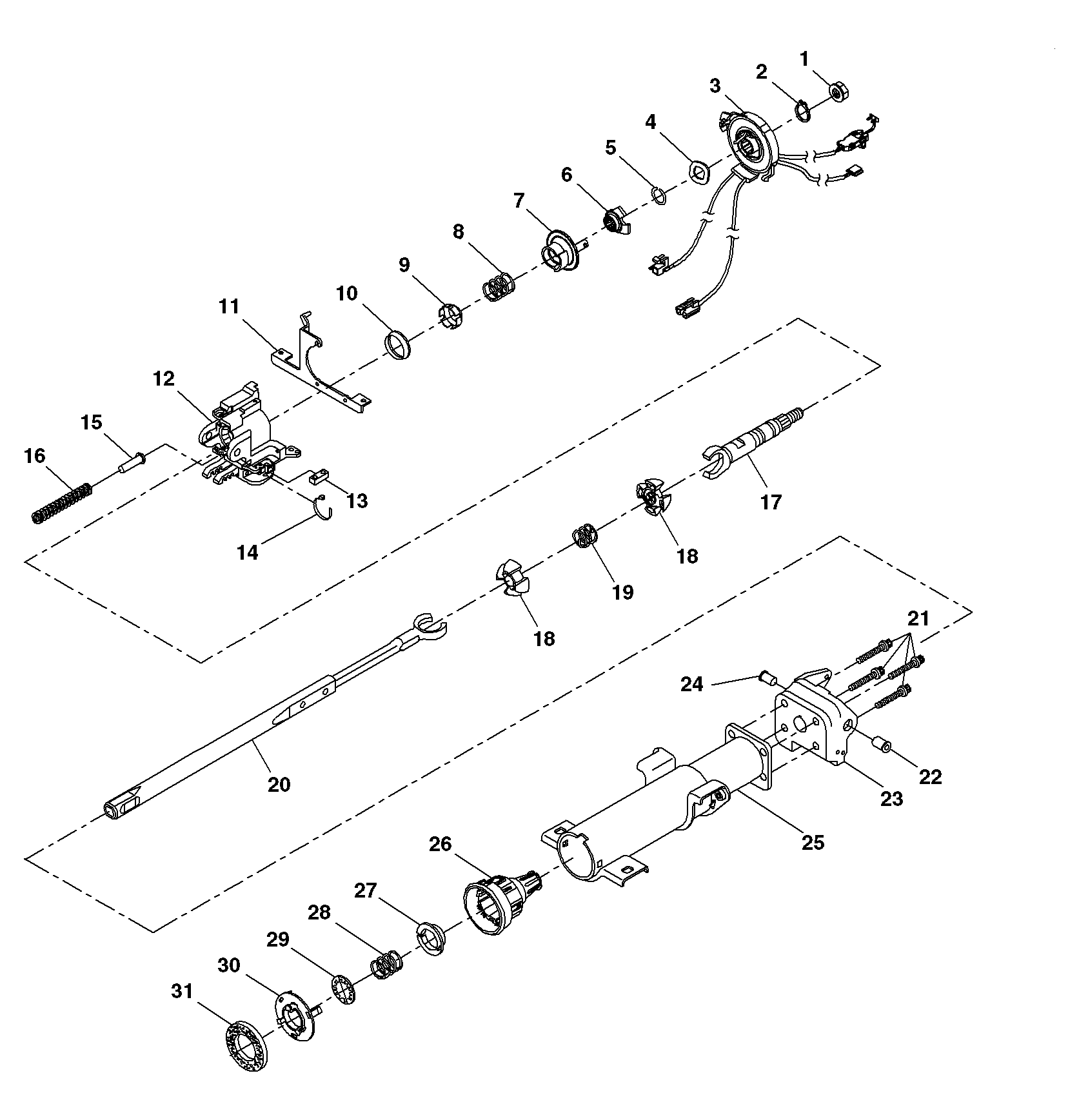

| 1 |
Flanged Prevailing Torque Nut |
| 2 |
Retaining Ring |
| 3 |
SIR Coil |
| 4 |
Wave Washer |
| 5 |
Bearing Retainer |
| 6 |
Cam Orientation Plate |
| 7 |
Turn Signal Cancel Cam Assembly |
| 8 |
Upper Bearing Spring |
| 9 |
Upper Bearing Inner Race Seat |
| 10 |
Inner Race |
| 11 |
Switch Adapter Plate |
| 12 |
Bearing and Housing Assembly |
| 13 |
Wire Harness Spacer |
| 14 |
Wire Harness Strap |
| 15 |
Spring Guide |
| 16 |
Tilt Spring |
| 17 |
Race and Upper Shaft Assembly |
| 18 |
Centering Sphere |
| 19 |
Joint Preload Spring |
| 18 |
Centering Sphere |
| 20 |
Lower Shaft Assembly |
| 21 |
TORX® Head Screws |
| 22 |
Pivot Pin |
| 23 |
Steering Column Housing Assembly |
| 24 |
Pivot Pin |
| 25 |
Steering Column Jacket Assembly |
| 26 |
Adapter and Bearing Assembly |
| 27 |
Lower Bearing Seat |
| 28 |
Lower Bearing Spring |
| 29 |
Lower Spring Retainer |
| 30 |
Retainer |
| 31 |
Steering Shaft Seal |
