Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

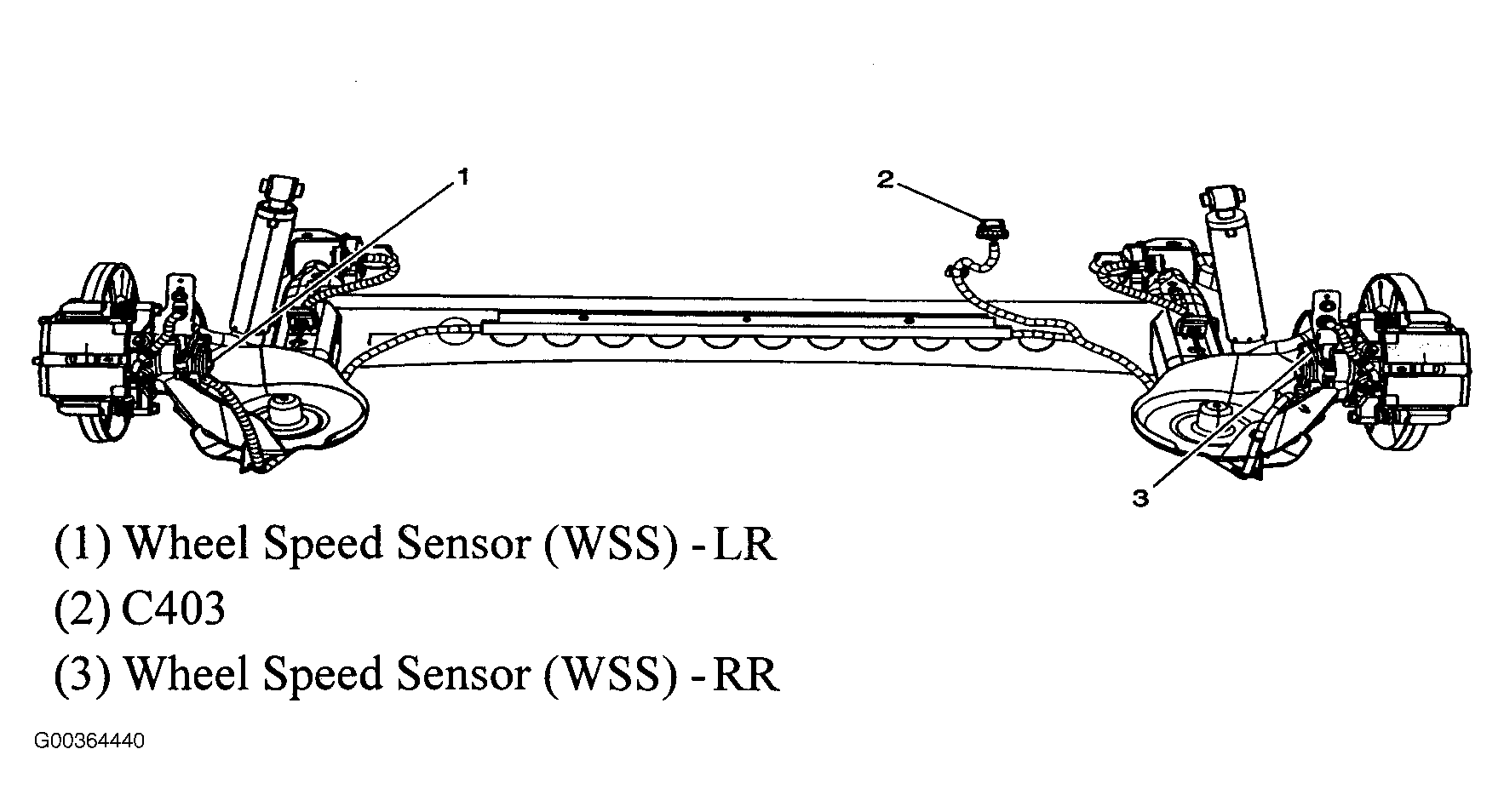

Fig 1: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 3: Automatic Transmission Electronic Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 4: Dash
Courtesy of GENERAL MOTORS CORP.

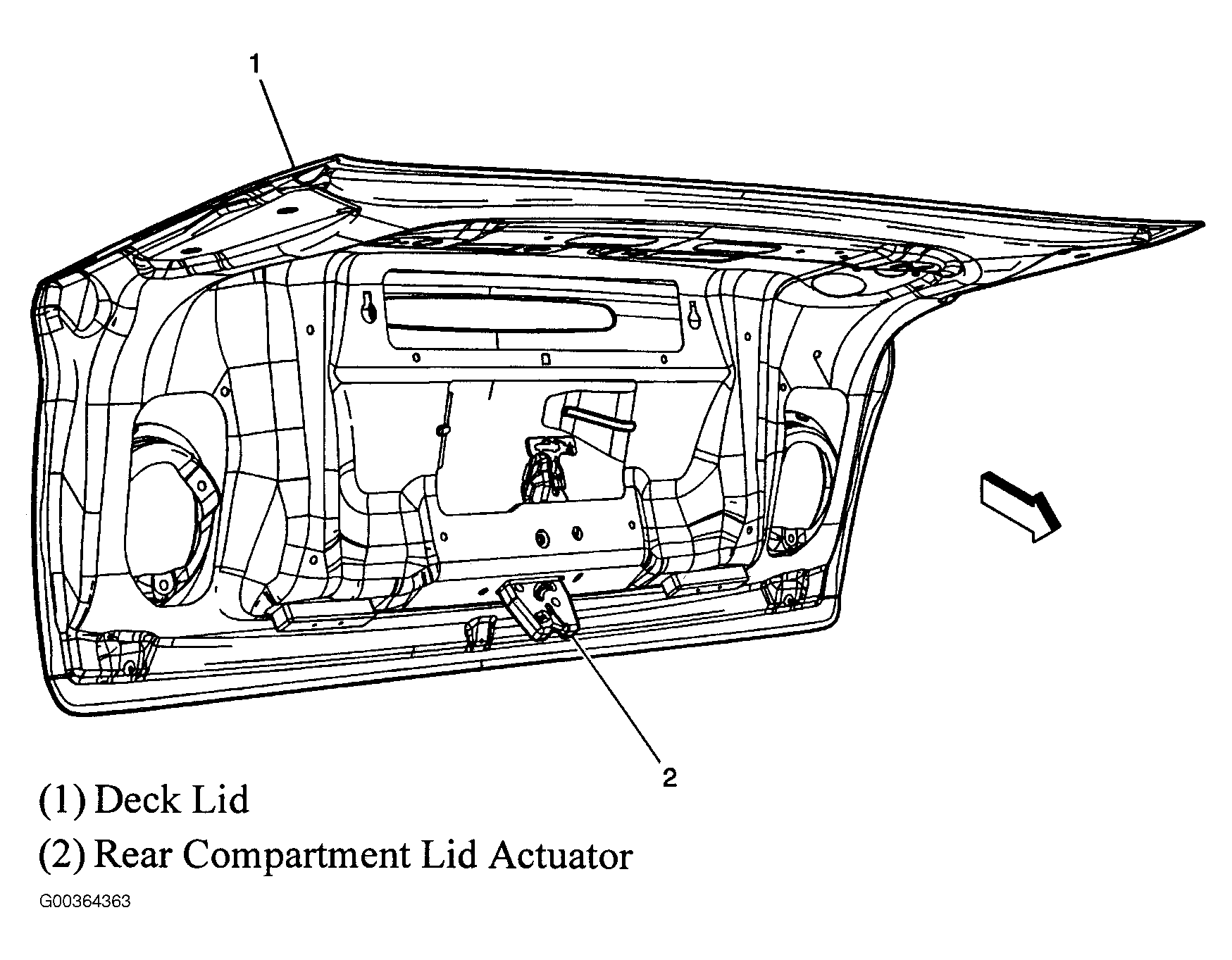

Fig 5: Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 6: Rear Compartment
Courtesy of GENERAL MOTORS CORP.

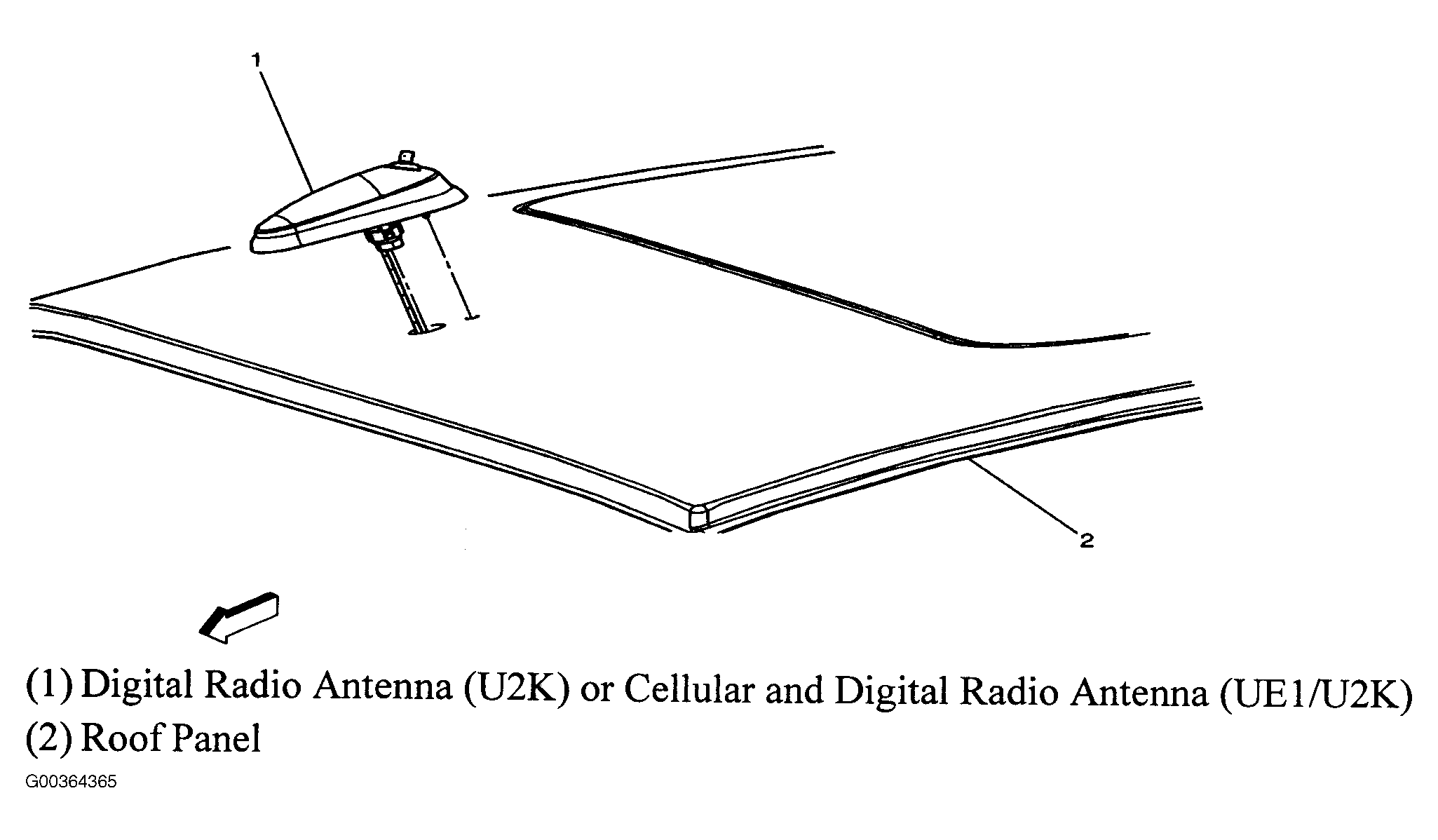

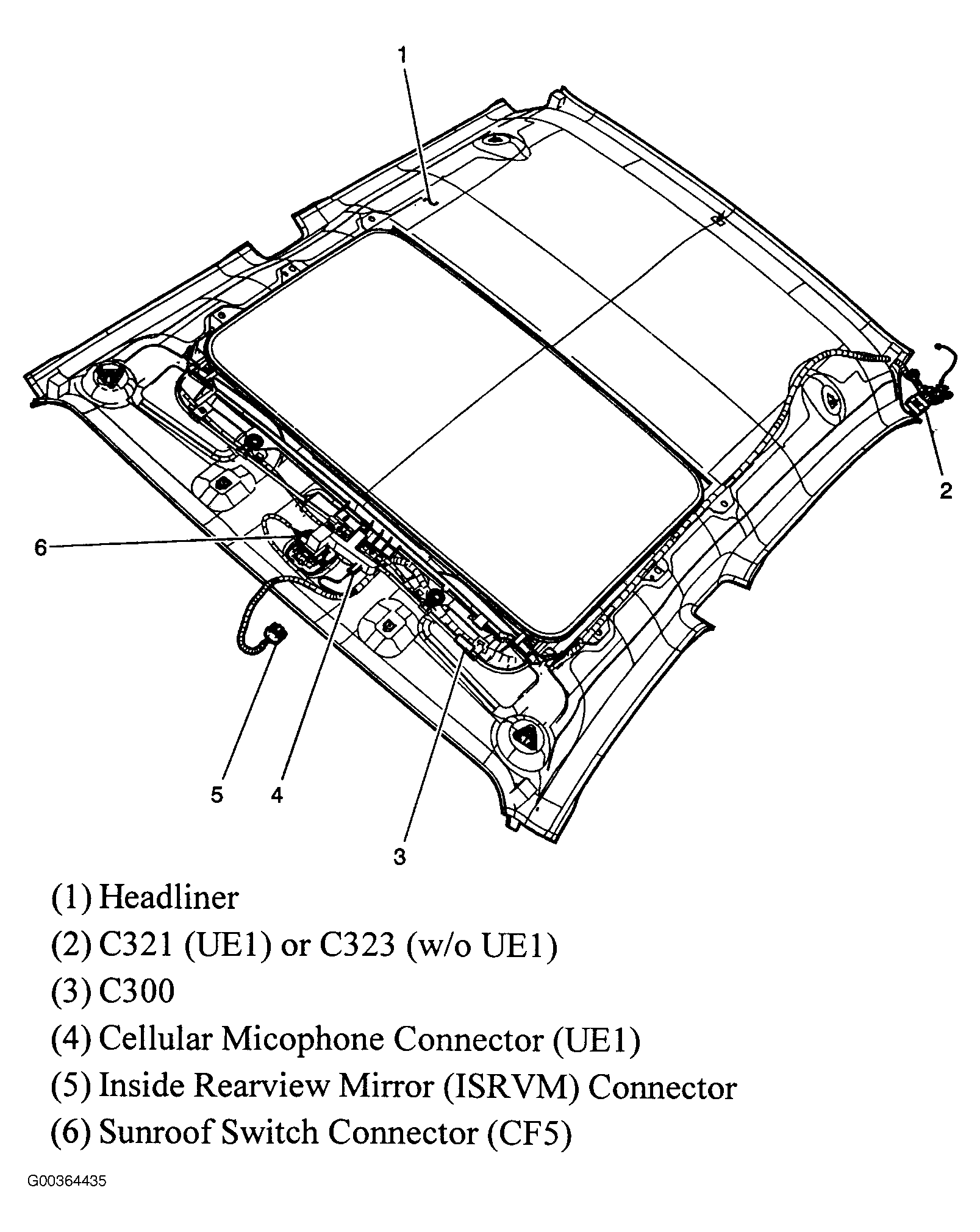

Fig 7: Top Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 8: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

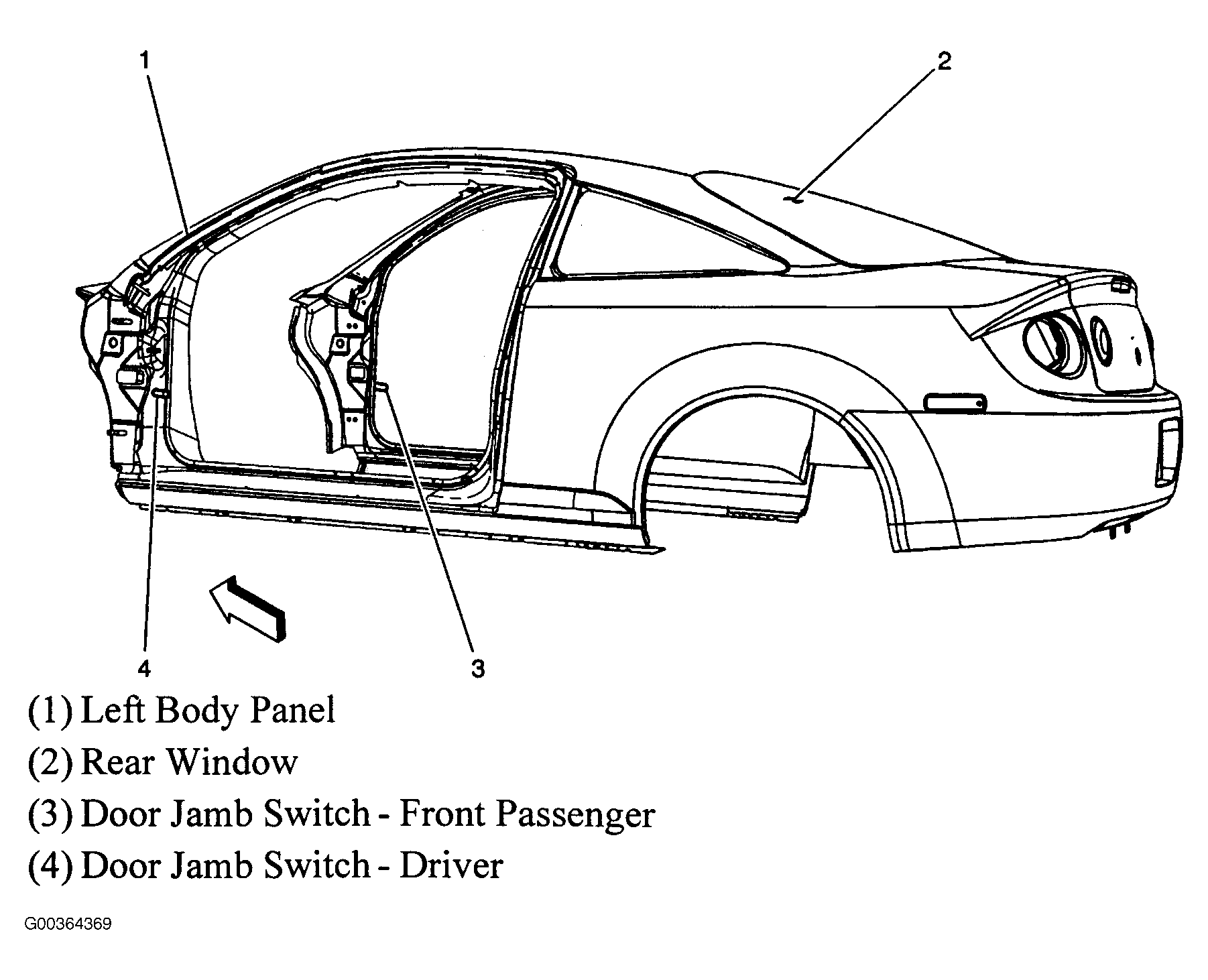

Fig 10: Left Side Of Vehicle (Coupe)
Courtesy of GENERAL MOTORS CORP.

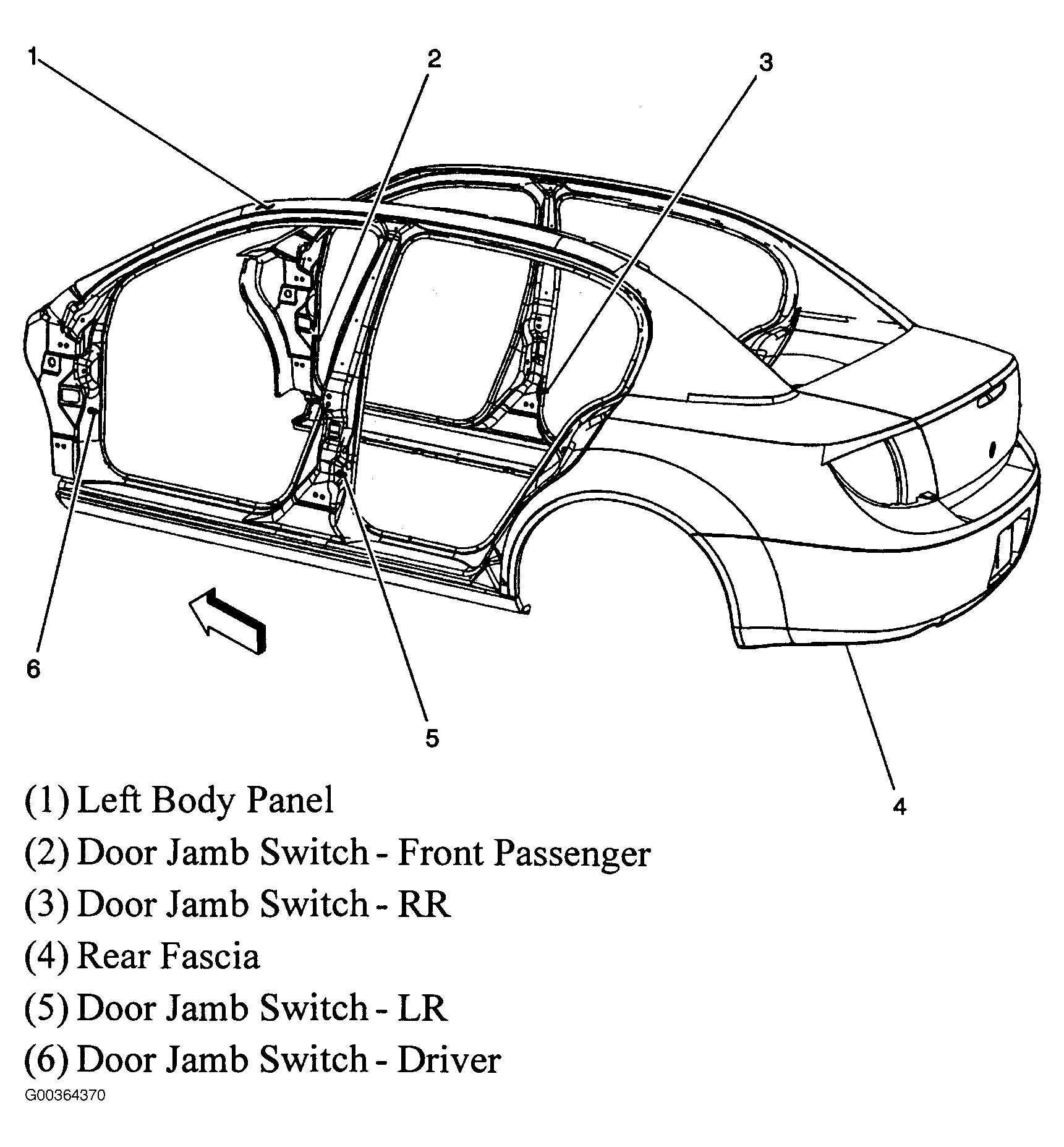

Fig 11: Left Side Of Vehicle (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Driver's Door Components
Courtesy of GENERAL MOTORS CORP.

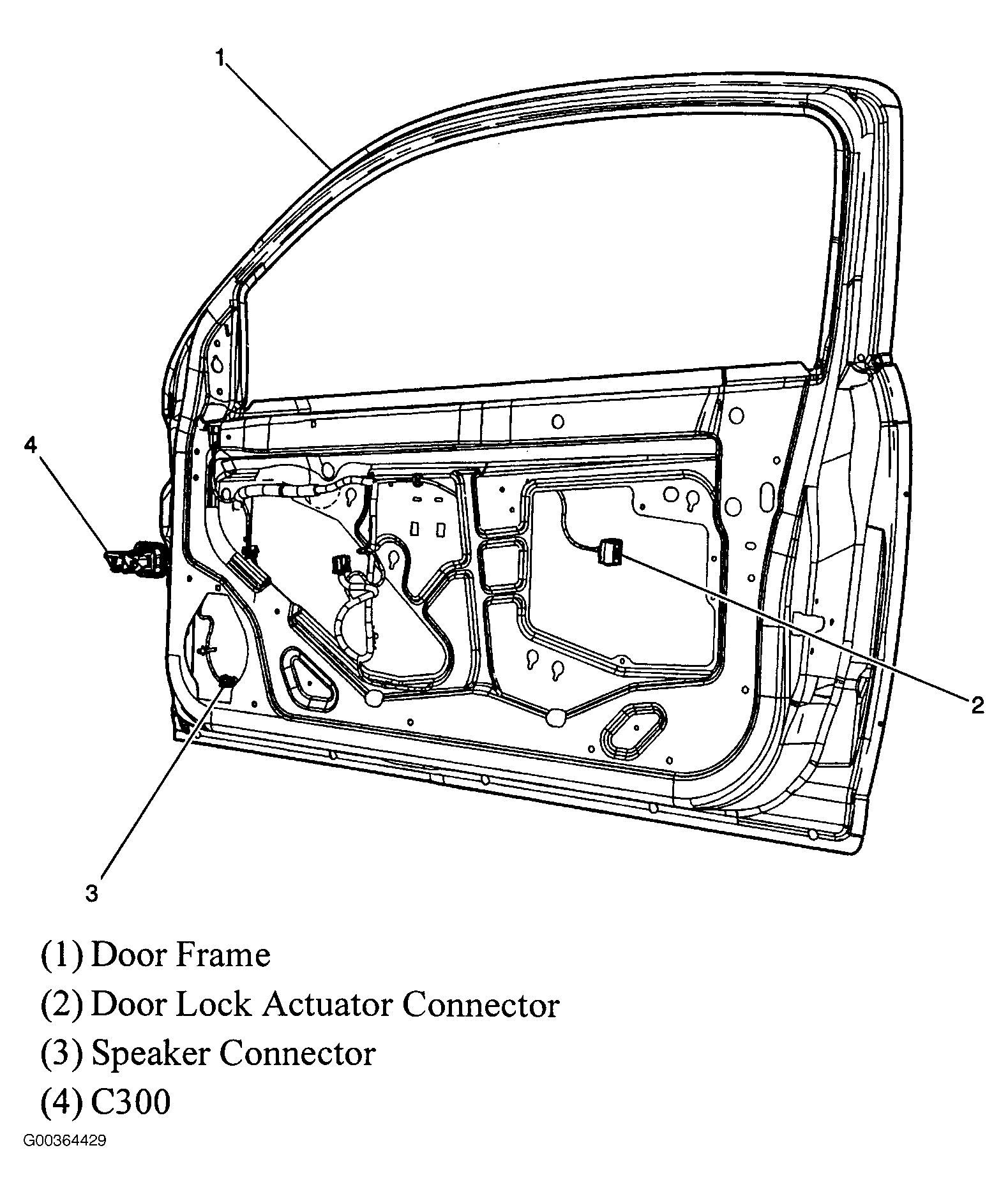

Fig 13: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

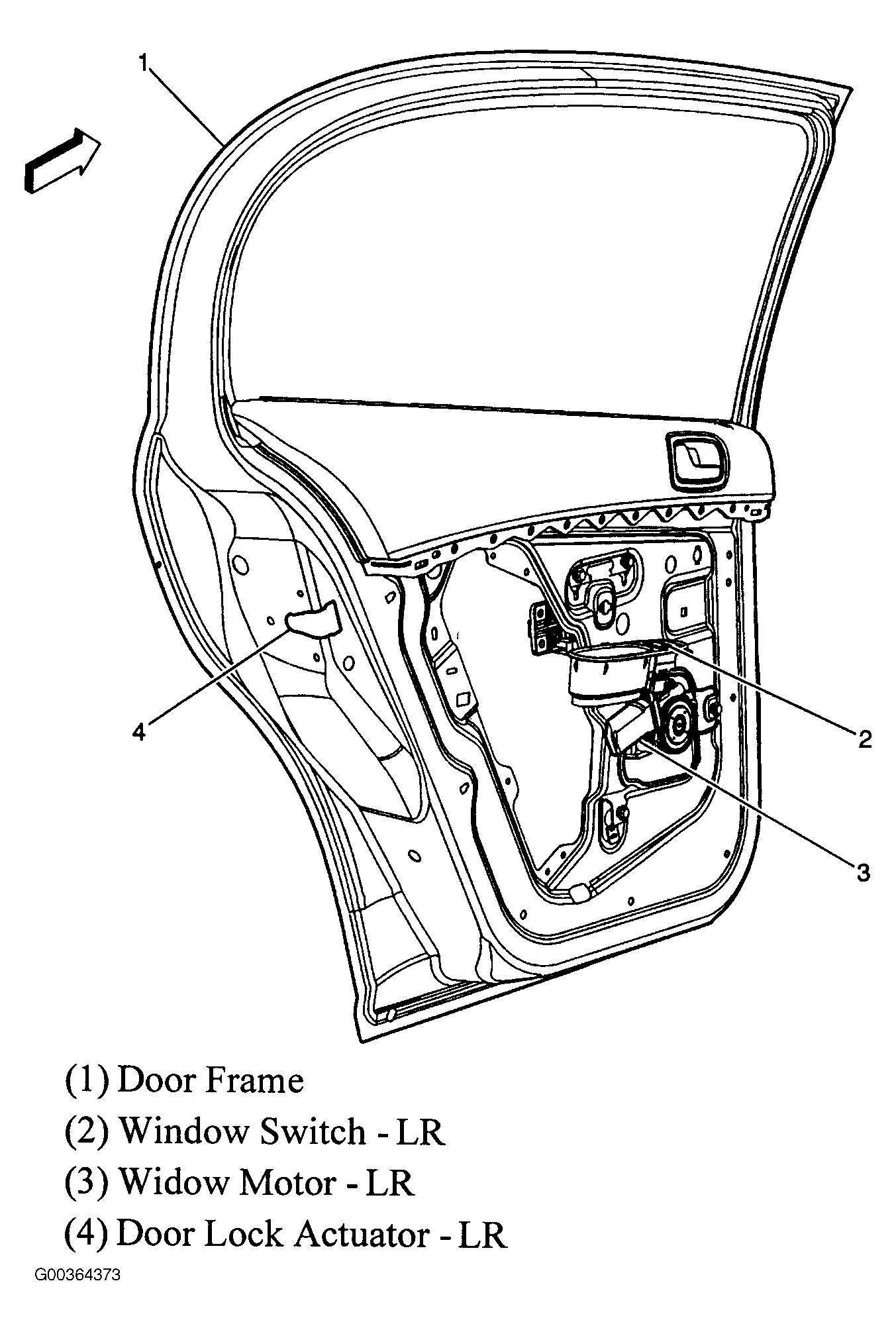

Fig 14: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

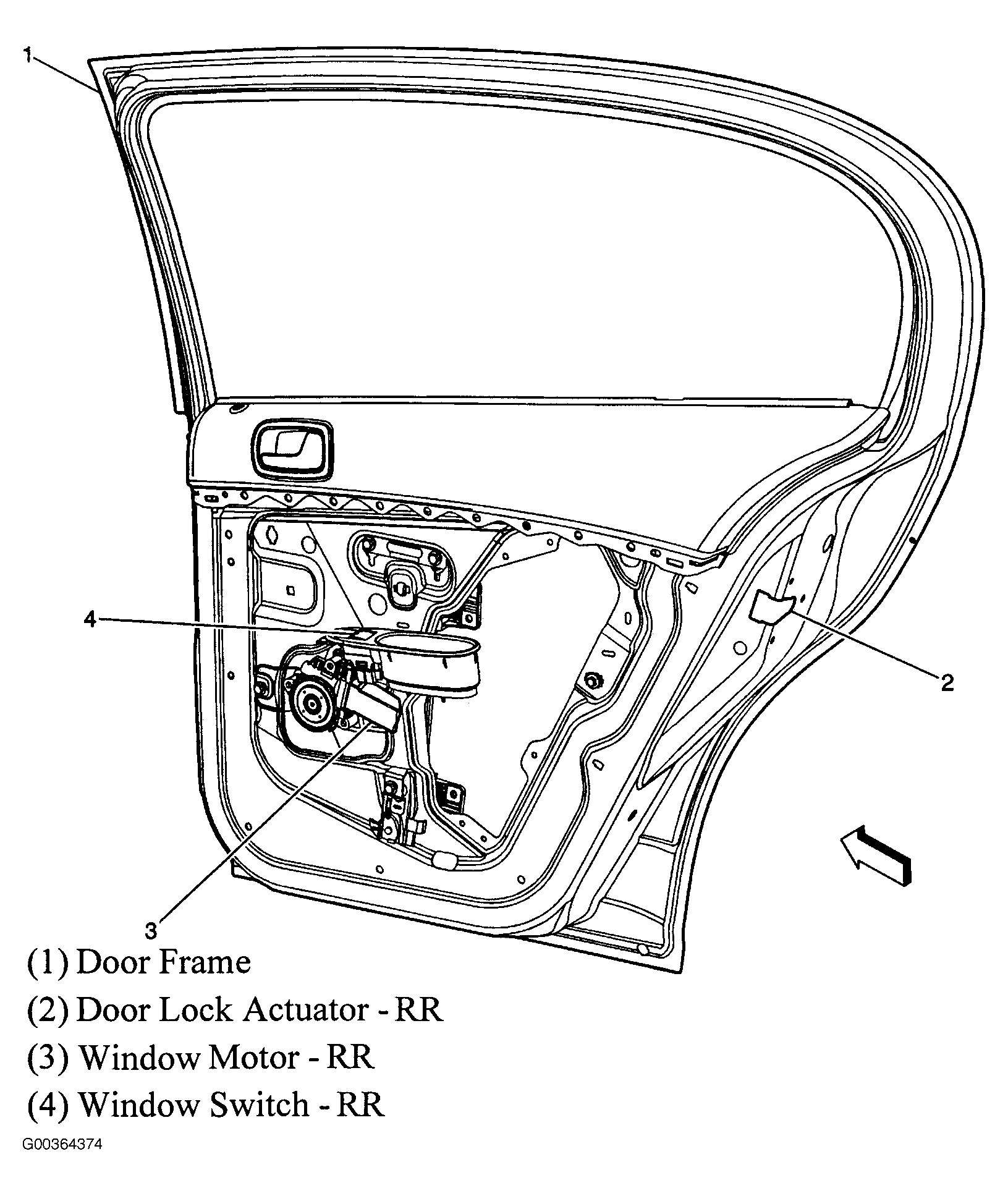

Fig 15: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

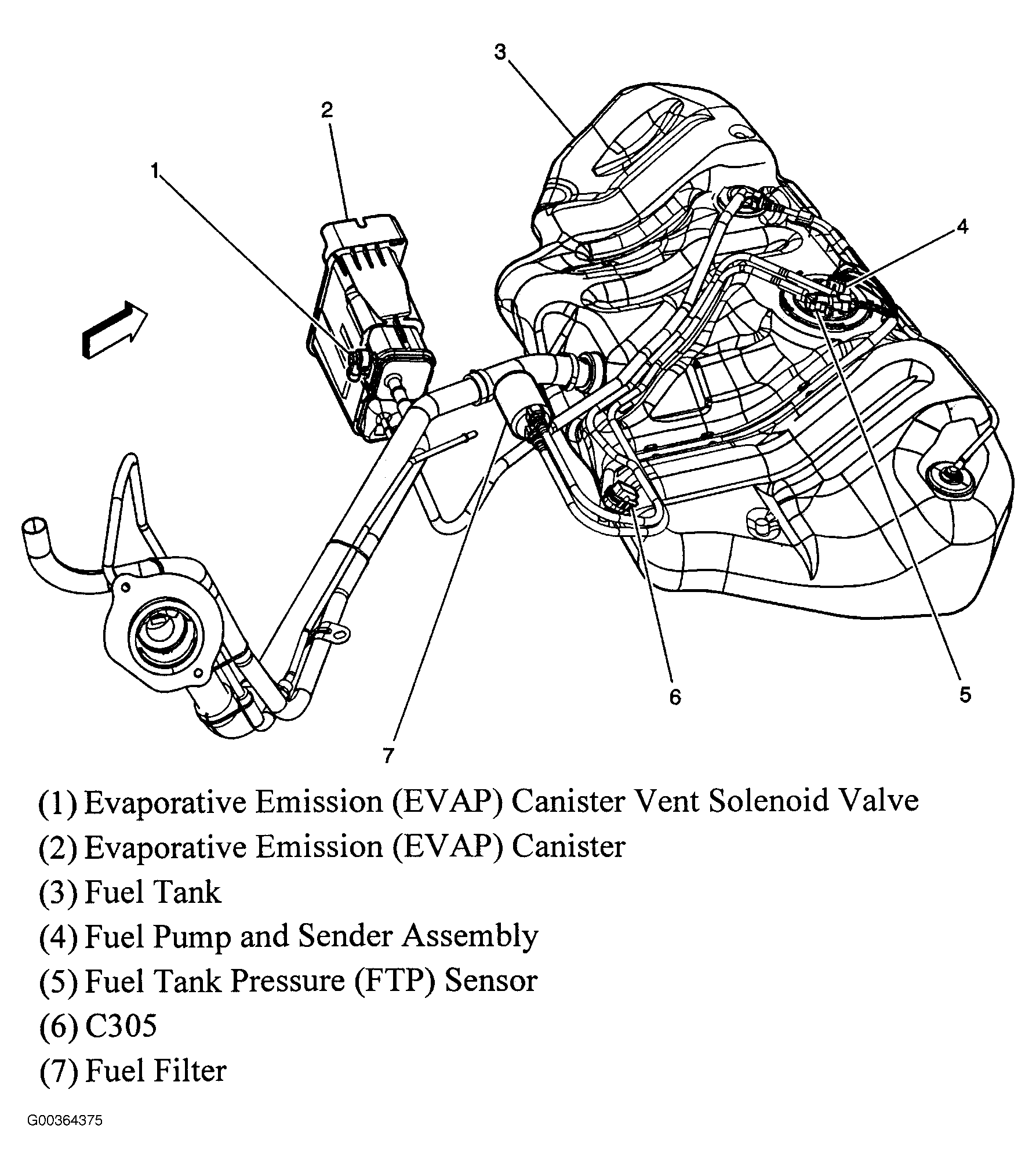

Fig 16: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.
Fig 17: Engine & Transmission Modules
Courtesy of GENERAL MOTORS CORP.

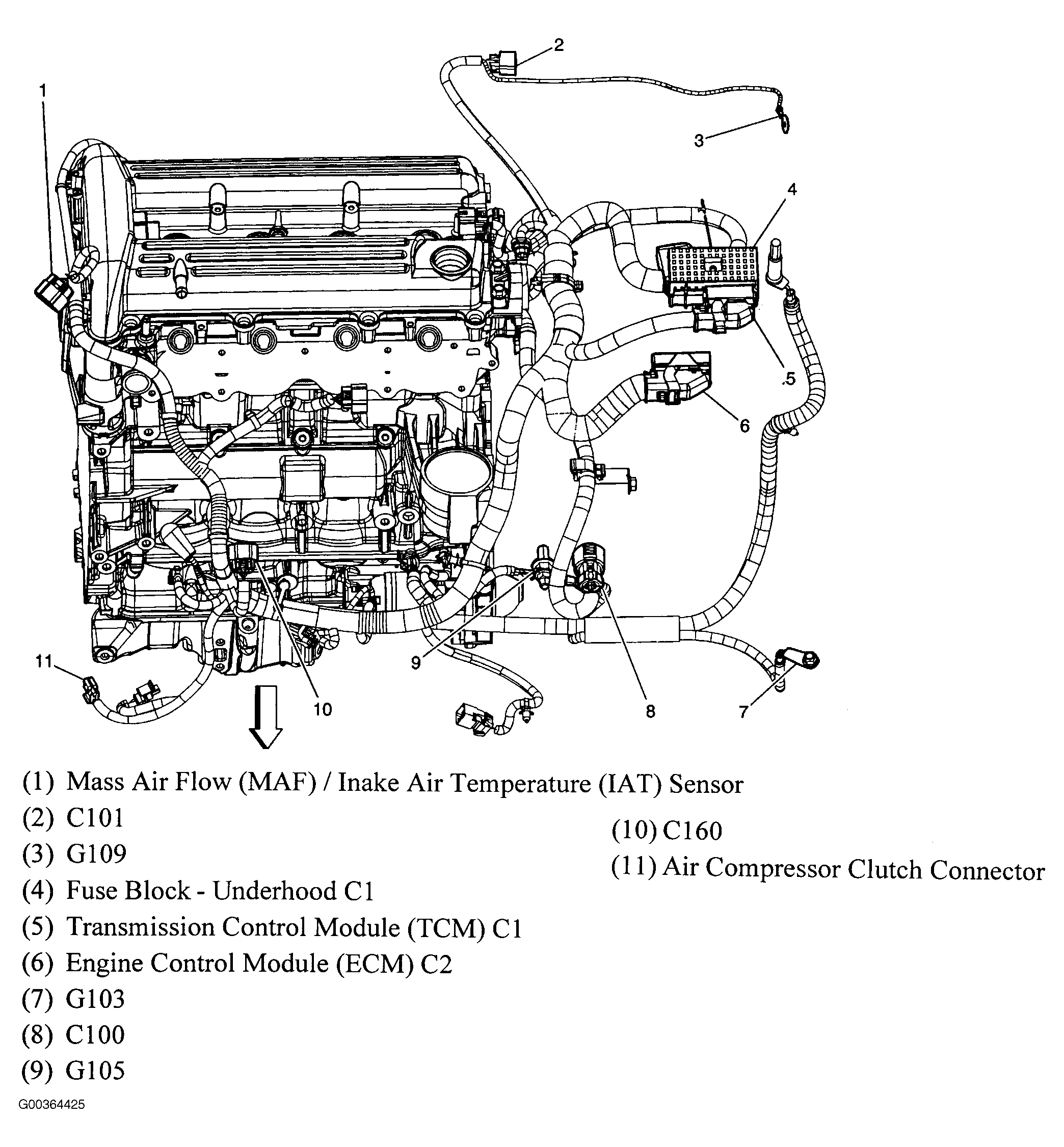

Fig 18: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Engine Intake Components (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Transmission (2.0L)
Courtesy of GENERAL MOTORS CORP.

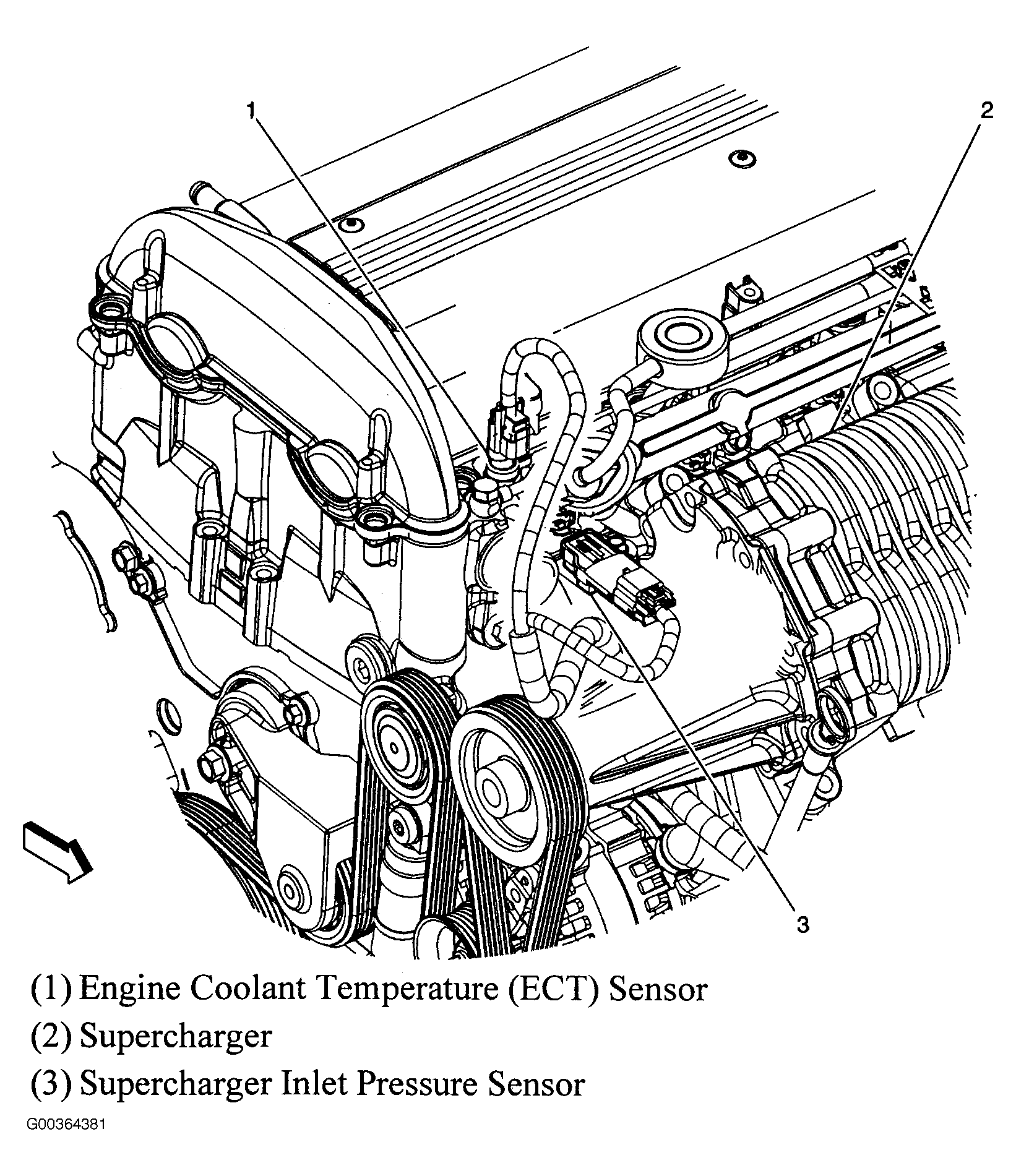

Fig 21: Top Front Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.

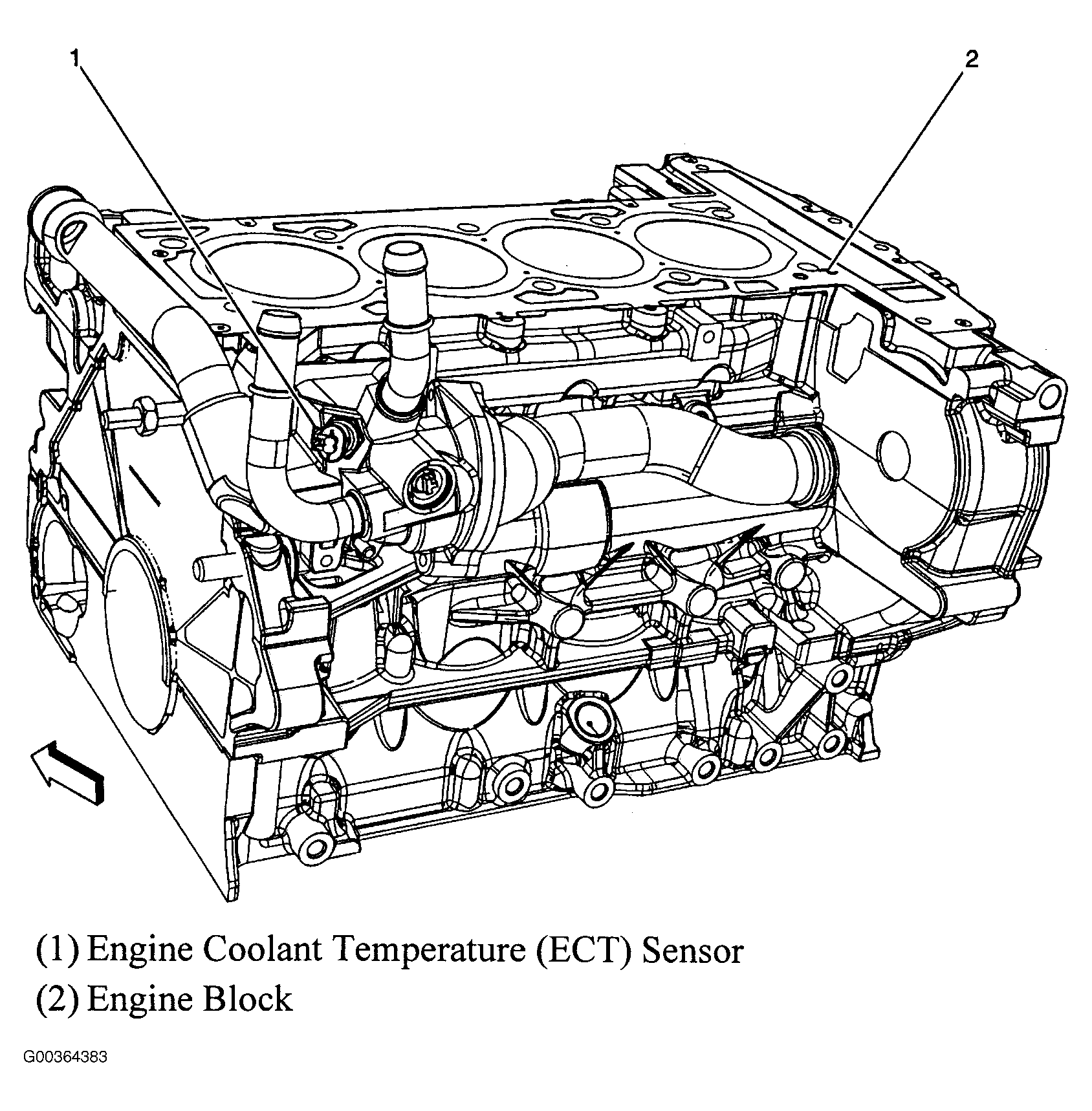

Fig 23: Right Side Of Engine Block (2.2L)
Courtesy of GENERAL MOTORS CORP.

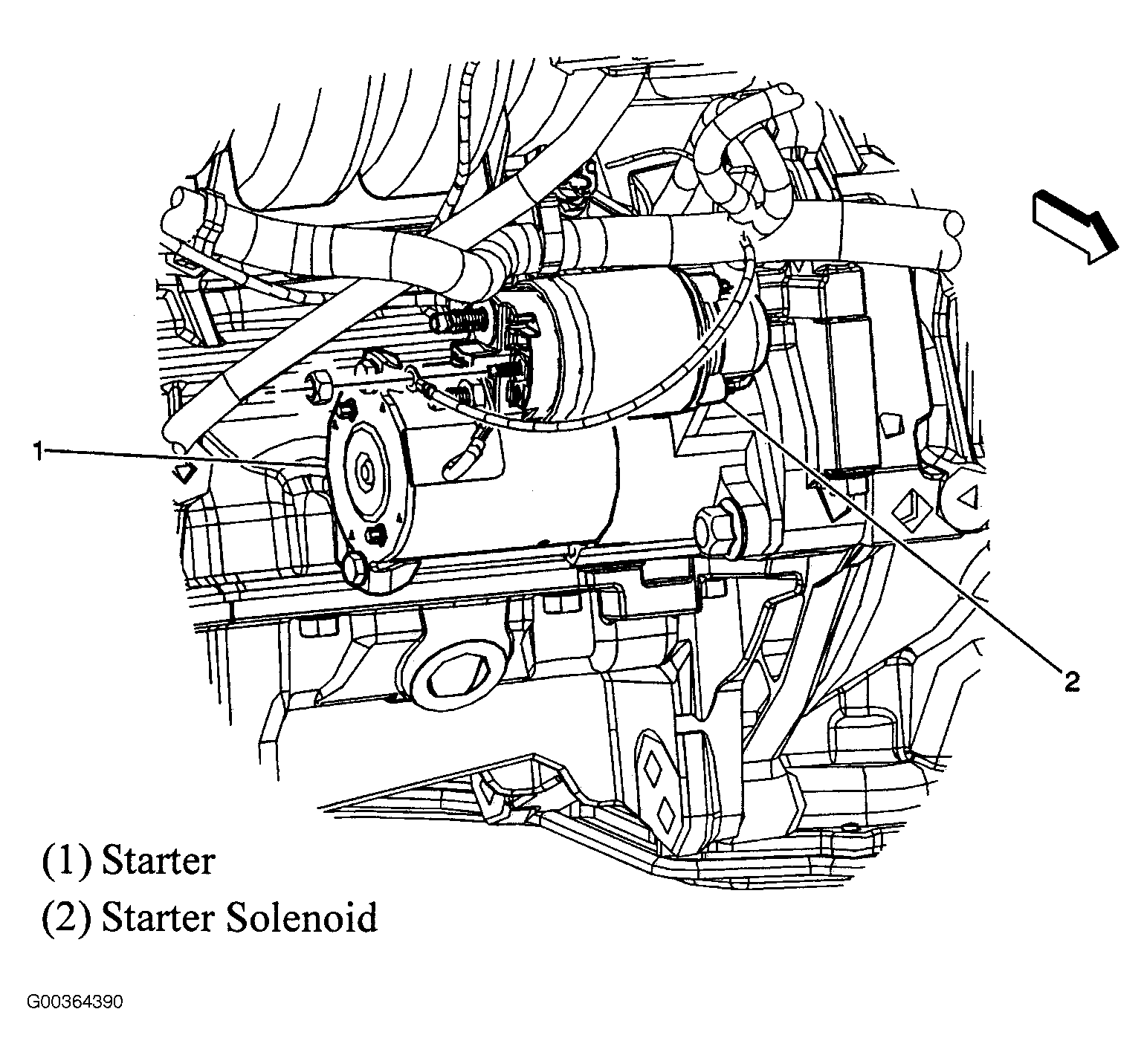

Fig 24: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

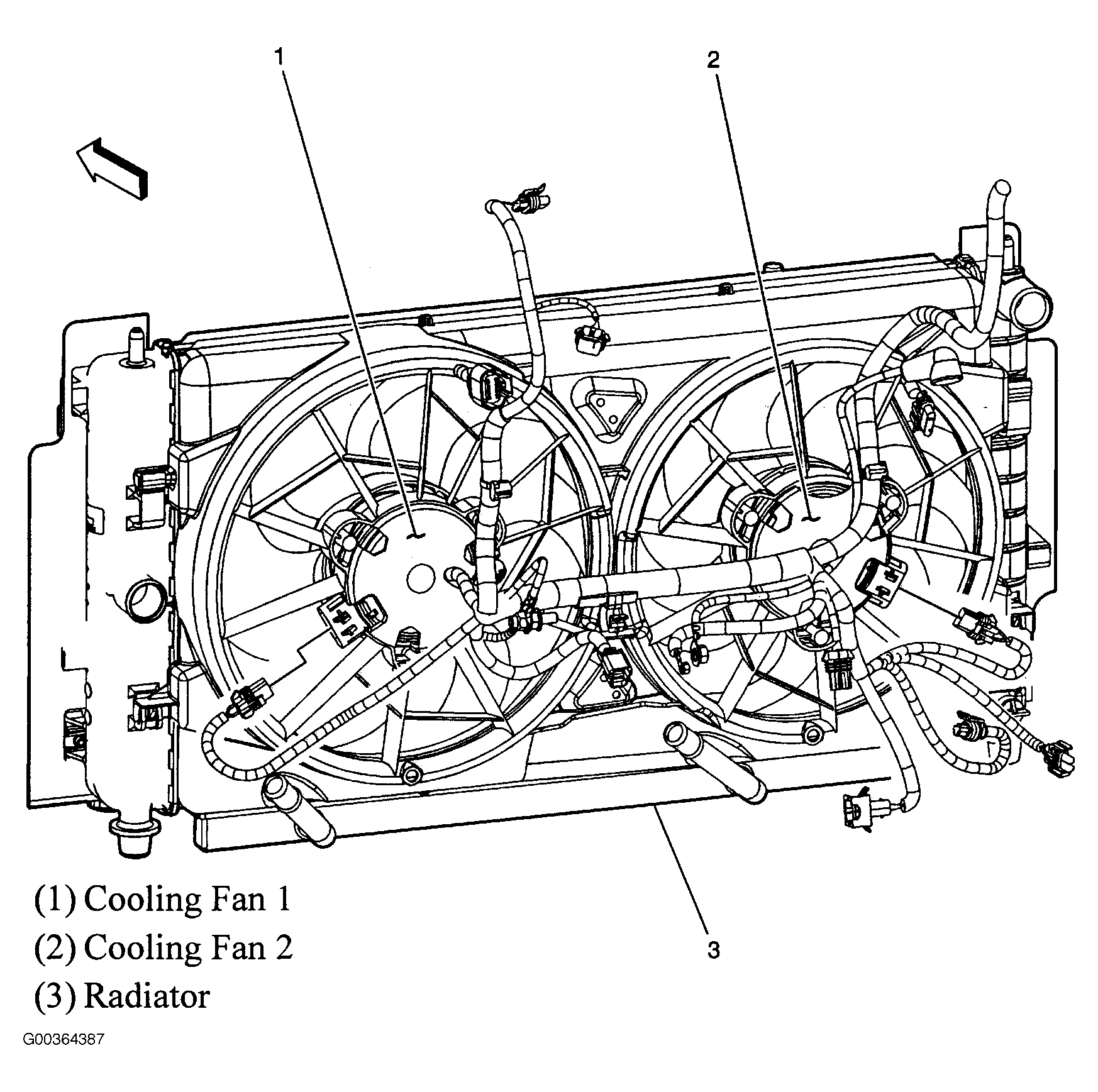

Fig 25: Cooling Fan Motors (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Cooling Fan (2.2L)
Courtesy of GENERAL MOTORS CORP.

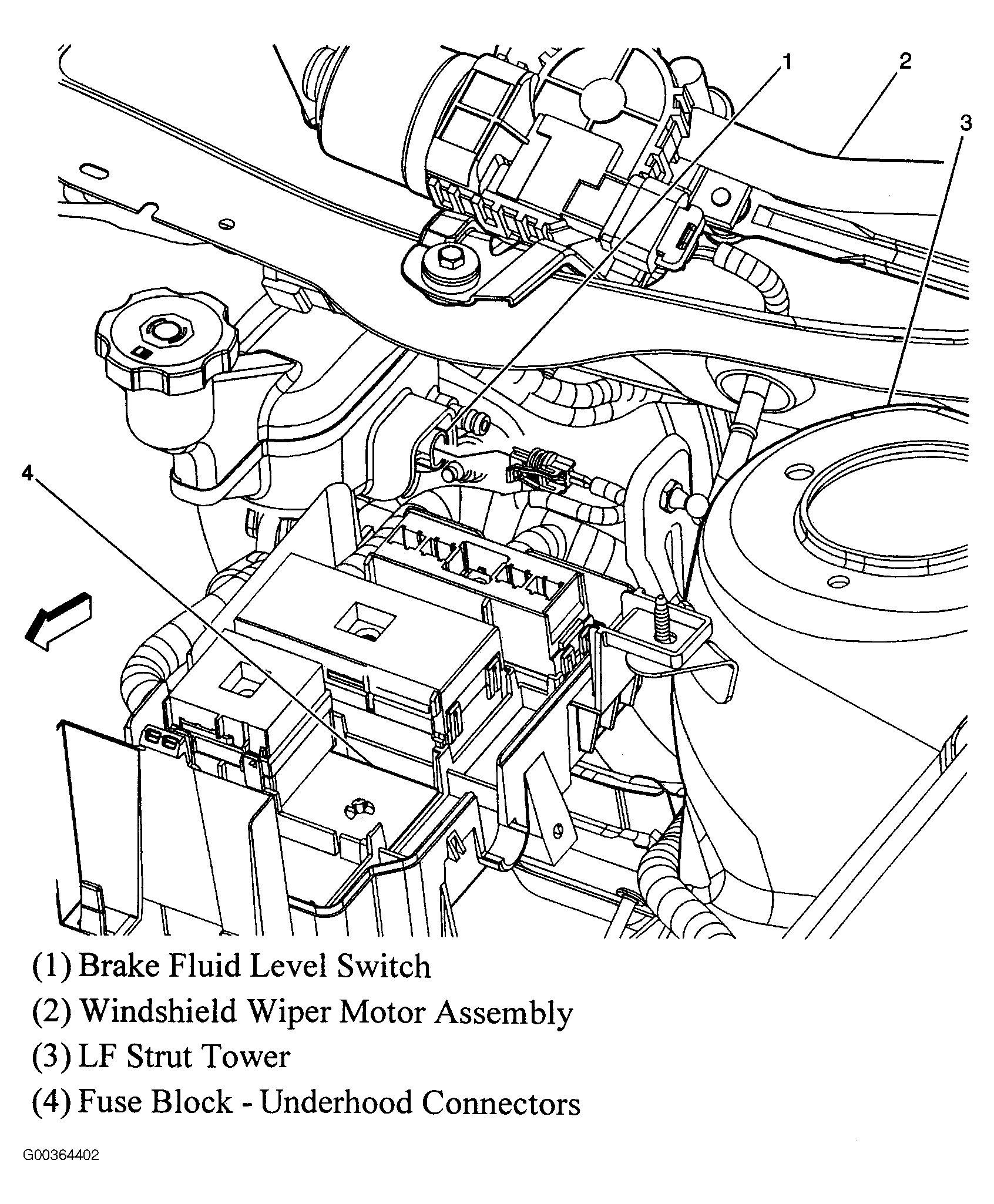

Fig 27: Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.

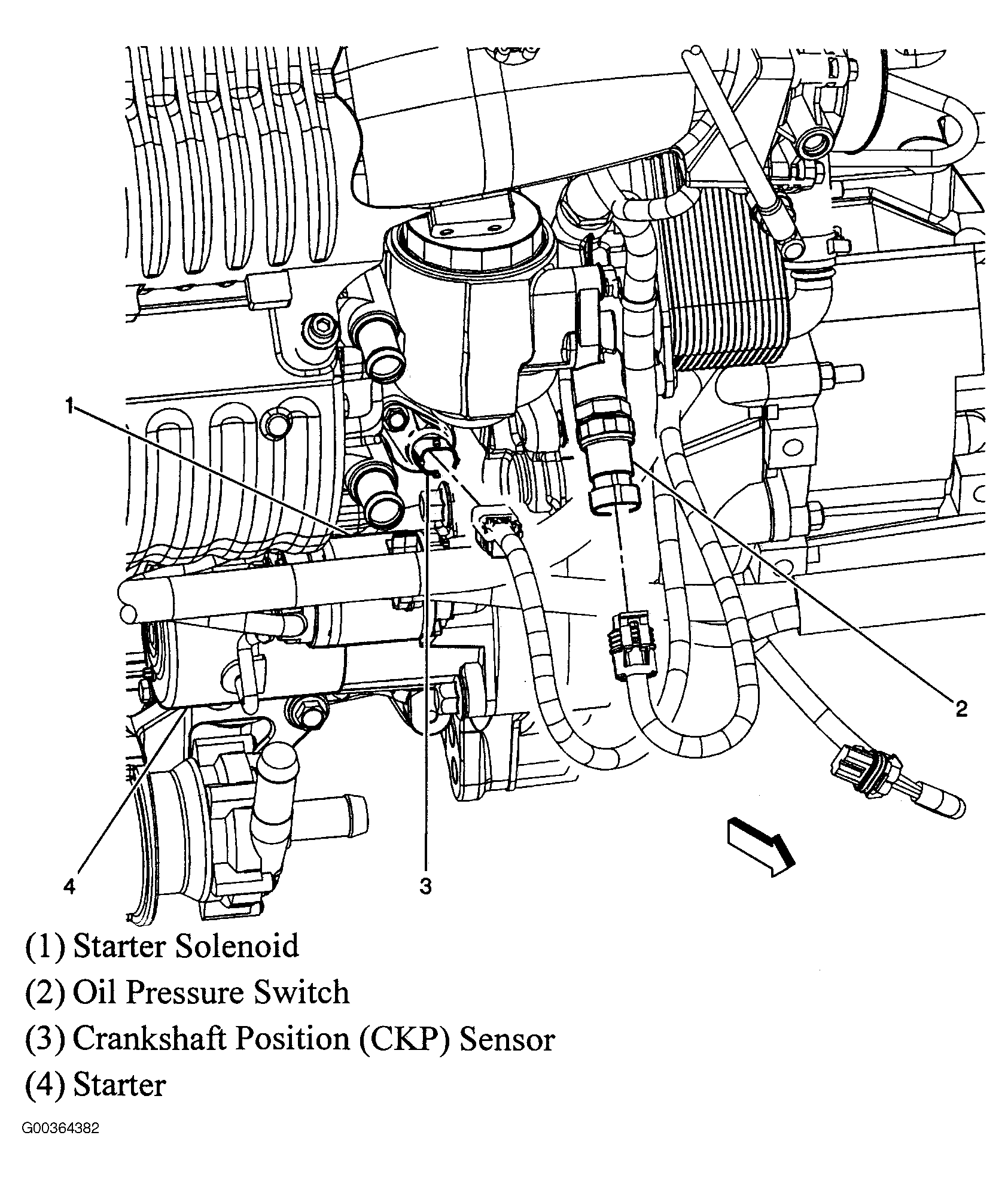

Fig 28: Lower Left Side Of Engine Block (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Interior Overview
Courtesy of GENERAL MOTORS CORP.
Fig 31: Interior HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.

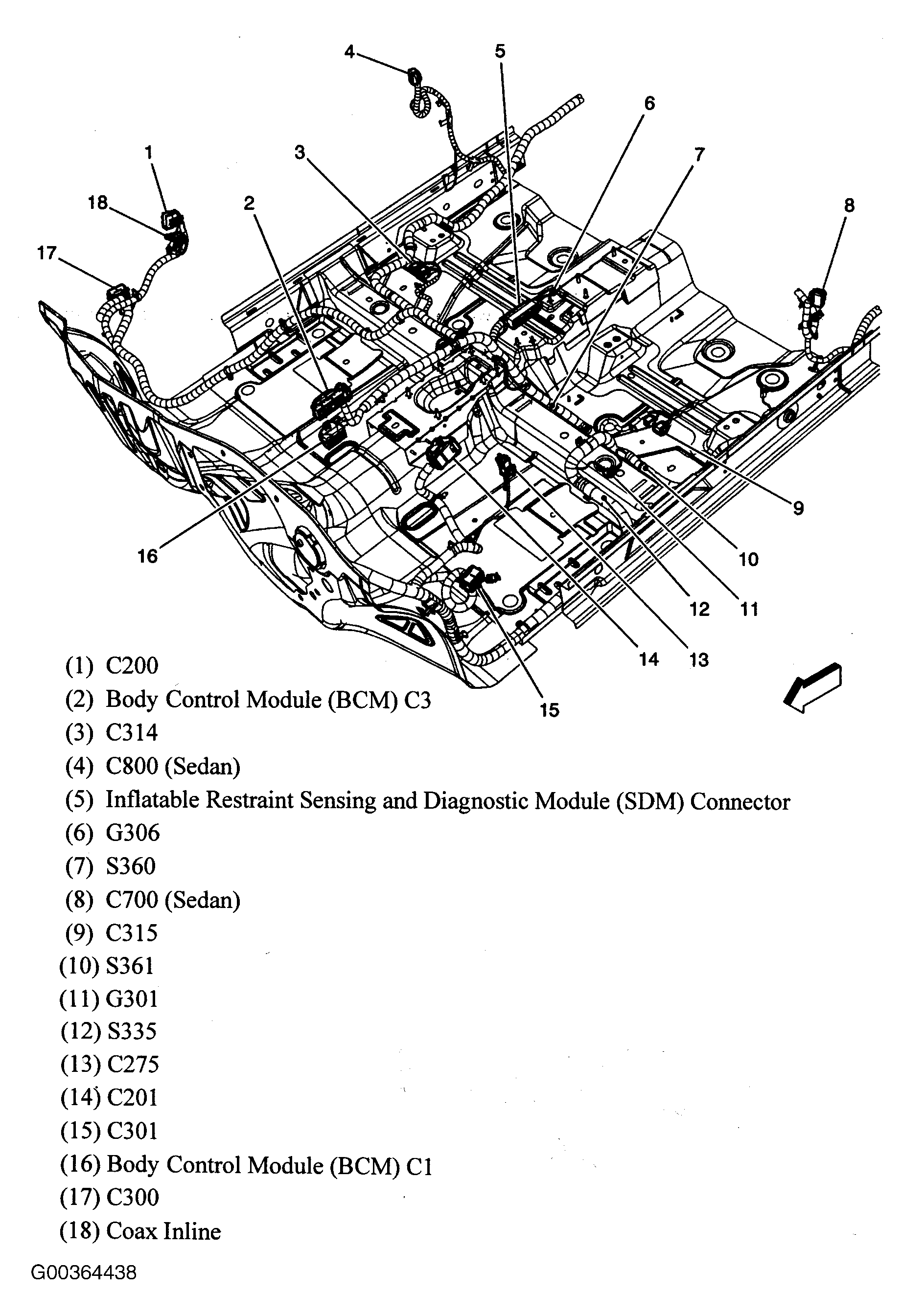

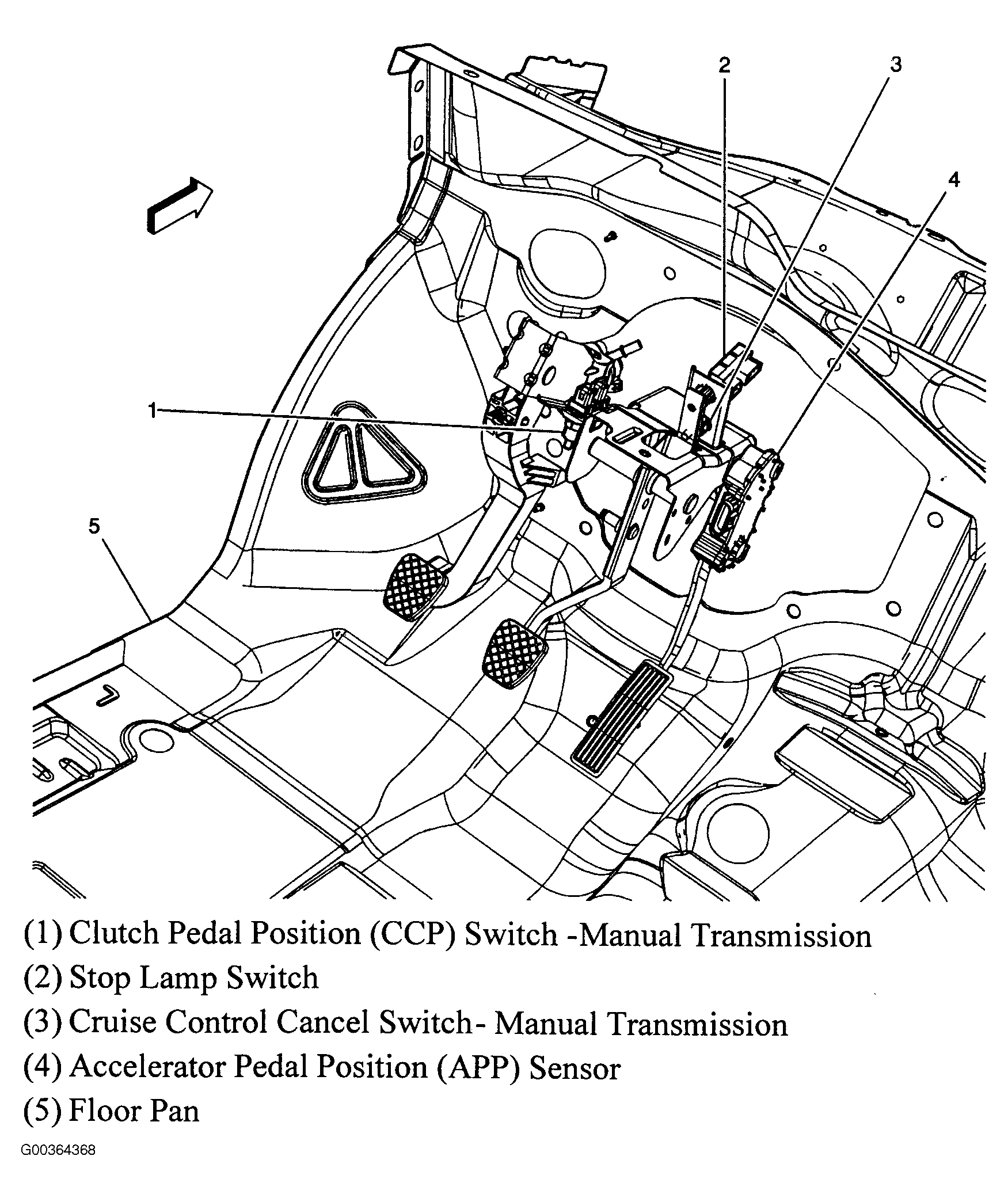

Fig 33: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Ambient Air Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 36: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 37: Power Steering System Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 38: Headliner Components
Courtesy of GENERAL MOTORS CORP.

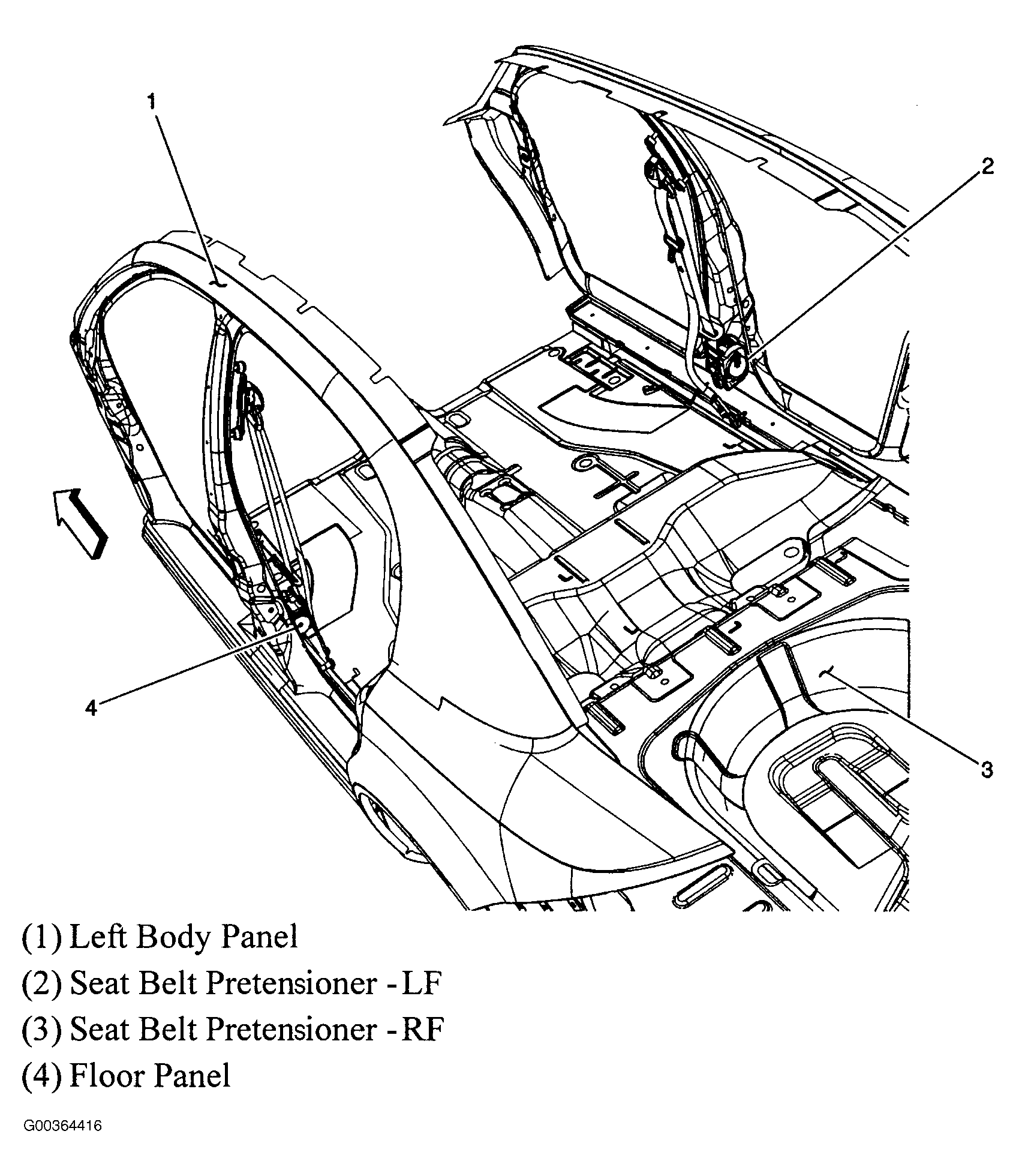

Fig 39: Seat Belt Components (Sedan)
Courtesy of GENERAL MOTORS CORP.

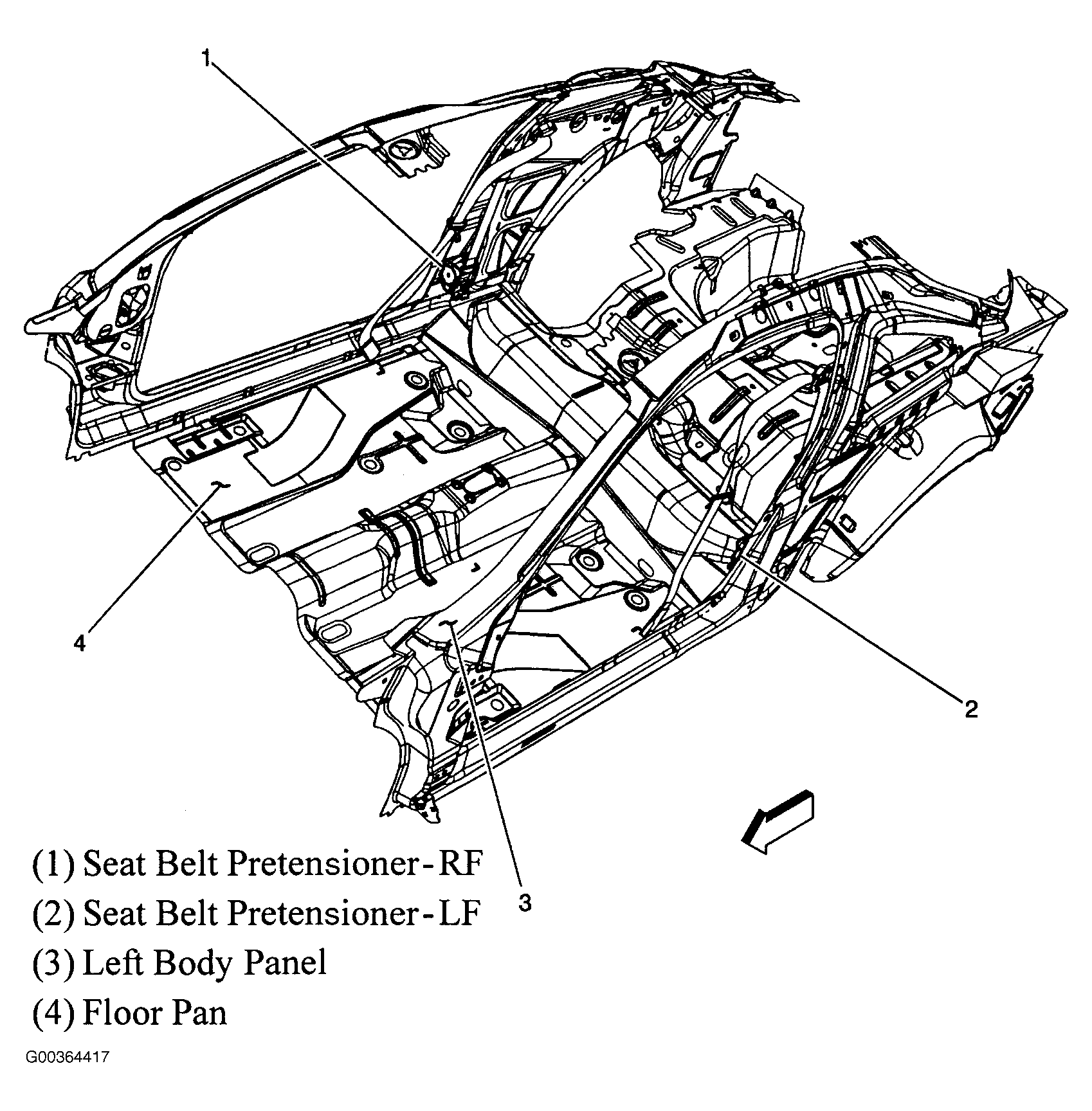

Fig 40: Seat Belt Components (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.
Fig 42: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 43: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 44: Automatic Transmission Shift Lock Control Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 45: Front Bumper Assembly
Courtesy of GENERAL MOTORS CORP.

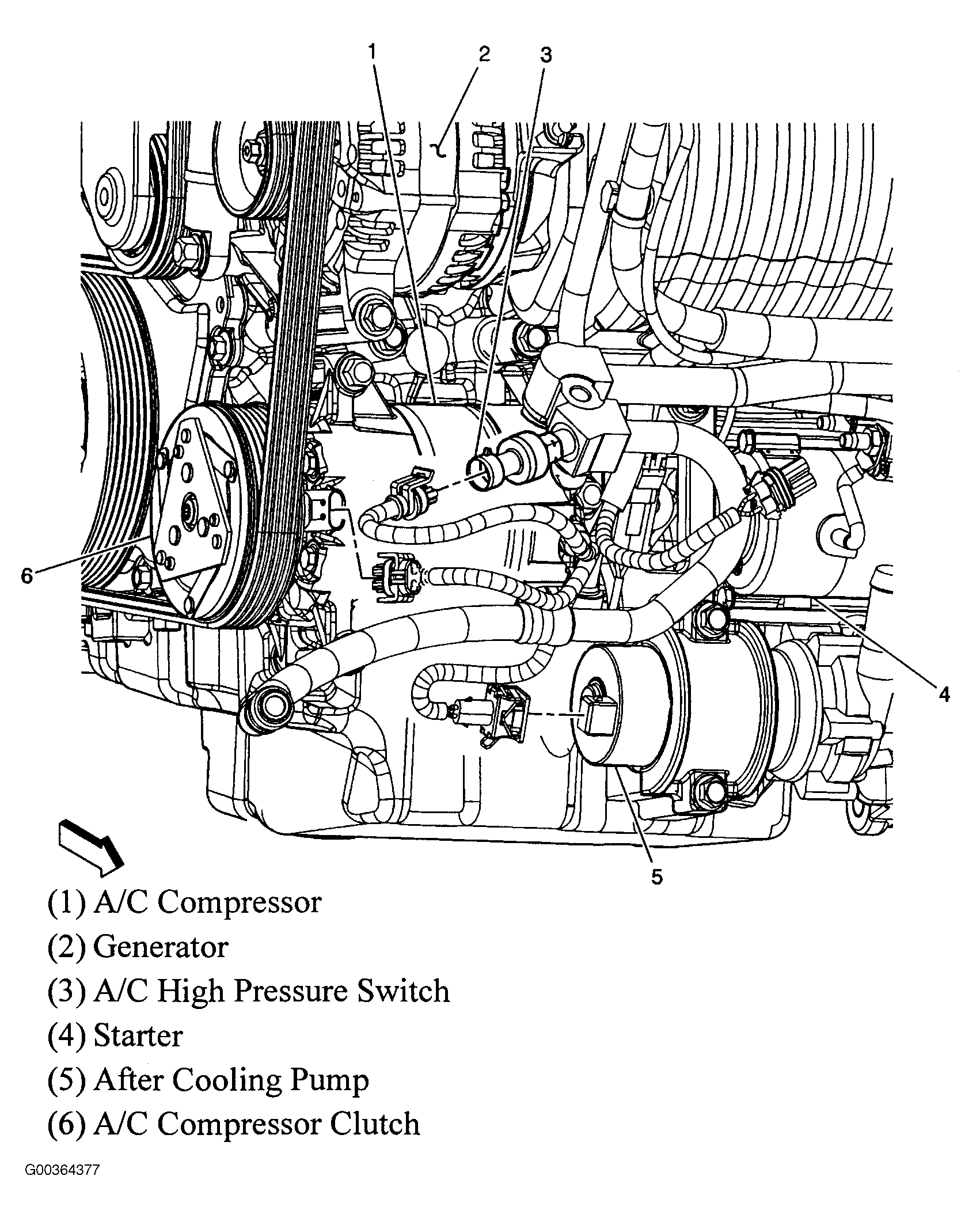

Fig 46: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

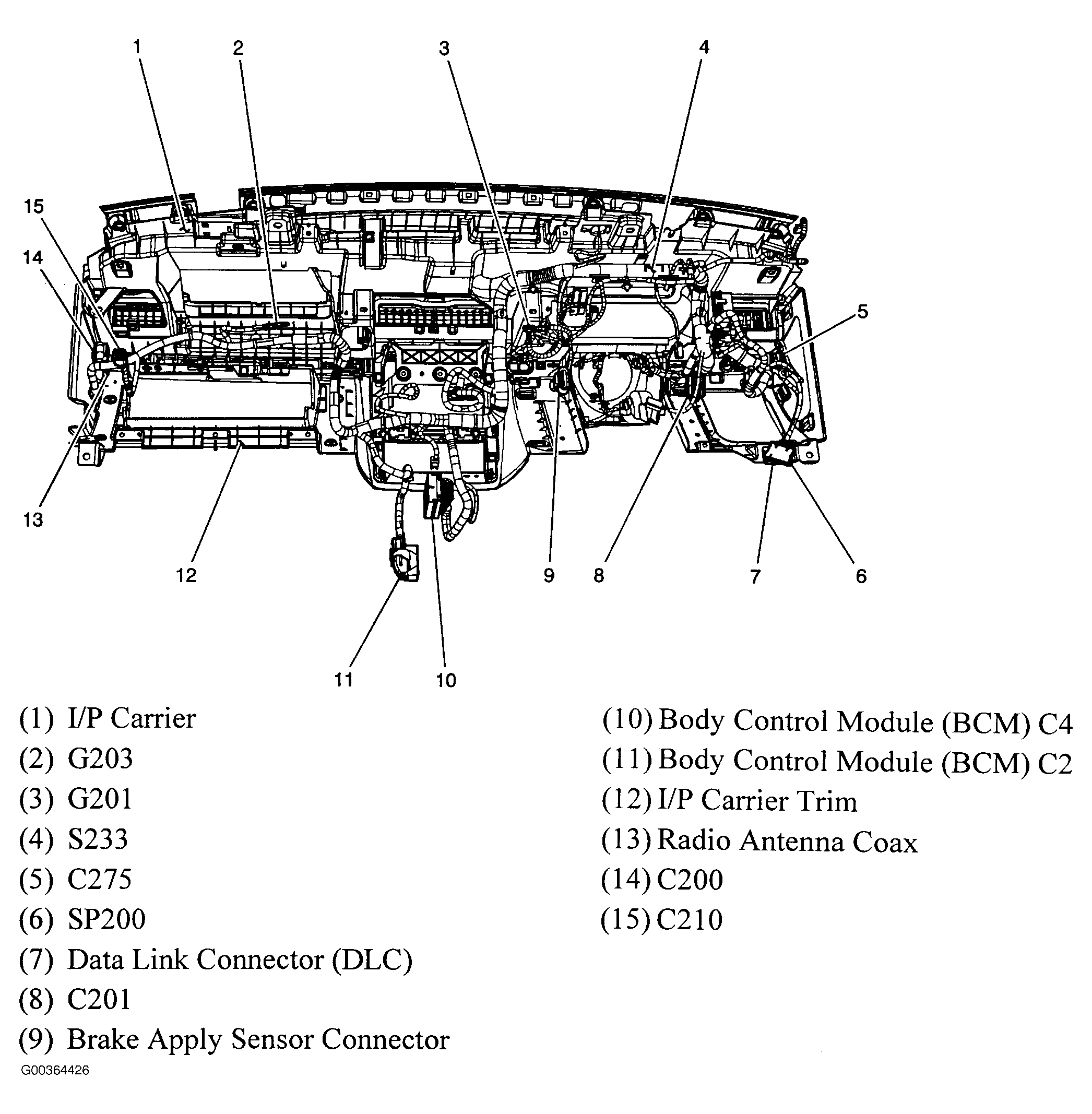

Fig 47: Dash
Courtesy of GENERAL MOTORS CORP.

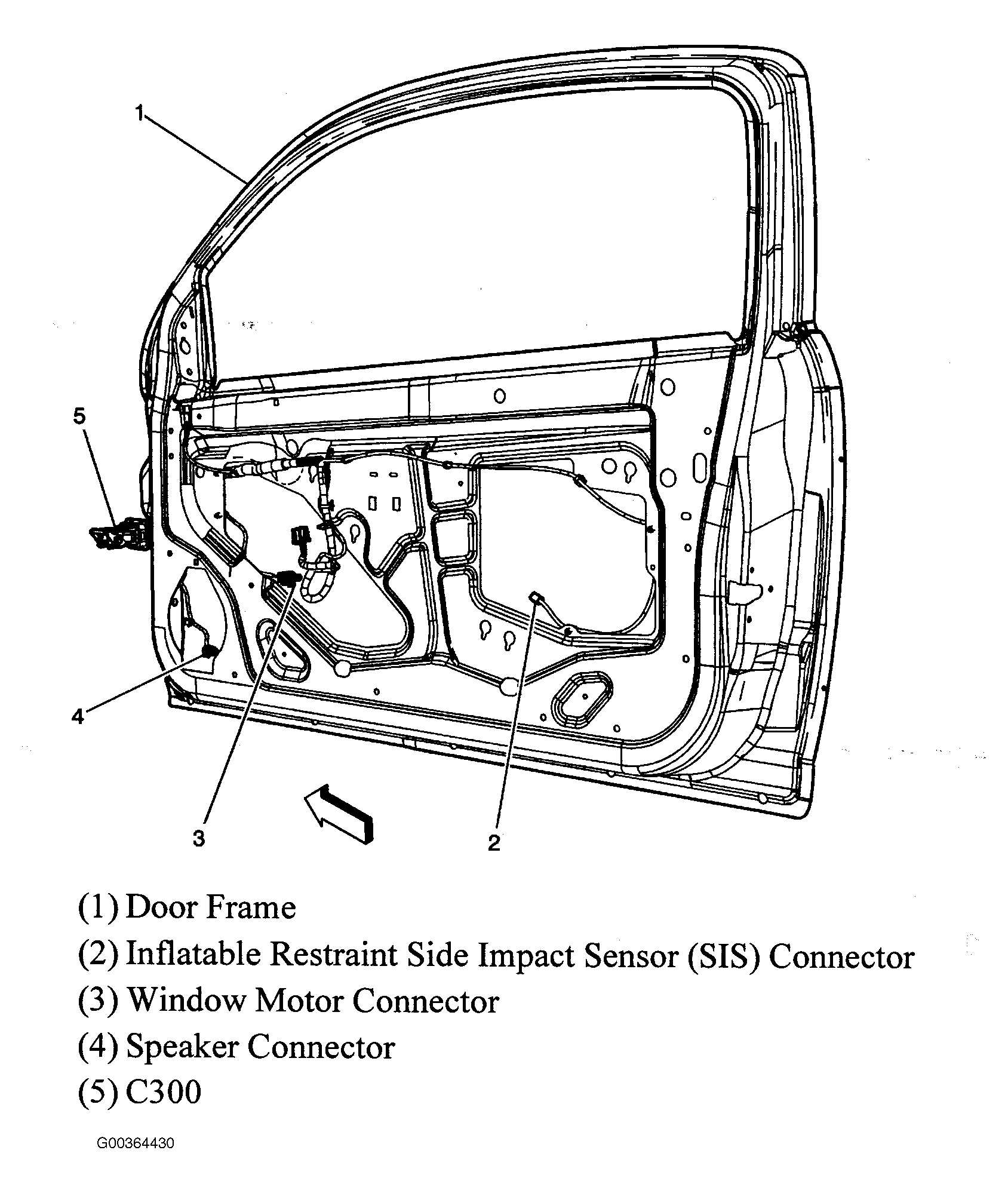

Fig 48: Left Front Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Front Door (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Front Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Front Door (Coupe)
Courtesy of GENERAL MOTORS CORP.

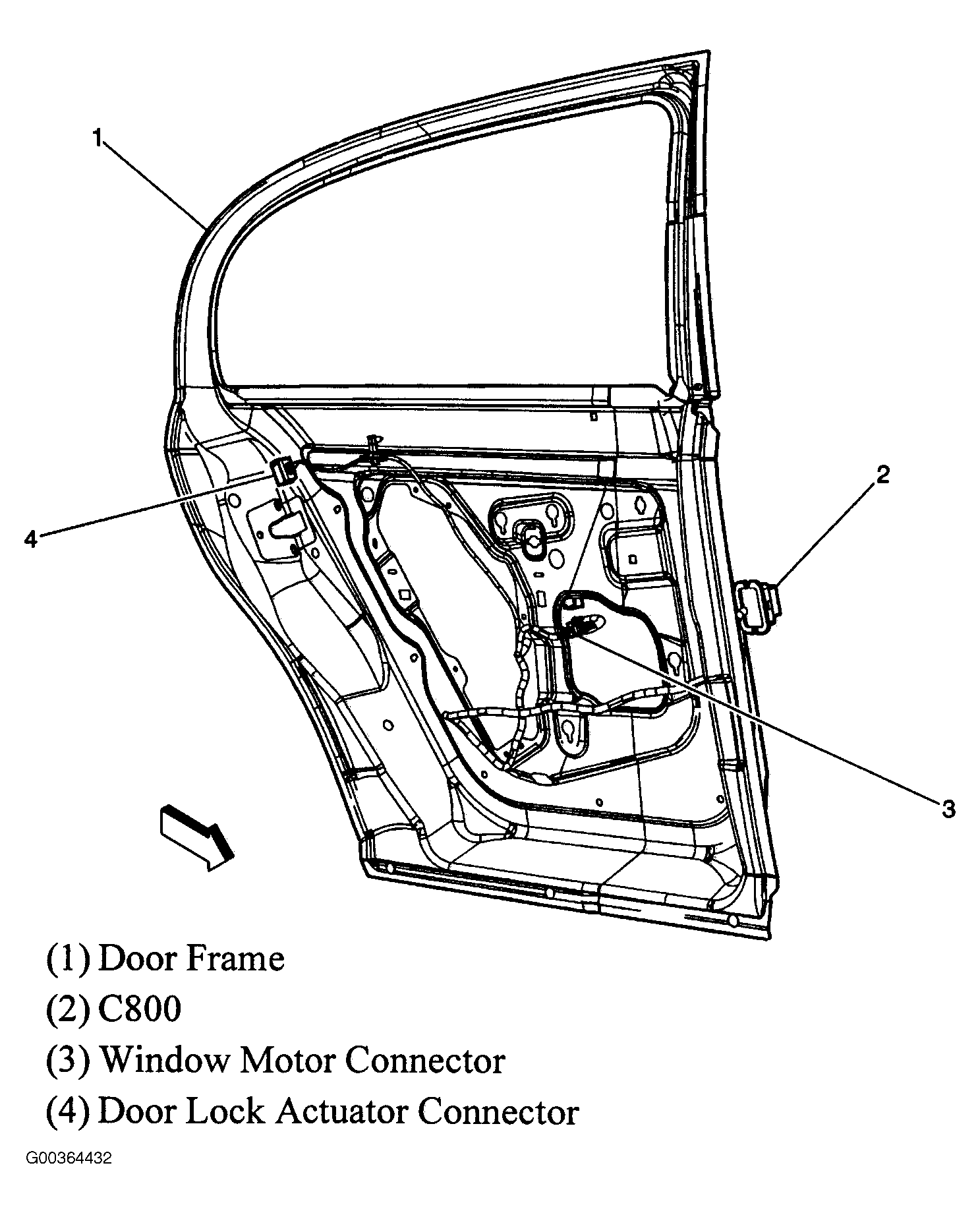

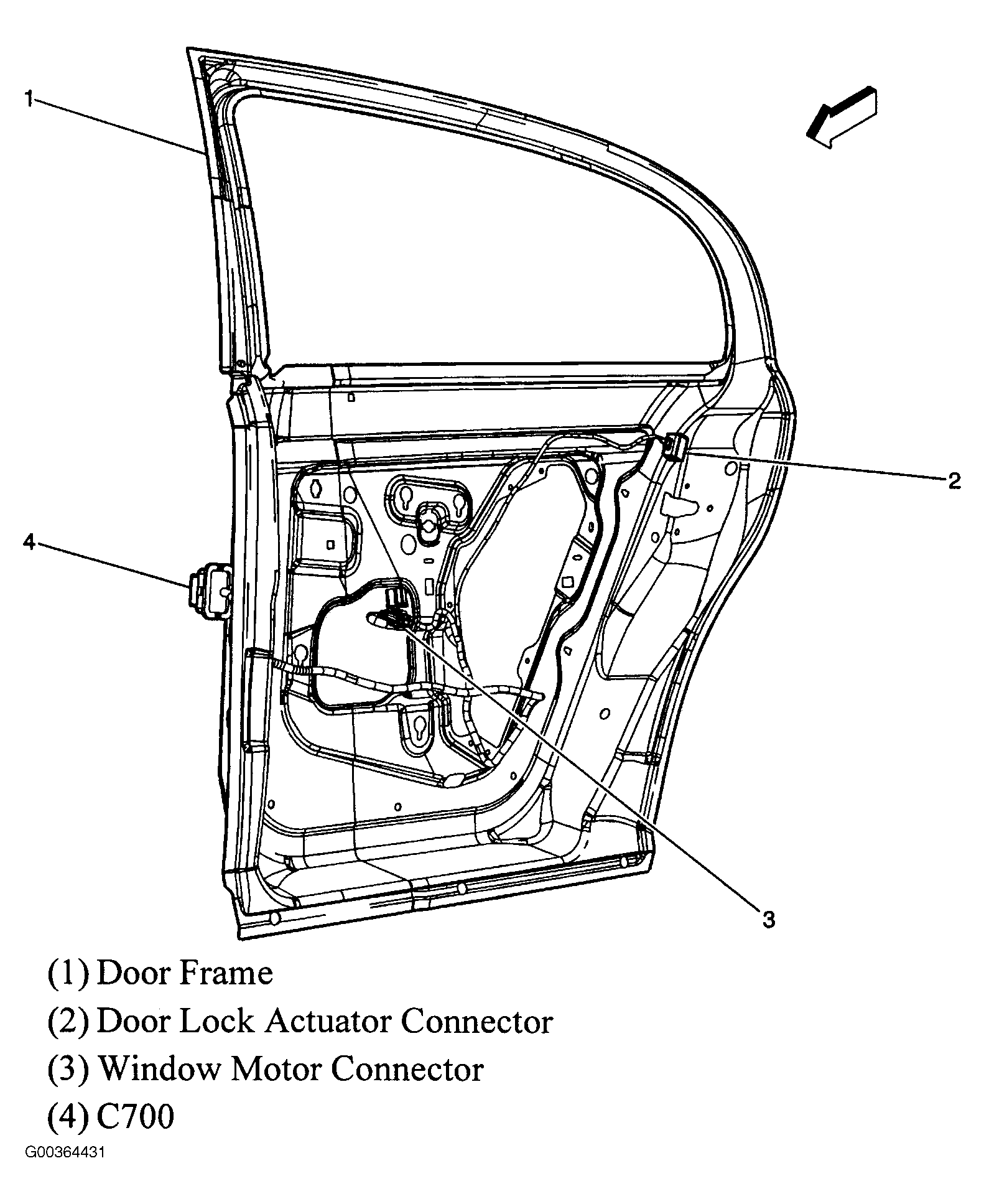

Fig 52: Left Rear Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Rear Door (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Headliner Harness (W/ Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Headliner Harness (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

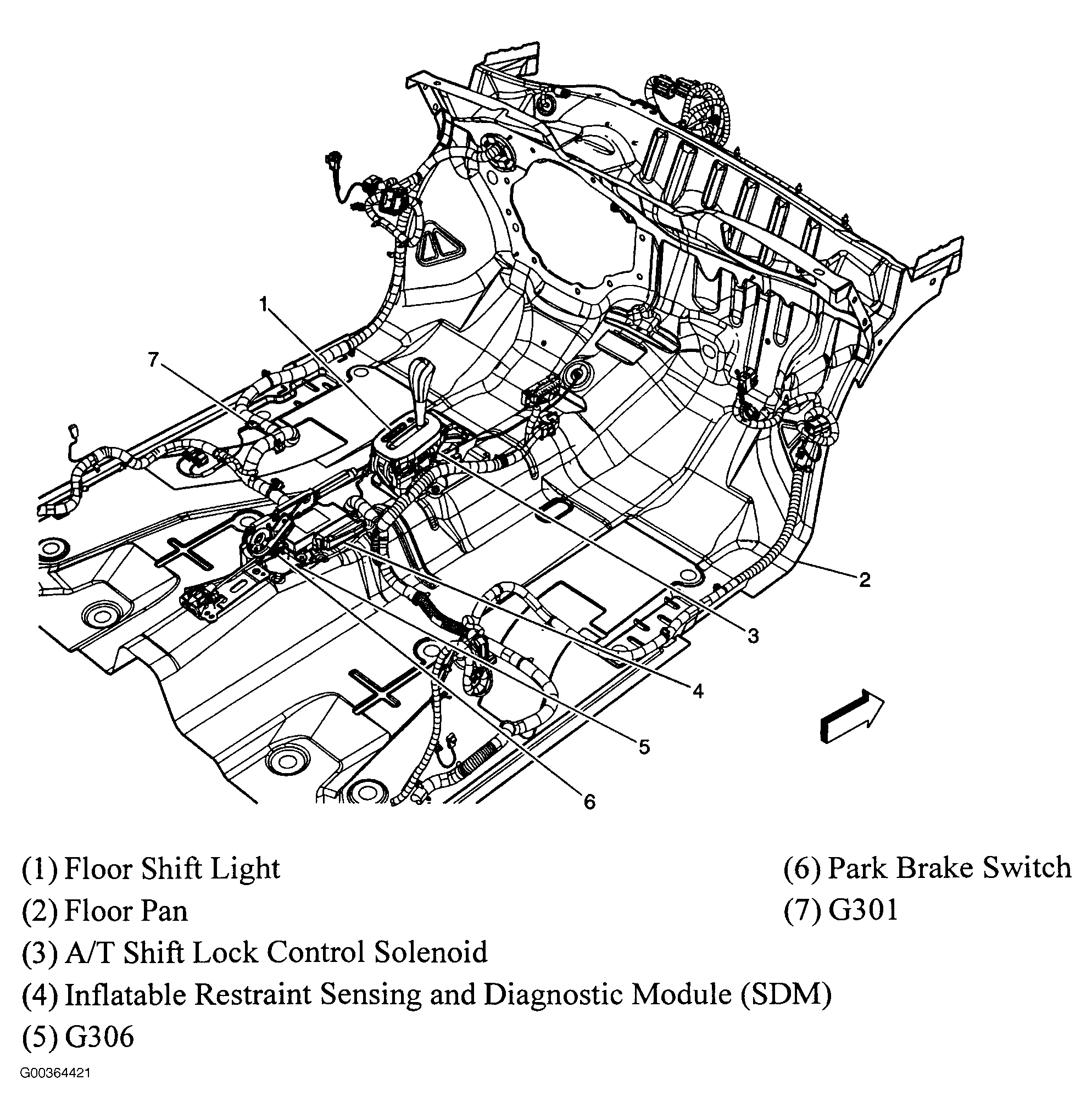

Fig 57: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 58: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Rear Axle
Courtesy of GENERAL MOTORS CORP.

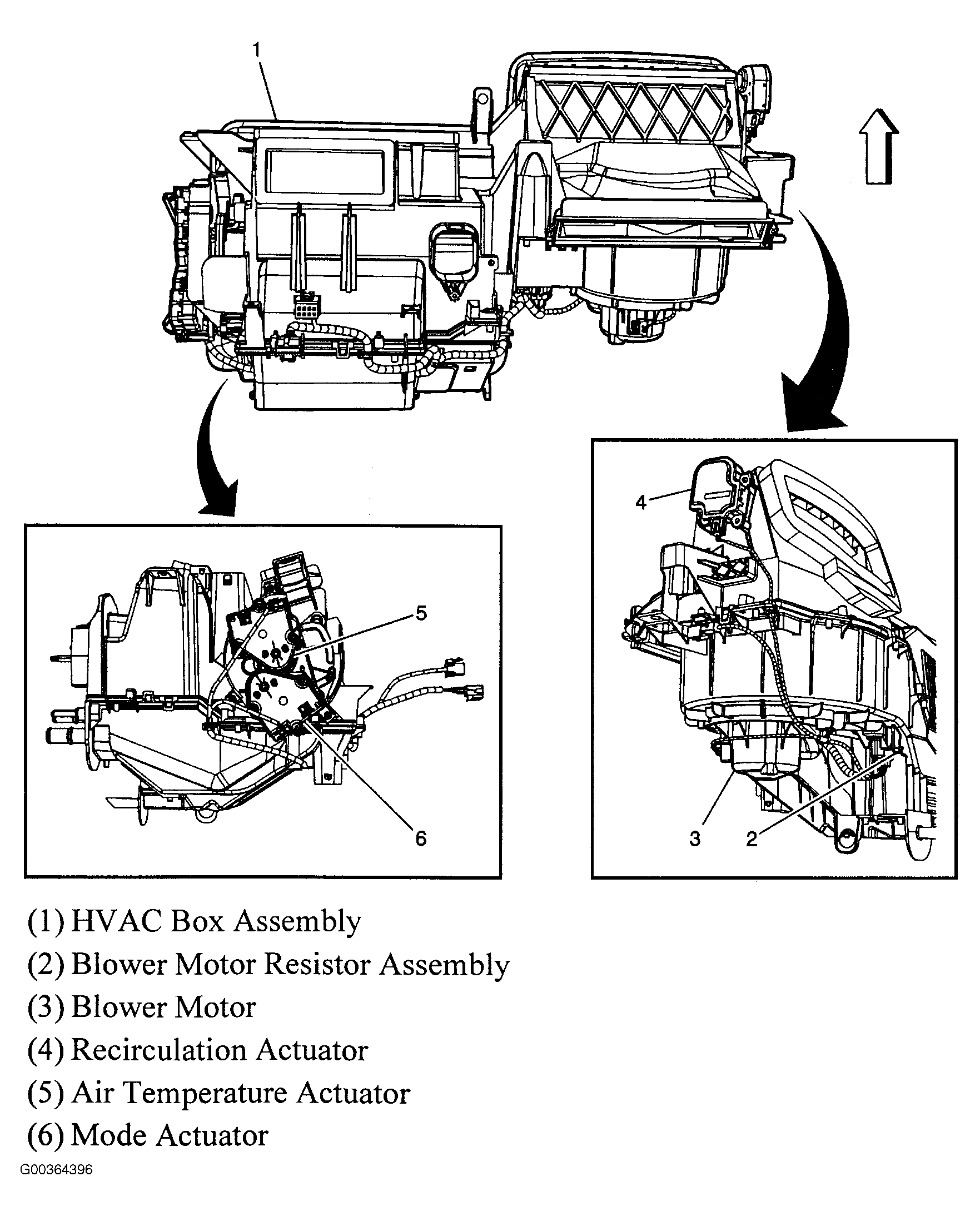

Fig 60: HVAC Box Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 61: Cylinder Head
Courtesy of GENERAL MOTORS CORP.

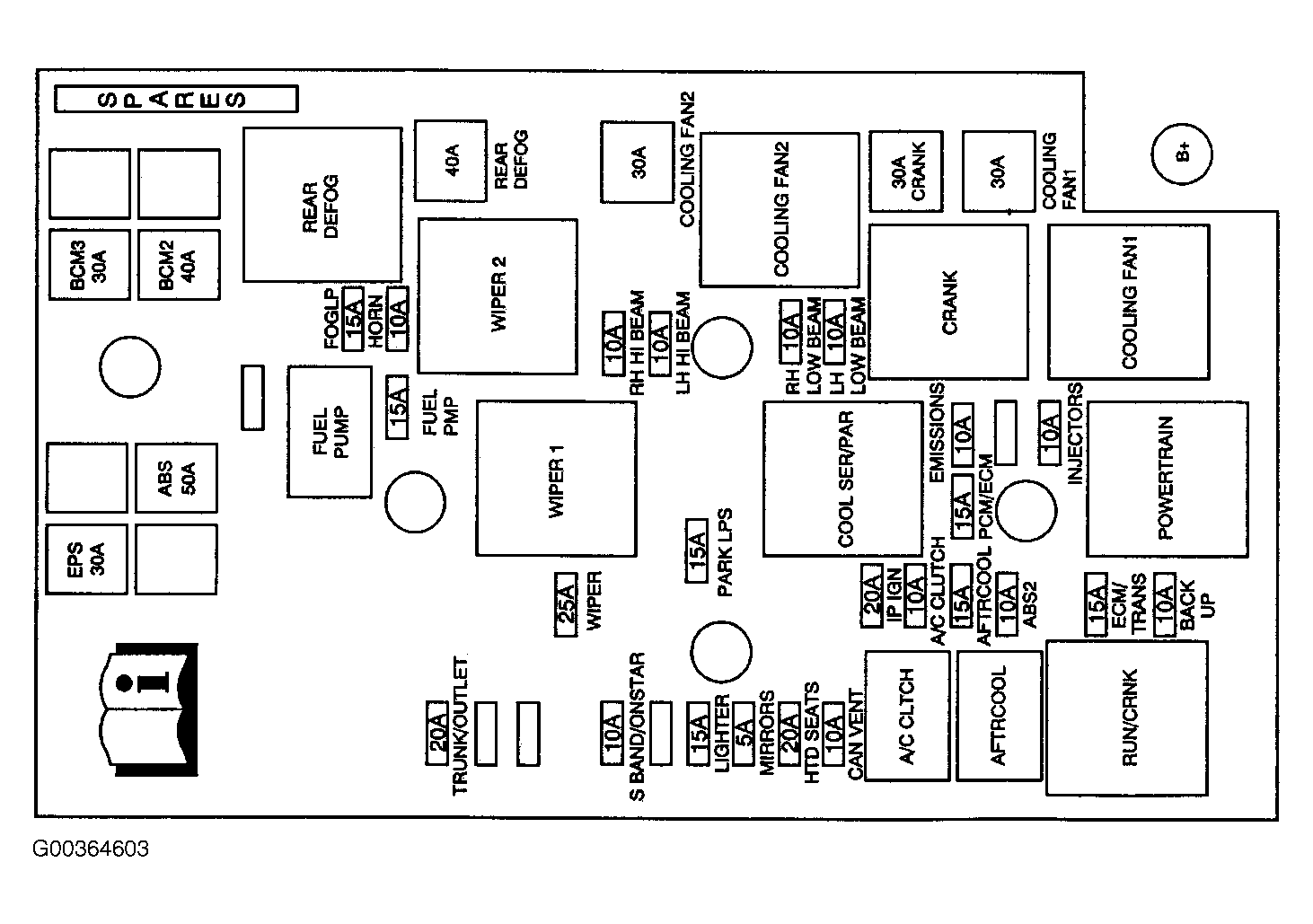

Fig 62: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
