Inflatable Restraint Roof Rail Module Replacement - Front

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

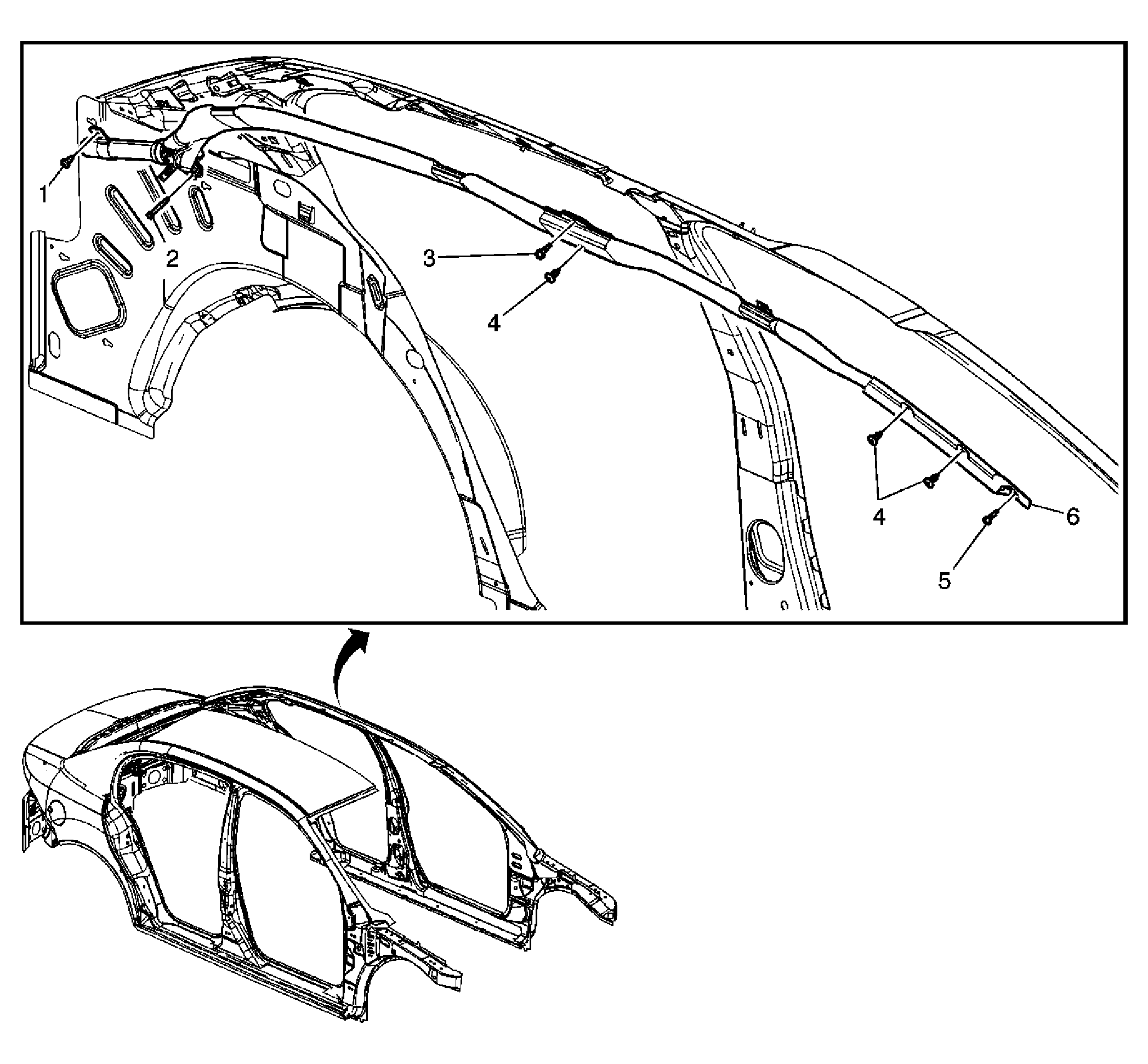

Fig 1: Inflatable Restraint Roof Rail Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the headliner. Refer to Headlining Trim Panel Replacement .
1	Inflatable Restraint Roof Rail Module Screw NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Inflatable Restraint Roof Rail Module Bolt Tighten: 8 N.m (71 lb in)
3	Inflatable Restraint Roof Rail Module Bolt Tighten: 8 N.m (71 lb in)
4	Inflatable Restraint Roof Rail Module Retainer (Qty: 3)
5	Inflatable Restraint Roof Rail Module Bolt Tighten: 8 N.m (71 lb in)
6	Inflatable Restraint Roof Rail Module Assembly Tip: Remove the connector position assurance (CPA) retainer. Disconnect the electrical connector.
