Control Module, Transfer Case
>>
Transfer Case Shift Control Module C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

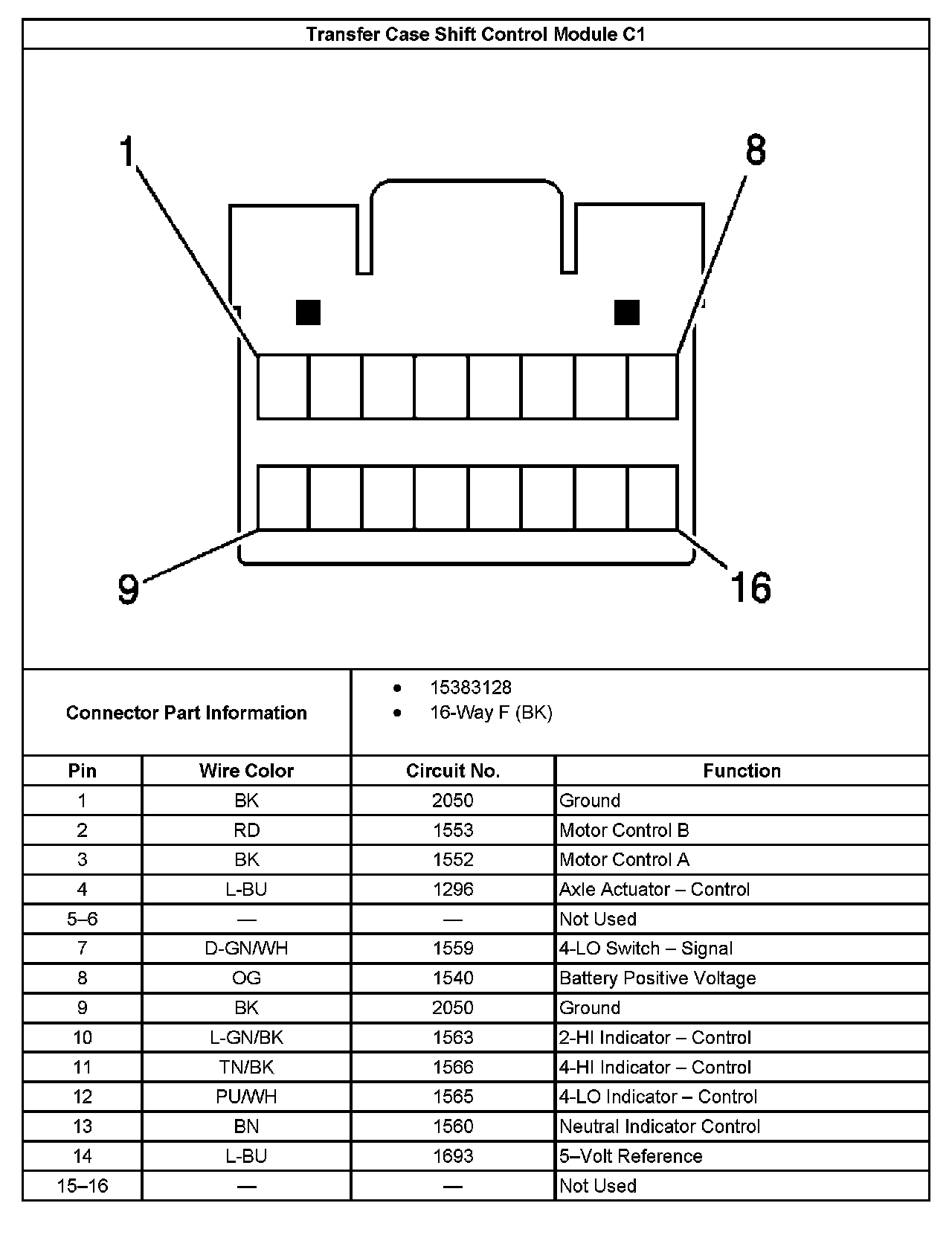

Transfer Case Shift Control Module C1
