Body Control System Diagrams

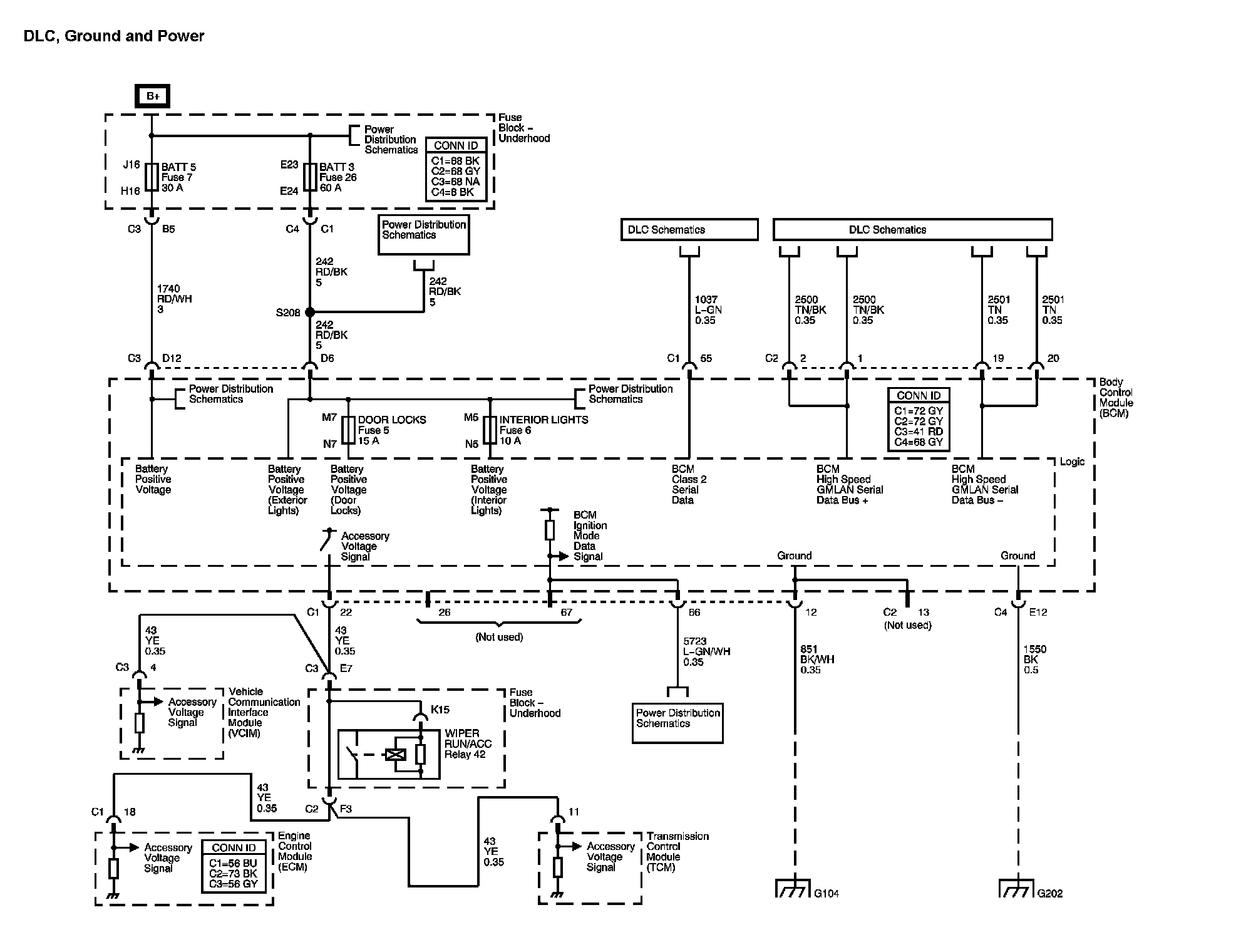

Body Control Systems Diagram 1:

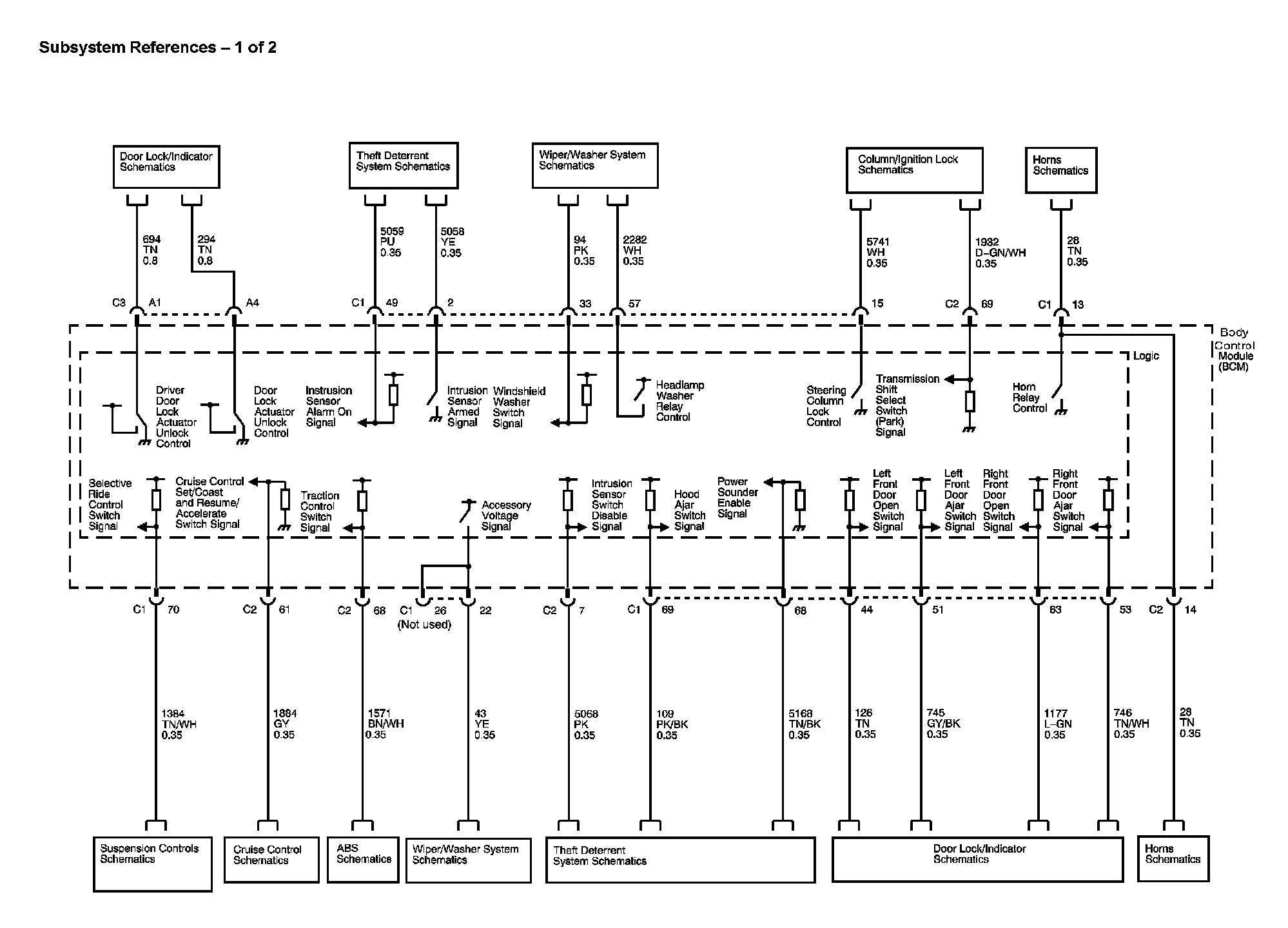

Body Control Systems Diagram 2 (1 Of 2):

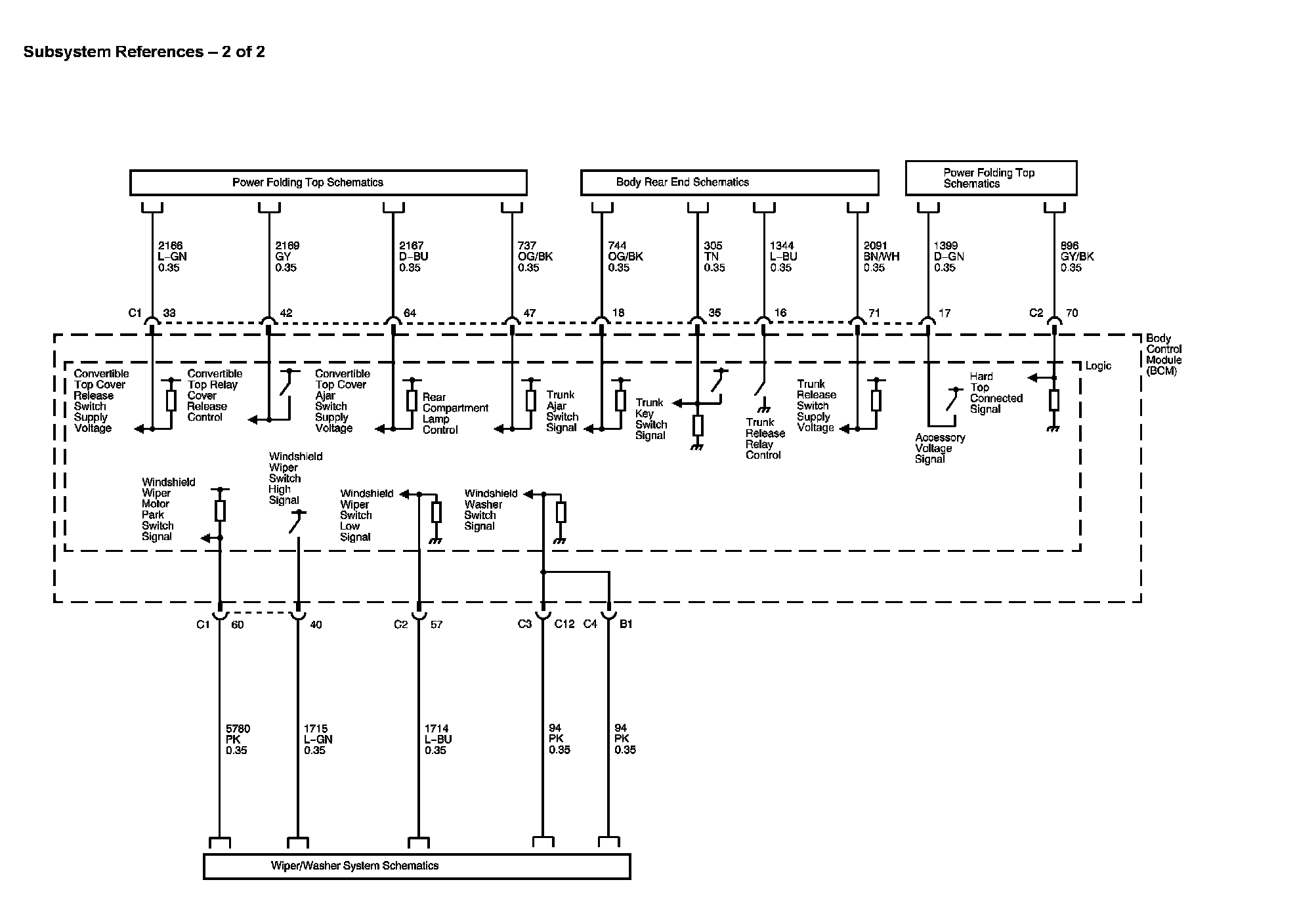

Body Control Systems Diagram 2 (2 Of 2):

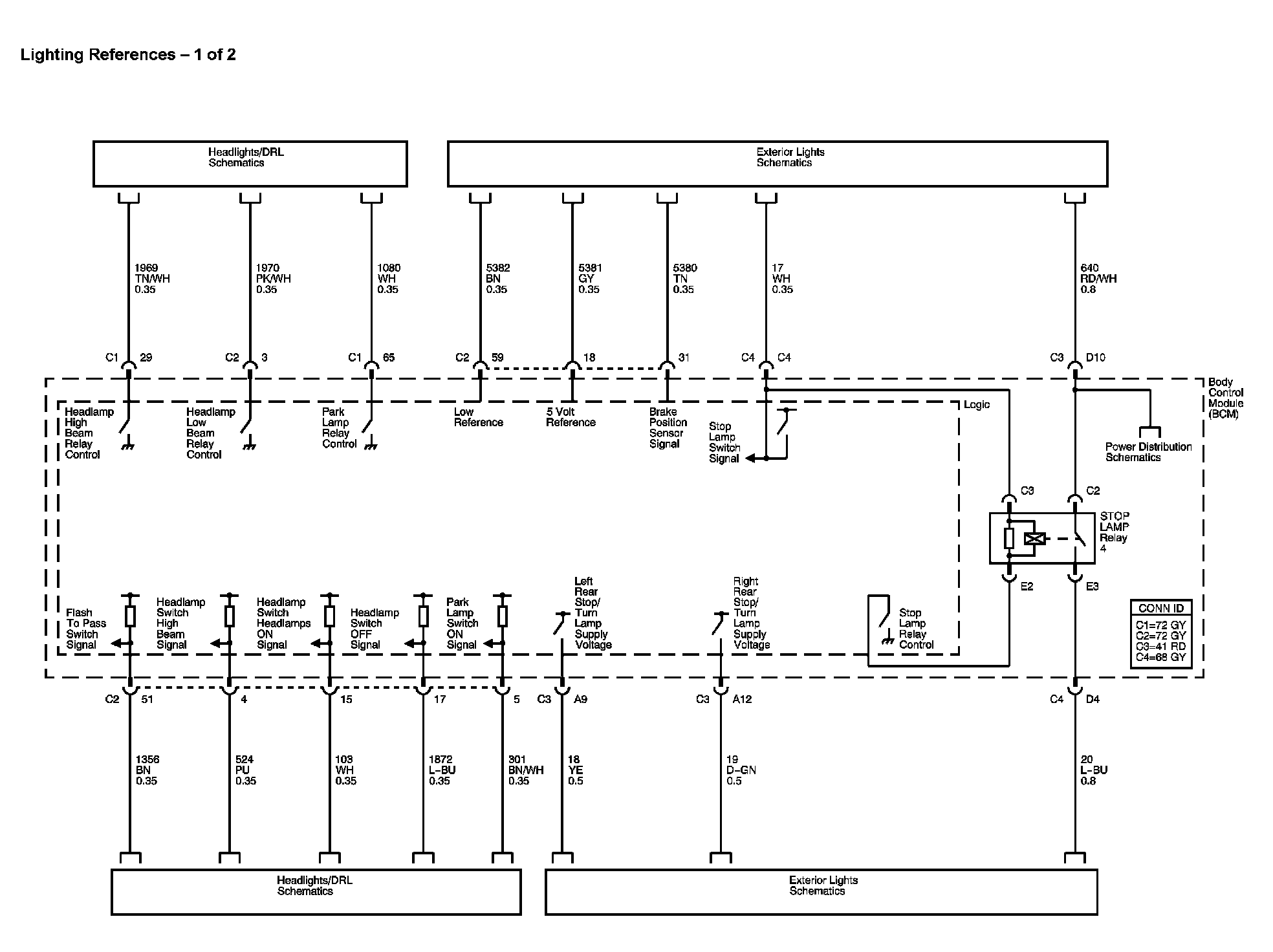

Body Control Systems Diagram 3 (1 Of 2):

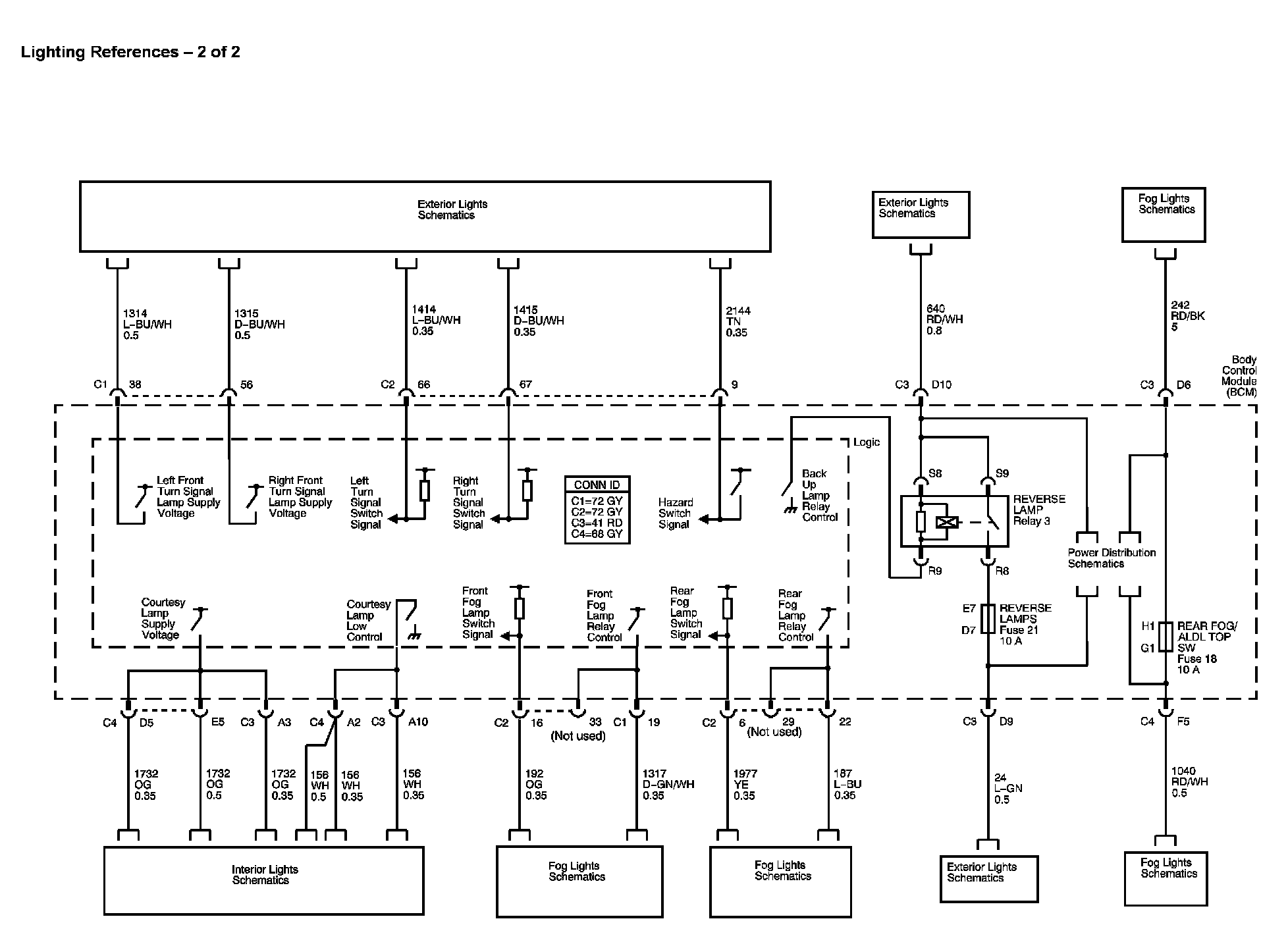

Body Control Systems Diagram 3 (2 of 2):
