Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) - C3 >> With Automatic Transmission (RPO M32)

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

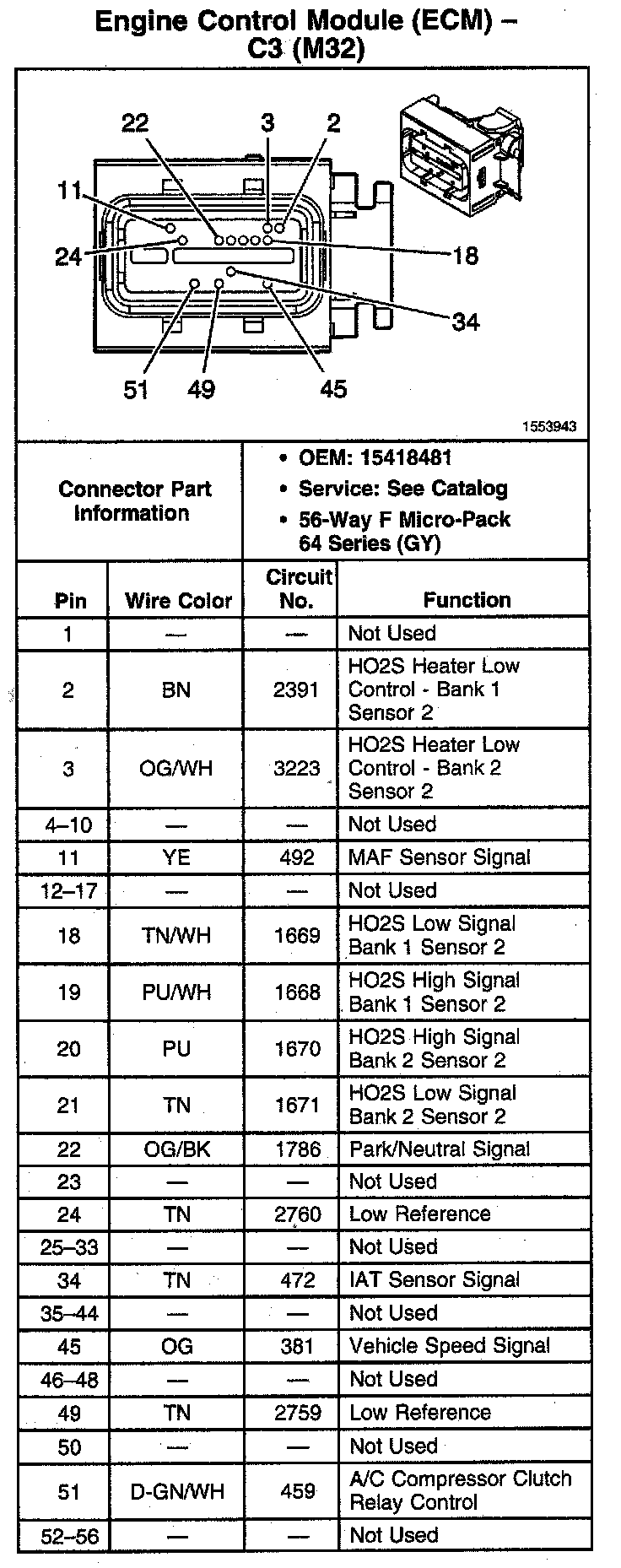

With Automatic Transmission (RPO M32)
