Lumbar Pump/Control Module Assembly

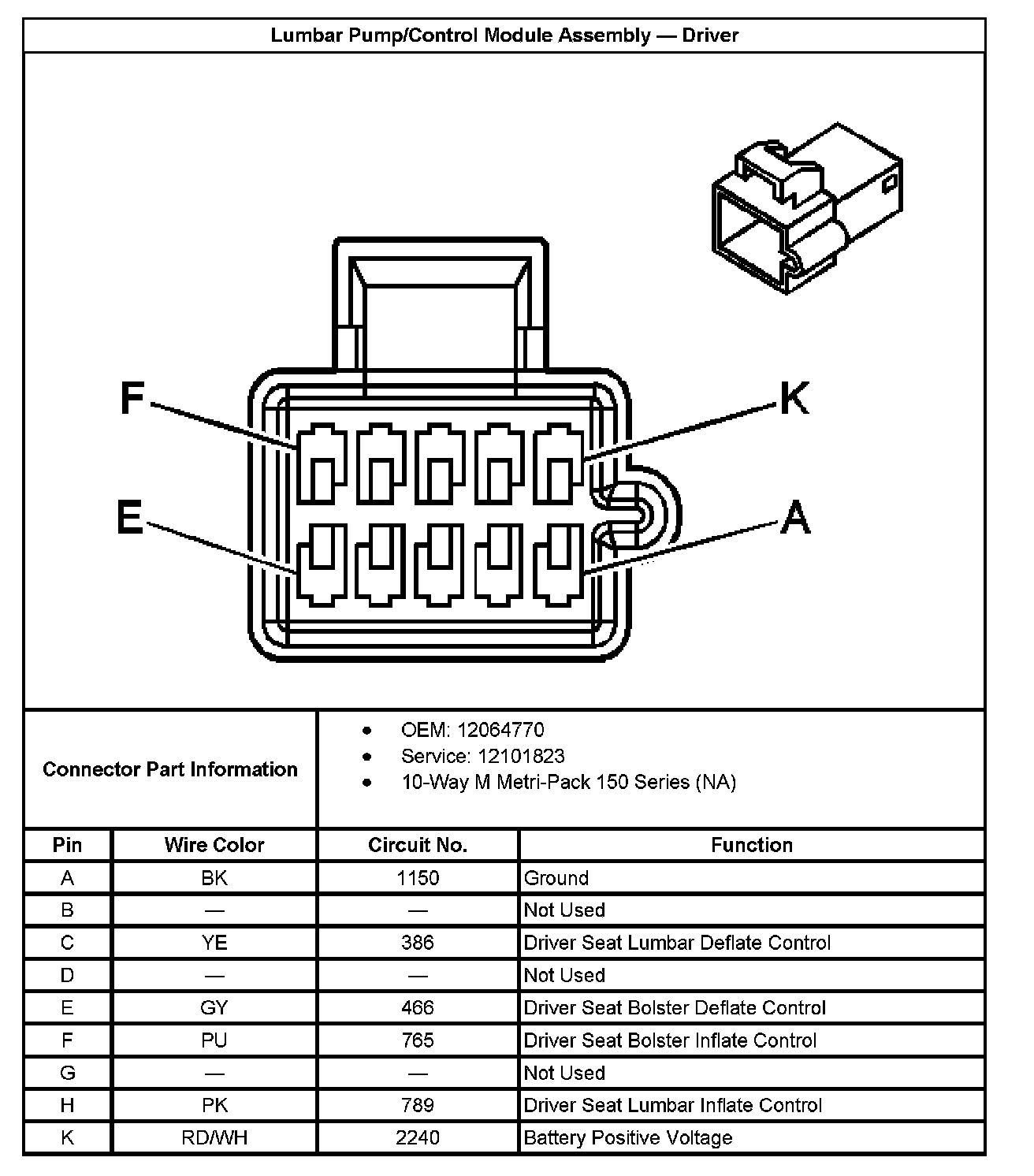

Lumbar Pump/Control Module Assembly - Driver:

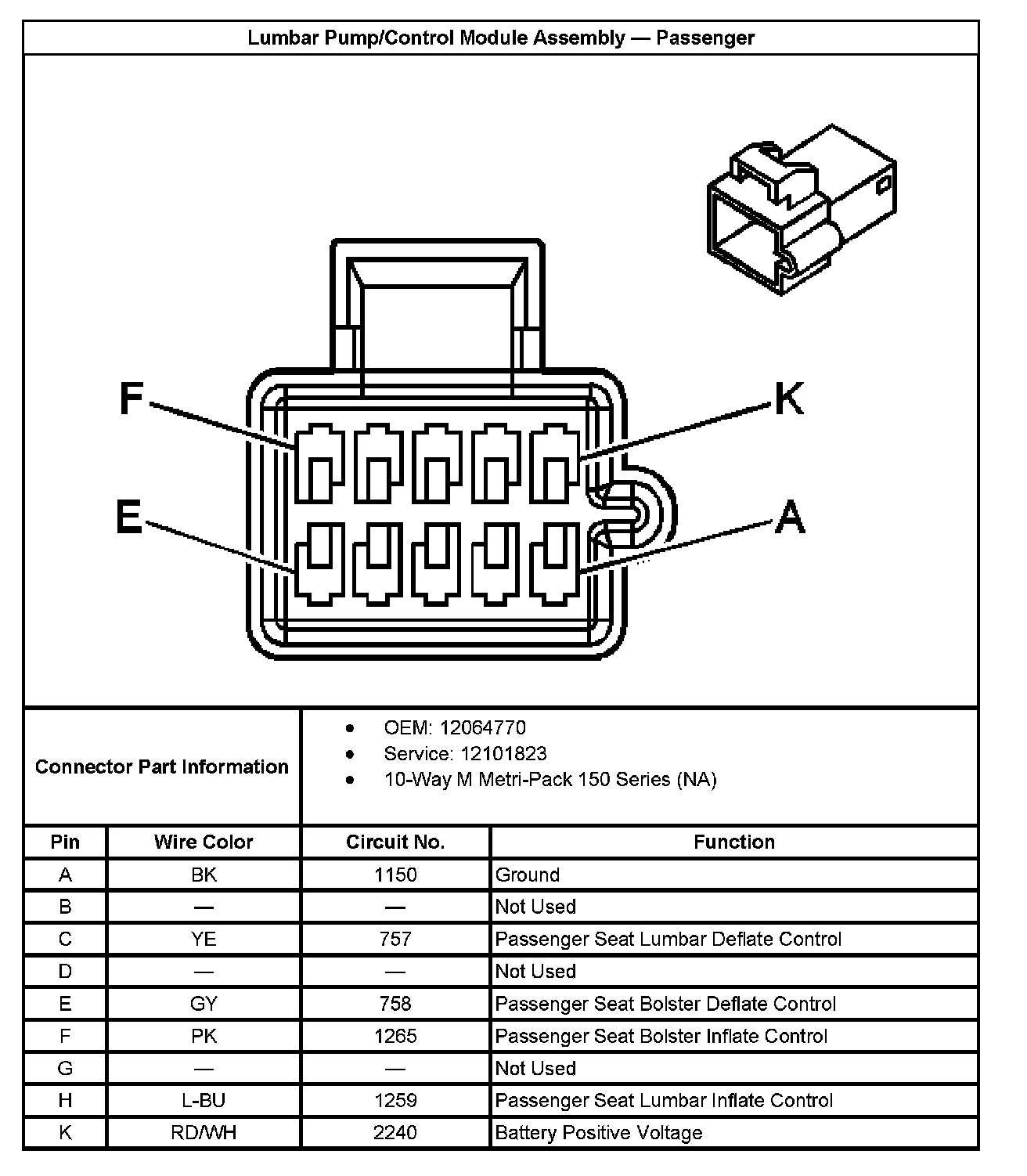

Lumbar Pump/Control Module Assembly - Passenger:
