Memory Seat Module - Driver

Memory Seat Module - Driver C1:

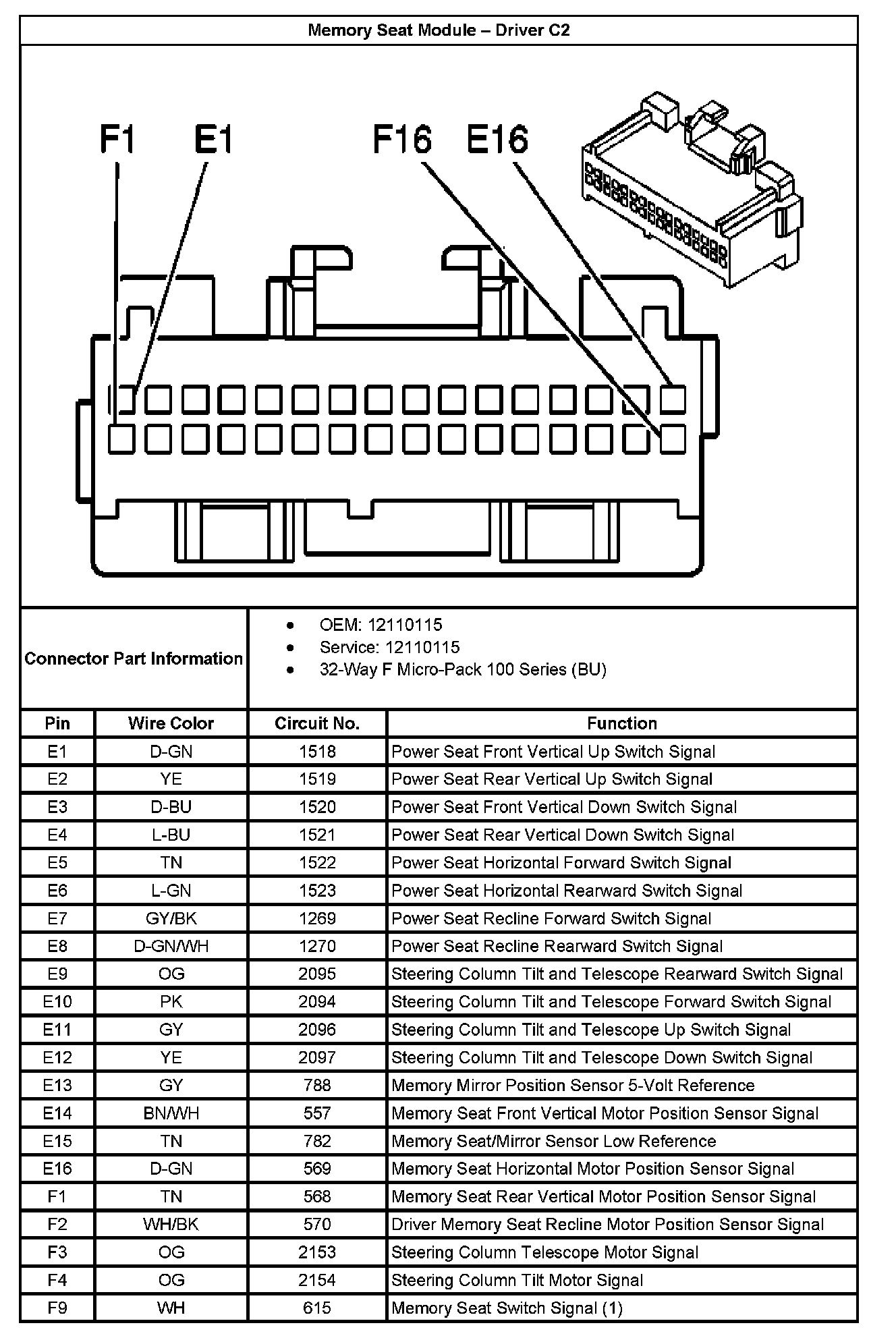

Memory Seat Module - Driver C2 Part 1:

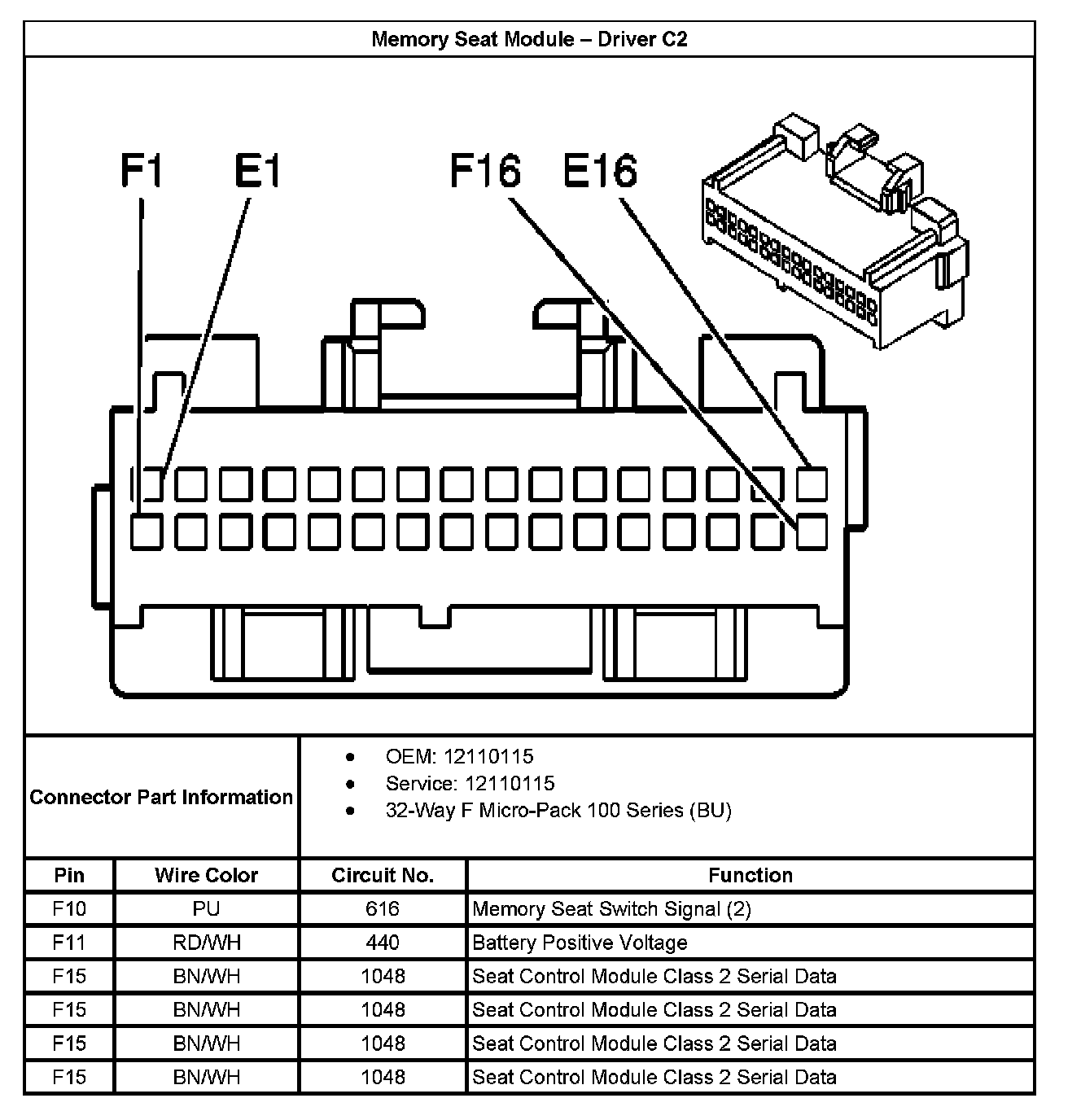

Memory Seat Module - Driver C2 Part 2:

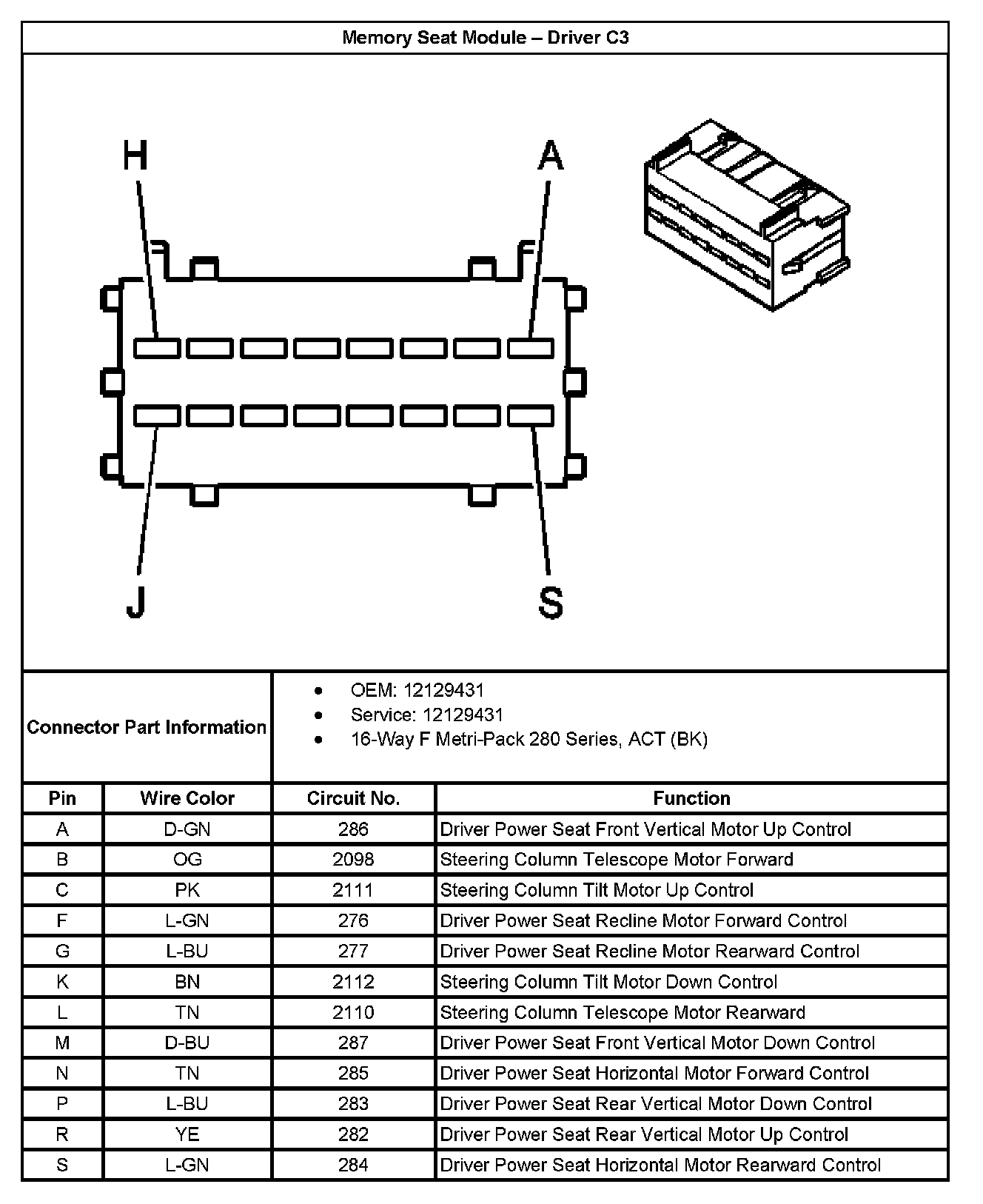

Memory Seat Module - Driver C3:
