Transmission Control Systems

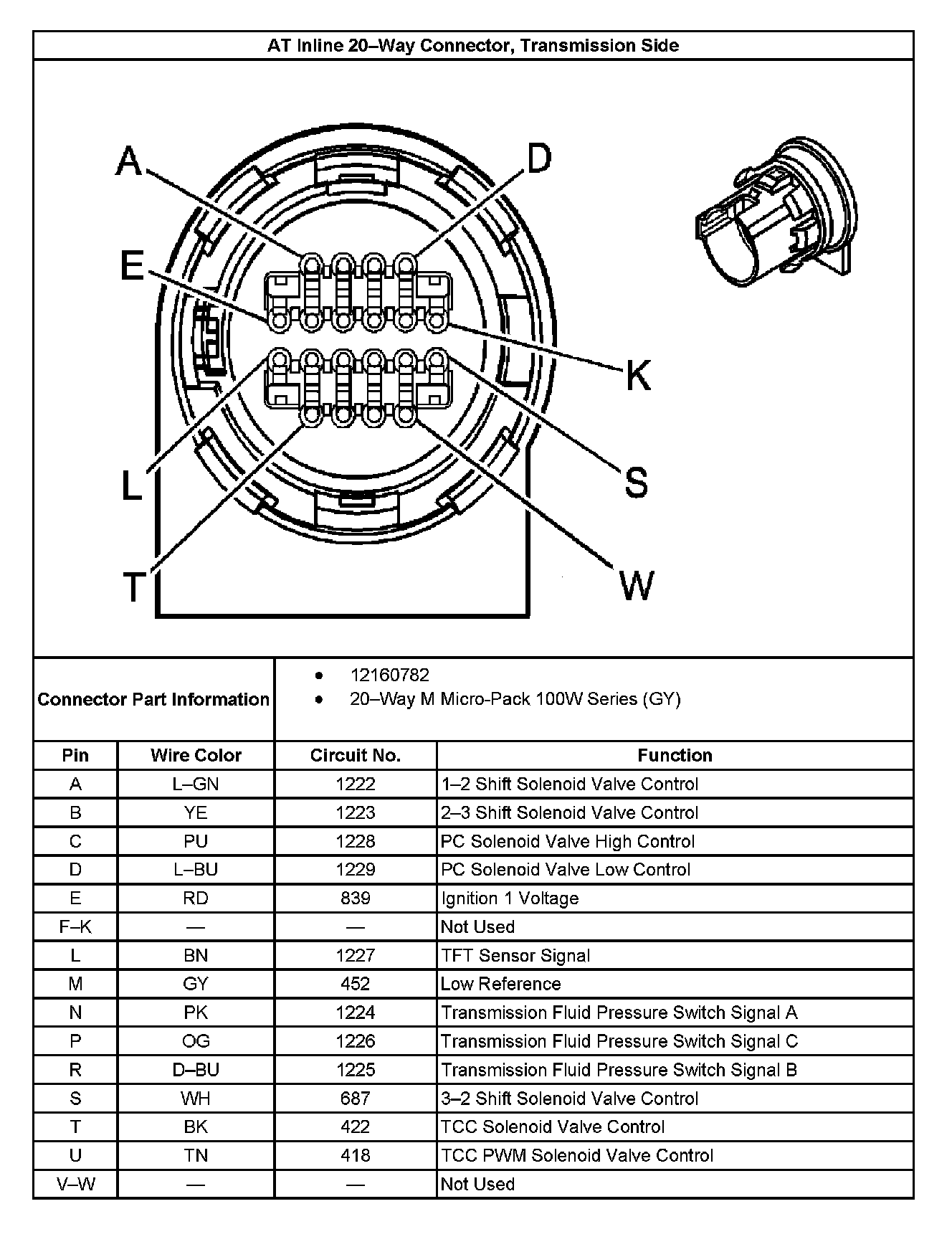

AT Inline 20-Way Connector, Transmission Side:

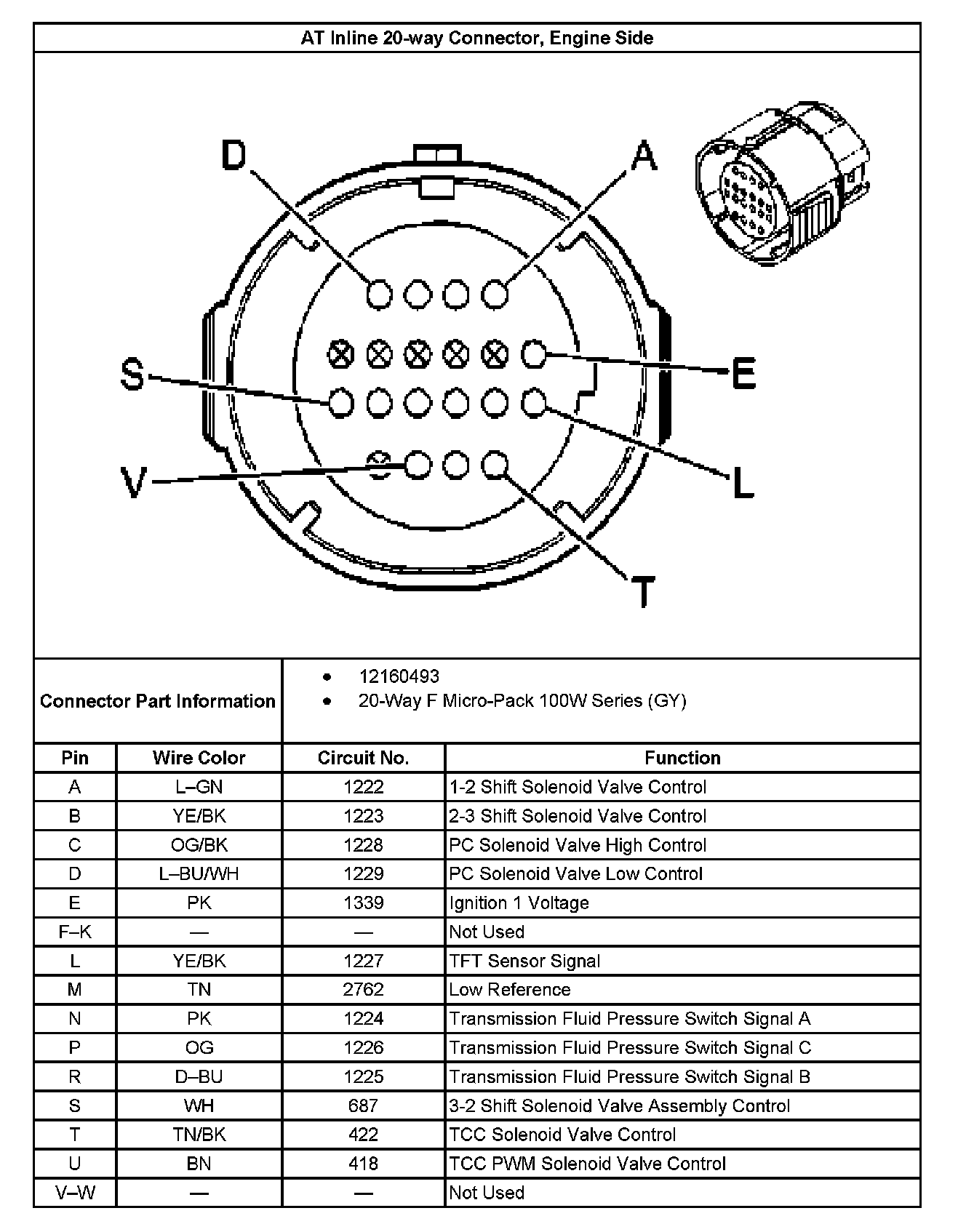

AT Inline 20-way Connector, Engine Side:
