System Specifications

Important: Align the tapered legs of the tool with the machined alignment surfaces on the front cover.

Install the crankshaft balancer bolt.
Tighten the crankshaft balancer bolt by hand until snug. Do not overtighten.
Tighten the engine front cover bolts to 25 Nm (18 ft. lbs.).

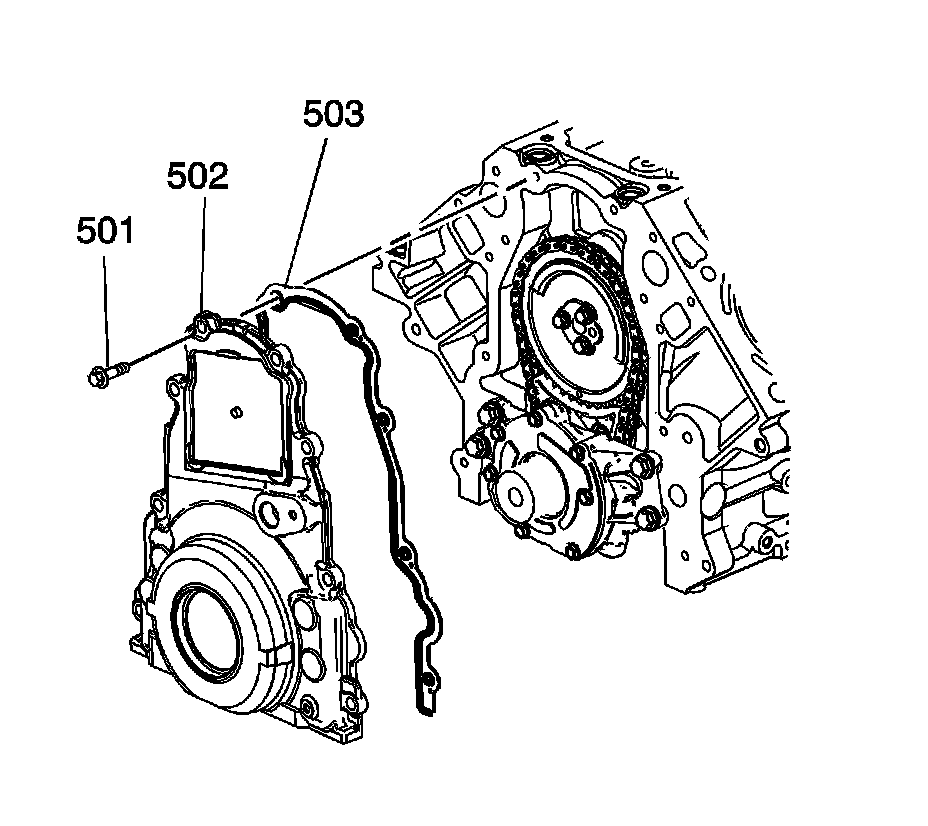

Engine Front Cover
Tighten the bolts to 25 Nm (18 ft. lbs.).
