Removal Procedure

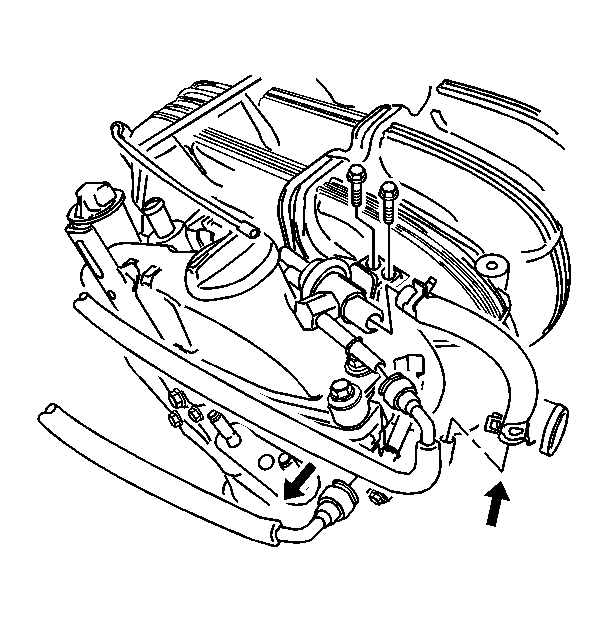

    Fig 1: View Of Fuel Rail Components
    GM1375151Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fuel Pressure Notice in Cautions and Notices.
  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
    2. CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  2. Disconnect the negative battery cable.
  3. Remove the fuel pressure regulator. Refer to Fuel Pressure Regulator Replacement .
  4. Disconnect the fuel feeding pipe from the fuel rail.
    5. Fig 2: View Of Intake Manifold And Retaining Bolts
    GM1375152Courtesy of GENERAL MOTORS CORP.
  5. Remove the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical.
    6. Fig 3: Identifying Fuel Injector Wiring Harness Connectors And Fuel Rail Assembly
    GM1375153Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the fuel injector wiring harness connector.
  7. Remove the fuel rail assembly.
    8. Fig 4: View Of Fuel Injector And Retainer Clip
    GM1375154Courtesy of GENERAL MOTORS CORP.
  8. Remove the fuel injector retainer clip.
  9. Remove the fuel injectors by pulling them down and out.
