Installation Procedure

    Fig 1: View Of Cap, Bulbs And Connectors
    GM1256509Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp bulbs.
  2. Connect the headlamp bulb electrical connectors.
  3. Install the cap that conceals the headlamp bulbs.

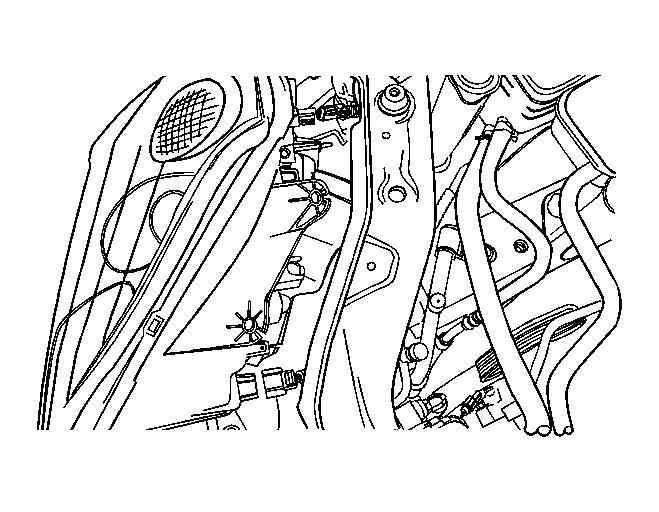

    4. Fig 2: Identifying Headlamp Assembly Electrical Connectors
    GM1256508Courtesy of GENERAL MOTORS CORP.
  4. Connect the headlamp assembly electrical connectors.
    5. Fig 3: View Of Headlamp Assembly And Bolts
    GM1256506Courtesy of GENERAL MOTORS CORP.
  5. Install the headlamp assembly with the bolts.
  6. Connect the negative battery cable.
