Installation Procedure

Fig 1: Locating Long Power Steering Pump Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the power steering pump into the vehicle and install the two long power steering pump bolts.
Tighten: Tighten the power steering pump bolts to 25 N.m (18 lb ft) .
Swing the power steering pump bracket down and install the front right side bolt.
Tighten: Tighten both of the right side power steering pump bracket bolts to 35 N.m (26 lb ft) .

Fig 2: Identifying High Pressure And Supply Hoses

Courtesy of GENERAL MOTORS CORP.

Connect the supply hose to the power steering pump.
Connect the high-pressure hose fitting to the power steering pump.
Tighten: Tighten the high-pressure hose fitting to 28 N.m (21 lb ft) .

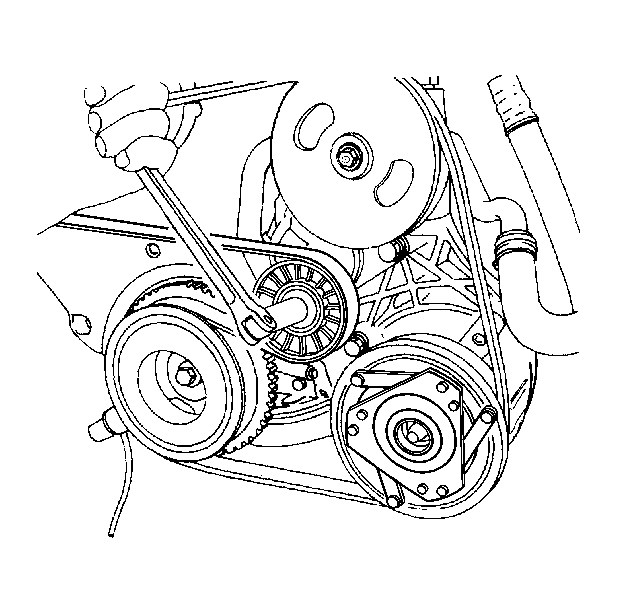

Fig 3: View Of Serpentine Drive Belt Removal/Installation Procedure

Courtesy of GENERAL MOTORS CORP.

Install the serpentine accessory drive belt. Refer to Power Steering Pump Drive Belt Replacement (2.0L) or Power Steering Pump Drive Belt Replacement (2.5L) .
Refill the power steering fluid. Refer to Checking and Adding Power Steering Fluid .
Bleed the power steering system. Refer to Bleeding the Power Steering System .
