Installation Procedure

    Fig 1: View Of Power Window Switch Assembly
    GM1344239Courtesy of GENERAL MOTORS CORP.
  1. Position the switch assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws to the switch assembly.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

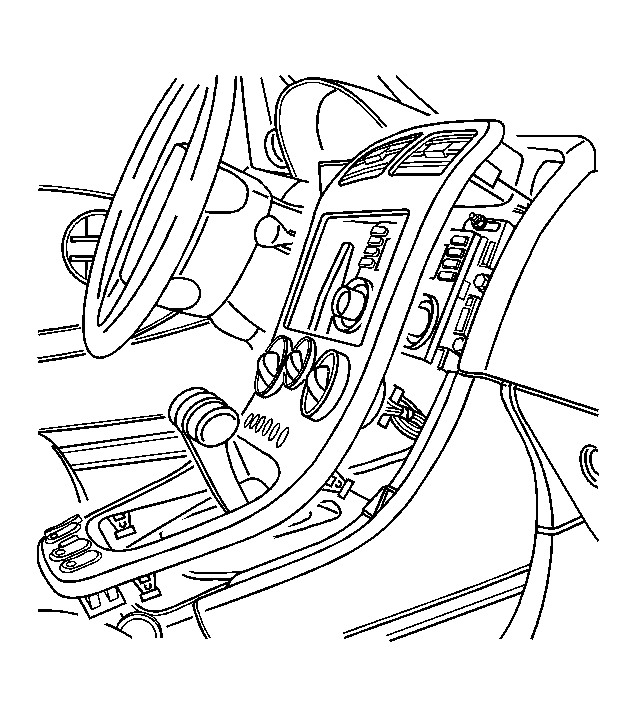

    3. Fig 2: View Of Console Shift Lever Bezel
    GM1344259Courtesy of GENERAL MOTORS CORP.
  3. Install the console shift lever bezel. Refer to Trim Bezel Replacement - Center in Instrument Panel, Gages, and Console.
