Installation Procedure

Lubricate the CMP sensor O-rings with clean engine oil.

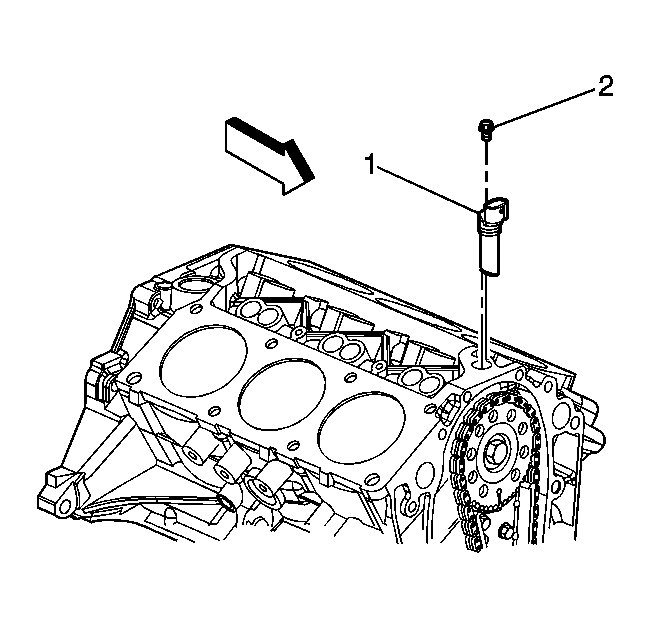

Fig 1: View Of CMP Sensor

GM1087797

Courtesy of GENERAL MOTORS CORP.

Install the CMP sensor.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the CMP sensor bolt.
Tighten: Tighten the bolt to 10 N.m (89 lb in).
Connect the CMP sensor electrical connector.
