Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Lighting Components
GM1824198Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp - RF
2 Park/Turn Signal Lamp - RF
3 Marker Lamp - RF
4 Park Lamp - RF
5 Headlamp - Low Beam - Right
6 Headlamp - High Beam - Right
7 Headlamp - High Beam - Left
8 Headlamp - Low Beam - Left
9 Park Lamp - LF
10 Marker Lamp - LF
11 Park/Turn Signal Lamp - LF
12 Fog Lamp - LF
Fig 2: Steering Column Components
GM1631771Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module
2 Turn Signal/Multifunction Switch C2
3 Turn Signal/Multifunction Switch C1
4 Inflatable Restraint Steering Wheel Module Coil C3
5 Inflatable Restraint Steering Wheel Module Coil C2
6 Ignition Switch
7 Windshield Wiper/Washer Switch Connector
8 Windshield Wiper/Washer Switch
Fig 3: I/P Console Components
GM1631630Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hazard Switch
2 Ambient Light Sensor
3 Inflatable Restraint Passenger Airbag On/Off Indicator
4 Fog Lamp Switch (T96)
5 I/P Dimmer Switch
6 Traction Control Switch (if equipped)
7 HVAC Control Module
8 Inflatable Restraint I/P Module
9 Rear Compartment Lid Release Switch
10 Radio/Navigation Unit (UE1/U2K)
11 Park Brake Lever
12 Auxiliary Power Outlet
13 Steering Wheel - Controls - Right
14 Steering Wheel - Controls - Left
15 Inflatable Restraint Steering Wheel Module
16 Instrument Panel Cluster (IPC)
Fig 4: Cellular Communication Components
GM1631577Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cellular Microphone (UE1)
2 Inside Rearview Mirror
3 OnStar Button Assembly (UE1)
4 Inside Rearview Mirror Lamps
5 Antenna
6 Cellular and Navigational Antenna (U2K/UE1)
7 Remote Control Door Lock Receiver (RCDLR)
8 Vehicle Communication Interface Module (VCIM)
Fig 5: Rear Cargo Area
GM1631583Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Digital Radio Receiver (U2K)
2 Rear Compartment Lamp
3 Rear Compartment Lid

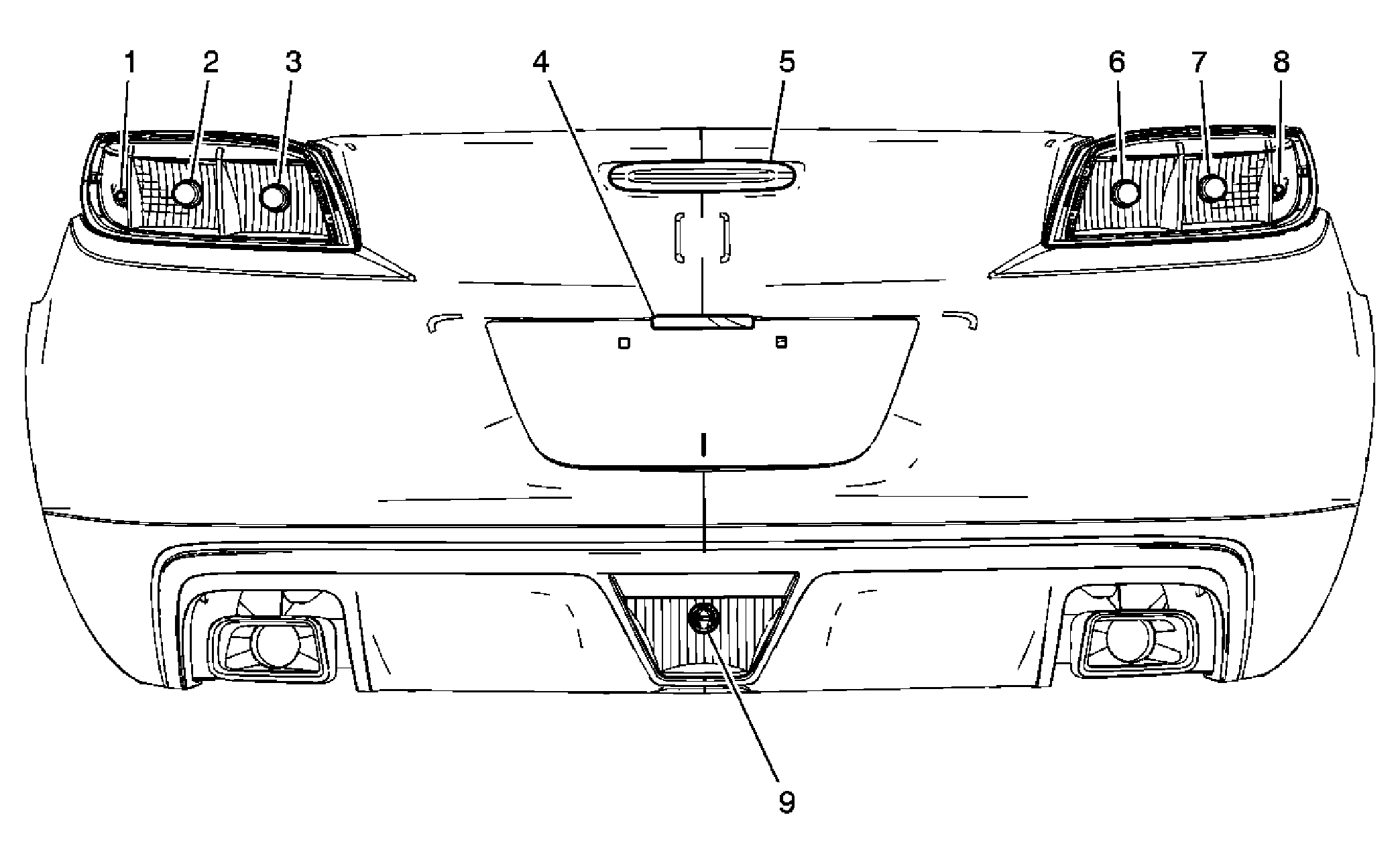

Fig 6: Identifying Rear Lighting Components
GM1824200Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - LR
2 Tail/Stop and Turn Signal Lamp - Left Outer
3 Tail/Stop and Turn Signal Lamp - Left Inner
4 License Lamp
5 Center High Mounted Stop Lamp (CHMSL)
6 Tail/Stop and Turn Signal Lamp - Right Inner
7 Tail/Stop and Turn Signal Lamp - Right Outer
8 Marker Lamp - RR
9 Backup Lamp
