Electronic Brake Control Module

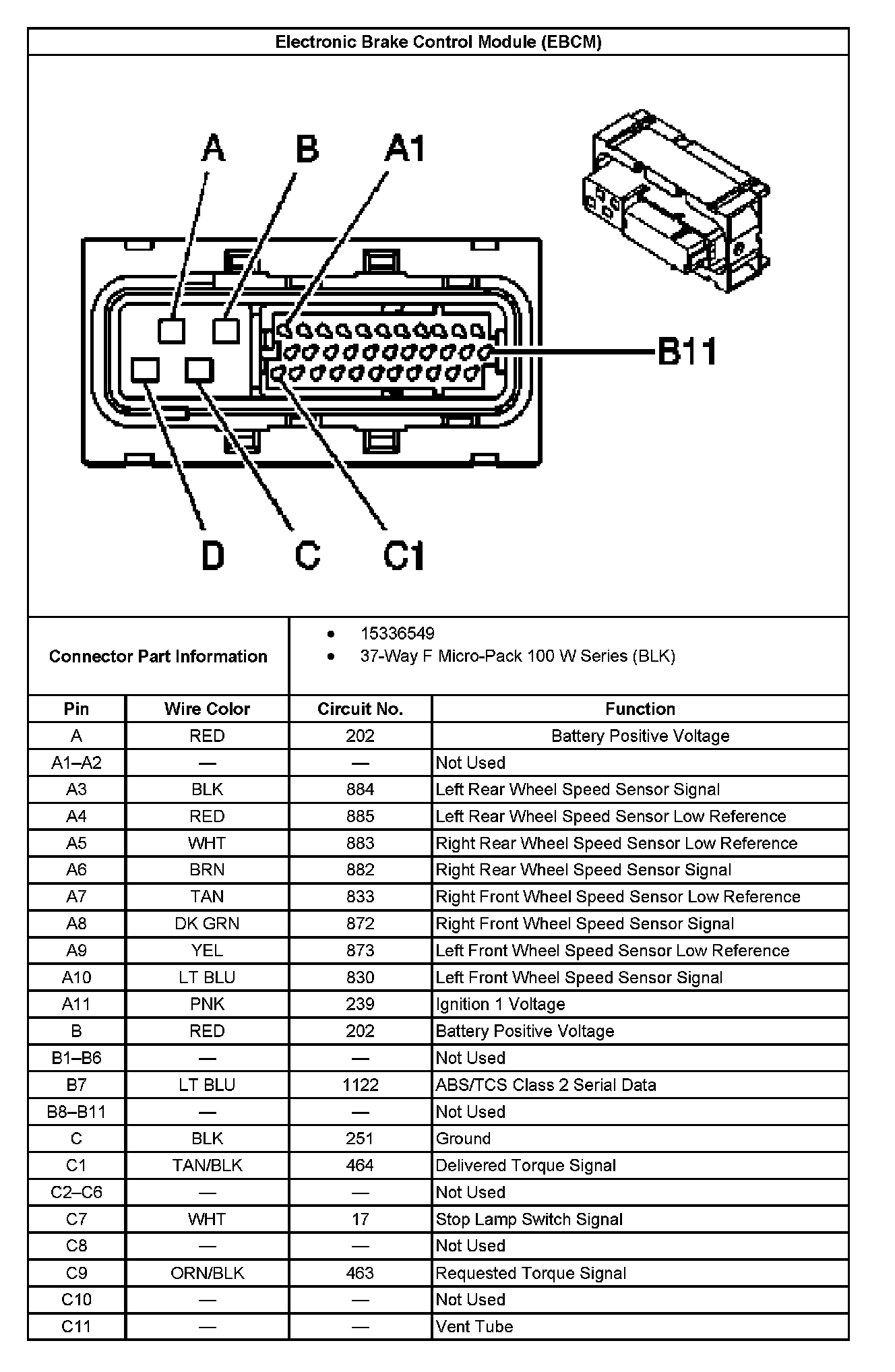

Electronic Brake Control Module 1:
Electronic Brake Control Module 2:
