Axle Shaft Assembly

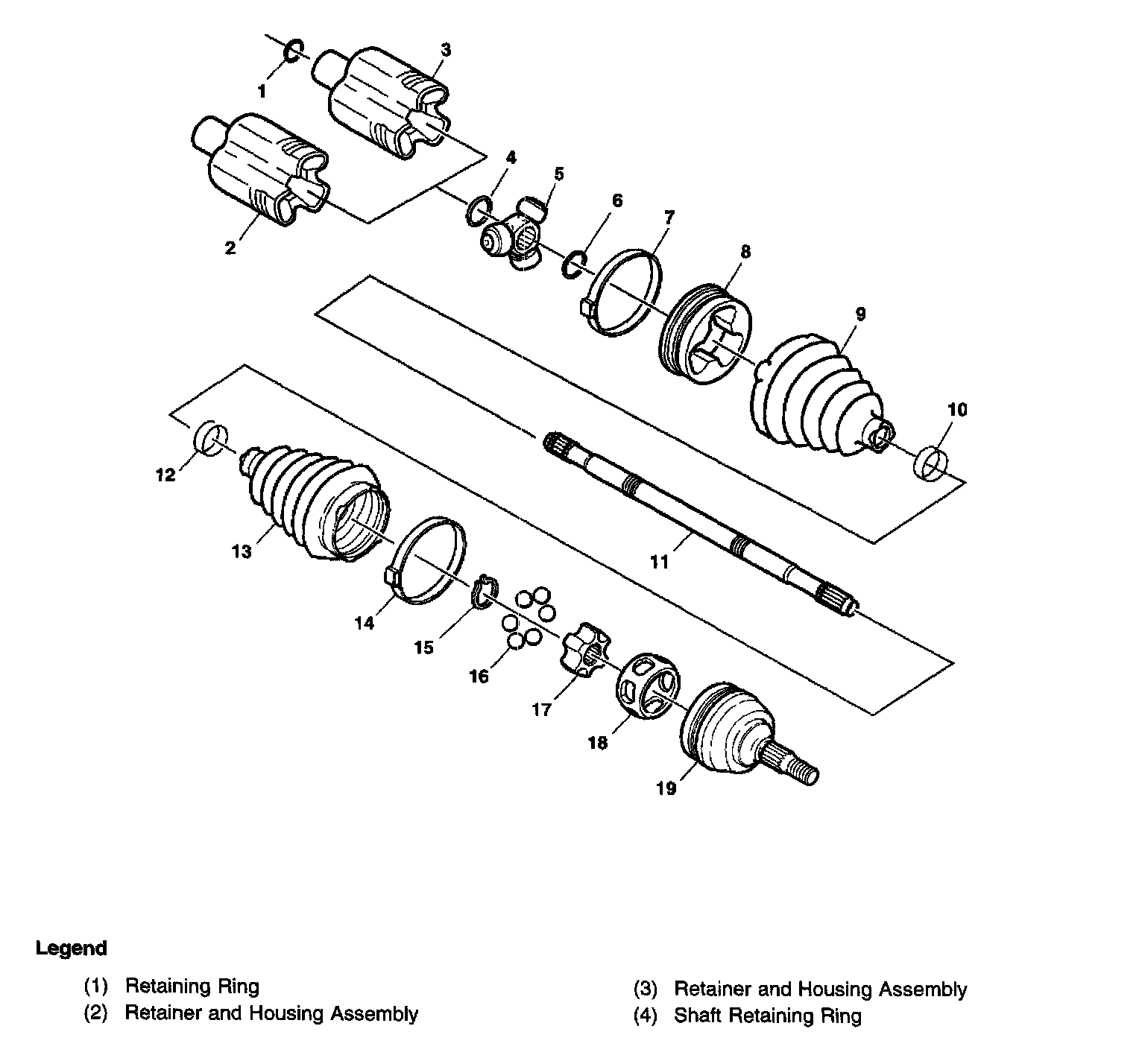

Wheel Drive Shafts Disassembled Views (Part 1 of 2)
Wheel Drive Shafts Disassembled Views (Part 2 of 2)
