Installation Procedure

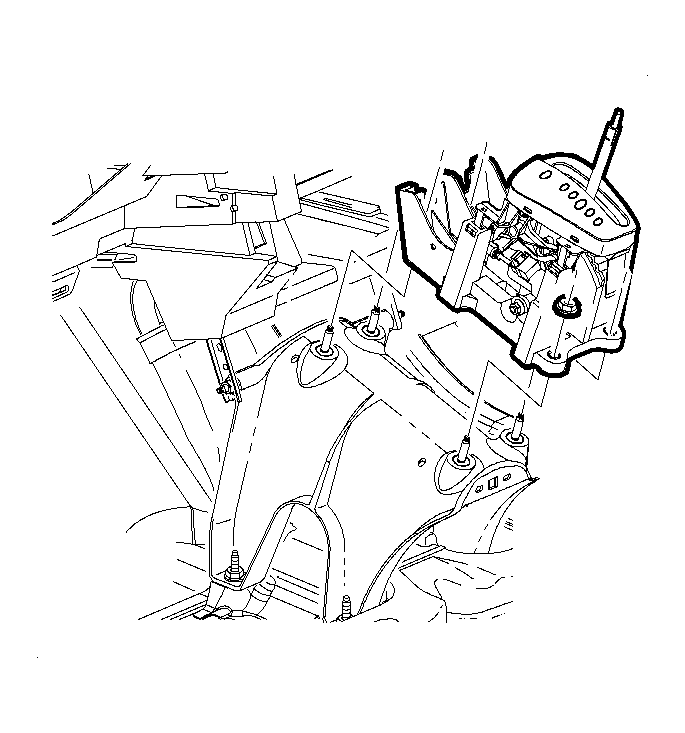

    Fig 1: Removing & Installing Nuts From Control Assembly
    GM944361Courtesy of GENERAL MOTORS CORP.
  1. Install the control assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the control assembly bolts.

    Tighten:  Tighten the control assembly bolts to 25 N.m (18 lb ft).

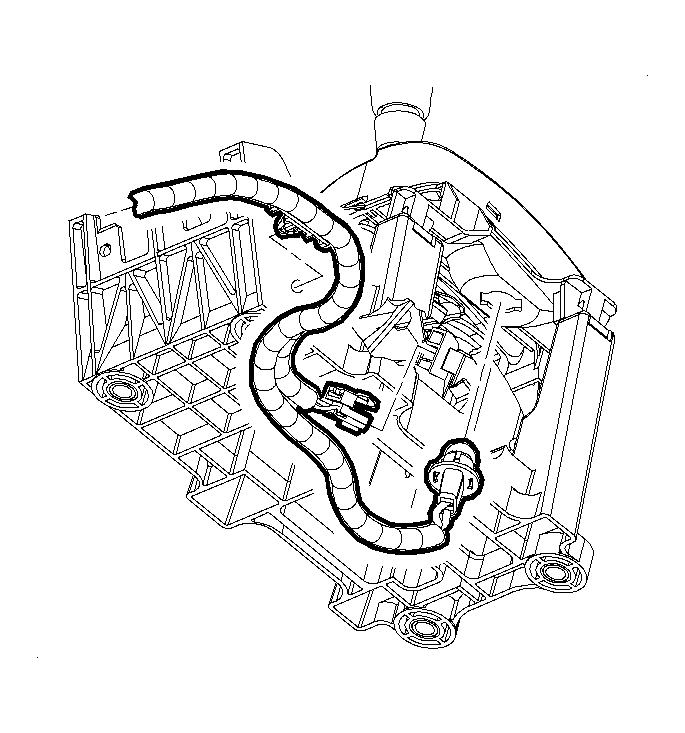

    3. Fig 2: Control Assembly Electrical Connectors
    GM944353Courtesy of GENERAL MOTORS CORP.
  3. Connect the control assembly electrical connectors.
    4. Fig 3: Removing & Installing Indicator Bulb By Rotating Bulb A Quarter Turn And Pulling Out
    GM945404Courtesy of GENERAL MOTORS CORP.
  4. Install the indicator bulb by inserting and rotating one-quarter turn.
    5. Fig 4: Removing & Installing Shifter Cable From Control Assembly
    GM944208Courtesy of GENERAL MOTORS CORP.
  5. Install the park lock cable onto the control assembly.
  6. Connect the park lock cable onto the control assembly pin.
    7. Fig 5: Park Lock Cable Assembly & Pin On Control Assembly
    GM944348Courtesy of GENERAL MOTORS CORP.
  7. Install the shifter cable onto the control assembly.
  8. Connect the shifter cable onto the control assembly pin.
  9. Install the console. Refer to Console Replacement Instrument Panel, Gages, and Console.
