Door Lock/Indicator Schematics

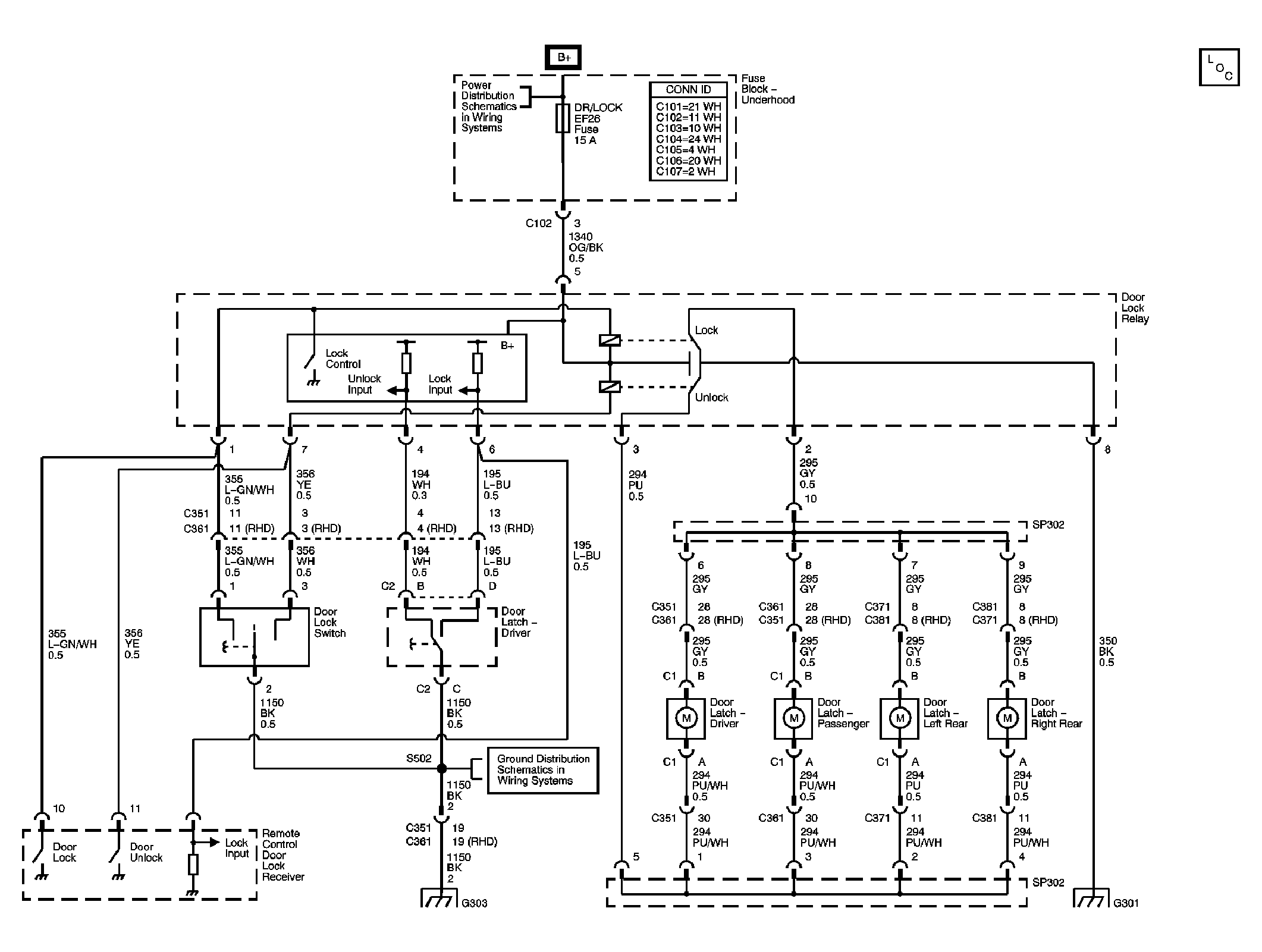

Fig 1: Power Door Locks Schematic

GM1371942

Courtesy of GENERAL MOTORS CORP.
