Quarter Window Replacement: Notes

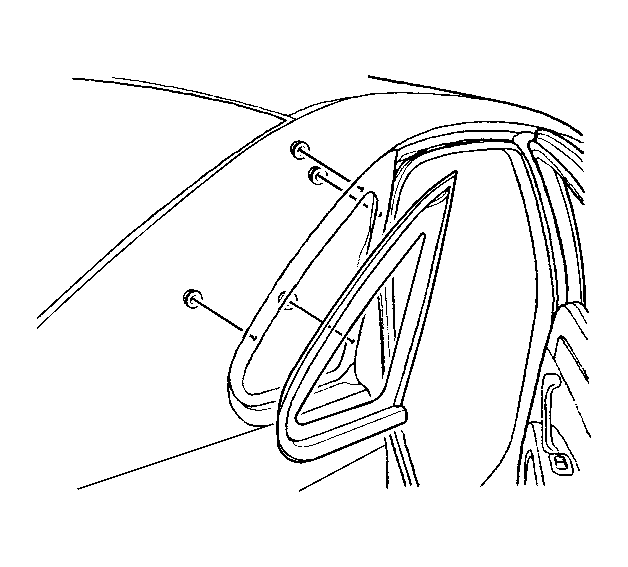

    Fig 1: View Of Rear Door Quarter Glass And Nuts
    GM1308964Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Sedan) or Trim Panel Replacement - Rear Quarter Upper (Wagon) in Interior Trim.
  2. Remove the nuts and the rear door quarter glass.
