Ground Distribution Schematics

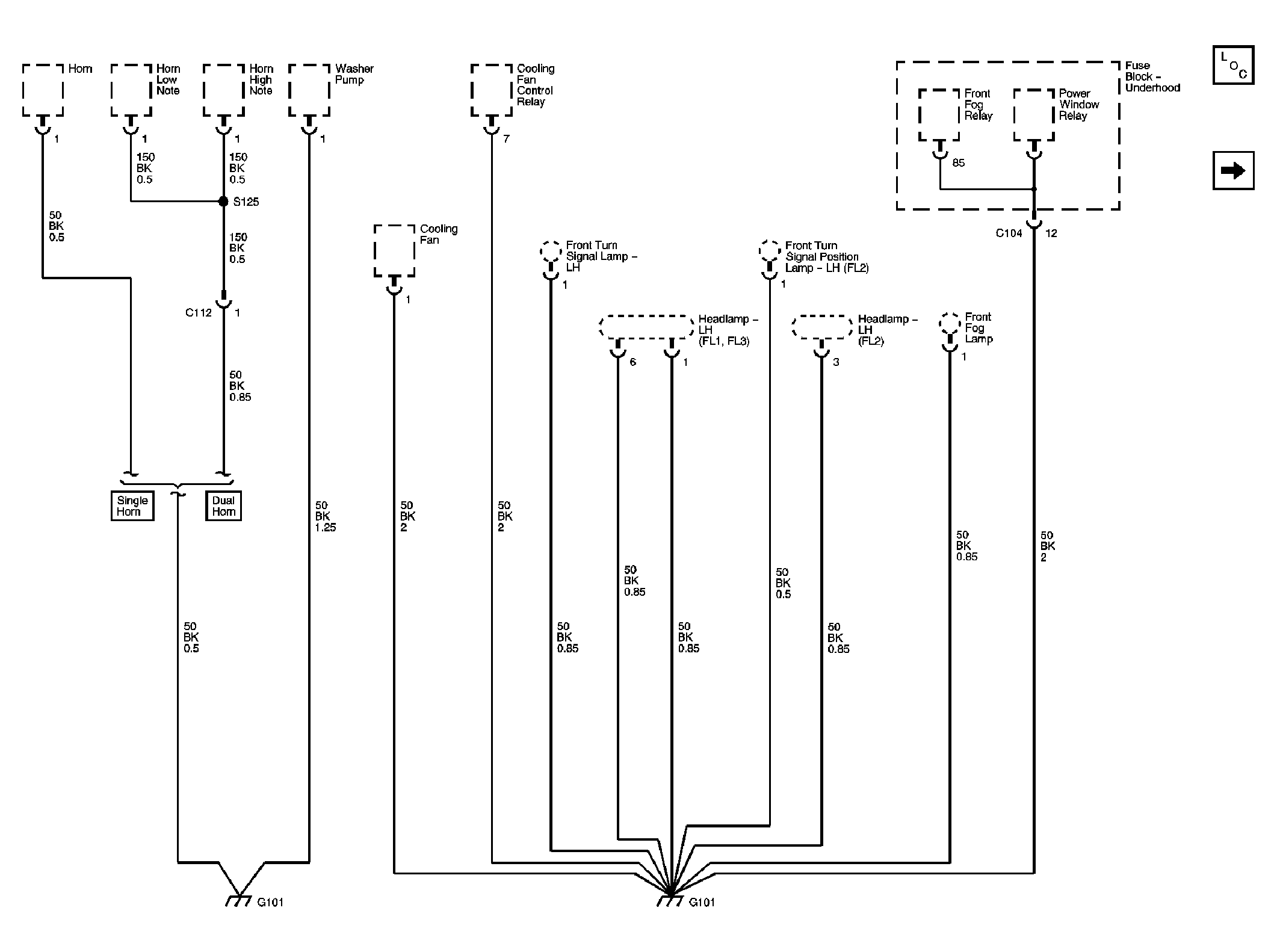

Fig 1: G101 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: G102 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: G104 Schematic - MR-140
Courtesy of GENERAL MOTORS CORP.
Fig 4: G104 (Sirius D4), G103, G105 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 5: G106, G107 Schematic
Courtesy of GENERAL MOTORS CORP.

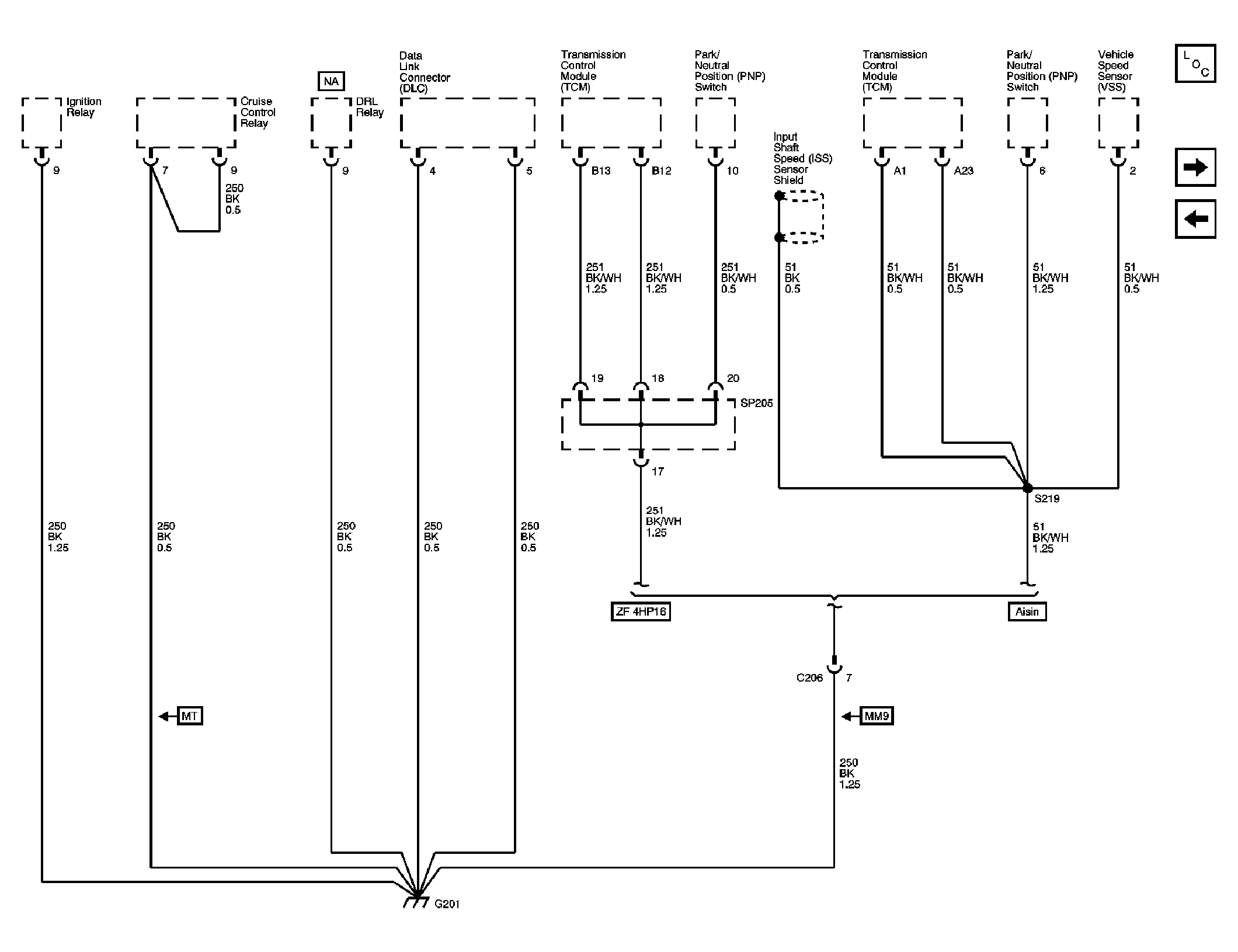

Fig 6: G201 Schematic
Courtesy of GENERAL MOTORS CORP.

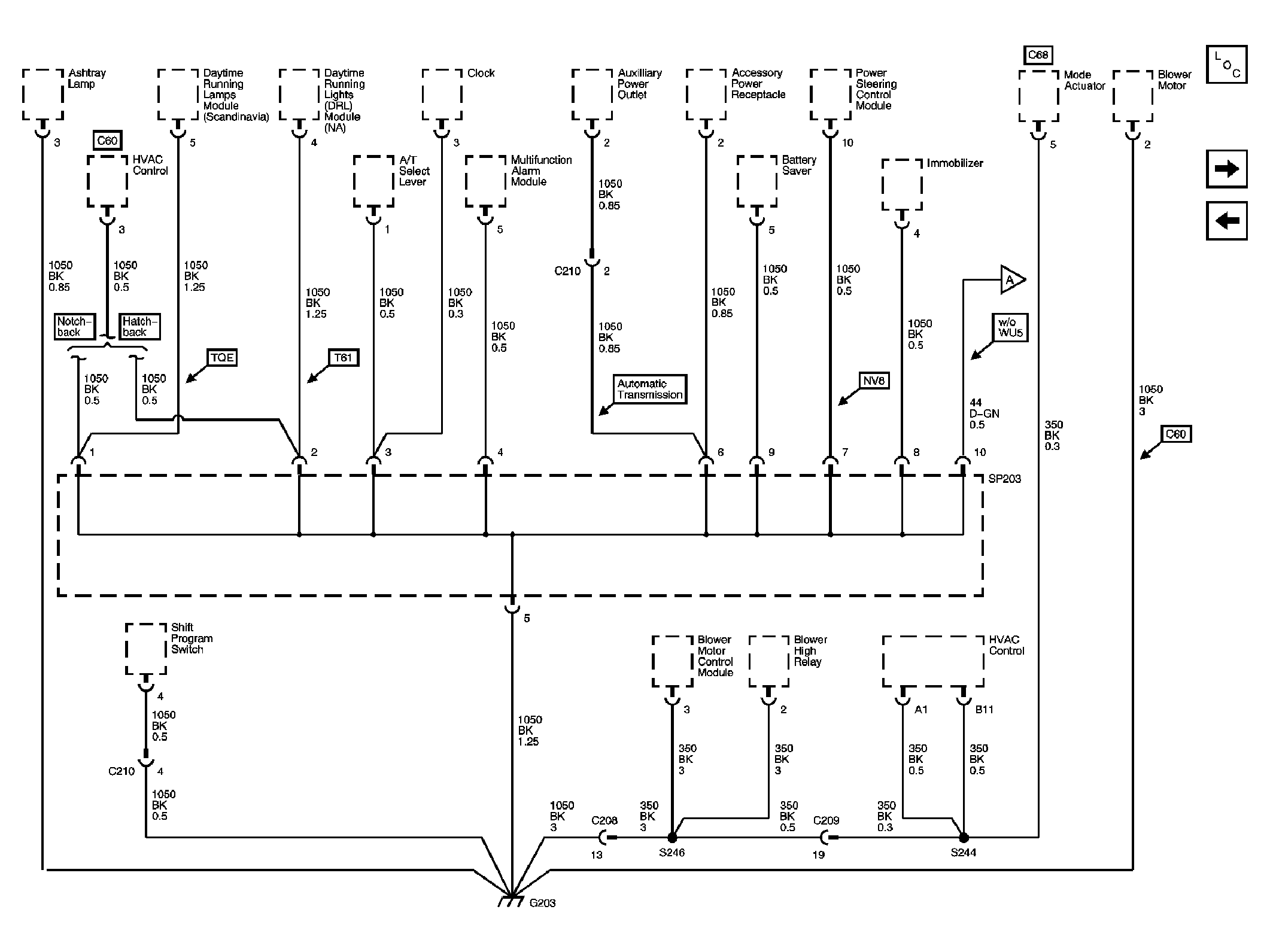

Fig 7: G203 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 8: G203 Schematic Continued (w/o Dimmer)
Courtesy of GENERAL MOTORS CORP.
Fig 9: G202, G204 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 10: G205 Schematic
Courtesy of GENERAL MOTORS CORP.

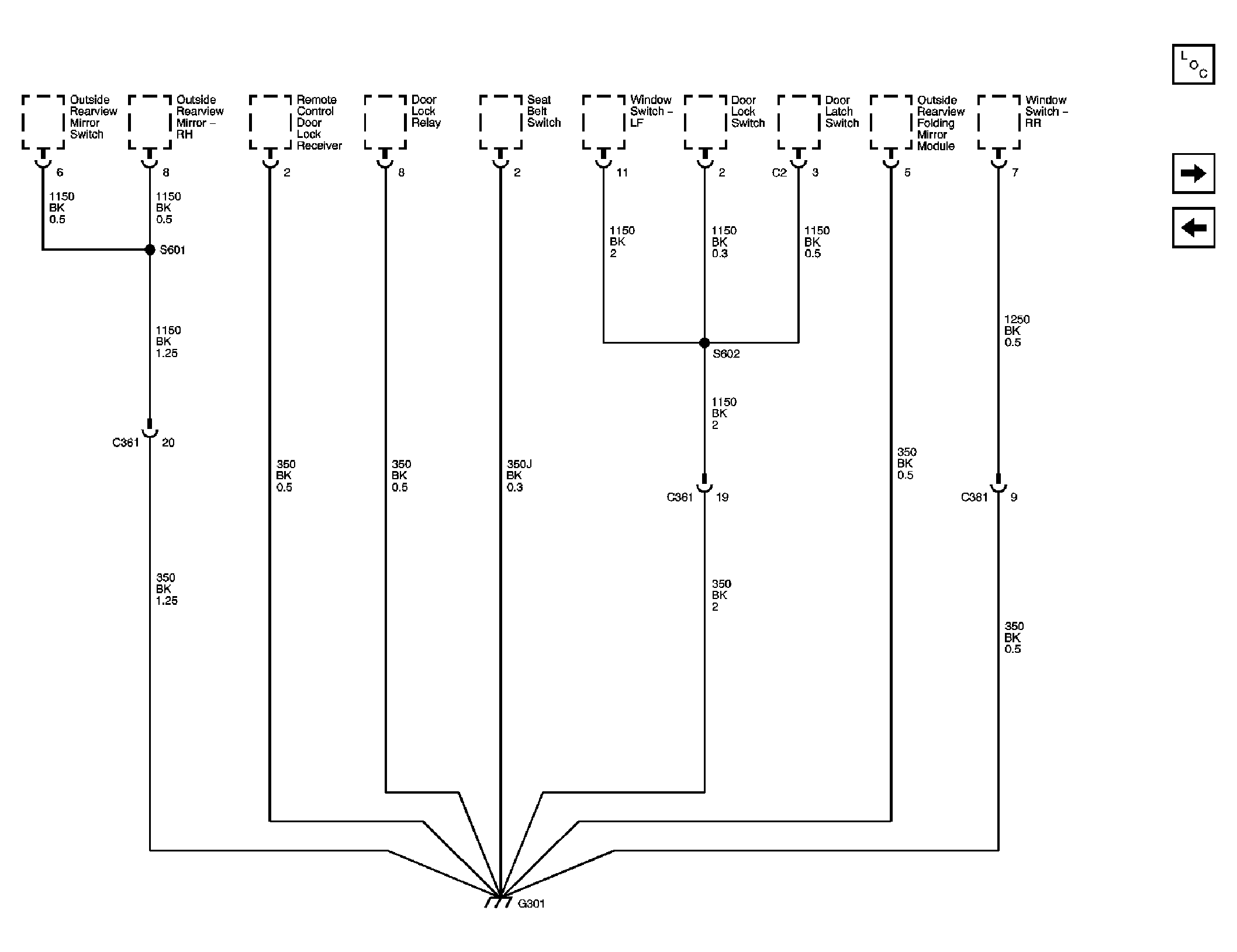

Fig 11: G301 Schematic - RHD Hatchback
Courtesy of GENERAL MOTORS CORP.

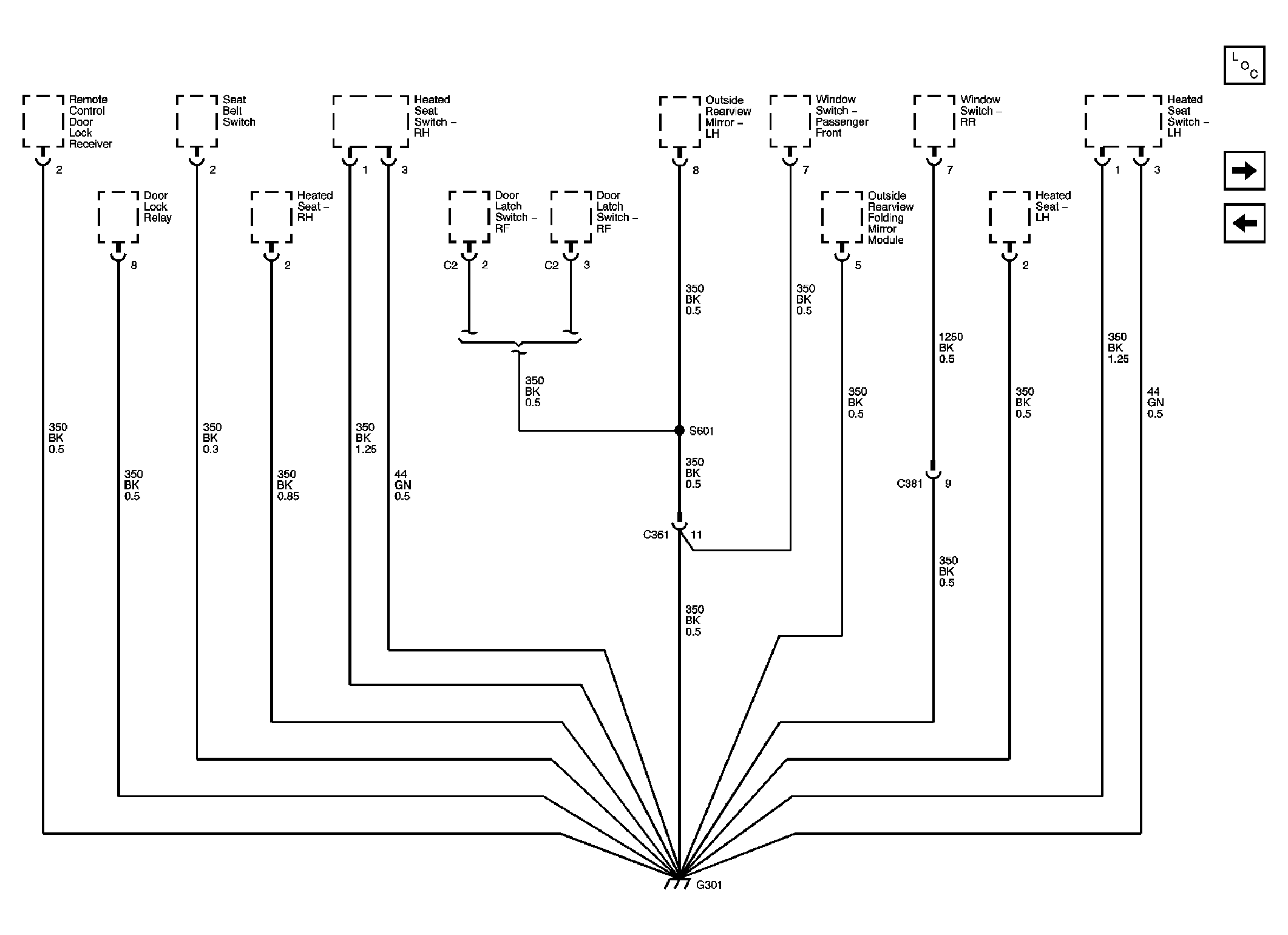

Fig 12: G301 Schematic - Hatchback, Notchback, LHD
Courtesy of GENERAL MOTORS CORP.
Fig 13: G302 Schematic
Courtesy of GENERAL MOTORS CORP.

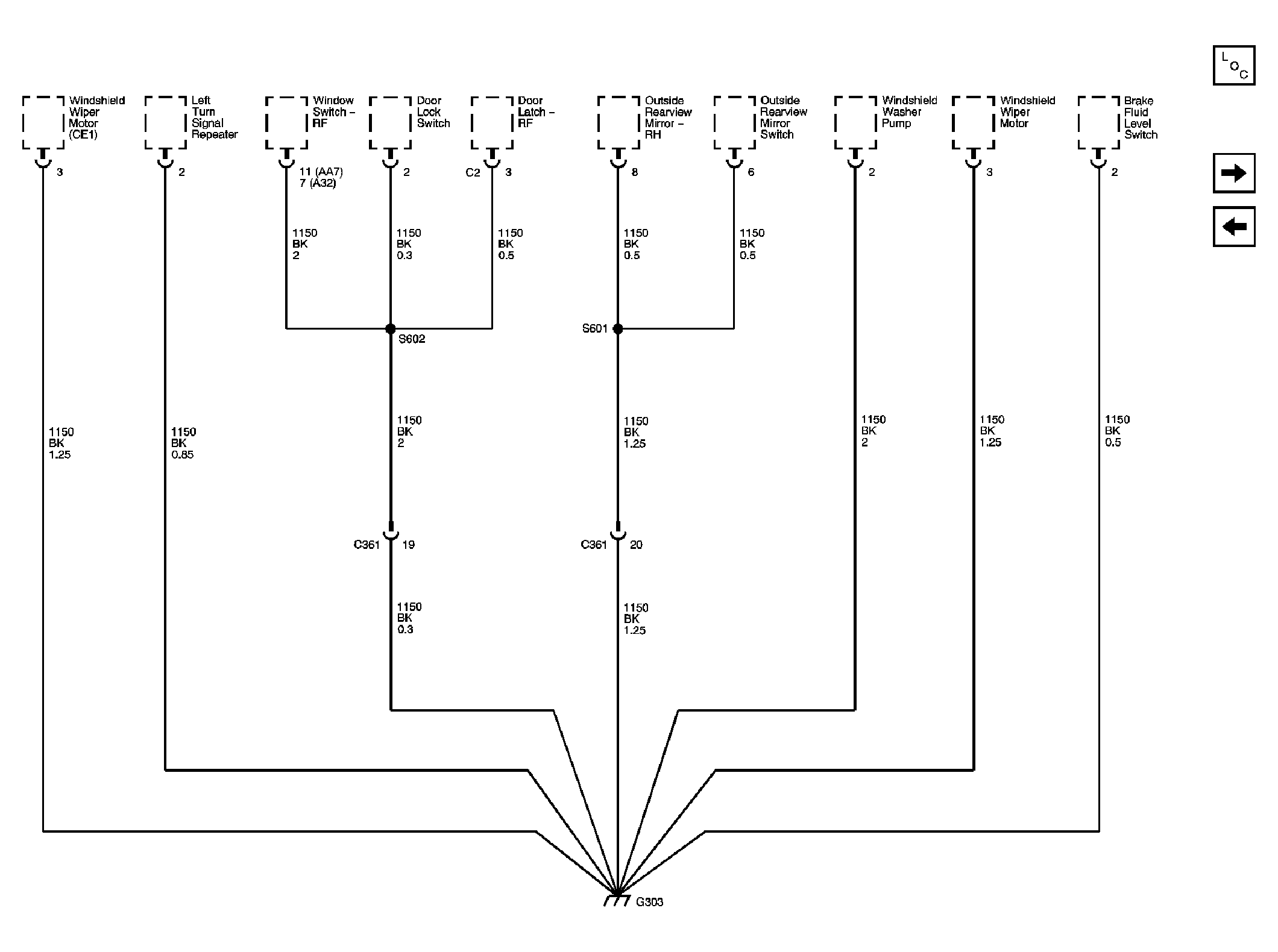

Fig 14: G303 Schematic - Hatchback RHD
Courtesy of GENERAL MOTORS CORP.

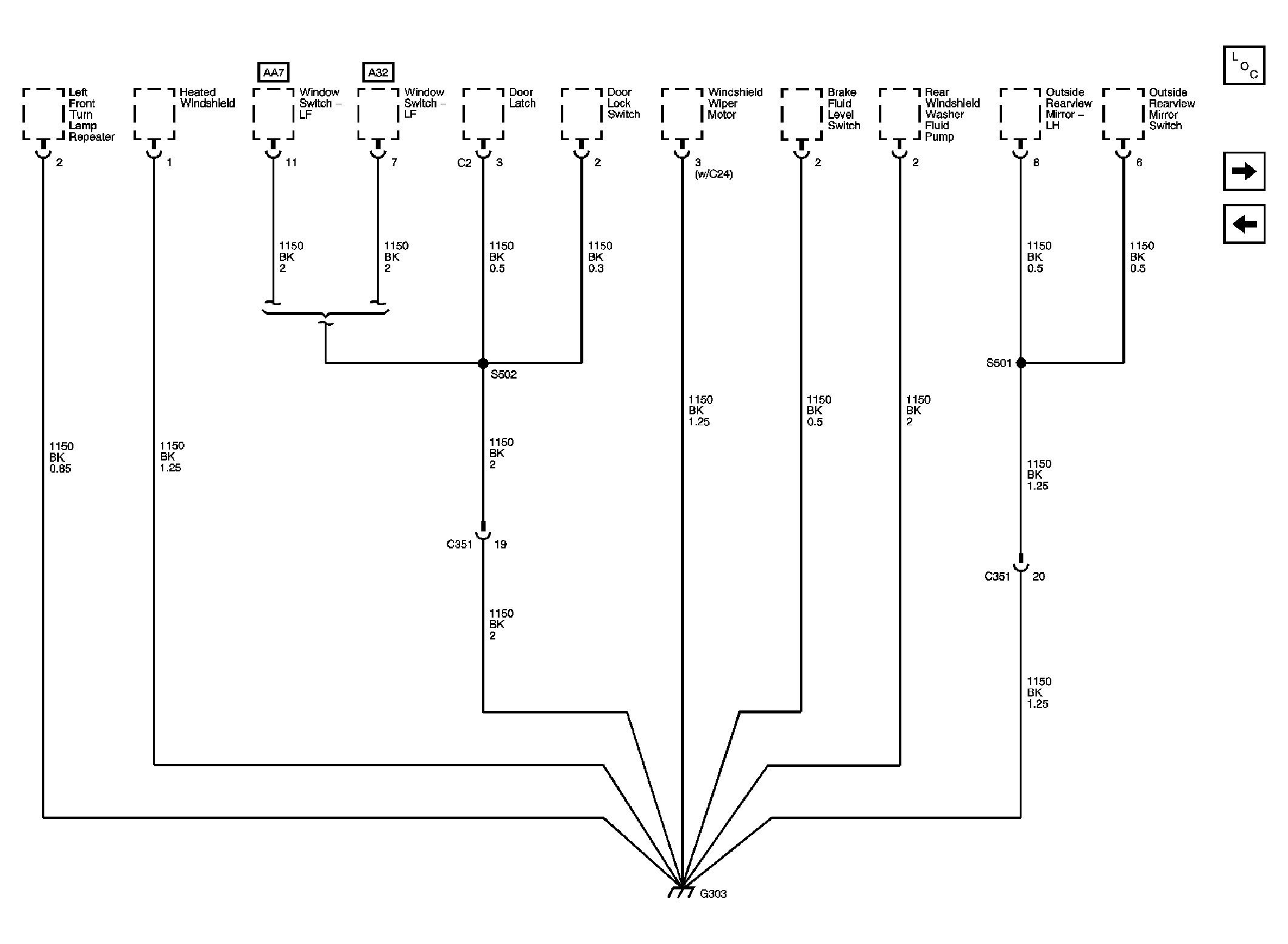

Fig 15: G303 Schematic - Hatchback, Notchback LHD
Courtesy of GENERAL MOTORS CORP.
Fig 16: G303 Schematic - Notchback RHD
Courtesy of GENERAL MOTORS CORP.
Fig 17: G401 Schematic - Notchback
Courtesy of GENERAL MOTORS CORP.
Fig 18: G401 Schematic - Hatchback
Courtesy of GENERAL MOTORS CORP.
Fig 19: G402 Schematic - Hatchback Tailgate
Courtesy of GENERAL MOTORS CORP.
Fig 20: G104 Schematic - HV-240
Courtesy of GENERAL MOTORS CORP.
