Engine Controls Schematics

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL) Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - Pressure And Temperature Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Oxygen Sensors (O2S) Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 4: Ignition Controls - Ignition System Schematics

Courtesy of GENERAL MOTORS CORP.

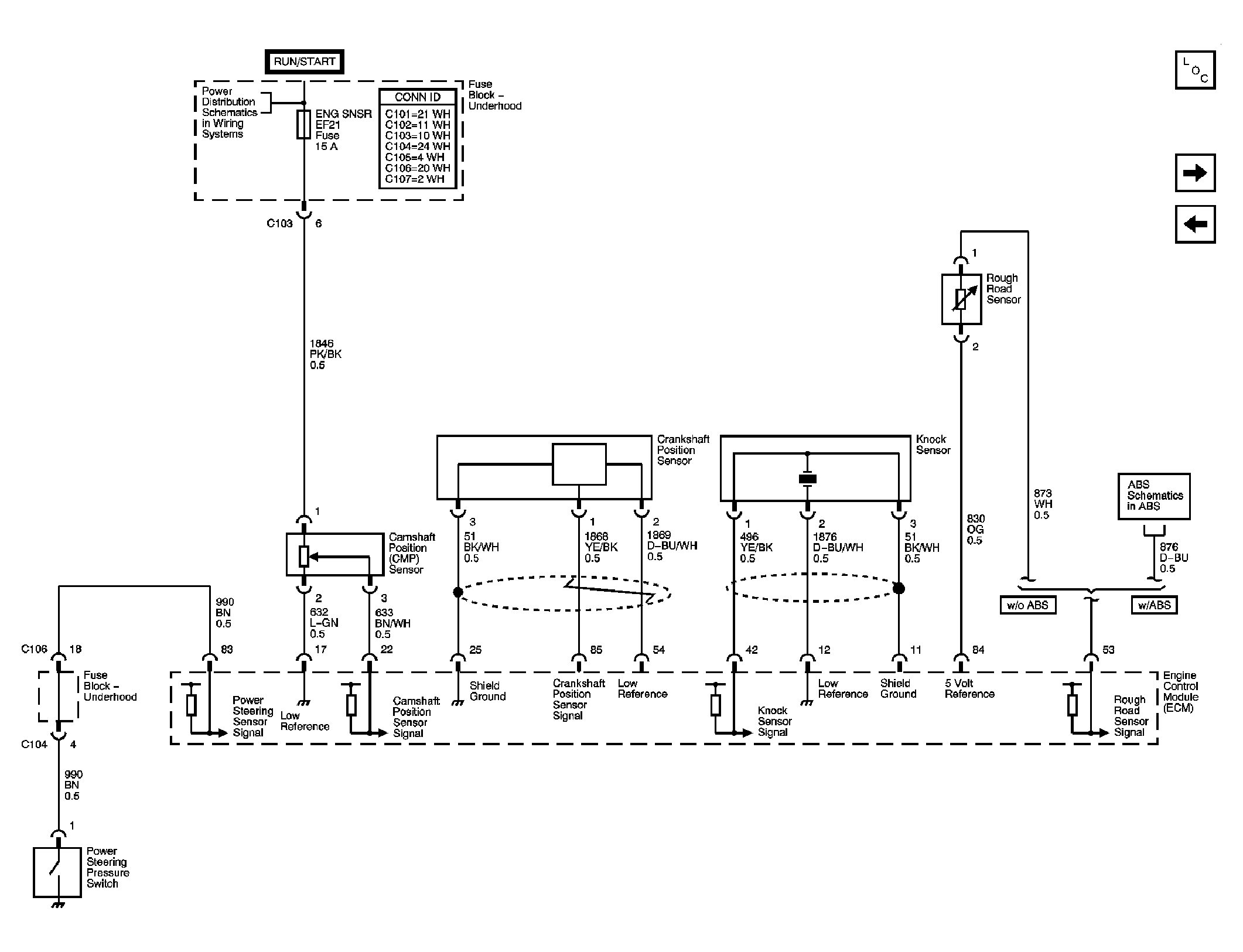

Fig 5: Ignition Controls Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors - Main Throttle Intake Actuator (MTIA) Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 7: Fuel Controls - Fuel Pump Controls And Fuel Injectors Schematics

Courtesy of GENERAL MOTORS CORP.

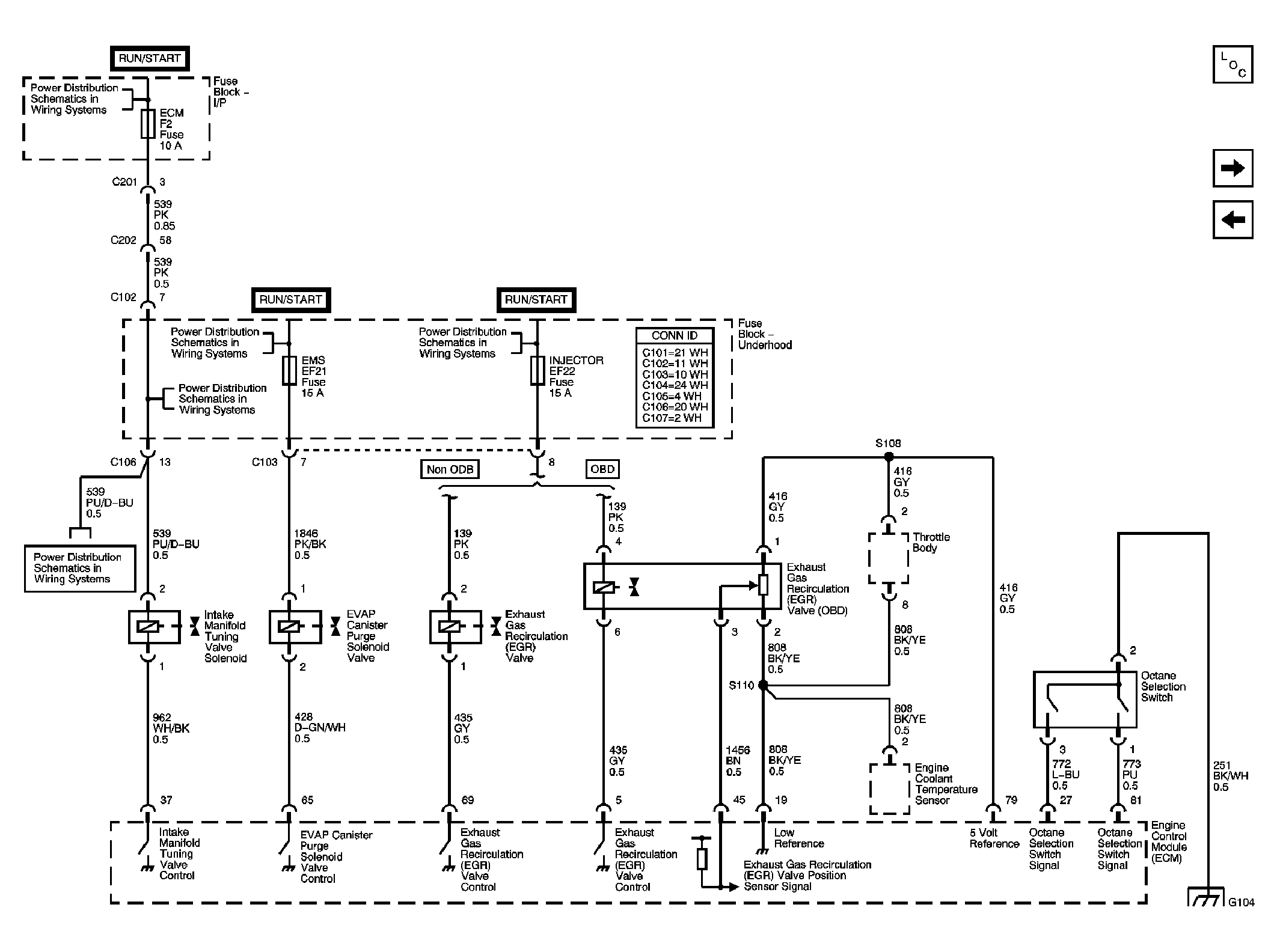

Fig 8: Device Controls Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.
