Entertainment Component Views

Fig 1: Instrument Panel Cluster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Inflatable Restraint I/P Module
5	Auxiliary Power Outlet Front #2
6	Cigar Lighter
7	HVAC Control Module
8	Auxiliary Power Outlet Front #1
9	Noise Compensation Microphone
10	Ignition Switch

Fig 2: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Speaker - LF Door Midrange (Premium Radio)
3	C500
4	C501
5	S500
6	Outside Rearview Mirror - Driver
7	Speaker - LF Door (Premium Radio)
7	Speaker Assembly - LF Door (Base Radio)
8	S501
9	Window Motor - Driver
10	Inflatable Restraint Side Impact Sensor (SIS) - Left
11	Door Latch Assembly - Driver

Fig 3: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Midrange (Premium Radio)
2	Door Latch Assembly - Passenger
3	Passenger Door
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Window Motor - Passenger
6	S601
7	Speaker - RF Door
8	Outside Rearview Mirror - Passenger
9	S600
10	C601
11	C600

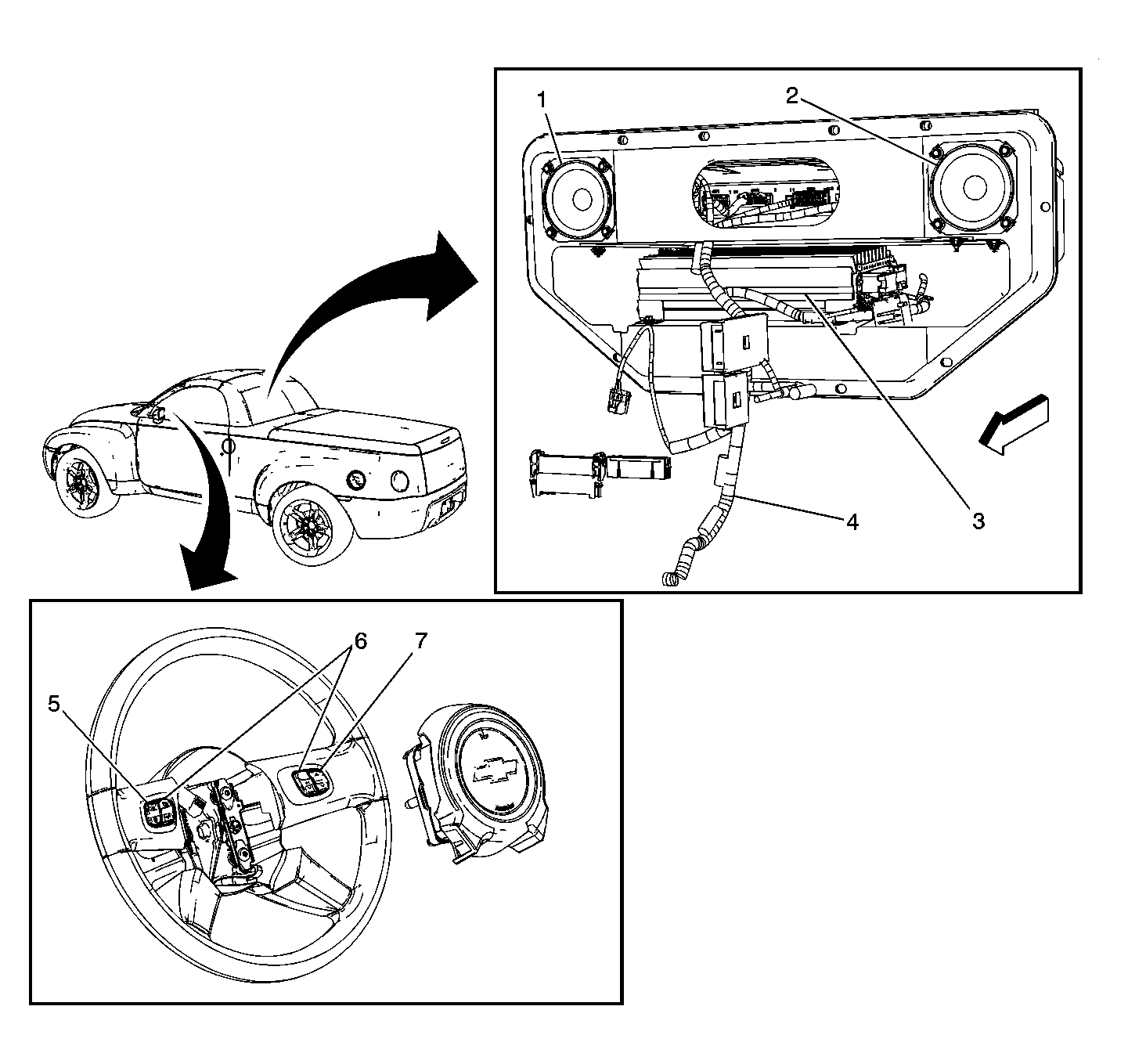

Fig 4: Rear Speakers & Audio Amplifier Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR
3	Audio Amplifier
4	Body Harness
5	Steering Wheel Controls - Left
6	Steering Wheel Controls Assembly
7	Steering Wheel Controls - Right
