Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the audio amplifier to the floor console lower bracket.

Fig 1: Installing Audio Amplifier To Floor Console Lower Bracket
Courtesy of GENERAL MOTORS CORP.
Install the amplifier screws.
Tighten: Tighten the screws to 3.4 N.m (30 lb in).
Install the floor console.
Connect the floor console electrical connector.
Install the screws (1) that retaining the upper console bracket to the lower console bracket.
Tighten: Tighten the retaining screws to 2 N.m (18 lb in).

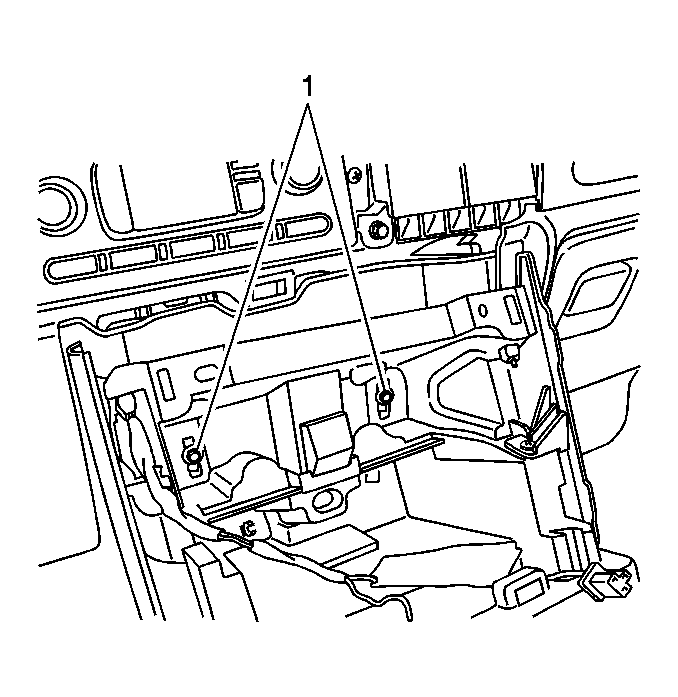

Fig 2: Installing Upper Console Bracket Screws

Courtesy of GENERAL MOTORS CORP.

Install the bolts (1) retaining the console to the I/P.
Tighten: Tighten the bolts to 4 N.m (35 lb in).

Fig 3: Installing Bolts (1) Retaining The Console To The I/P
Courtesy of GENERAL MOTORS CORP.
Install both front console side panel screws (1).
Tighten: Tighten the screws to 2 N.m (18 lb in).

Fig 4: Locating Console Side Panel Screw
Courtesy of GENERAL MOTORS CORP.
Move both front seats to the fully forward.
Install both rear console side panel screws (2). See Fig 5.
Tighten: Tighten the retaining screws to 2 N.m (18 lb in).
Reposition the inboard seat track trim (1).

Fig 5: View Of Seat Track Trim & Rear Console Side Panel Screw
Courtesy of GENERAL MOTORS CORP.
Connect the audio amplifier electrical connectors.
Connect the floor console electrical connector.
Install the center console end panel. Refer to Center Console End Panel Replacement in Instrument Panel, Gages and Console.
Install the console storage bin. Refer to Console Storage Bin Replacement (Expect Pro) or Console Storage Bin Replacement (Pro) in Instrument Panel, Gages and Console.
Install the cupholder to the console. Refer to Cupholder Replacement (Luxury)Cupholder Replacement (Non-Luxury) , Cupholder Replacement (Rear) or Cupholder Replacement (Pro) in Instrument Panel, Gages and Console.
Install the upper console bezel. Refer to Bezel Replacement - Floor Console (Non-Luxury Upper) , Bezel Replacement - Floor Console (Luxury Upper) or Bezel Replacement - Floor Console (Non-Luxury Lower) in Instrument Panel, Gages and Console.
Install the radio amp fuse. Refer to Electrical Center Identification Views in Wiring Systems.
If the amplifier has been replaced, perform the audio amplifier set up procedure for the BOSE™ amplifier with RPO codes UQ7 and Y91. Refer to Audio Amplifier Setup .
