Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the coaxial cable to the radio.
  2. Connect the wire connectors.
  3. Push in the radio assembly in the opening in order to install the screws.

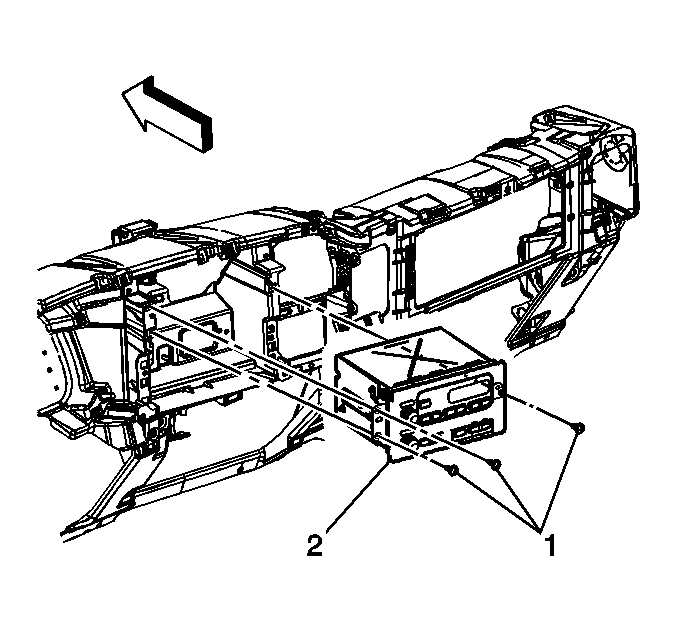

    Fig 1: Installing Radio Screws
    GM854851Courtesy of GENERAL MOTORS CORP.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the 3 screws (1).

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

  5. Install the cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
  6. Calibrate the new radio assembly. Refer to Service Programming System (SPS) in Programming.
