Cooling System Component Views

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

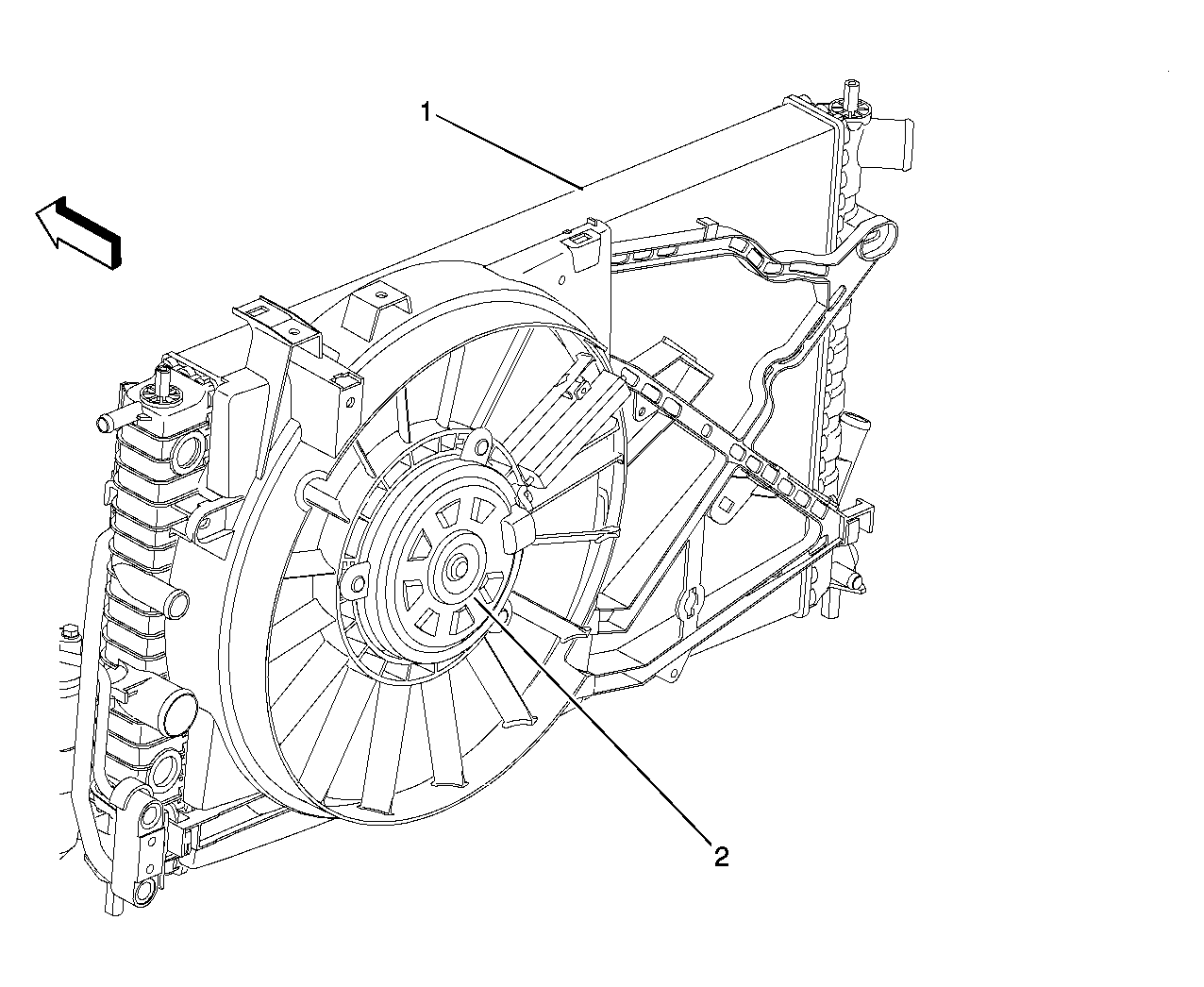

Fig 1: Identifying Engine Cooling Fans
GM1256495Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan 2
2 Cooling Fan 1 (Front of Radiator)
Fig 2: Identifying Components Located At Left Rear Corner Engine Compartment
GM1253897Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Module (CCM)
2 Windshield Wiper Motor Connector
3 SP191
4 Fuse Block - Underhood
5 Coolant Level Switch
6 Cooling Fan Control Module C1
7 Cooling Fan Control Module C2
8 Daytime Running Lamp (DRL) Resistor
9 Windshield Washer Fluid Level Switch
10 G103 (SP103)
11 Electronic Brake Control Module (EBCM)
12 Brake Fluid Level Switch
13 C199

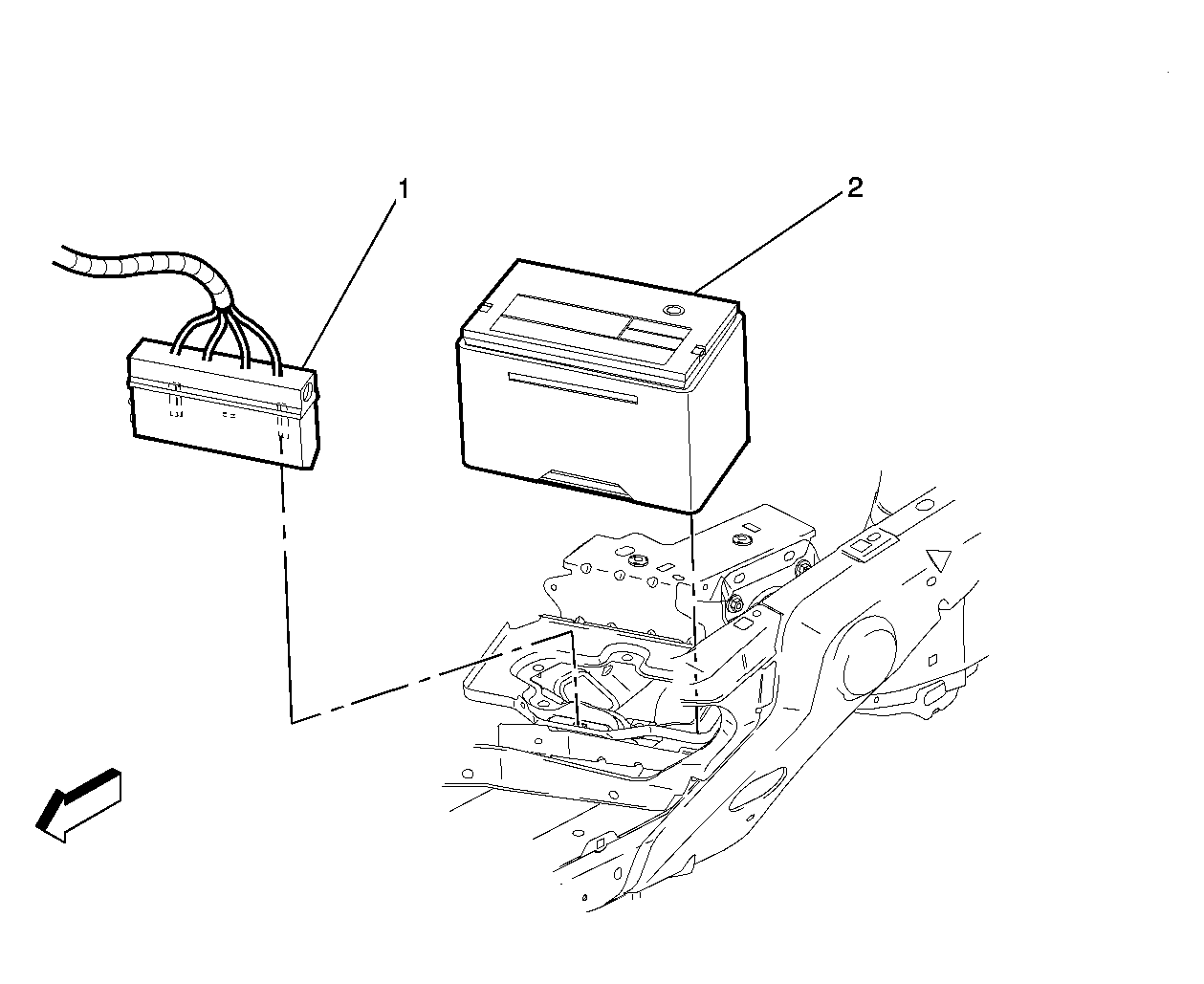

Fig 3: Identifying LF Corner Of The Engine Compartment
GM1256500Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan Control Module
2 Battery
