Installation Procedure

    Fig 1: Removing/Installing Upper Control Arm
    GM731548Courtesy of GENERAL MOTORS CORP.
  1. Install the upper control arm.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper control arm mounting bolts.

    Tighten:  Tighten the upper control arm mounting bolts to 150 N.m (111 lb ft).

    3. Fig 2: View Of ABS Harness
    GM731546Courtesy of GENERAL MOTORS CORP.
  3. Connect the ABS wheel speed sensor wiring harness to the upper control arm.

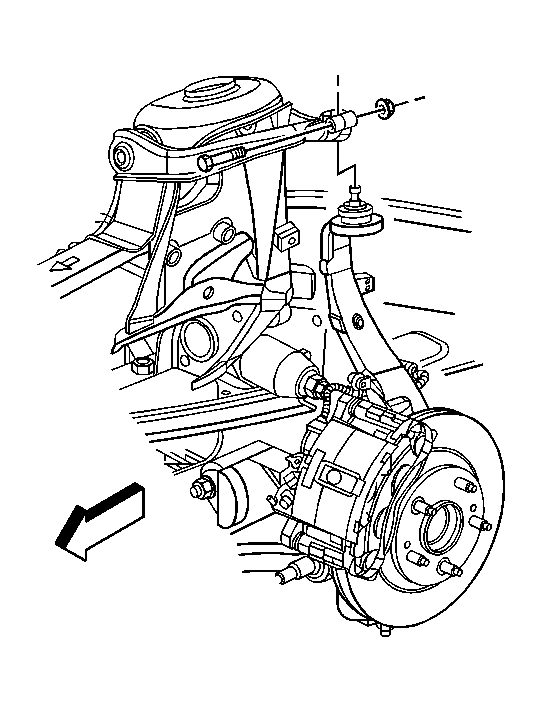

    4. Fig 3: View Of Upper Control Arm To Steering Knuckle Pinch Bolt & Nut
    GM1277172Courtesy of GENERAL MOTORS CORP.
  4. Connect the upper control arm to the steering knuckle.
  5. Install the upper ball joint to upper control arm pinch bolt and nut.

    Tighten:  Tighten the upper ball joint to upper control arm pinch bolt to 40 N.m (30 lb ft).

  6. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels
  7. Lower the vehicle.
  8. Check the front wheel alignment. Refer to Wheel Alignment Specifications in Wheel Alignment.
