Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not twist the connecting strap during installation.

Connect the cruise control throttle cable to the cruise control module connecting strap.
Install the cruise control throttle cable to the cruise control module by rotating 1/4 turn clockwise.

NOTE: Refer to Fastener Notice in Cautions and Notices.

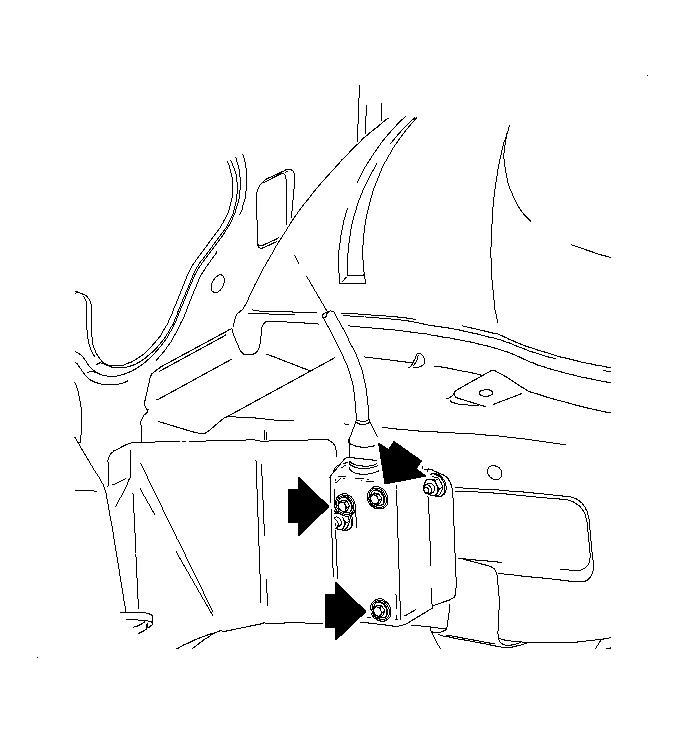

Fig 1: Installing Cruise Control Module Bolts

Courtesy of GENERAL MOTORS CORP.

Install the cruise control module with the throttle cable into the frame rail bracket and install the attachment bolts.
Tighten: Tighten the cruise control module to frame rail bracket bolts to 10 N.m (89 lb in).
Install the throttle cable clip to the front of the dash stud.

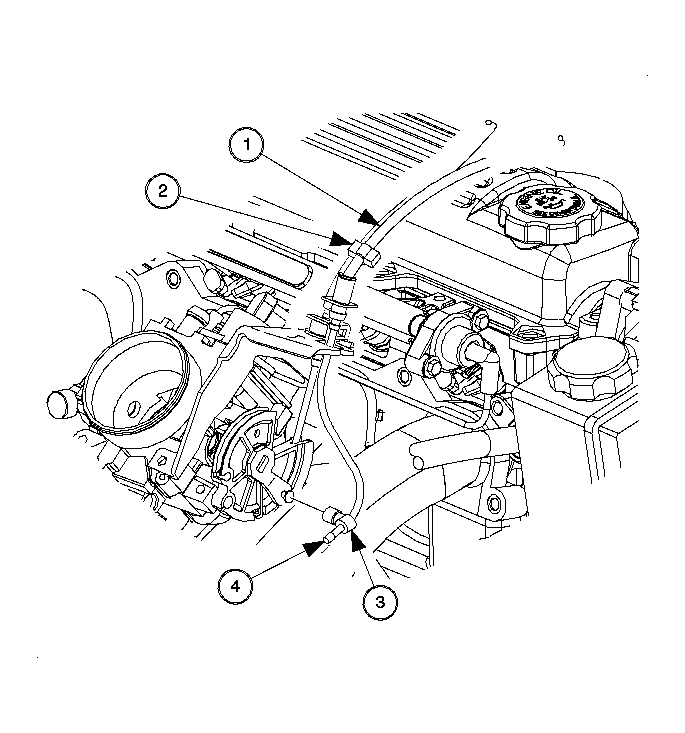

- Cruise Control Throttle Cable (1)
- Cable Snap (3)
- Cable End (4)
Fig 2: Connecting Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
Install the cruise control throttle cable snap to the throttle body cam.
Install the cruise control throttle cable to both attachment clips.
Connect the cruise control module harness connector. Push in until a click is heard and pull back to confirm a positive engagement.
